120 GC - TIER 4 / STAGE 5

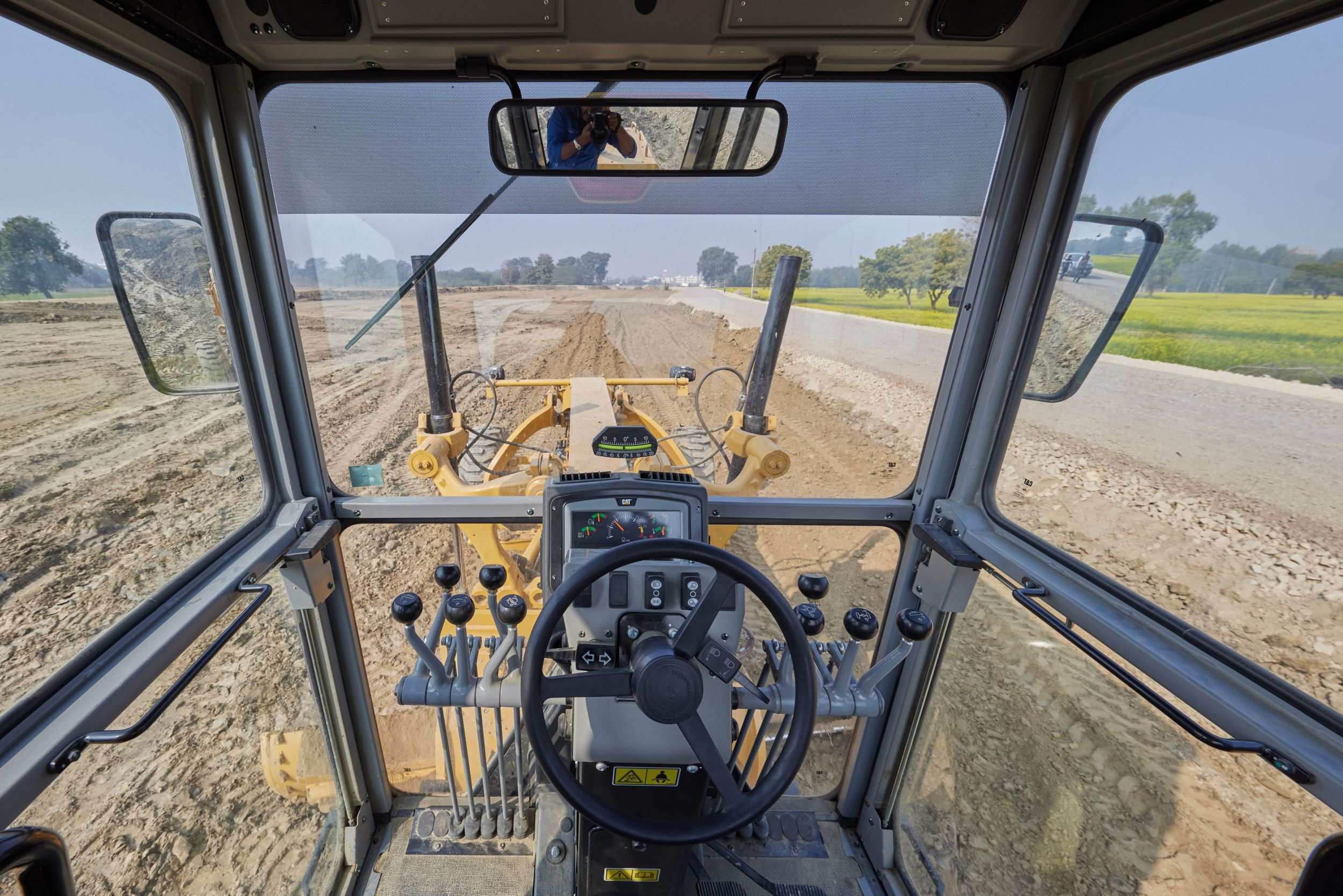

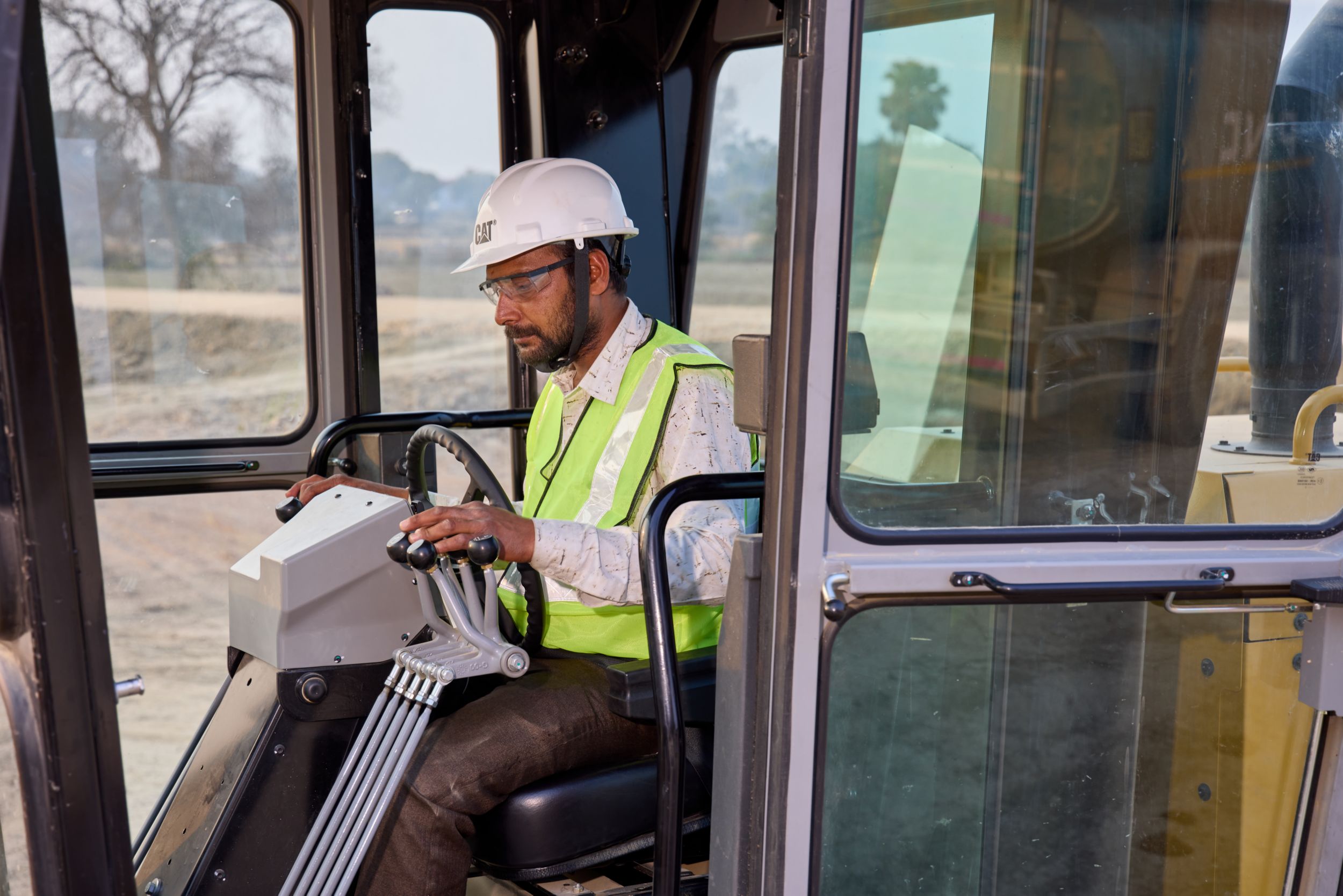

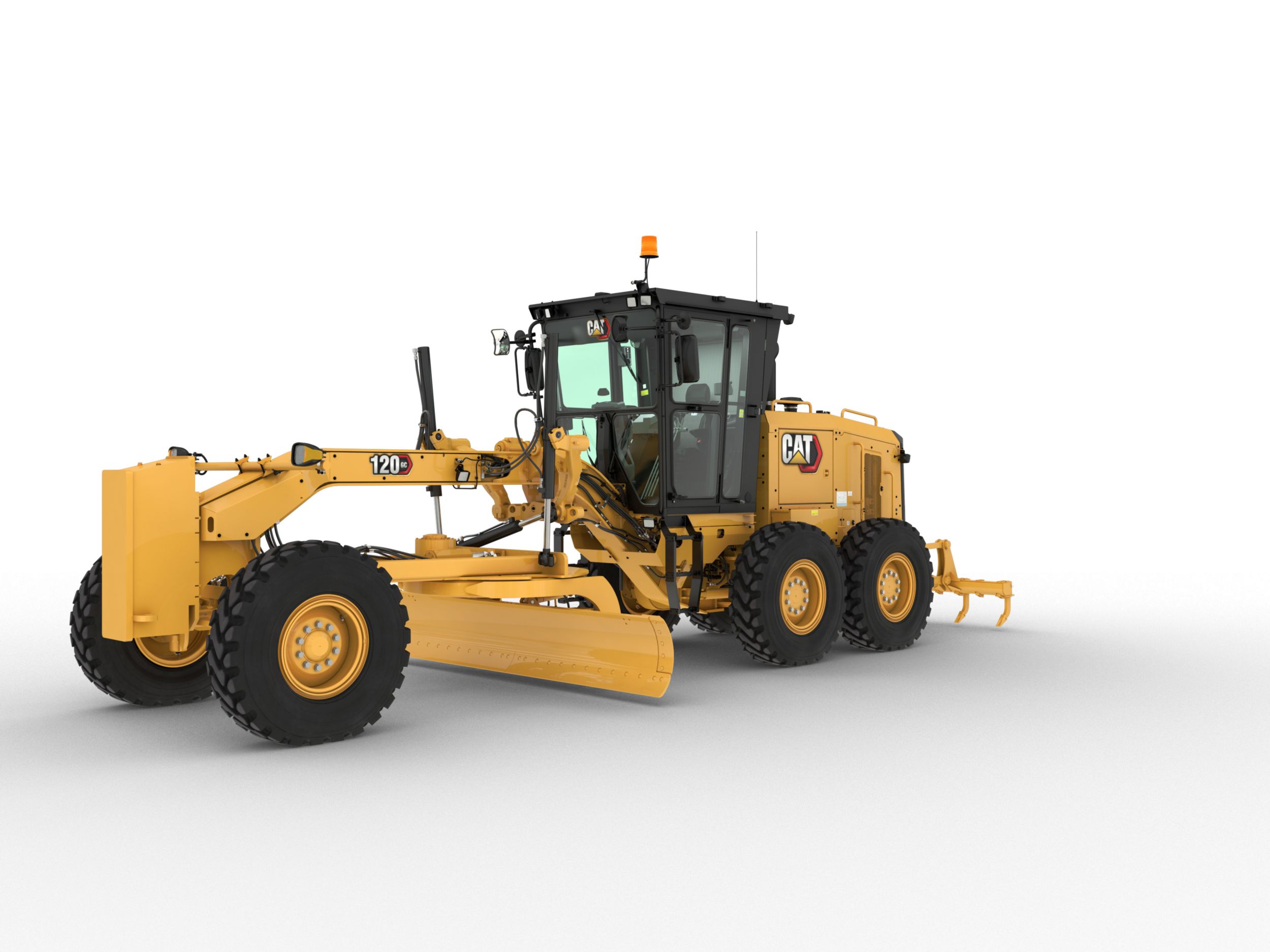

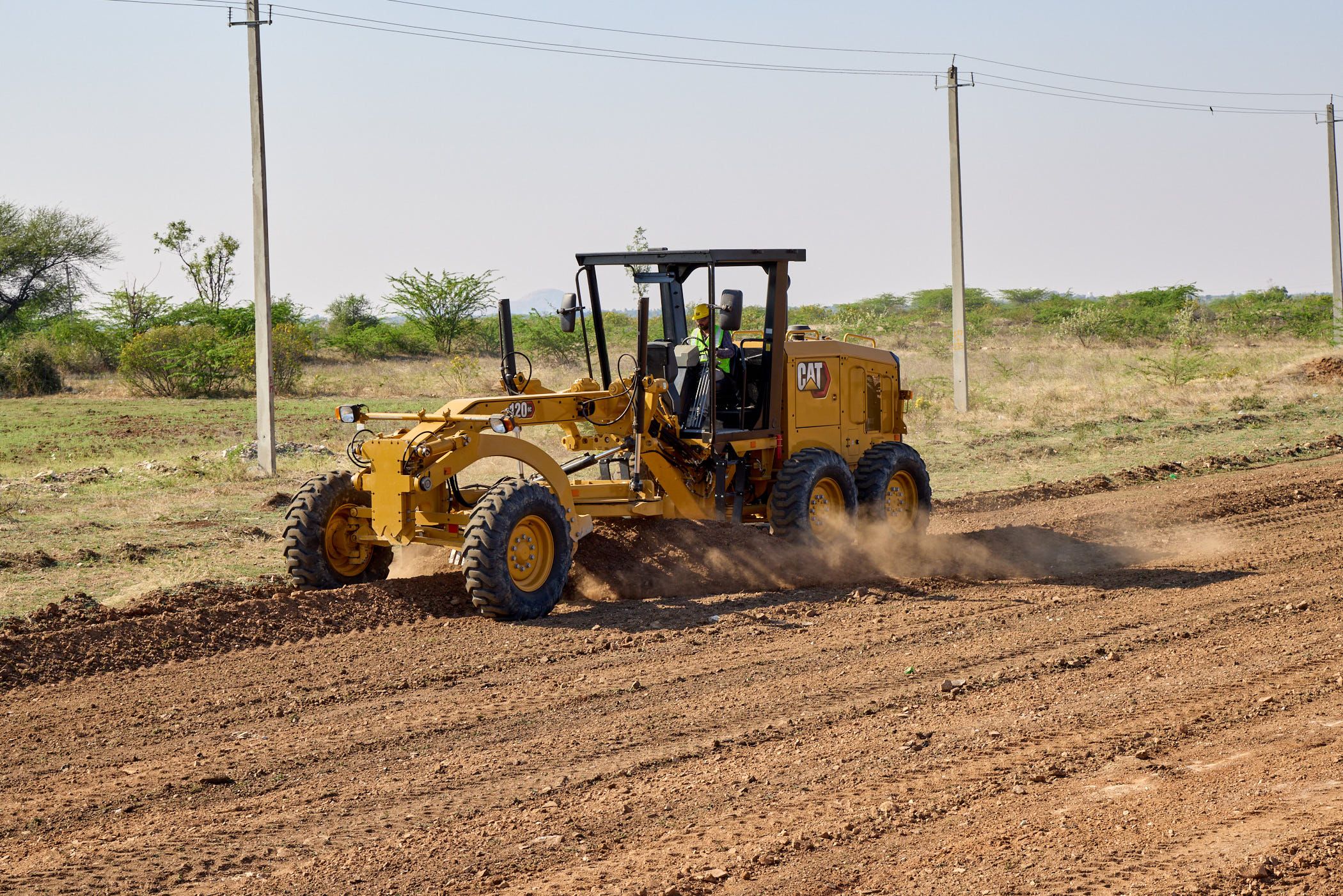

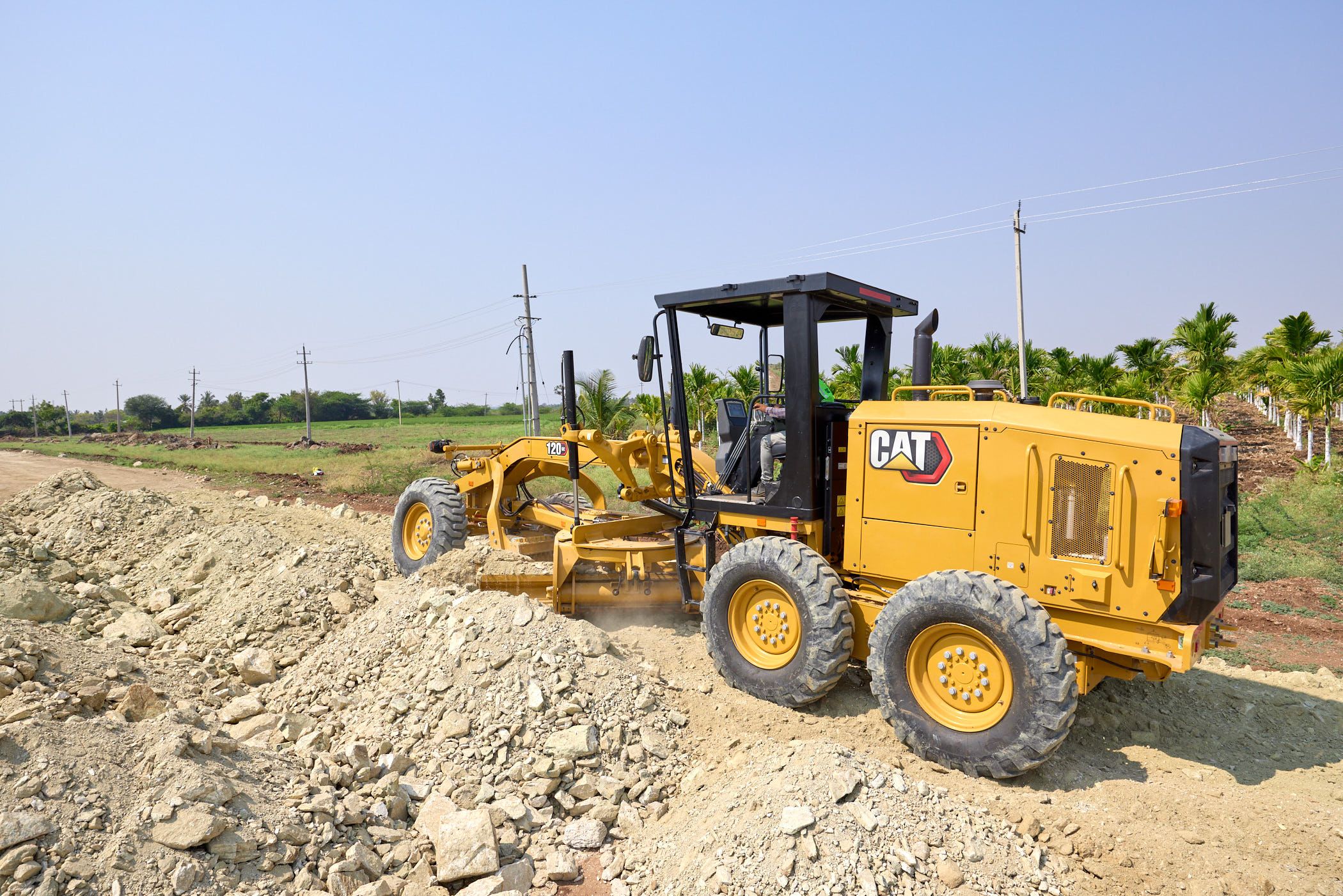

The Cat® 120 GC motor grader is easy to own and operate. A demand fan and standard Eco mode reduces fuel consumption while open access to maintenance points makes service quick and simple. Control the blade with consistent precision using lever controls from the comfort of the all new cab. Maximum Torque 738 N·m Displacement 4.4 l Engine Power AWD (ISO 14396) 171 HP Product specifications for 120 GC – Tier 4 / Stage 5 Motor Graders Engine Maximum Torque 738 N·m Displacement 4.4 l Engine Power AWD (ISO 14396) 171 HP Note (1) Net power is tested per ISO 9249, SAE J1349, and EEC 80/1269 standards in effect at the time of manufacture. Net power advertised is the power available at rated speed of 2,000 rpm, measured at the flywheel when engine is equipped with fan, air cleaner, muffler, and alternator. Power as declared per ISO 14396. Emissions Meets U.S. EPA Tier 4 Final, EU Stage V and Korea Tier 5 emission standards Stroke 127 mm Derating Altitude 3000 m Bore 105 mm Engine Model Cat® C4.4 Torque Rise – ISO 9294 21% Weights Operating Weight – Typically Equipped 31958 kg Machine Weight Weight* 16100 kg All-Wheel Drive (AWD) Weight 16500 kg Moldboard Blade Width 3.7 m Cutting Edge Width 152 mm Throat Clearance 112 mm Arc Radius 413 mm End Bit – Width 6 mm Blade Height 580 mm Dimensions Length of Machine* 9941 mm Maximum Height 3787.8 mm Width 2402 mm Note *Typically equipped with push block and ripper. Blade Range Blade Tip Range – Backward 5° Moldboard Sideshift – Right 663 mm Moldboard Sideshift – Left 512 mm Maximum Lift Above Ground 410 mm Circle Centershift – Left 656 mm Blade Tip Range – Forward 40° Circle Centershift – Right 656 mm Maximum Depth of Cut 775 mm Service Refill Capacities Cooling System 39 l Circle Drive without Slip Clutch 1.5 l Hydraulic System 55 l Circle Drive with Slip Clutch 7 l Transmission 17 l Diesel Exhaust Fluid Tank (Tier 4 Only) 12 l Fuel Tank 269 l Engine Crankcase 7.6 l Sustainability Recyclability 92% Productive and Economical Increase your fuel economy up to 5% with the standard ECO mode. The on-demand fan reduces fuel consumption and under-hood heat for longer component life. Improve productivity with the Electronic Throttle Control which matches engine power and torque to application requirements. The powershift transmission and machine balanced design ensures that you get full drawbar power to the ground with the Cat C4.4 engine. The hydraulic system makes the machines more precise and predictable for a consistent grade. The all-wheel drive (AWD) option assists with traction and maneuvering the machine. The increased power helps you to handle slopes and loose material better. The Digital Blade Slope Meter option shows you the grade without relying on manual grade checkers. Product Link™ provides location, machine hours, fuel usage, productivity, idle time, diagnostic codes, and other machine data ondemand through the VisionLink® online interface, which helps you improve jobsite efficiency with lower operating costs. Cab Keeps You Comfortable All Day Long Choose your comfort level in the cab with standard, mechanical suspension or air suspension seat. Easily adjust the control console and steering wheel. The high capacity Heating, Ventilation and Air Conditioning (HVAC) system option circulates fresh air, prevents dust entry, and keeps windows from fogging. Easily add a radio to the cab using the built-in mounting location option. Reliable Performance The drawbar circle moldboard stays factory tight providing precision grading pass after pass. The machine structure is built for a long life. It’s designed to use several types of work tools, such as a front blade. A slip clutch option protects the circle drive if the machine strikes an immovable object. The front axle maximizes bearing life while also minimizing maintenance. Reduce daily greasing requirements and costly repairs to your circle and pinion with the Circle Saver option. Safely Home Every Day See what’s behind you with the rear camera option. The dedicated display can be always on to ensure a safe workenvironment. In the event of an engine stall, count on the secondary steering system option to help stop the machine safely. Use three points of contact when entering and exiting the machine with strategically placed walkways and grab rails. Ground level engine shut-off switch stops all fuel to the engine when activated and shuts down the machine. See the rear of your machine with side and rearview mirrors. Work past sundown using the strategically placed lights for nighttime visibility. Maintenance Made Easy Filters, such as fuel, engine air, and oil filters, are grouped together for easy access and preventative maintenance. The standard drawbar circle moldboard increases durability using hardened circle teeth and replaceable wear inserts to help sustain factory tightness. Brake adjustments are maintenance free and easily accessible. The standard bottom guard shields the transmission and filter. Optional guarding protects your machine from damage in demanding applications. Spend less time cleaning the cooling system with the reversing fan option, which reduces costs when cleaned once per week for more uptime. Attachments to Fit Your Needs Improve the performance and efficiency of your machine with the push block option. Ripper and scarifier options are available to assist with grading hard ground. Add the front blade option to spread more material faster. The optional tow hitch allows you to tow equipment or implements behind the machine. Sustainability The Cat® C4.4 engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards. Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrogenated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. Cat® Grade helps reduce fuel burn and greenhouse gas emissions by enabling you to achieve grade faster and more accurately by automating blade actions. Cat Scheduled Oil Sampling (S•O•S℠) Services helps reveal excessive wear, contaminated fluids or other “unseen” issues that can shorten component life. In many cases, you can extend oil and coolant change intervals by using fluid monitoring. Consult your Cat dealer or the machine’s operation and maintenance manual for more information. Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine. VisionLink® displays the CO2 emissions for monitored assets, calculated by fuel type for the Runtime Fuel Burned each day in a selected date range. Don’t waste fuel idling. Cat VisionLink® online fleet monitoring helps you manage idle time and reduce fuel burn and greenhouse gas emissions. Cat® Reman parts are a sustainable choice. New Cat parts are designed with the potential to have more than one life, so Cat Reman parts are truly remanufactured — not just repaired, rebuilt or reconditioned. Because the process ensures the latest design changes are incorporated into Cat Reman parts, you get like new quality and outstanding performance at lower cost. *Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). 120 GC – Tier 4 / Stage 5 Standard Equipment Expand all NOTE Standard and optional equipment may vary. Consult your Cat dealer for details. CAB Standard Seat Steering Wheel/Lever Controls Information Display Screen Product Link ENGINE Cat C4.4 ECO mode On-Demand fan DRAWBAR CIRCLE MOLDBOARD Standard SAFETY Parking brake Signaling/warning horn Rearview mirror Hydraulic brakes Side view mirrors Walkways and Grab Rails 120 GC – Tier 4 / Stage 5 Optional Equipment NOTE Standard and optional equipment may vary. Consult your Cat dealer for details. CAB Mechanical Suspension Seat Air Suspension Seat ROPS/FOPS Heating/Cooling Cab System Rear Wiper Base Cab Canopy Cab Plus Low profile cab Halogen Lighting Entertainment Radio Ready Rear Window Screen Front Wipers Digital Blade Slope Meter ENGINE Reversing fan All-Wheel Drive (AWD) DRAWBAR CIRCLE MOLDBOARD Circle Drive Slip Clutch Circle Saver SAFETY Rearview camera Secondary steering system ATTACHMENTS Push block Ripper Scarifier Front Blade Tow hitch
