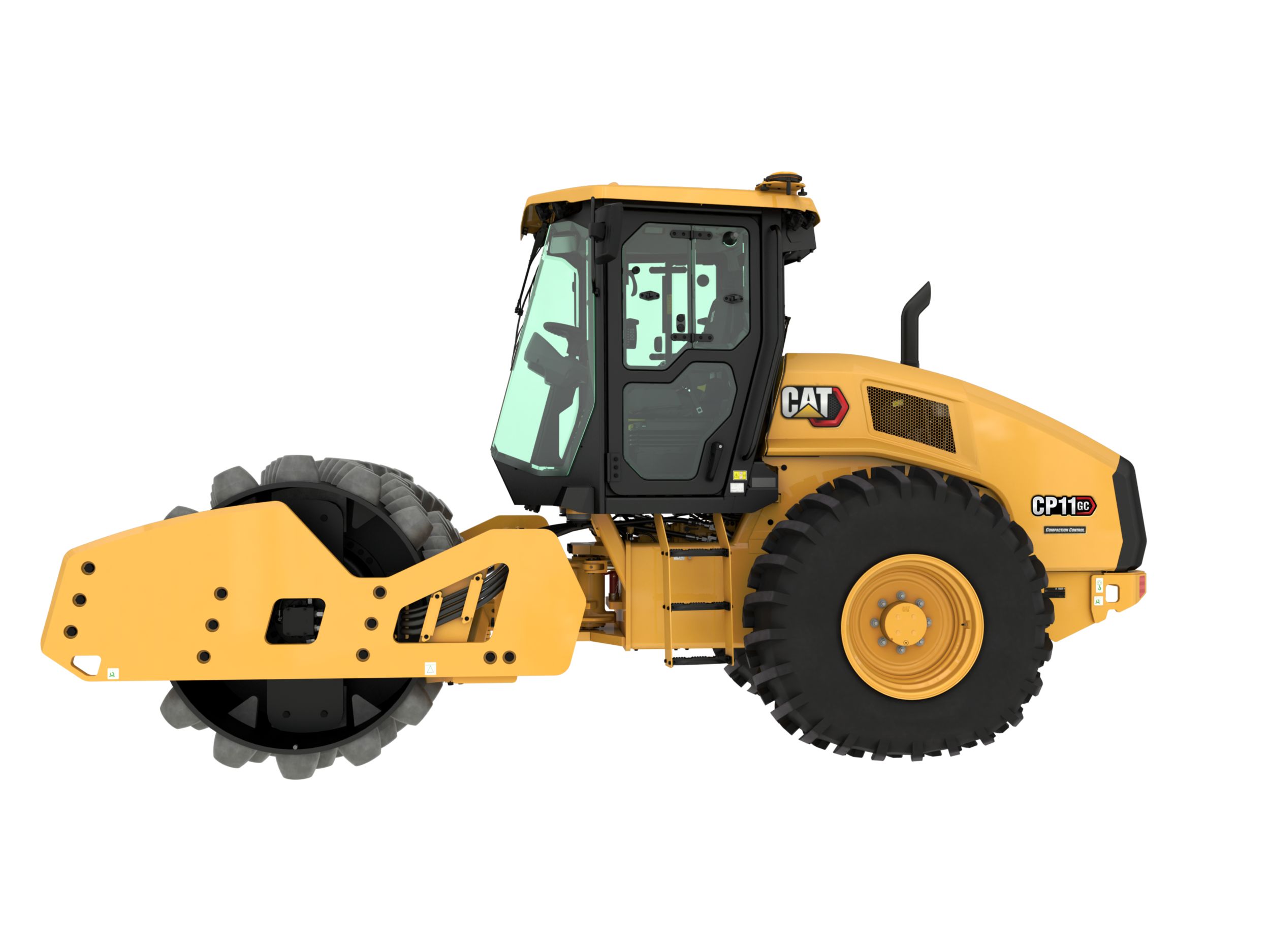

CP11 GC Vibratory Soil Compactors

GC Vibratory Soil Compactors deliver dependable, economical production with performance that exceeds expectations. Operating Weight – With Cab 11389 kg Weight – Drum with ROPS/FOPS Canopy 6345 kg Operating Weight – With ROPS/FOPS Canopy 11235 kg Product specifications for CP11 GC Vibratory Soil Compactors Weights expand / collapse icon Operating Weight – With Cab 11389 kg Weight – Drum with ROPS/FOPS Canopy 6345 kg Operating Weight – With ROPS/FOPS Canopy 11235 kg Weight – Drum with Cab 6388 kg Operating Specifications expand / collapse icon Compaction Width 2134 mm Curb Clearance 492 mm Ground Clearance 518 mm Turning Radius – Inside Drum Edge 3.9 m Travel Speed – Maximum 11 km/h Engine expand / collapse icon Gross Power 90 kW Engine Model Cat C3.6 Net Power – ISO 9249 83.7 kW Net Power – SAE J1349 82.9 kW Stroke 120 mm Bore 98 mm Dimensions expand / collapse icon Overall Length 5.7 m Overall Width 2.3 m Drum Width 2134 mm Height – With ROPS/FOPS or Cab 3 m Drum Diameter 1535 mm Optional Blade Height 688 mm Wheel Base 3 m Vibratory System expand / collapse icon Nominal Amplitude – High 1.8 mm Nominal Amplitude – Low 1.8 mm Centrifugal Force – Maximum 249 kN Centrifugal Force – Minimum 148 kN Vibratory Frequency – Standard 30.5 Hz (1830 vpm) Variable Frequency Option Range 23.3 – 30.5 Hz (1400-1830 vpm) Service Refill Capacities expand / collapse icon Fuel Tank Capacity 213 l Tires expand / collapse icon Tires 23.1 x 26 Comfortable and Ergonomic Operator Station The steering console features an LCD display. The display provides diagnostics and additional data to the operator. Machines that are equipped with Cat Compaction Control output compaction measurements to the display as well. A multi-position steering wheel adjusts for comfort. An adjustable vinyl seat with seat belt is comfortable and keeps controls and operating information within easy reach. The 12-volt adapter provides power for personal electronic devices. A floor mat reduces vibrations. Cup holders are provided on the steering column. Large mirrors provide excellent views to the rear of the machine. The operator is provided with excellent visibility to the front, drum edges rear tire edges and rear of machine enhancing safety and production. Optional mirrors provide enhanced visibility to the rear. Powertrain GC Vibratory Soil Compactors feature a Cat engine that offers enhanced efficiency, better serviceability, ample power, and less noise. Technologies that Enhance Quality and Productivity Cat Compaction Control can be augmented by adding an optional Global Navigation Satellite System (GNSS) mapping antenna and a dedicated display unit, which provides SBAS-level accuracy and allows the operator to visually monitor results, map them to locations and save the data for analysis or documentation purposes. An RTK GNSS mapping capability is also available that provides greater accuracy than SBAS. Machine Drive Power (MDP) is an exclusive technology only available from Caterpillar. MDP indicates soil stiffness by measuring rolling resistance. It is effective on all soil types, and can function when the drum is static or vibrating. MDP measures closer to depth of the lifts of materials being compacted, around 30-60 cm (1-2 ft) deep. MDP is a flexible technology because it can be used on all soil types which allows results to be correlated with portable measuring equipment such as lightweight falling deflectometers and nuclear gauges. Because it does not require the drum to vibrate, there is less risk of de-compaction when used for proofrolling. Easy to Service Design provides ground level access to all service and maintenance points. Long service intervals contribute to more productivity and lower owning and operating costs. The vibratory system scheduled oil change interval is 3 years/3,000 hours. The hydraulic oil service interval is 3,000 hours. Engine oil service is every 500 hours. Reliable Vibratory System GC vibratory soil compactors deliver excellent compaction performance due to high amplitude and static linear load. GC machines utilizes the proven Cat pod-style vibratory system. The system design significantly reduces the risk of contamination common to conventional designs that employ metal weights. Providing unrivaled reliability and performance, the Cat pod-style vibratory system is virtually maintenance free, with the first scheduled maintenance period at 3 years or 3,000 hours. An automatic vibration function provides consistency for more uniform compaction. When vibration is engaged, vibration will cease as the compactor slows beneath a predetermined speed. When propel resumes, vibration recommences at a predetermined speed. This feature contributes to uniform, high-quality work. Smooth drums are ideal for compacting granular materials and can be equipped with an optional padfoot shell kit for compacting cohesive and semi-cohesive materials. Sustainability The Cat® C3.6 engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards. Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester)** or 100% renewable diesel, HVO (hydrogenated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. Auto engine idle shutdown helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working. A well-trained operator is worth the investment. Skilled operators benefit your bottom line by maximizing productivity, avoiding costly downtime, and maintaining jobsite safety – which can help to improve fuel efficiency and reduce greenhouse gas emissions. Extended maintenance intervals not only reduce downtime but can decrease the amount of fluid and filters that are replaced over the life of the machine. The hydraulic oil can be replaced every 3000 hours, eccentric housing oil can be replaced every 3000 hours, and engine oil changes can be 500 hours. Performance and safety can be augmented with standard and optional cameras that are viewed on in-cab displays. Cat Compact technologies help you consistently meet compaction targets faster, more uniformly, and in fewer passes – saving on fuel and reducing rework and material costs. Cat Scheduled Oil Sampling (S•O•S℠) Services helps reveal excessive wear, contaminated fluids or other “unseen” issues that can shorten component life. In many cases, you can extend oil and coolant change intervals by using fluid monitoring. Consult your Cat dealer or the machine’s operation and maintenance manual for more information. Remote Flash for engines helps to minimize downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite. **Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel. CP11 GC Standard Equipment Expand all OPERATOR ENVIRONMENT expand / collapse icon ROPS/FOPS Canopy with Handrails/Guardrails, Floor Mat Vinyl Adjustable Pivoting Seat with Integrated Console and LCD Display Adjustable Tilting Steering Column with Integrated Cup Holders Rear Vision Camera with Color Touchscreen Display Seat Belt 12-volt Power Outlet VIBRATORY SYSTEM expand / collapse icon Padfoot Drum Dual Amplitude, Single Frequency Dual Pod-Style Eccentric Weight Housings Auto-vibe Function Front Adjustable Steel Scraper POWER TRAIN expand / collapse icon Cat C4.4 Diesel Engine Air Cleaner, Dual Element Three-Speed Throttle Switch, Eco-mode and Automatic Speed Control Dual Propel Pumps; One for Drum Drive, One for Rear Axle Fuel Filter, Water Separator, Priming Pump, Water Indicator Tilting Radiator/Hydraulic Oil Cooler Dual Braking System ELECTRICAL expand / collapse icon 24 volt Electrical System 100 ampere Alternator 750 Cold-cranking Amps Battery Capacity OTHER expand / collapse icon Product Link™ Sight Gauges for Hydraulic Oil Level and Radiator Coolant Level S•O•S℠ Sampling Valves: Engine Oil, Hydraulic Oil and Coolant CP11 GC Optional Equipment Expand all OPERATOR ENVIRONMENT expand / collapse icon ROPS/FOPS Cab with Climate Control, Cloth Seat Internal Rear View Mirror External Rear View Mirrors Sun Visor Cab Internal Roll-down Sun Screen VIBRATORY SYSTEM expand / collapse icon Leveling Blade Variable Frequency Dual Adjustable Steel Scrapers POWER TRAIN expand / collapse icon Transmission Guard TECHNOLOGY SOLUTIONS expand / collapse icon Measure – Machine Drive Power Map – SBAS GNSS Mapping Connect – Cloud and Machine Connectivity OTHER expand / collapse icon Upgraded Halogen Light Package Amber Rotating Beacon Fuel Fill Access Door
