Flight Time: Up to 42 minutes
GPS: Yes , Autel EVO Max 4T with Battery
No Blind SpotsAnti JamAnti Interference15s Take Off8K 10x Optical ZoomIP43 Weather RatingHot-Swappable BatteriesNavigation In GPS Denied Environments4 miles Transmission Range42 mins Max. Flight Time720° Obstacle Avoidance
A Leader of Drone Intelligence

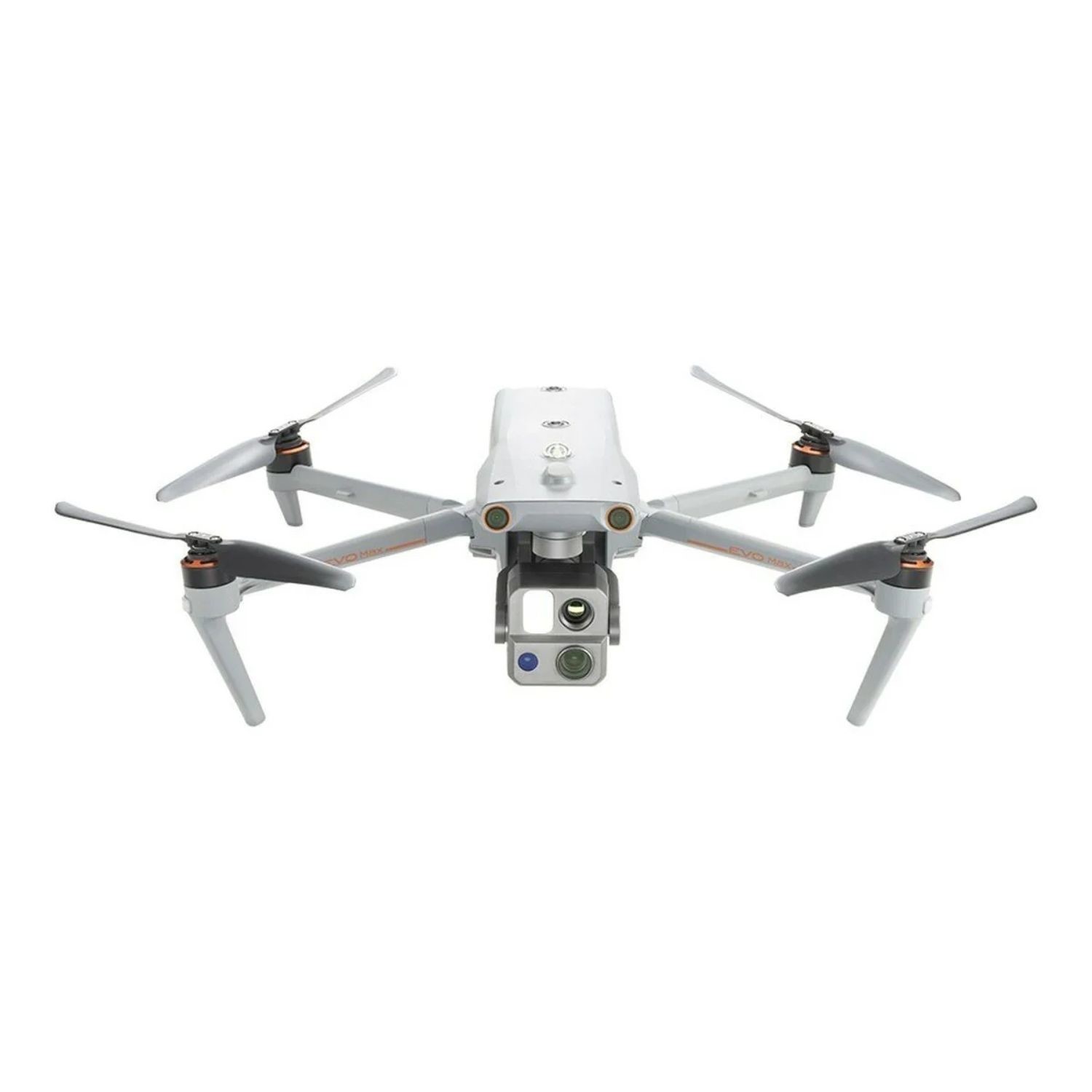

The EVO Max 4T brings powerful technologies and advanced autonomy to users. EVO Max 4T assesses complex environments to create real-time 3D flight paths for unparalleled obstacle avoidance. Advanced sensors make flight in GPS unavailable areas possible and the incredible new thermal payload unlocks new object identification and tracking scenarios. With a foldable, weather-resistant design, the EVO Max 4T is as portable as it is capable.
Autonomous Path Finding
Autel’s Autonomy Engine collects surrounding environmental data and plans 3D flight paths through complex environments such as mountains, forests, and buildings. Use cases include rapid 3D scene reconstruction, public safety overwatch, industrial inspection, and land surveying.
Navigation in GPS Denied Environment
Advanced sensors allow the EVO Max 4T to navigate within hardened structures, underground, or in environments without GPS.
Accurate Object Identification and Tracking
Based on Autel’s AI recognition technology, the EVO Max 4T can automatically identify and lock onto different types of targets such as heat sources, moving people, or vehicles and achieve high-altitude tracking and data collection for law enforcement.
No Blind Spots – Ultimate Obstacle AvoidanceEVO Max 4T is the only commercial drone that combines traditional binocular vision systemswith millimetre wave radar technology. This allows the EVO Max 4T’s onboard Autel AutonomyEngine to perceive objects down to 0.5 inch, eliminating blind spots and enabling operationin low light or rainy conditions.
*OA performance varies with drone speed, lighting, and flying conditions and is not meant to replace pilot responsibility. Anti Jam, Anti
Interference
The EVO Max 4T uses advanced flight control modules and algorithms specially designed to counter RFI, EMI, and GPS spoofing. This enables the EVO Max 4T to fly confidently near power lines, critical structures, and in complex areas.
Platform Capability
EVO Max 4T redefines portability with its powerful platform and all weather design.
42 mins Max. Flight TimeIP43 Weather Rating23,000 ft Service Ceiling12.4 miles Image Transmission Range27 mph* Max. Wind Resistance42min Flight Time
*Takeoff and landing can withstand wind speeds up to 27 mph (12 m/s).
A-Mesh 1.0 – The Drone Industry’s First
Mesh Networking Technology
EVO Max 4T features the new A-Mesh system, enabling drone-to-drone autonomous communication, connection, and collaboration.
Strong Anti-Interference
The EVO Max 4T can communicate seamlessly with other drones in the vicinity, unlike a traditional chain structure. If a single drone fails or exits unexpectedly, the entire system will independently self-organize and continue to relay critical information.
Beyond-Line-of-Sight Applications
With A-Mesh, multiple aircrafts in the vicinity can act as relay points to greatly improve BVLOS operation effectiveness.
Full-Fleet Control
Multiple drones can be controlled autonomously by 1 pilot or by a group of pilots simultaneously with or without LTE coverage.
Enhanced Range
Communication nodes can be placed statically on hills or poles to provide full coverage to an area, or a swarm of drones can provide mobile communication points to extend the coverage of the entire group.
Autel SkyLink 3.0The EVO Max 4T SkyLink 3.0 system comes with 6 antennas, 4 frequency bands, AES-256 encryption*, and optional 4G integration* to provide users with the most advanced flight capabilities ever in an EVO.12.4 miles Image Transmission Distance<150ms Latency1080p/60fps Real-Time Image Quality900MHz/2.4GHz/5.2GHz/5.8GHz** Frequency Bands
***This feature will be available in a future update.
***5.2GHz is only applicable for FCC, CE, and UKCA regions. 900MHz is only applicable for FCC regions.
Mission Ready Payload
The payload integrates wide-angle camera, zoom camera, thermal camera and a laser rangefinder for all data capture needs and critical decision making.
50MP Wide Camera48MP Zoom Camera8K 10x Optical Zoom160x Max. Hybrid Zoom640×512 Thermal Resolution
Wide Camera
50PM1/1.28″ CMOSAperture: f/1.9DFVO: 85°Equivalent: 23 mm
Autel Enterprise App Platform
The Autel Enterprise App is built from the ground up for industrial applications and features a brand-new interface for simple, efficient operation. Additional features and semi-autonomous modes maximize the EVO Max 4T’s mission capability3D Map PlanningPlan, create, and execute 3D waypoint mission plan on a 3D map.Quick Mission – Temporary quick missions can be created while executing other missions, and multiple sub-missions can be stacked for enhanced flexibility.Mission Reproduction – With this feature activated, fly a manual or semi-autonomous mission, or string multiple missions together. The EVO Max4T will automatically record the camera angles and replicate the mission you just flew.
Multiple Mission Types (* This feature will be available in a future update)
The Enterprise App provides various autonomous and semi-autonomous mission planning. for public safety, inspection, and surveying.
Vertical Scan – Perform vertical surveys for building facades, open pit walls, and towers.Corridor Mission – Supports intuitive and effective corridor mission planning for roads, rivers, pipelines, power lines and other narrow, large-scale terrain.Polygon Mission – Supports one-click automatic generation of polygon flight areas.Terrain Follow – Maintain relatively constant altitude from the ground for uneven or sloped terrain.Rectangular Mission – Supports one-click automatic generation of a rectangular flight area.Automatic Mission Generation and Data Capture – Automatically produce routes by adding regional boundary points through dots or importing KML files.Waypoint Missions – Users can add waypoints for flexible, non-structured flight paths.Oblique Photography – Automatically plan 5 groups of routes (1 ortho + 4 oblique) according to the flight area set by the user.Spiral Mission – Supports helical flight search in a designated area for SAR.Vertical Scan – Perform vertical surveys for building facades, open pit walls, and towers.Corridor Mission – Supports intuitive and effective corridor mission planning for roads, rivers, pipelines, power lines and other narrow, large-scale terrain.Polygon Mission – Supports one-click automatic generation of polygon flight areas.Terrain Follow – Maintain relatively constant altitude from the ground for uneven or sloped terrain.Rectangular Mission – Supports one-click automatic generation of a rectangular flight area.
Automatic Mission Generation And Data Capture
Automatically produce routes by adding regional boundary points through dots or importing KML files.
Data Security
Privacy Protection: Data involving user and aircraft information, including flight logs, locations, and account information can only be physically accessed via the aircraft locally.Encrypted Data Storage: Supports AES-256 encryption for photos, videos, and flight logs, are password-protected.
Enhanced Live-View
Multi-channel Projection Screen. Supports simultaneous output of RGB, infrared, night vision, and wide-angle images.AR Scene – Geo-location data and other aircraft location info detected by ADS-B can overlay on real-time map, which is convenient for users to confirm the drone’s location and avoid airborne risks.Mobile SDK – Open UX SDK (iOS&Android) can directly call up the ready-made interactive interface.Payload SDK – Unified interface standards support access to third-party mounts such as microphones and gas detectors.
Autel Smart Controller V3
Daylight Readable Display: 7.9 inches, 2000nit maximum brightness, 2048*1536 resolution.Super Download: Download footage from drone to mobile device at a maximum rate of 20MB/s.Functional Interface: HDMI ports allow connection to 3rd party displays or monitors.Ultra-Long Battery Life: Up to 4.5 hours of continuous operation. 2-hr fast charging from empty.Local Storage: Built-in 128G storage space allows 3rd party apps and mission media storage.
Autel EVO Max Series Battery
Compatible with EVO Max SeriesProduct colour – GreyLithium-polymer (LiPo 4S) battery typeBattery capacity 8070 mAhBattery voltage 14.88 V , , ,
