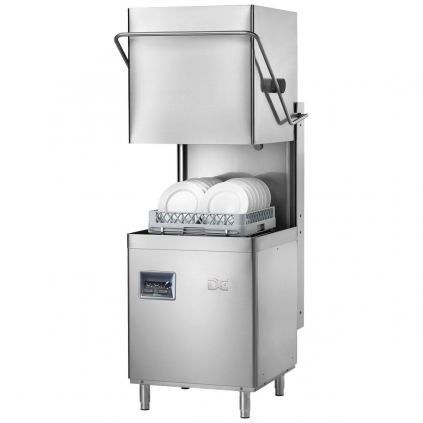

DC SD900 Standard Range Passthrough Dishwasher
The DC SD900 Standard range passthrough dishwasher comes complete with 2 & 3 cycle selector and auto-start hood. It incorporates a uniquely low-volume wash tank to reduce water, electrical and chemical costs. Capable of being arranged in either a straight-through or corner configuration, the Standard range provides versatility, strength and power when it’s most needed.
Features include
Heavy duty wash pump
EasyClean dual filter system
Anti-block removable wash and rinse arms
Moulded wash tank to prevent debris build-up and assist routine maintenance
Optional thermostop for guaranteed rinse temperatures
Extra loading height
Simple, intuitive controls
Self-draining wash pump for improved hygiene
Low-volume wash tank
Low water usage
Optional add-ons:
Chemical dosing pumps
Drain Pump
Integral Water Softener
Break Tank
(Please enquire for prices for the required add ons)
Specifications:
Plate Capacity 18
Cycle Time (mins) 2 & 3
Height (mm) 1500
Height-Hood Raised 1930
Width (mm) 650
Depth (mm) 745
Supplied Baskets 3
Max Loading Height (mm) 400
Wash Tank Capacity (lts) 22
Rinse Tank Capacity (lts) 5
Water Consumption (lts) 2.4
Rinse Element (kW) 6.0
Wash Element (kW) 3.0
Pump (watts) 750
Waste Height (mm) 420
Total Load (kW) 6.75
Power Supply (A) 30A or 3PH+N
Waste Outlet Diameter (mm) 32
Filters 1
Double Skinned No
Basket Size (cm) 50×50
Insulated boiler Yes
Top Wash Arm Yes
Rinse and Detergent Dosing Pumps Yes
Cold Rinse As Standard No – Dimensions – Height: 1500mm – Width: 650mm – Depth 745mm – Warranty: – Optional Warranties availble – Stock Number: MJS-SD900
