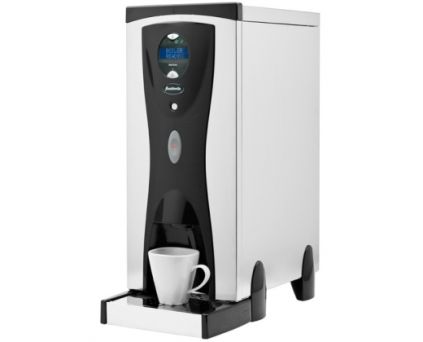

Ideal for self service, the CTSV45T/6 (DB2000) has an optional advanced programmable locking system. This allows the unit to be ready to use at the touch of an electronic key & is perfect for high security users or where health & safety is a concern.
Features and Benefits
· Electronically controlled for constant temperatures
· Programmable down to 80°C if required
· Simple push and hold dispense button
· Energy saving ECO mode
· Lock-off setting using electronic key-fob
· Early warning LCD diagnostics
· Five water level sensors
Installation: Counter mounted with drip tray.
Plumbing: Designed for direct connection to a potable cold water supply using the 1.5 metre (3/4” BSP) hose supplied. An isolating valve should be installed between the supply and the heater. Rear supply connection and choice of rear or front overflow.
Electrical: Fitted with 1.75 metres of cable and a 13amp moulded plug.
Construction:
Brushed stainless steel case.
Stainless steel heating chamber.
Low voltage switching.
Two safety cut-outs.
Locking System:
The locking system is activated by touching an
electronic key fob against a sensor (located below
the display panel).
The boiling water dispense function can be set up in
four different ways;
1 NONE/OPEN (Standard setting) – No lock.
Simply push & hold button to dispense
boiling water.
2 TOGGLE – Key fob turns the dispense function
on and off sequentially, as required.
3 TIMED – Boiling water dispense is available for a
pre-set time (adjustable in minutes), determining
how long it can be used before locking off.
4 ONE-SHOT – A single drink can be dispensed
before the boiling water function locks off.
One key fob is supplied with each boiler with
additional keys available from Instanta spares
department (Part No: D2000L). Up to 20 individual
keys can be programmed. – Dimensions – Height: 608mm – Width: 260mm – Depth 465mm – Warranty: – 2 years Parts and Labour – Stock Number: MJS-CTS15PB
