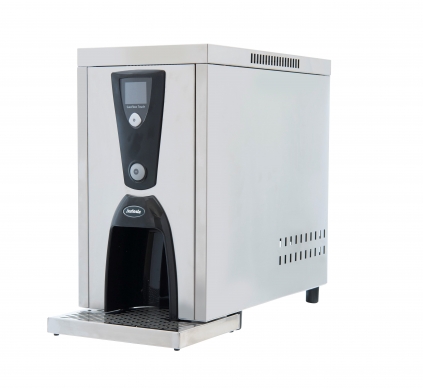

The new SureFlow Touch is the ideal option for self-service, allowing the option for a push and hold dispense or a timed filled measure to a specific size vessel.
Features & Benefits
Choice of water dispense; either standard push & hold (on demand) or if preferred, programmable metered/timed dispense
Top-up feature allows user to top-up the drink following a measured dispense. The screen continues to flash for 5 seconds during which time the drink can be topped up. After 5 seconds, it reverts to timed dispense mode.
Quick and easy to program the metered dispense using memory function on set-up.
LCD screen displays a prominent “Caution Hot Water” safety message which flashes whenever hot water is dispensed.
Electrical mains cord and water inlet coupling are underneath the boiler (provides choice of service connections from under-counter or above counter).
Plumbing
Designed for direct connection to a potable cold water supply using the 1.5 metre (3/4” BSP) hose supplied. An isolating valve should be installed between the supply and the heater. Rear supply connection and choice of rear or front overflow.
Electrical
Fitted with 1.75 metres of cable and a 13amp moulded plug.
Construction
Premium grade stainless steel
Well insulated for minimal heat loss & energy use
Low voltage switching
TECHNICAL DATA FOR CTS5PB Counter Top SureFlow Touch Series*
Power loading (kW): 3
Heat-up time (mins): 18
Recovery Rate (litres): 0.5
Rapid Draw-Off (litres): 5
Rapid Draw-Off (cups): 30
Hourly Output (litres): 27
Hourly Output (cups): 162
Stand by Loss (kW/h): 0.08
* Based on 6 Cups Per Litre – Dimensions – Height: 445mm – Width: 240mm – Depth 522mm – Warranty: – 2 Year Warranty – Stock Number: MJS-DB500
