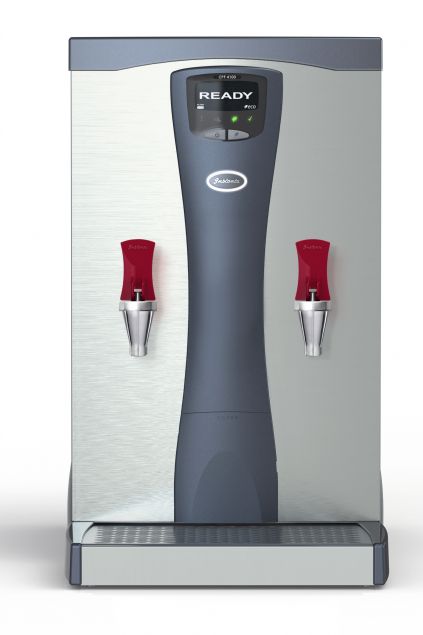

The CTSP17T (Previously Named CPF4100-3) is designed for situations where large volumes are needed in a short period. All products feature twin taps for speedy delivery and built-in 3 micron filtration with a programmable counter.
Features and Benefits
Integral seven day programmable timer
Built-in multi-purpose filtration
Energy saving ECO mode
Temperature programmable between 80°C – 98°C
Two tier comprehensive diagnostics system
Integral stainless steel drip tray included
Programmable filter monitor from 2,000 — 19,500 litres
Heat-up time (mins)48
Recovery Rate (litres)0.5
Rapid Draw-Off (litres)17
Rapid Draw-Off (cups)102
Hourly Output (litres)28
Hourly Output (cups)168
Installation: Easy to install on a stable worktop.
Plumbing: Designed for direct connection to a potable cold water supply using the 1.5 metre (3/4” BSP) hose supplied. An isolating valve should be installed between the supply and the heater.
Rear supply connection and choice of rear or front overflow.
Electrical: Fitted with 1.75 metres of cable and a 13amp moulded plug.
Construction:
Brushed stainless steel case.
Stainless steel heating chamber.
Low voltage switching.
Two safety cut-outs.
Installation:
Easy to install on a stable worktop. – Dimensions – Height: 608mm – Width: 360mm – Depth 555mm – Warranty: – 2 Year Parts & Labour – Stock Number: MJS-CTSP17T
