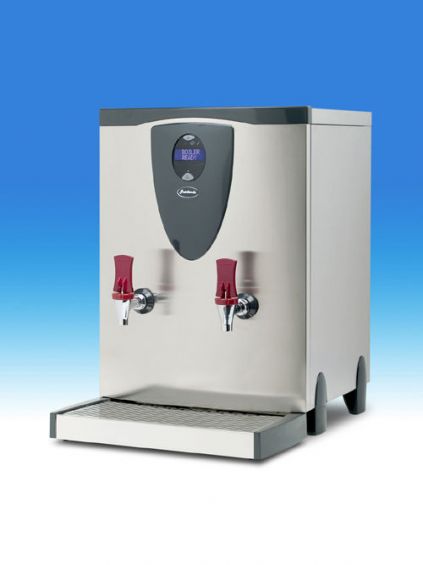

Product features include a unique new message display incorporating boiler status and detailed fault diagnosis, and easy switching of product to operate on energy saving half capacity,
Features and Benefits
Integral seven day programmable timer
Built-in multi-purpose filtration
Energy saving ECO mode
Temperature programmable between 80°C – 98°C
Two tier comprehensive diagnostics system
Integral stainless steel drip tray included
Programmable filter monitor from 2,000 — 19,500 litres
Heat-up time (mins)31
Recovery Rate (litres)1
Rapid Draw-Off (litres)27
Rapid Draw-Off (cups)162
Hourly Output (litres)57
Hourly Output (cups)342
Installation: Easy to install on a stable worktop.
Plumbing: Designed for direct connection to a potable cold water supply using the 1.5 metre (3/4” BSP) hose supplied.
An isolating valve should be installed between the supply and the heater.
Rear supply connection and choice of rear or front overflow.
Electrical: Supplied with 1.6 metres of cable for connection to a 230 volt supply with a suitable break capacity of 30 amps. (6kw)
Construction:
Brushed stainless steel case.
Stainless steel heating chamber.
Low voltage switching.
Two safety cut-outs.
Installation: Easy to install on a stable worktop. – Dimensions – Height: 608mm – Width: 440mm – Depth 555mm – Warranty: – 2 Year Parts & Labour – Stock Number: MJS-CTSP27T/6
