Description

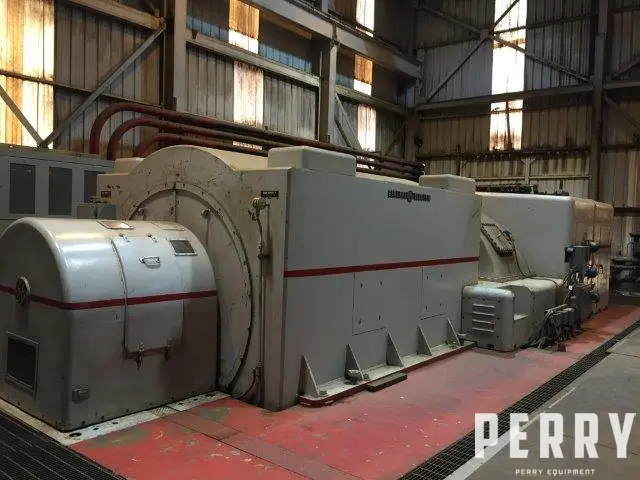

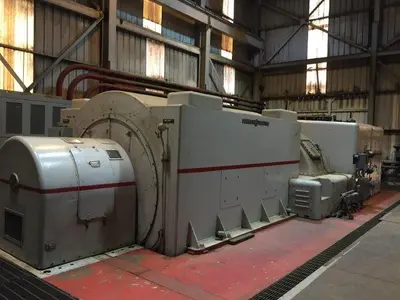

Used General Electric (GE) 15000 kW steam turbine-generator Extracting/condensing unit #4.

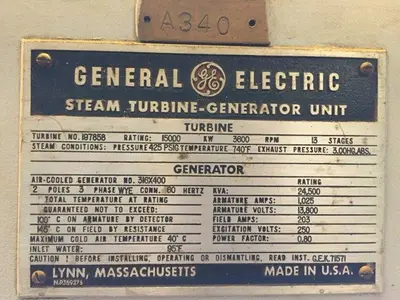

Turbine (no.197858):
rating – 15000 kW 3600 rpm, 13 stages, steam CONDITIONS -425PSIG, temperature-740F, exhaust pressure-3,00HG.ABS.
Generator air cooled (no.316X400) 2 poles, 3 phase WYE CONN., 60 hertz
rating – 24500 kVA, Armature amps-1,025, Armature volts – 13800, field amps-203, excitation volts – 250, power factor – 0,80
inlet water -95F.
Generator was under major overhauling in January 2016.
Spare parts available.
Subject to final release by the owner.
