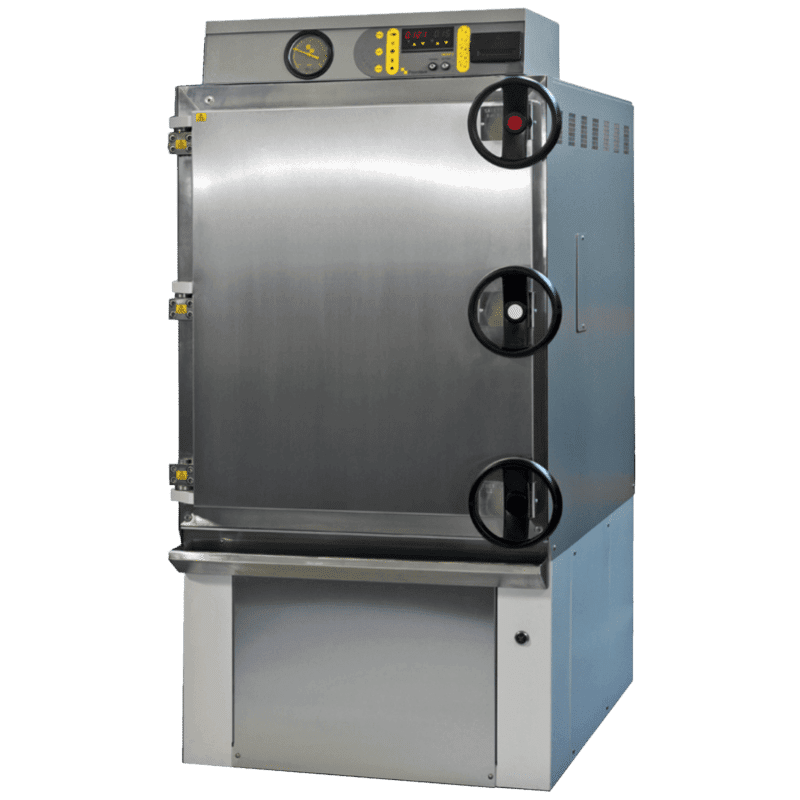

A rectangular chambered front-loading autoclave is the best option available for high-throughput research, education, industrial, and quality assurance facilities. Each of our front-loading autoclaves is entirely custom built to your specifications in our London factory. If you don’t need a steam jacket or powered door, then your autoclave won’t have one. If you do need enhanced cooling, filtration, monitoring, or another feature, it will be fitted. An application-specific build doesn’t just reduce the purchase price by eliminating features of no use to you. It also results in a more reliable autoclave that costs much less to own, operate, and maintain.
GBP £24,250 – 58,750
Product Description
Priorclave rectangular autoclaves are noted for their reliability, affordability, and ease-of-use. Our rectangular autoclaves couple the superior engineering and craftsmanship found in our standard cylindrical chambered research autoclaves with larger chambers optimised for high-throughput applications. Our standard rectangular models rely on in-chamber on-demand heating, and are fitted with safety-interlock manual doors with thick-profile silicone seals. The result is a rectangular autoclave that you can own, operate, and maintain at a significant savings, when compared to same-size, same-function units. That said, if your application or situation demands 24/7 steam generation, a steam jacket, a power door, or other advanced option, we can always build to suit.
Priorclave’s standard line of rectangular autoclaves are among the most efficient on the market, as well as the easiest to service and most reliable. They remain popular with colleges and universities, research facilities (small and large), testing labs, and industrial operations.
Models
Model: EH230-BASE
Model: SH230-BASE
Model: EH230-SMART
Model: SH230-SMART
Model: EH230-PERFORMANCE
Model: SH230-PERFORMANCE
Model: EH285-BASE
Model: SH285-BASE
Model: EH285-SMART
Model: SH285-SMART
Model: EH285-PERFORMANCE
Model: SH285-PERFORMANCE
Model: EH350-BASE
Model: SH350-BASE
Model: EH350-SMART
Model: SH350-SMART
Model: EH350-PERFORMANCE
Model: SH350-PERFORMANCE
Model: EH450-BASE
Model: SH450-BASE
Model: EH450-SMART
Model: SH450-SMART
Model: EH450-PERFORMANCE
Model: SH450-PERFORMANCE
Model: EH700-BASE
Model: SH700-BASE
Model: EH700-SMART
Model: SH700-SMART
Model: EH700-PERFORMANCE
Model: SH700-PERFORMANCE
Standard Features
Programmable TACTROL® 3 Control System with simple “one-touch” start
Customisable Freesteaming, Load Cooling, Media Warming, and Delayed Start
PED-certified 316L Stainless Steel Chamber and Door
Two full width stainless steel anti-tip Loading Shelves
Biomaster™ Antimicrobial Surfaces
Air Intake Filter System
Auto-waterfill
Calibration
Cycle Repeat
Air Ballast System
Accelerated Media Cooling
Adaptation for special water supplies.
Additional Options Kit for Health Service Customers
Air Ballasting with built-in air compressor
Condensate Collection Bottle
Customer requested Pressure Vessel Approval
F0 Integration
Factory Acceptance Test
Graphic Recorder Ethernet Port
Heater Protection
Installation – UK Mainland
IQ/OQ/PQ Documentation
Load Sensed Process Timing
Manual Drain
Mechanical Cycle Counter
Operator Identification
Performance Testing
Pneumatic Valves
Recorder – Circular Chart
Recorder – Graphic – Logger
Recorder – Strip Chart
Serial Communications Package
Setting Lock
Steam / Electric Heating
TACTROL Self – Monitoring System
Touch Screen Option
Water Softener
Specifications
230L Rectangular Specifications
Working Volume
230 litres
Chamber Size
w x d x h
580 x 600 x 600mm
Chamber Material
Burnished 316 stainless steel
Loading Format
Front
Loading Height
800mm
Operating Range
up to 138°C, 2.4 bar
Heater Power
21kW 30A three-phase
Weight
560 kg
External Dimensions
(w x d x h)
760 x 1025 x 1630mm
Minimum Installation
w x d x h (and Door Swing)
1225 x 960 x 760mm
285L Rectangular Specifications
Working Volume
285 litres
Chamber Size
w x d x h
580 x 760 x 600mm
Chamber Material
Burnished 316 Stainless Steel
Loading Format
Front
Loading Height
800mm
Operating Range
up to 138°C, 2.4 bar
Heater Power
21kW 30A three-phase
Weight
600 kg
External Dimensions
(w x d x h)
760 x 1155 x 1630mm
Minimum Installation
w x d x h (and Door Swing)
1355 x 960 x 760mm
350L Rectangular Specifications
Working Volume
350 litres
Chamber Size
w x d x h
580 x 900 x 600mm
Chamber Material
Burnished 316 Stainless Steel
Loading Format
Front
Loading Height
800mm
Operating Range
up to 138°C, 2.4 bar
Heater Power
21kW 30A three-phase
Weight
640kg
External Dimensions
(w x d x h)
760 x 1325 x 1630mm
Minimum Installation
w x d x h (and Door Swing)
1525 x 960 x 760mm
450L Rectangular Specifications
Working Volume
450 litres
Chamber Size
675 x 900 x 755mm
Chamber Material
Burnished 316 Stainless Steel
Loading Format
Front-Loading
Loading Height
800 mm
Operating Range
up to 138°C, 2.4 bar
Heater Power
32.5kW 45A three-phase
Weight
770kg
External Dimensions
(w x d x h)
855 x 1325 x 1785mm
Minimum Installation
w x d x h (and Door Swing)
1525 x 1055 x 760mm
700L Rectangular Specifications
Working Volume
700 litres
Chamber Size
w x d x h
675 x 1360 x 755mm
Chamber Material
Burnished 316 Stainless Steel
Loading Format
Front Loading
Loading Height
800mm
Operating Range
up to 138°C, 2.4 bar
Heater Power
42kW 60A three-phase
Weight
950kg
External Dimensions
(w x d x h)
855 x 1780 x 1785mm
Minimum Installation
w x d x h (and Door Swing)
1990 x 1055 x 760mm
