Description

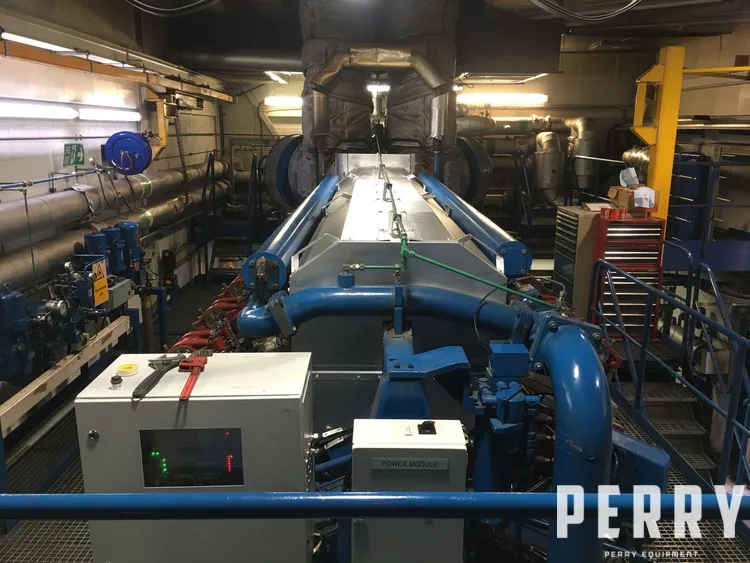

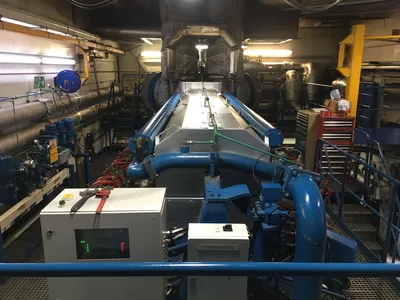

Used 5.9 MW Wartsila Vasa 18V32DF dual fuel cogeneration plant built in 1998 with ABB HSG 900 LS8 generator.
Plant includes:

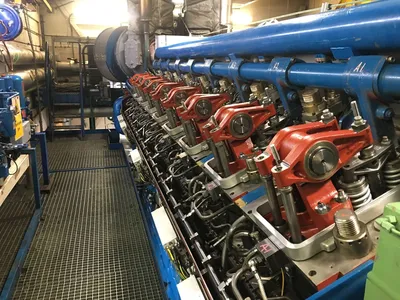

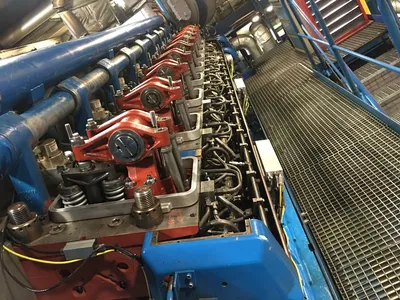

– Wartsila VASA 18V32DF engine. This is a turbo-charged, intercooled four stroke gas engine with direct pilot fuel injection with the following specifications: Vee configuration, 18 cylinders, 320mm cylinder bore, 350mm stroke, 750 rpm, 2 inlet valves/cylinder, 2 outlet valves/cylinder, clockwise rotation and nominal output of 5901 kWm.
– ABB HSG 900 LS8 generator. This is a self-cooled, 3-phase, brushless, synchronous, two bearing type generator with the following specifications: 7235 kVA, 0.8 power factor, 11000 V, 380 A, 50 Hz, 750 RPM, 900 RPM, insulation class F, IP21 protection and IEC34 standard.
