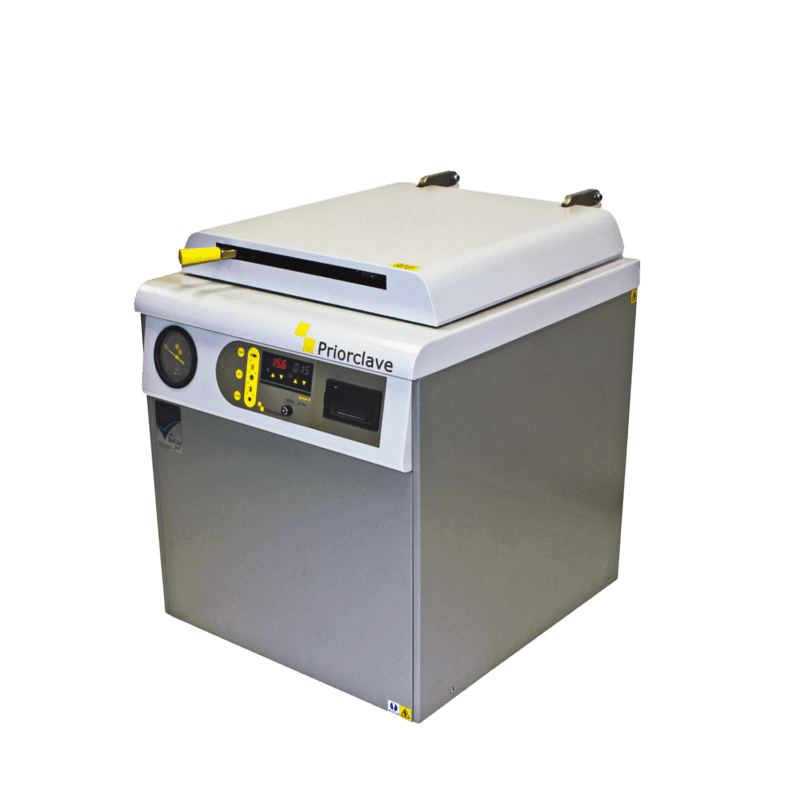

Our #1 top-sellers worldwide! Why? Because vertical autoclaves can accommodate the tallest flasks, fermentors, and bioreactors at one-third the price of a comparable front-loading autoclave. Priorclave’s top loading autoclaves are among the most compact full-size units on the market today. Compared to similar-sized medical-grade rectangular-vessel units, cylindrical autoclaves are easier to operate, less expensive to maintain, and more reliable over a longer working life.
GBP £9,000 – 19,500
Product Description
Top-loading autoclaves are very popular internationally and in for life-science research. Not only do they easily accommodate the tallest flasks, fermentors, and bioreactors, they’re also excellent for waste processing, especially in large batches (pop the lid and drop in the bag, just like a rubbish bin).
By relying on ultra-efficient cylindrical pressure vessels, Priorclave has engineered top-loading autoclaves that feature large capacities, low loading heights, small footprints, and low lifetime operating costs. Every Priorclave is custom built in our London factory, specifically to handle your applications. All top-loading sterilizers can be outfitted for “gravity” or vacuum cycles, with in-chamber or independent heating. They come supplied with a stainless steel load support plate and stainless steel mesh baskets for optimal steam circulation. All models include the most current version of our full-featured, fully-programmable Tactrol Control System.
Does your facility or process pose formidable power, programming, or steam generation challenges? We specialize in custom-engineered solutions, and are eager to discuss how best to meet your needs and exceed your expectations.
Models
Model: V60-BASE
Model: V60-SMART
Model: EV100-BASE
Model: SV100-BASE
Model: EV100-SMART
Model: SV100-SMART
Model: EV150-BASE
Model: SV150-BASE
Model: EV150-SMART
Model: SV150-SMART
Standard Features
Programmable TACTROL® 3 Control System with simple “one-touch” start
PED-certified 316L Stainless Steel Chamber and Door
Quickseal Single-Action Interlocking Safety Lid—cannot be opened unsafely
Chamber Pressure Gauge
Stainless Steel Loading Baskets
Biomaster™ Antimicrobial Surfaces
Assisted Load Cooling
Benchtop or Mobile Cart mounted for ease of positioning and service
One-button start
Permission-based Door Release
Automatic Timed Freesteaming
Media Warming and Delayed Start
Thermocouple Entry and Test Ports
Two full width stainless steel anti-tip Loading Baskets
USB Port
Air Intake Filter System
Auto-waterfill
Calibration
Cycle Repeat
Air Ballast System
Exhaust Filtration
Accelerated Media Cooling
Adaptation for special water supplies.
Additional Options Kit for Health Service Customers
Additional Wire Baskets – Top Loading Priorclaves
Air Ballasting with built-in air compressor
Condensate Collection Bottle
Customer requested Pressure Vessel Approval
Emergency Stop Button
F0 Integration
Factory Acceptance Test
Graphic Recorder Ethernet Port
Heater Protection
Installation – UK Mainland
IQ/OQ/PQ Documentation
Load Sensed Process Timing
Manual Drain
Mechanical Cycle Counter
Operator Identification
Performance Testing
Pneumatic Valves
Recorder – Circular Chart
Recorder – Graphic – Logger
Recorder – Strip Chart
Serial Communications Package
Setting Lock
Single Phase Connection
Steam / Electric Heating
Steam Supply Set
TACTROL Self – Monitoring System
Touch Screen Option
Water Softener
Specifications
60L Top-Loading Specifications
Working Volume
60 litres
Operating Range
up to 138°C, 2.4 bar
Loading Format
Top Loading
Loading Height
850mm
Heater Power
3kW – 13A single phase
Heat Input
Elements in Chamber
Chamber Size
diameter x depth
350mm dia x 625mm
External Dimensions
w x d x h
472 x 620 x 900mm
Floor Weight
85kg
Minimum Installation
Height x Width
777 x 925 x1522mm (including door swing)
60L Top-Loading Vacuum Specifications
Working Volume
60 litres
Operating Range
up to 138°C, 2.4 bar
Loading Format
Top Loading
Loading Height
850mm
Heater Power
3kW – 13A single phase
Heat Input
Elements in Chamber
Chamber Size
diameter x depth
350mm dia x 625mm
External Dimensions
w x d x h
472 x 790 x 900mm
Floor Weight
90kg
Minimum Installation
Depth x Height
670 x 1395
100L Top-Loading Specifications
Working Volume
100 litres
Operating Range
up to 138°C, 2.4 bar
Loading Height
755mm
Heater Power
7kW – 30A single-phase 10.5kW – 15A three-phase
Heat Input
Electrical or Direct Steam Source
Chamber Size
diameter x depth
500mm dia x 500mm
External Dimensions
w x d x h
660 x 840 x 840mm
Floor Weight
unloaded
147kg
Minimum Installation
Height x Width
965 x 1146 x 1400mm (including Door Swing)
100L Top Loading Vacuum Specifications
Working Volume
100 Litres
Operating Range
up to 138°C, 2.4 bar
Loading Height
755mm
Heater Power
7kW – 30A single-phase 10.5kW – 15A three-phase
Heat Input
Electrical or Direct Steam Source
Chamber Size
diameter x depth
500mm dia x 500mm
External Dimensions
w x d x h
960 x 840 x 840mm
Floor Weight
unloaded
157kg
Minimum Installation
Depth x Height
980 x 1400
150L Top-Loading Specifications
Working Volume
150 litres
Operating Range
up to 138°C, 2.4 bar
Loading Height
935mm
Heat Input
Internal Electrical or direct Steam Source
Heater Power
7kW – 30A single-phase 10.5kW – 15A three-phase
Chamber Size
diameter x depth
500mm dia x 720mm
External Dimensions
660 x 840 x 1020mm
Floor Weight
Unloaded
165Kg
Minimum Installation
Height x Width
965 x 1146 x 1640mm (560mm)
150L Top Loading Vacuum Specifications
Working Volume
150 Litres
Operating Range
up to 138°C, 2.4 bar
Loading Height
755mm
Heater Power
7kW – 30A single-phase 10.5kW – 15A three-phase
Heat Input
Electrical or Direct Steam Source
Chamber Size
diameter x depth
500mm dia x 720mm
External Dimensions
w x d x h
960 x 840 x 1020mm
Floor Weight
unloaded
165kg
Minimum Installation
Depth x Height
980 x 1640mm
