Description

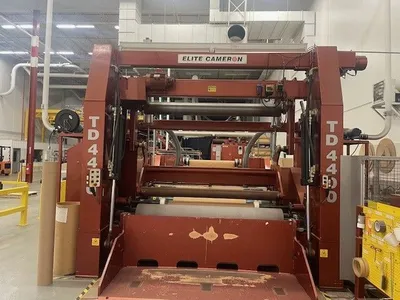

Used Elite Cameron Model TD4400 Two-Drum Rewinder
High-speed, general-purpose two-drum surface winder designed for processing a wide range of paper and board grades. The TD4400 features individual AC-driven drums, automatic nip and tension control, and has been recently rebuilt with new Eurotherm drive components.
General Specifications
Maximum machine speed: 4,400 fpm
Maximum web width: 3,000 mm (approx. 118″)
Unwind width: 82″
Floor pick-up: 3″ or 6″ cores
Maximum unwind roll diameter: 60″
Maximum unwind roll weight: 6,000 lbs
Rewind core sizes: 3″ or 6″
Maximum rewind roll diameter: 60″
Maximum rewind roll weight: 4.25 tons (approx. 8,500 lbs)
Unloading system: Bucket-dump type
Slitting System
Type: Tangential shear slitting
Minimum slit/trimming width: 5″
Controls & Drives
PLC: Allen-Bradley SLC 5/04
Operator interface: Allen-Bradley PanelView 1000
Drive system: Eurotherm L5311 and 690+ AC drive package
All motors: AC
Control and drive upgrades: PanelView and Eurotherm components recently rebuilt/replaced
