Large aperture machine designed for large containers of up to 25 Litre
–
Bottles /min
Automatic
Capping, Filling, Labelling & Sorting.
Up to 25,000ml
Container Volume
View Tech Specs
Let’s Talk CC1770
The CC1770 Is The Answer To Bulk Products Up To 25 Litres.
Large aperture machine designed for large containers of up to 25 Litre
Can be set-up as a filling machine or capping machine
Fully-automatic or semi-automatic set up
Heavy duty applied cap torques of up to 15Nm
Can accept a conveyor width of up to 370mm. Easily integrates into existing lines with minimal disruption
Overview
Up to 25L
Container Volume
Ø10mm – Ø125mm
Cap Size
Any Shape
Cap Shape
Any Shape
Container
180kg
Weight

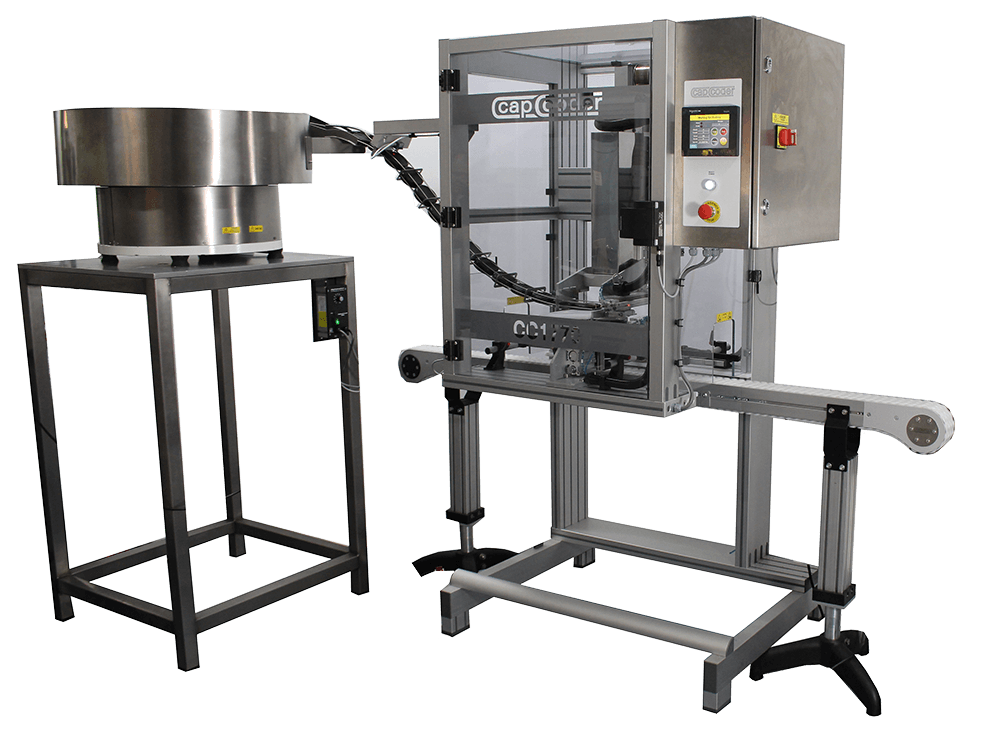

The CC1770 is Cap Coder’s answer to bulk products up to 25 litres.
With a large aperture into the machine and a heavy duty gating system the machine is ideally suited to containers of considerable size and weight.
Whether the CC1770 is being used as a filling machine or a capping machine it works on the same simple gating mechanism and quick change tooling make the machine well suited to those who would like to run several products through the machine.
FEATURES
CC1770 Technical Specifications
Capping
Cap Shape
Any shape considered
Cape Type
Plastic, metal
Cape Size
Ø10mm – Ø125mm
Cap Application
Torque & speed controllable
Container
Container Shape/Type
Any shape
Container Volume
Up to 25 Litres depending upon container shape
Container Material
Plastic, Glass, Metal
Control, Electrical, pneumatic
Control
PLC
Schneider as standard. Client preference as required.
Electrical
Servo Drives
Schneider
Electrical
Electrical Controls
Schneider
Electrical
Electrical Supply
230v Single phase – 13Amp via MCB “D” rated. Not via RCD supply
Electrical
Consumption
Max 2kW
Pneumatic
Pneumatic Systems
SMC as standard
Pneumatic
Air Pressure
5 bar
Pneumatic
Air Consumption
Notionally 25 Litre/min
Construction
Dimensions
1013mm(w) x 740mm(d) x 1940mm(h)
Weight
180 kg
Build Standard
EC Declaration of Conformity. Zone 2 Compatible if operationally required. IP 65 rated.
Machine Construction
Anodised aluminium extrusion framework, stainless steel base cover panels, polycarbonate guarding, Stainless steel frame as an optional extra
Production & options
Options
Additional Options
Press head, alternative filling machine.
Options
Change Parts
Starwheels, torque head gripping jaws, clamps & fences, press pads
Production Rate
Up to 25 per minute
