Robust and reliable starwheel-based filling and capping machine
40
Bottles /min
Automatic
Capping, Filling, Labelling & Sorting.
25-5000ml
Container Volume
View Tech Specs
Watch Video
3:45
Let’s Talk CC560
See the CC560 in Action

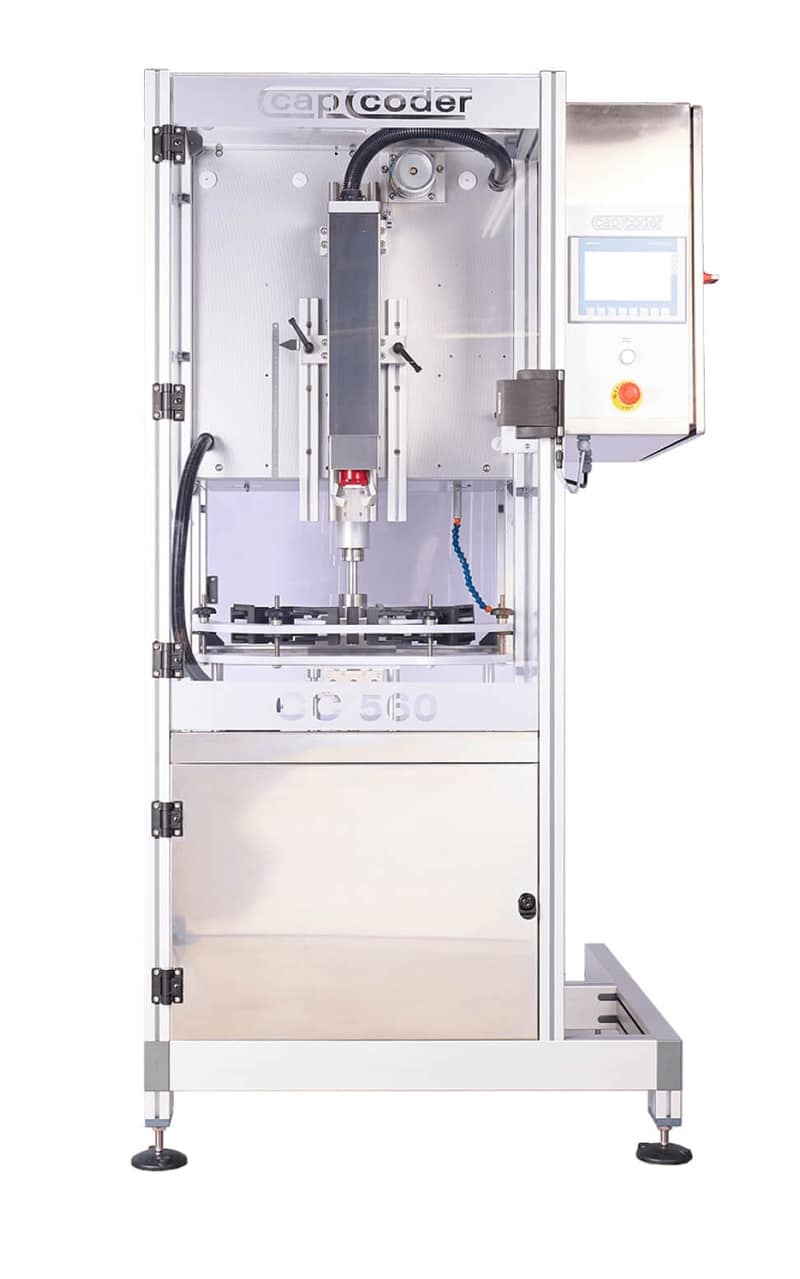

CC560 Fully or Semi-Automatic Capping Machine
Watch Video
3:45
Robust and reliable starwheel-based filling and capping machine
Containers up to 5 Litres
Starwheel-based machine to accept products up to a 5Ltr jerry can
Fully automatic bowl fed option
Servo-driven Indexing drive
Servo rise and fall head version, to eliminate operator error on product change over.
Multi head Option
Can be used with existing conveyor
Product settings saved as recipes within HMI
Overview
Up to 40
bottles/min
25ml-5Litre
Container Volume
Up to 320mm
Container Height
12 months
Warranty
210kg
Weight
Tech specs
The CC560 is one of Cap Coders most proven machines, making its debut in 2004 and replacing the previous CC550, another long standing machine.
Using feedback from the many hundreds of customers that have used the CC560 over the years, we have managed to develop a machine broad in function and ideally suited to many different applications and customer needs.
The CC560 can be used as filling machine or a capping machine.
With several working starwheel pockets to take advantage of, the CC560 can deal with applications such as filling, roll-on ball inserter, and capping in one sequence, making the CC560 capable of dealing with an incredibly wide range of differing style products in one machine.
Automatic trigger spray application is straightforward for the CC560.
FEATURES
CC560 Technical Specifications
Capping
Cap Shape
Any shape considered, Trigger spray nozzles.
Cape Type
Plain, Tamper-Evident, Trigger and Pump Spray
Cape Size
Ø10mm – Ø120mm Semi Auto & single head fully automatic.Ø10mm – Ø65mm Twin Head fully automatic
Cap Application
Torque & Speed controllable. Pick & Place Option. Press on
Container
Container Shape/Type
Any shape and material type considered
Container Volume
25ml – 5ltr
Container Height
Maximum 320mm using Standard machine frame
Control, Electrical, pneumatic
Control
PLC
Schneider as standard. Client preference as required
Electrical
Motor
Dunkermotoren, Schneider
Electrical
Electrical Controls
Schneider, Pilz
Electrical
Electrical Supply
230v Single phase – 13 Amp via MCB “D” rated. Not using RCD supply
Electrical
Consumption
Max 2.8 kW
Pneumatic
Pneumatic Systems
SMC as standard
Pneumatic
Air Pressure
5 bar
Pneumatic
Air Consumption
Notionally 30Ltr/min subject to operation
Construction
Dimensions
965mm (inc control box) (w) x 940mm (d) x 1975mm (h)
Weight
210 kg
Build Standard
EC Declaration of Conformity. Zone 2 Compatible if operationally required. IP 65 rated
Machine Construction
Stainless Steel framework, stainless steel base cover and panels, polycarbonate guard doors
Production & options
Options
Additional Options
Bowl Feeders, Bulk Hoppers, Conveyors, Rotary Tables, Press Heads, Adjustable Starwheel, Filling Station, Cap Check
Options
Change Parts
Starwheels, Torque Head gripping jaws, clamps & fences, press pads, cap nests or pegs
Production Rate
Cap Tightening, Single Head
Up to 40 /min
Production Rate
Automatic Capping, Single Head
Up to 30 /min
Production Rate
Automatic Capping Twin Head
Up to 40 /min
