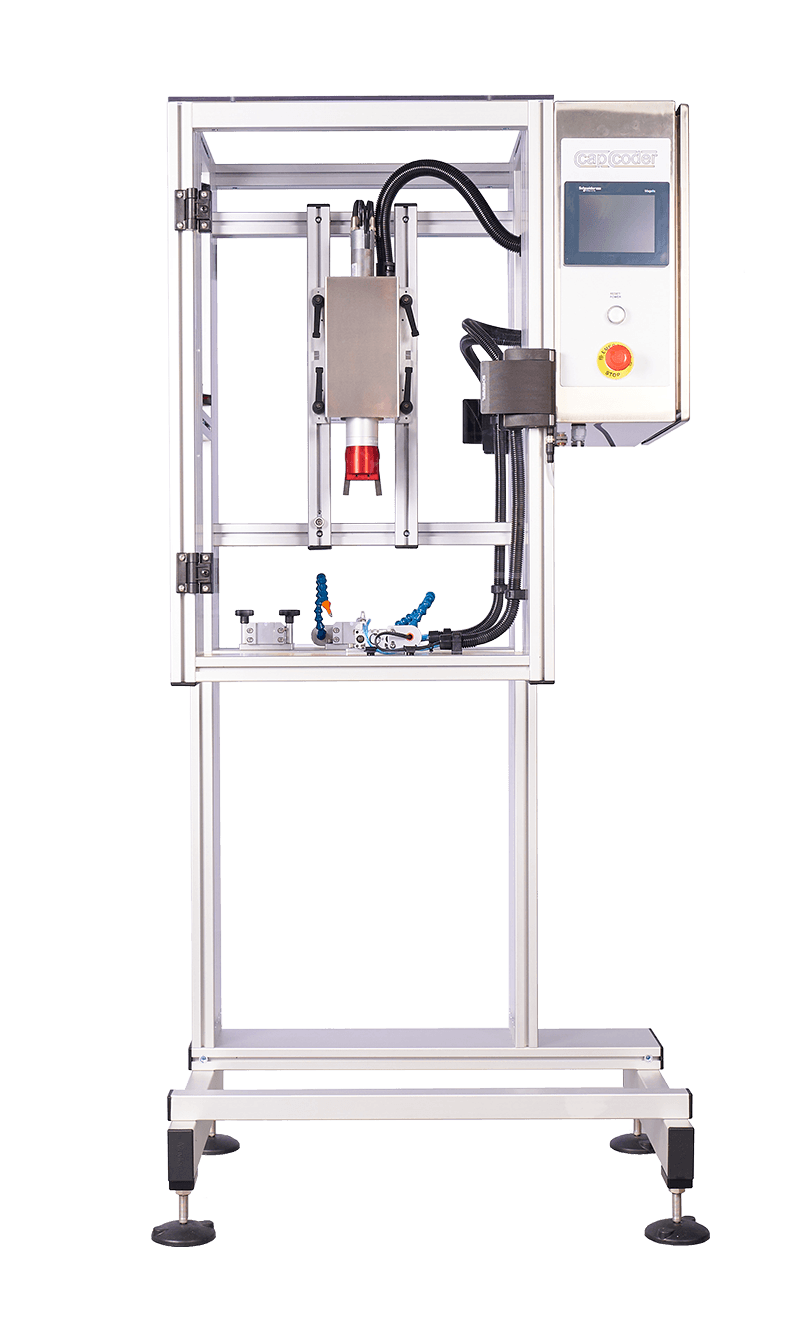

In-line cap tightener for new and existing lines. Flexible, Multi-Purpose Tightener
38
Bottles /min
Automatic
Capping or Filling, Labelling & Sorting.
20-1000ml
Container Volume
View Tech Specs
Watch Video
3:45
Let’s Talk CC570
See the Mini Mono in Action
Simple, intuitive and immensely
flexible cap tightener.
Watch Video
3:45
Flexible, Multi-Purpose Tightener
Multi-Purpose
Can be configured for filling, pressing, crimping, trigger sprays and standard screw capping
Complete control via the touchscreen HMI
Easy installation
Straddles existing conveyor.
Simple gating mechanism
Simple gating mechanism means low cost tooling and extremely quick product change over.
Customised to suit the application
Overview
Up to 38
bottles/min
20ml-1000ml
bottles/min
100%
Assurance
12 months
Warranty
90kg
Weight
Tech specs
The CC570 is the ideal capping machine for applications where many different products and frequent product change-overs occur, making it immensely popular with contract packers and cosmetic companies.
With its quick-release tooling, product change-over can take as little as three minutes.
The choice of an optional extra linear-servo rise and fall head – where the capping head automatically moves to the correct height chosen by the operator via the HMI – minimises set-up time and ensures operator errors are reduced to a minimum.
The machine can be supplied suitable for use in Hazardous Environments, complete with the necessary documentation for use in a Zone 2, Atex Environment and even Zone 1 Atex Environment using an all pneumatic control and operating system. There are also options for Validation Documentation, including HATS & SATS, DSERA, GMP and GAMP.
Ancillary equipment can also be supplied, including feeding and collating rotary tables and hopper/elevators for bulk supply.
Applications
– Screw caps, Tamper Evident, Child Resistant, Trigger Spray, Pump Action, Jam Jar
– Press-on caps
– Clean Room/Food environments- Hazardous Environments
FEATURES
CC570 Technical Specifications
Capping
Cap Shape
Any shape considered
Cape Type
Plain, Tamper-Evident, Pump Spray. Options for ROPP and Press-on caps
Cape Size
Ø10mm – Ø120mm
Cap Application
Torque & Speed controllable.
Container
Container Shape/Type
Any shape and material type considered
Container Volume
25ml – 1ltr typical (Ø15mm – Ø120mm)
Container Height
Maximum 300mm using standard machine frame
Control, Electrical, pneumatic
Control
PLC
Schneider as standard. Client preference as required
Electrical
Motor
Dunkermotoren, Schneider
Electrical
Electrical Controls
Schneider, Pilz
Electrical
Electrical Supply
230v Single phase – 13 Amp via MCB “D” rated. Not via RCD supply
Electrical
Consumption
Max 2kW
Pneumatic
Pneumatic Systems
SMC as standard
Pneumatic
Air Pressure
5 bar
Pneumatic
Air Consumption
Notionally 50Ltr/min subject to operation
Construction
Dimensions
800mm (inc control box) (w) x 500mm (d) x 1700mm (h)
Weight
100 kg approx
Build Standard
EC Declaration of Incorporation. Zone 2 Compatible if operationally required. IP 65 rated
Machine Construction
Standard machine, anodised aluminium extrusion framework, polycarbonate guard doors.Stainless steel frame as optional extra
Production & options
Options
Additional Options
Servo Linear Rise and Fall, Automatic bowl/hopper fed version, Conveyors, Press Heads, ROPP Heads, alternative PLC, stainless steel frame
Options
Change Parts
Torque Head gripping jaws, clamps & fences, press pads
Production Rate
Up to 38 per minute
