Pump Type – Dosing and Metering
Max Flow Rate – 9L/hour
Max Pressure – 10 bar
Pump Materials – PVDF
Power KW – 24w, 37w, 58w
IP Rating – IP65

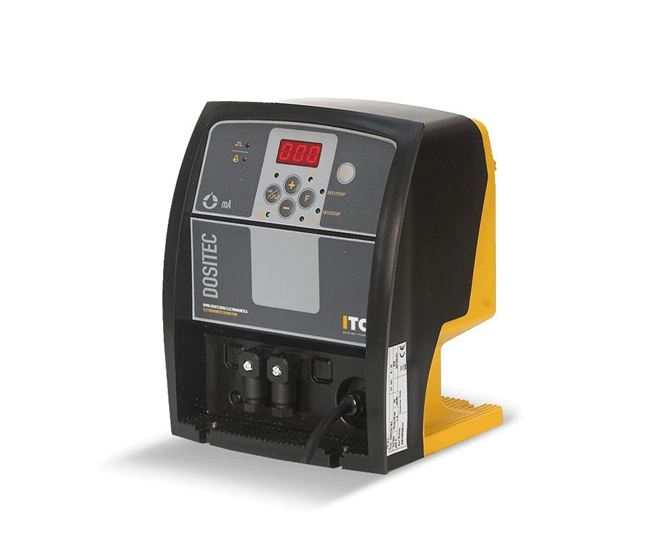

Weight – 3kg, 3.8kg , Description: DOSITEC PRC
The Dositec PRC are high precision, heavy duty electromagnetic diaphragm pump for dosing liquids ideal for use across a range of industries including agricultural, chemical, food and beverage, pharmaceutical and textile sectors.
The Dositec PRC pump is manufactured to dose liquids into pipework, with materials allowing the pump to be used with a wide variety of aggressive, volatile, flammable, or inert chemicals and acids.
The PRC version is regulated by a PH-ORP on-off relay from 0-25 (-1400mV to 1400mV) 4/20mA Output
This model of pump provides a flow from 2.5 to 9 l/h at 10 bar and includes a connection for a level switch.
Product Range Summary
Max Pressure: 10 bar
Max Flow: 9L/Hour
Regulated by a PH-ORP on-off relay
Pump Head: PVDF
Valve Body: PVDF
Valve (ball): Ceramic
Sealing: FPM / EPDM
Diaphragm: PTFE
Power: 24w – 37w – 58w
Protection: IP65
Weight: 3kg (6.6lb) – 3.8kg (8.4lb)
Industry Applications
Chemical
Textile
Water Treatment
Agriculture
Food and Beverage
