Pump Type – Dosing and Metering, Piston/Plunger
Max Flow Rate – 500L/hour
Max Pressure – 20 bar
Pump Materials – AISI316, PP, PVDF, PTFE
IP Rating – IP55
Power KW – 0.37kw

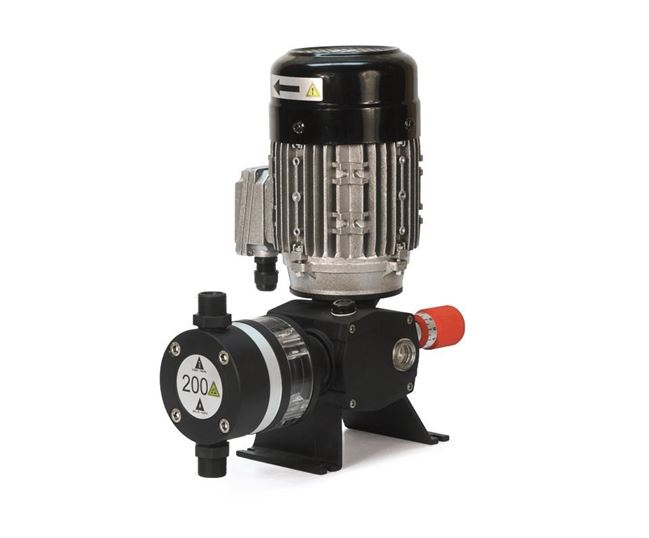

Weight – 10kg , Description: DOSTEC 40
The Dostec 40 is heavy duty, precision diaphragm and piston dosing pumps. Being of positive displacement design they are used for the dosing of liquids across a range of industries in the agricultural, chemical, food and beverage, pharmaceutical and textile sectors.
The pump head is capable of being manufactured in several configurations ranging from chemically resistant plastics such as Polypropylene or PVDF to AISI316 Stainless Steel allowing the pump to be used with a wide variety of aggressive, volatile, flammable, or inert chemicals.
Units are modular in design enabling pumps to provide a flow ranging from 2.5 to 500 l/h for piston pump designs, and 5 to 300 l/h for diaphragm pump varieties.
Dosing flows can be independently adjusted separately, allowing a turn down from 0% to 100% of capacity whilst the pump remains in operation.
The dosing head is separated from the body by an FPM bellows and attached to the motor via a gearbox which reduces pump speed.
The Dostec 40 is designed and manufactured with materials that can resist most chemicals, including acids, alkalis, fuels, solvents, oils, chemicals, and food.
They are Ideal for a range of processes where precise dosing or metering is required and suitable for applications within the food, textile, chemicals, agricultural, water treatment sector and more.
Product Range Summary
Max Pressure: 20 bar
Max Flow: 500L/hour
Pump Head: PP / AISI 316 / PVDF / PTFE
Diaphragm: PTFE
Piston: Ceramic / PEUHMW
Valve Body: PP / AISI 316 / PVDF / PTFE
Valve (ball): Glass / Glass Borosilicate / AISI 316
Seals: FPM
Block: Cast Aluminium
Protection: IP55 Class F
Power: 0.37Kw (0.5 Hp)
Weight: 10kg (22lb)
Industry Applications
Chemical
Textile
Water Treatment
Agriculture
Food and Beverage
