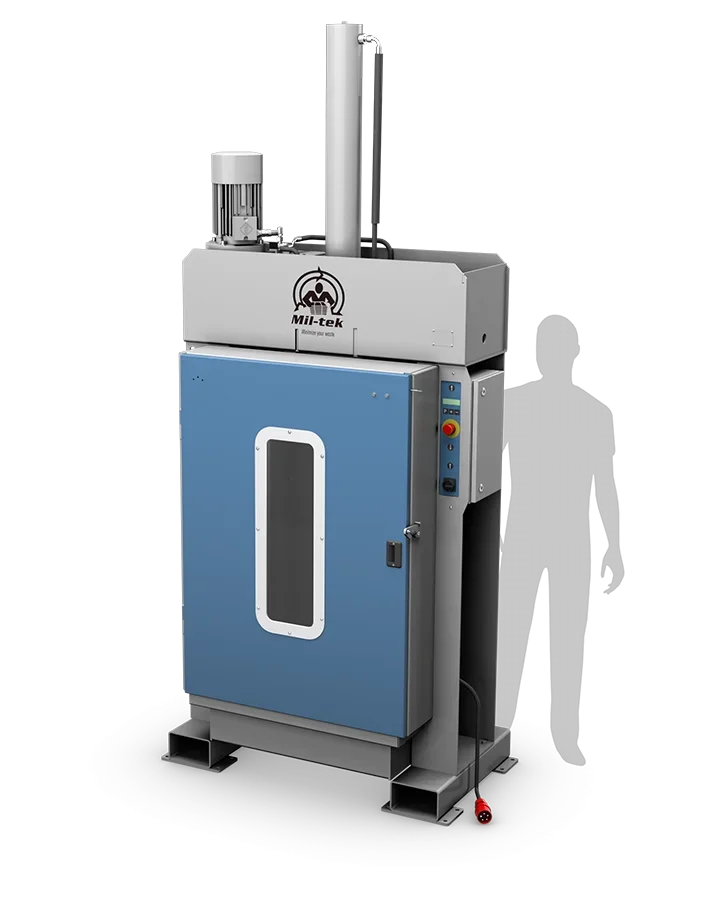

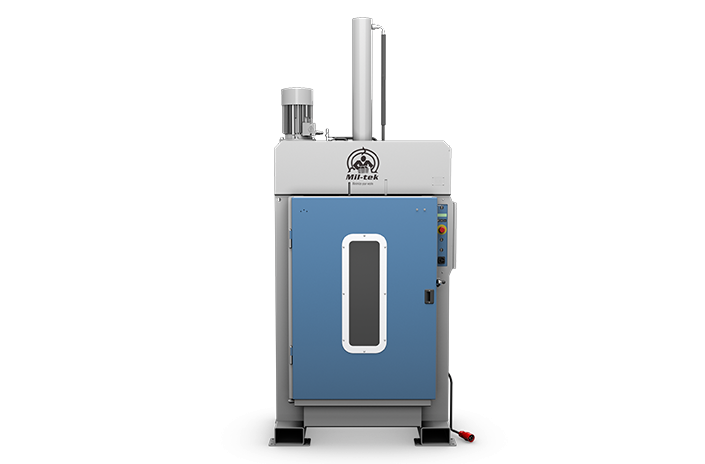

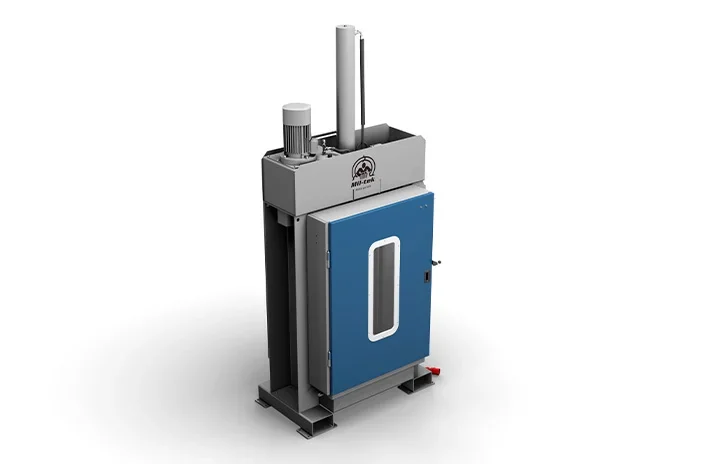

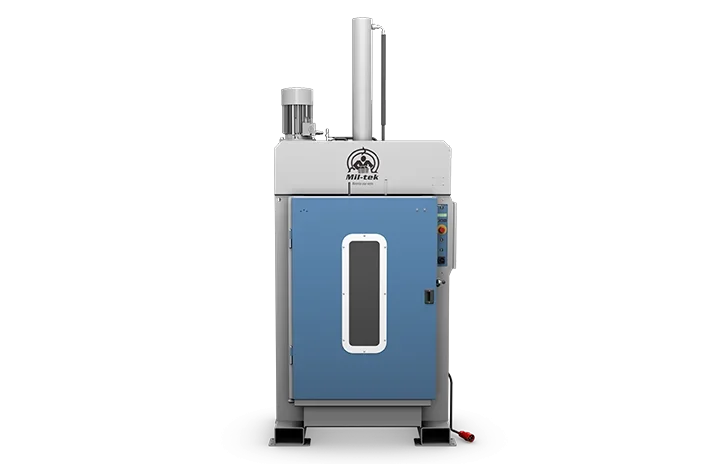

DP250
Drum Press
dp250-blue-and-grey-drum-press-on-white-background
The DP250 Drum Press compacts steel drums and barrels in less than a minute with 25 tons of pressing force. Covering just 1m², it compacts drums and barrels to about a tenth of their original size.
25 ton pressing force
85% rate of compaction
1m² floor space footprint
32 seconds pressing cycle
Quiet two-stage hydraulics
Electrical overload protection
Run-off drain for excess fluid
hydraulic-badge
Product Overview
Specifications
Need help?
Download brochure
Add to product comparison
Plastic drums, steel barrels and containers up to 200 litres in size can be compacted in the 250 Drum Press.
A Drum Press 250 with quiet, 2-stage hydraulics and an automated stop function simplifies the compaction and disposal of these containers, thereby minimizing the space used storing waste.
The small floorspace footprint and spray guard ensure that the DP250 can safely operate in a clean and hygienic environment.
hydraulic-badge
The DP250 is a Hydraulic Drum Press, designed with ergonomics and user safety in mind. Not only does it have a relatively small footprint of just over 1m², it features a surrounding spray guard with a large viewing window, allowing users to safely operate the press.
The small size allows for the Drum Press to be installed at the locations where drums are used. This creates a fluid, integrated waste management system from creation to compaction.
The top of the drum press features three venting spikes that pierce holes in the drum during the pressing cycle and the chromed piston compacts drums with 25 tons of pressing force. The full pressing cycle lasts just 32 seconds, meaning that drums and barrels can be continuously loaded and compacted at a steady and regular rate.
Compacted drums are a tenth of their original size, and can easily be stacked and stored. Energy saving, quiet 2-stage hydraulics with automatic stop at the end of the cycle.
The DP250 boasts chromed piston electrical and hydraulic overload protection, as well as a state of the art control system that ensures safe and simple usage and long lasting protection against damage.
The DP250 Drum Press also features a collection drain, which can be connected to a disposal system, allowing excess fluid to safely run off.
Technical specifications
Download tech sheet
Degree of compaction
85-90%
Drum capacity
Pressure
Power supply
Up to 200 L
25 Tons
3 x 400v 16A
Door Opening
Height
950 mm
Width
680 mm
Depth
800 mm
Machine Size
Height
2920 mm
Width
1200 mm
Depth
850 mm
Weight
750 Kg
Transport height
2400 mm
Pressing cycle
Time
32 sec
