Pump Type – Dosing and Metering, Piston/Plunger
Max Flow Rate – 1600L/hour
Max Pressure – 12 bar
Pump Materials – AISI316, PP, PVDF, PTFE
IP Rating – IP55
Power KW – 5.5kw
Weight – 48kg, 65kg , Description: EFR

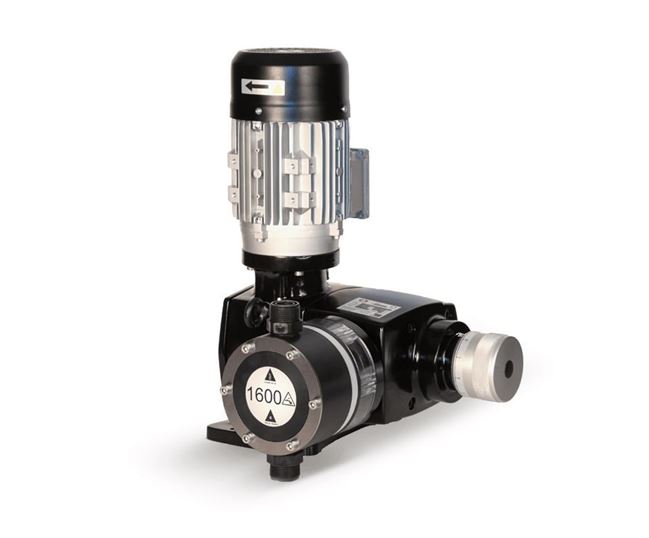

The EFR is a high precision and self-priming diaphragm and piston dosing pumps.
The EFR pumps are designed with non-loss-motion mechanisms, variable eccentric regulation and available with one or two dosing head configurations operating via a single drive, enabling a variety of flow possibilities.
The pump head is designed for demanding operation and heavy-duty continuous operation, capable of being manufactured in several material configurations such as Polypropylene, PVDF, PTFE and AISI 316, allowing the pump to be used with a wide variety of liquids that are aggressive, volatile, flammable, or inert.
Units are modular in design enabling multiple pump heads connected to a single drive, delivering either the same liquid or different liquids, delivering a flow ranging from 330 to 1600 l/h for piston pump designs, and 207 to 1044 l/h for diaphragm pump varieties.
Dosing flows can be independently adjusted separately on each pump head, allowing a turn down from 100% to 0% of capacity whilst the pump remains in operation.
The EFR is designed and manufactured with materials that can resist most chemicals, including acids, alkalis, fuels, solvents, oils, chemicals, and food, making it suitable for applications within industrial, agricultural and water treatment.
Product Range Summary
Max Pressure: 12 bar
Max Flow: 1600L/Hour
Pump Head: PP / AISI 316 / PVDF / PTFE
Valve Body: PP / AISI 316 / PVDF / PTFE
Valve (ball): Glass / Glass Borosilicate / AISI 316
Sealing: FPM
Diaphragm: Elastomer Base Reinforced with Fibre and PTFE Clothing
Piston: Ceramic / PEUHMW
Block: Aluminium Cast
Protection: IP55 Class F
Power: 5.5kw (2 Hp)
Weight: 48kg (105lb) – 65kg (143lb)
Industry Applications
Industrial Processes
Agriculture
Water Treatment
