Pump Type – Accessories
Max Head – 150M
Pump Materials – AISI304, AISI316, Stainless Steel, PP, PVC, PVDF, EPDM, NBR, NBR-A, NR, Silicon
Max Temp – 110°C

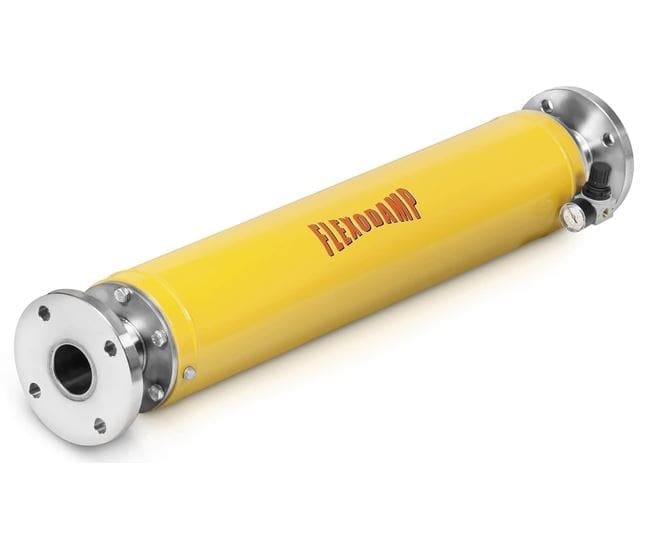

Inlet/Outlet Sizes – 65mm to 100mm , Description: FLEXODAMP FDR Rigid Pulsation Dampener
The FLEXODAMP FDR Rigid version pulsation dampeners are installed downstream of the pump to absorb pulsations, hammering, noise and vibrations to create a smooth and constant flow. Compressed air is fed into the inner and outer tube to create a positive pressure that flexes the inner tube to absorb pulsations and adjusts automatically depending on the system pressure.
The FDR series can be used with various types of positive displacement pumps that create a pulsating flow, these include air operated diaphragm pumps, peristaltic pumps, low pressure piston pumps and eccentric disk pumps. Most pulsating pump manufacturers recommend the use of a dampener to protect the system and increase the lifespan of key components such as valves and flow meters from damage due to hammer and excessive vibrations.
FLEXODAMP pulsation dampeners are unique in that they sit in line with the pipework and do not require additional space. The flexibility of length, connection types, connection materials, inner tube materials and the availability of both industrial and sanitary versions make the FDR series ideal for most application and liquid types. We also have a range of flexible pulsation dampeners that are available in longer lengths and with smaller connection sizes, please see the FD range for further details.
Typical Applications
· Chemical Dosing.
· Water Treatment.
· Food/Beverage Transfer.
· Construction.
· Sampling.
· Mining.
· Paper Industry.
· Agriculture.
· Pharmaceutical.
· Industrial & Chemical Process Transfer – Glue, Resins, Ink, Paint, Anti-foaming, Dyes, Detergents, Oils, Concrete, Mud, Sludge, Sewage.
Main Benefits
· Reduces pulsations by up to 95%.
· Reduces vibrations, hammering and noise significantly.
· Works with both low viscosity and high viscosity fluids.
· Simple to install thanks to the inline design and flexibility.
· Can be customised in length from 1000mm up to 1500mm.
· Solids can pass through without affecting performance.
· Flexible connection sizes from 65mm to 100mm.
· Various inner tube materials for compatibility with vast amounts of fluids; Natural rubber, EPDM, NBR, Food grade FDA approved hose and silicone (depending of dampener model).
· Connections are available in a wide range of materials, including Polypropylene, PVC, PVDF Stainless steel 304 and 316.
· Various connection types available, including DIN flanges, ANSI flanges, Tri-Clamp, DIN 11851 and SMS.
· Simple to clean.
· Maximum working pressure of 15 bar.
· Maximum fluid temperature of 110°C.
· Air inlet pressure is simple to adjust via a regulating valve.
