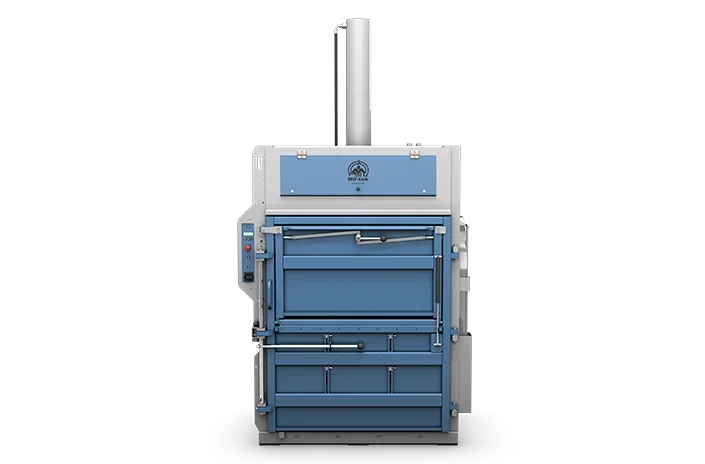

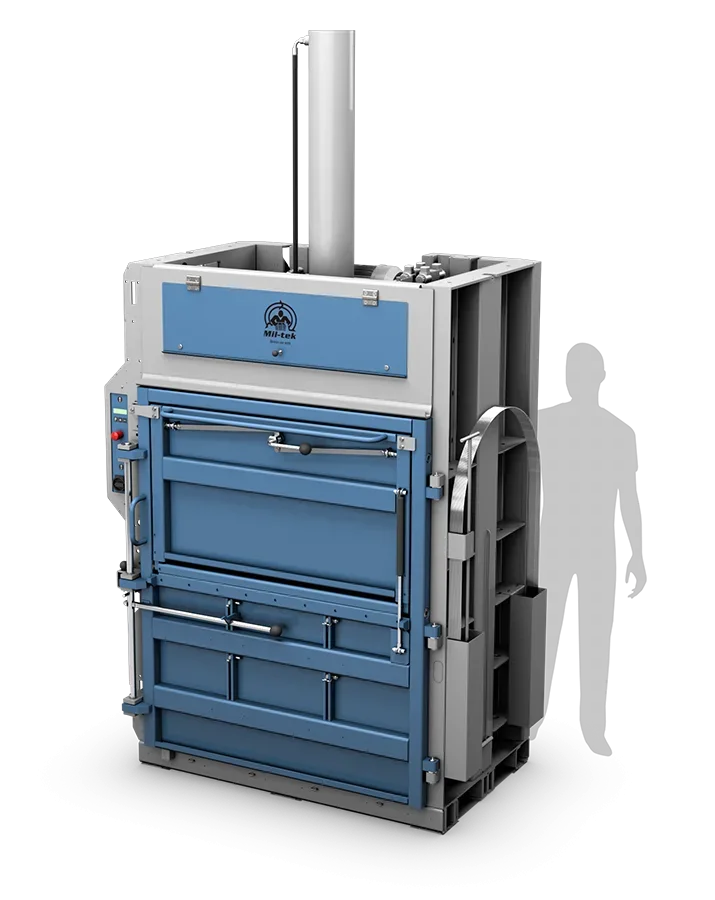

H501
Mill Size Hydraulic Baler
h501-big-blue-hydraulic-baler-on-white-background
The Mil-tek H501 Mill Size Baler is a hydraulic mill size baler, that makes extremely dense, recycle-ready bales that can be sent directly to mills for final recycling.
Up to 90% Compaction
Pallet-size bales of up to 450 kg.
Send bales direct to mills for recycling
Multi-purpose: cardboard, plastic & PET
Manual door operation and automatic bale ejection
hydraulic-badge
cardboard-badge
plastic-badge
Product Overview
Specifications
Need help?
Download brochure
Add to product comparison
The wide door and deep chamber of the Mil-tek H501 baler means large volumes of cardboard can be baled without the need for breaking down or flat packing. The strength of the machine means that it can cater for many types of material
hydraulic-badge
cardboard-badge
plastic-badge
Hydraulic mill size baler
The Mil-tek H501 is one of the most effective hydraulic balers on the market making bales of up to 450kg that fit perfectly on a standard pallet.
The baler is designed to make extremely dense, recycle-ready bales of either cardboard or plastic that can be then sent directly to mills for final recycling.
The extra long piston stroke and large door-opening allows for loading of large volumes of material including whole cardboard boxes, PET plastic or packaging foam. Bales from the Mil-tek H501 can be tied using either regular 19mm banding or steel wire.
h501-baler
Technical specifications
Download tech sheet
Degree of compaction
85-90%
Cardboard Bale
Plastic Bale
PET Bale
350 – 400 kg
350 – 450 kg
< 250 kg Bale Size Height 800 mm Width 1200 mm Depth 800 mm Door Opening Height 670 mm Width 1200 mm Depth 780 mm Machine Size Height 3100 mm Width 1600 mm Depth 1300 mm Weight 2050 kg Noise Noise Level 70 db(A) Pressure Pressing force < 50 tons Approvals Certifications CE, GS & UKCA
