Description

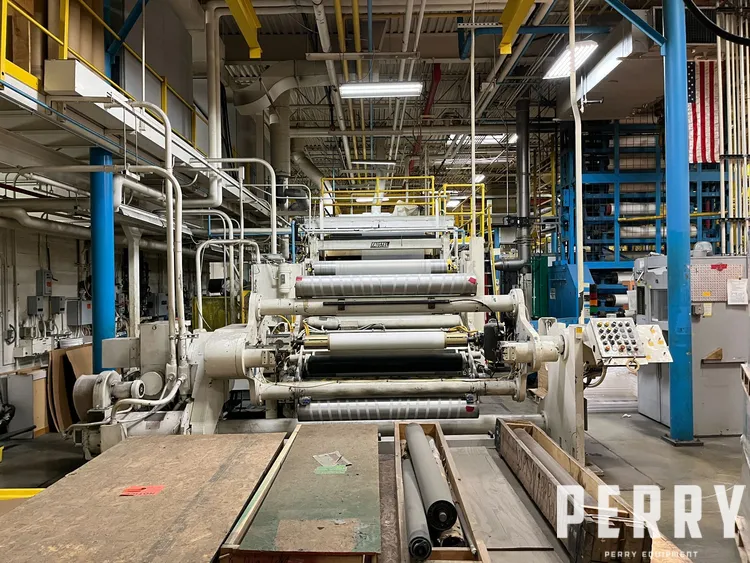

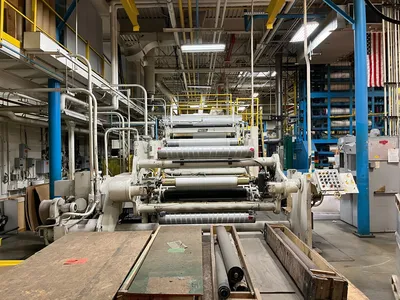

Used UV/EB offset gravure coating line – 65″ (1,650 mm)
Complete coating line with unwind, offset gravure coater, UV curing system, EB curing system, and turret rewind
Designed for silicone release coatings, adhesives, and high-performance UV/EB specialty coatings
Line remains installed and can be inspected
Main Components
Rotomec Phantom Axis Turret Unwind (65″ / 1,650 mm)
Full-speed flying splice, Accuweb edge guide, nip + dancer tension control, air shafts for 3″ / 6″ / 10″ / 12″ cores (76 / 152 / 254 / 305 mm)
Kroenert Offset Gravure Coater (3-roll)
10.5″ gravure roll (267 mm, 15 HP / 11 kW), 8.25″ backing roll (210 mm, 40 HP / 30 kW), EPDM / urethane 10.25″ transfer roll (260 mm)
UV Curing (UV Doctors, nitrogen inerted)
3 lamps @ 400 W/in (157 W/cm), 1,200 W/in (472 W/cm max)
Electron Beam Curing (RPC EB)
200 kV, 3 Megarad @ 1,000 FPM (305 m/min)
Rotomec Phantom Axis Turret Rewind (40″ / 1,016 mm roll OD)
Full-speed flying splice, Accuweb edge guide
Condition:
Still installed. Available for immediate inspection.
