Model Number:
OLT-HP-1100
Minimum Order Quantity:
1
Compliance:
CE Certified
Voltage:
AC 108~240V
Automatic Grade:
Automatic
Capacity:
300mL
Use pressure:
3MPa
Service temperature:
≤1100℃
Weight:
35KG
Dimension(L*W*H):
340mm( W) * 320mm( D) * 820mm( H)
Lead Time:

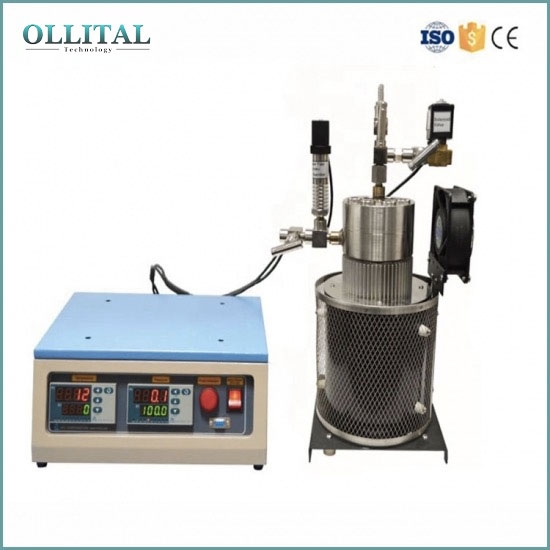

6-8Day , OLT-HP-1100 is a 100mL reactor made of Ni-based Superalloy, which has excellent creep strength and anti-oxidation. It can reach 1100 °C with a pressure up to 3 MPa under oxygen or inert gases. It is an ideal tool for preparing advanced material by the hydrothermal method, especially for heat treatment of sample under high oxygen pressure. A solenoid valve is installed on the flange for automatic pressure relief control. Temperature control and pressure monitoring software are included for remote control.
Model Numbe
OLT-HP-1100
Input Power
Input voltage: AC 108~240V, 50/ 60Hz, single phase
Power: 1.5KW
Pressure Vessel
(1) Ni-based superalloy hydrothermal reactor with 300mL capacity.
(2)Made of Ni-based superalloy GH747
(3) Reactor size: 70mm( OD) * 25mm( ID) * 210mm( H)
(4) Air cooled flange via aluminum heat radiator
(5) A small quartz or alumina boat should be used to load the sample inside the reactor, which increases vessel service life.
(6) Gold or Ni foil can be used to wrap the crucible boat to minimize contamination to vessel
Working pressure
18MPa ≤800℃
13MPa ≤900℃
8MPa ≤1000℃
3MPa ≤1100℃
Temperature Control and Heater
Limiting temperature: 1100℃
Working temperature: 1000℃
Heating zone length: 330mm
Constant temperature zone: 80mm within ±1℃
Heating element: Fe-Cr-Al alloy
Thermocouple: K type
Program: Digtial temperature controller, 30 programmable segments and ±1℃ accuracy
Size
340mm( W) * 320mm( D) * 820mm( H)
Net weight
35KG
Warranty
One year limited warranty with lifetime support
Pressure Monitoring and Relief:
(1) Precision high pressure sensor (measurement range up to 25 MPa, or 250 bar) is installed on the pressure vessel. The pressure monitor displays pressure in bar
(2) Pressure monitor allows the user to set a high pressure alarm. When the pressure reaches the alarm set point (15 MPa max), alarm will sound and the pressure will be released via a solenoid valve on the flange. For using the reactor with a pressure > 15 MPa at low temperature, please shut off the needle valve near the solenoid valve and use the manual pressure relief valve
Packing and Shipping
-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent
