Description
Unused Parker Fiber-Bed Nitrogen Generation System, Model FB8-HFLX, 1000 SCFM
Generates 95–99% purity nitrogen from compressed air using membrane separation
Nominal nitrogen output: 1,000 SCFM at 5% Oâ‚‚ content (60,000 SCFH or about 1700 m3/h).
Air consumption: 4,200 SCFM at 115 psig (252,000 SCFH or 7132 m³/h)

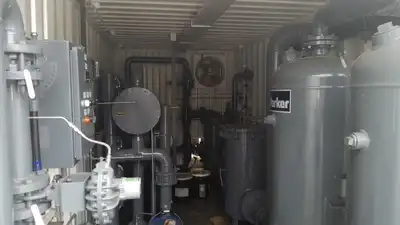

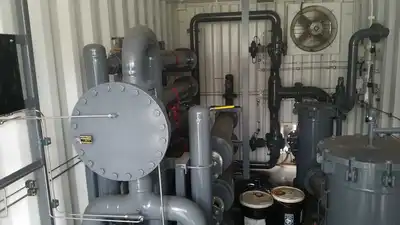

Equipped with integrated pre-filters, carbon adsorption tower, membrane modules, after-filters, and full control panel with oxygen analyzer and flow regulation
Inlet: 6″ 150# flange / Outlet: 3″ 150# flange
Nameplate details:
Electrical: 120 VAC / 60 Hz / 1.7 kW
Ambient temp range: 40°F to 100°F (5°C to 37°C)
Dimensions: 19.5 ft (L) × 7 ft 9 in (W) × 7 ft 10 in (H) – 5.94 m (L) × 2.36 m (W) × 2.39 m (H)
Shipping weight: Approx. 9,700 lbs (4,400 kg)
