Pump Type – Centrifugal
Max Flow Rate – 25M³H
Max Head – 24M
Pump Materials – AISI316
Max Temp – 200°C
Max Viscosity – 800 cst
Max Solid Passage – 0mm
Self Priming – N
Inlet/Outlet Sizes – 32mm
Drive – AC Electric, Bareshaft

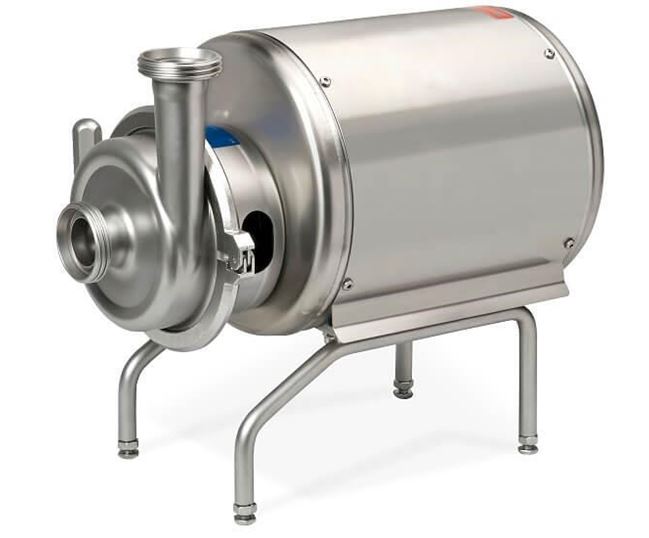

Max Suction Lift – 0 , FL51CI Hygienic Centrifugal Pump
Flow Rate
Up to 25 m³/h
Head (Pressure)
Up to 2.4 bar
Sizes Available
DN32 (1¼ Inch)
Operating Temperature
Up to 200°C
Viscosity
Up to 800 cSt
Construction Materials
Stainless Steel AISI-316
Our sanitary centrifugal pump range has been specifically designed for the pharmaceutical, cosmetic, food and beverage industries, these pumps are FDA and EHEDG approve which means both the material of construction and the design of the pumps comply with the highest European hygienic standards and regulations. Due to their fully hygienic inner construction these centrifugal food-grade pumps can be clean by either CIP (clean in place) or SIP (sterilization in place) processes therefore no disassembly is required in order to clean the internal components of the pump consequently making its day to day maintenance and operation extremely simple as well as reducing downtime considerably.
Besides being fully sanitary pumps, these range of centrifugal pumps are highly efficient as they require a lower power consumption than other hygienic centrifugal pumps, the impeller used within these pumps is also highly efficient and as a result the NPSH required for this range is also lower than usual thus reducing considerably the risk of cavitation. These pumps are available with a wide variety of hygienic connections or fittings such as DIN 11851, DIN 11861, RJT, SMS, TRI-CLAMP, etc.
North Ridge Sanitary Centrifugal Pumps are also available with ATEX (explosion proof) motors typically used in non-safe (hazardous/explosive) atmospheres and for transferring highly flammable liquids such as ethanol, butanol, methanol and any alcoholic spirits, there are also a variety of accessories and additional features available upon request, some of the most popular are double mechanical seal with thermosyphon cooling, heating chamber on pump body, VFD (frequency drive), trolley mounted etc.
Design Features/Benefits
Ra < 0.5 µm Surface Finish EHEDG Compliant Mechanical Seal SIP / CIP Cleaning ATEX Certified High Efficiency Heating Chamber in Pump Body Double Mechanical Seal Cooling by Thermosyphon Available with Variable Frequency Drive Trolley Mounted Upon Request Connections available: DIN 11851, DIN 11861, GAS, RJT, SMS, TRI-CLAMP Typical Industries/Fluids: Low Viscosity-Medium Edible Oils Methanol Ethanol Wine Breweries Food & Beverage in General Pharmaceutical Cosmetics Dairies
