Pump Type – Centrifugal
Max Flow Rate – 556M³H
Max Head – 24M
Pump Materials – AISI316, Brass, Bronze, Cast Iron
Max Temp – 60°C
Max Viscosity – 200 cst
Max Solid Passage – 0mm
Self Priming – N
Inlet/Outlet Sizes – 125mm to 300mm
Drive – AC Electric

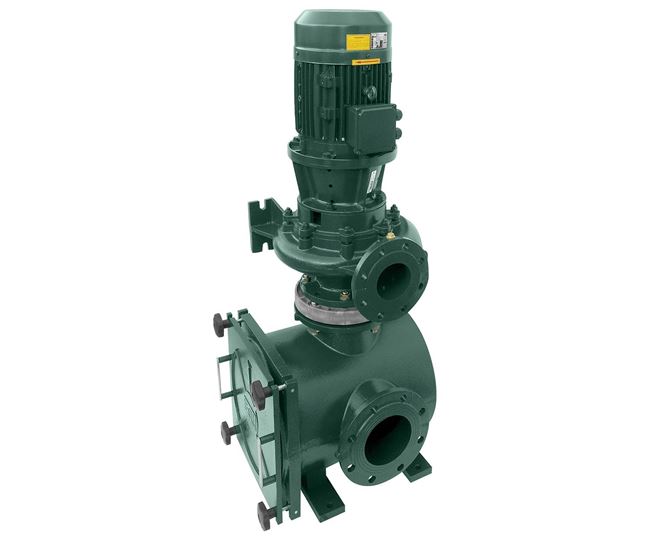

Max Suction Lift – 0 , NRV-FDN 1500 High Capacity Industrial Vertical Swimming Pool Pumps
Flow Rate
Up to 556 m³/h
Head (Pressure)
Up to 24 metres
Sizes Available
DN125 / DN150 /DN200 / DN250 DN300
Power
3 – 37 kW
Construction Materials
Bronze / Cast Iron / Brass (Stainless steel upon request)
Our industrial high flow centrifugal swimming pool pumps are designed for a wide range of applications, typically used in large commercial pools and water parks where reliability is a must, these pumps are also suitable for industrial filtration and swimming pool cleaning equipment. Various construction materials available such as cast iron, stainless steel and bronze hence they can also be used for sea water applications.
These heavy-duty high capacity vertical swimming pool pumps come with high flow pre-filter baskets in either cast iron, bronze or stainless steel and are also available in a horizontal arrangement.
Due to its robust and functional design our industrial swimming pool pumps are highly efficient and reliable, they are also very easy to maintain as must models have a transparent lid on the top of the pre-filter basket meaning the operator can do a quick inspection of the filter without dismantling the pump or pre-filter, furthermore all our single phase swimming pool pumps come with thermal protection included as standard.
The NRV-FDN1500 vertical swimming pool pump range is fully compatible with sea water, salt ionizers and salt chlorinators as well as fresh water, this pump range comes with cataphoresis treated cast iron or bronze impellers and as a result these swimming pool pumps are more resistant to corrosion in comparison with the standard metal impellers from other manufacturers.
Another great advantage this industrial high flow swimming pool pumps have is their high hydraulic efficiency, meaning these pumps are much more economical to run than other swimming pool pumps as their energy consumption is a lot less.
Furthermore, our industrial vertical swimming pool pumps have been specifically designed to leave zero traces in the water whilst in operation therefore they are the perfect solution for aquariums or any other applications where marine life might be present.
The NRV-FDN 1500 pump range covers a flow rate of 10 to 556 m³/h
Design Features/Benefits
• Vertical high flow swimming pool pumps also available complete with pre-filter in a horizontal arrangement
• Choice of pre-filter materials, cast iron, bronze and stainless steel
• Robust pump casing due to its 9mm thick wall.
• Available in bronze or cast-Iron impellers with Cataphoresis treatment
• Extremely quiet operation.
• Available in cast iron and bronze and also stainless steel upon request, with bronze or cast-iron impellers
• High resistance to corrosion
• Ecological – marine life friendly materials upon request
• Thermal protection supplied as standard for single phase pumps
• Industrial filter baskets available for all models across our swimming pool pump range.
• Supplied with heavy duty mechanical seal and bearings
• IE3 high efficiency motors as standard
• Suitable for pumping sea water, salt ionizers, salt chlorinators and fresh water
• High hydraulic efficiency impeller
• 60Hz frequency also available upon request
• Independent polypropylene pre-filter – AISI 304 stainless steel basket
• AISI 316 stainless steel pump shafts
• Carbon/Resin/Ceramic mechanical seals
Typical Applications:
• Water parks
• Medium to large commercial swimming pools, aquariums
• Filtration equipment
• Pool cleaning equipment
• Sea water, salt ionizers, salt chlorinators and fresh water
