Delivery terms
EXW Urduliz, ex foundation, unpackaged
Payment terms
100% payment prior to collection , Max. pressing force
1,000 to
Approx. Onsite Dimension. (l x w x h)
5,500 x 4,200 x 7,500 mm
weight approx.
165,000 kg
table surface area l x w
3500 x 2500 mm , Item description

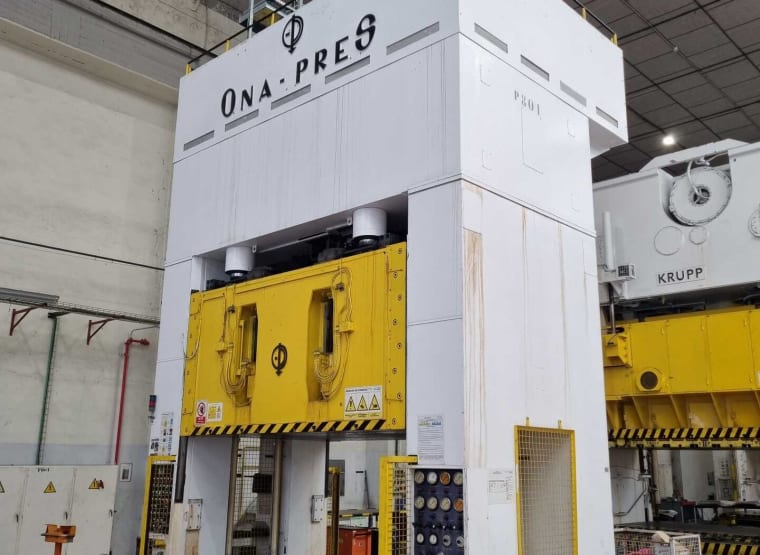

Oleo-dynamic press
Serial number P-00968
Maximum capacity: 1000 t
Maximum adjustable capacity of the filler: 600 t
Maximum adjustable capacity of the presser: 400 t
Maximum adjustable cushion capacity: 400 t
Maximum recoil force: 170 t
Useful table dimensions: 3500 x 2500 mm
Maximum opening: 1700 mm
Maximum travel of the sliding table: 2500 mm
Maximum lifting pressure of the sliding table: 80 bar
Working height: 500 mm
Drive power: 163 hp
Weight of the machine in service: 165.000 kg
