Description

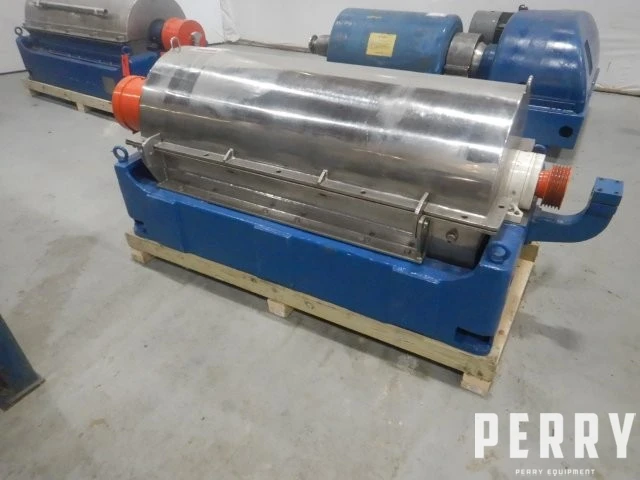

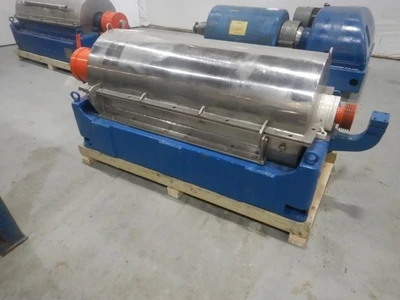

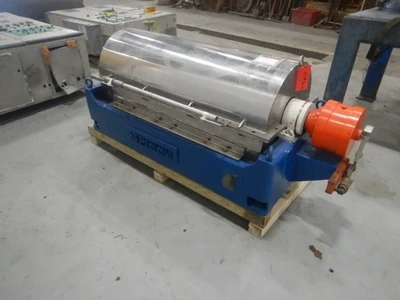

Reconditioned Sharples P3400 Horizontal Decanter Centrifuge
14″ dia x 56″ long bowl (356 mm x 1,420 mm), L/D ≈ 4:1
4-1/4″ pitch conveyor (108 mm) for higher solids conveyance capacity
Stellite hard-surfaced
Bowl speed: 3400 RPM.
Centrifugal force: up to about 3,000 G
Typical capacity: 20 – 80 GPM (4.5 – 18 m³/hr) depends on the product.
With gearbox: P125:1 and with controls.
Has no electric motor. Typically drive that used on these machines is between 40 – 75 HP (30 – 55 kW) depending on the application.
