Our Static Compactors
The differences between the static compactors are the size and the speed. The three styles of static compactors are shown below followed by the specification table of each model comparatively.

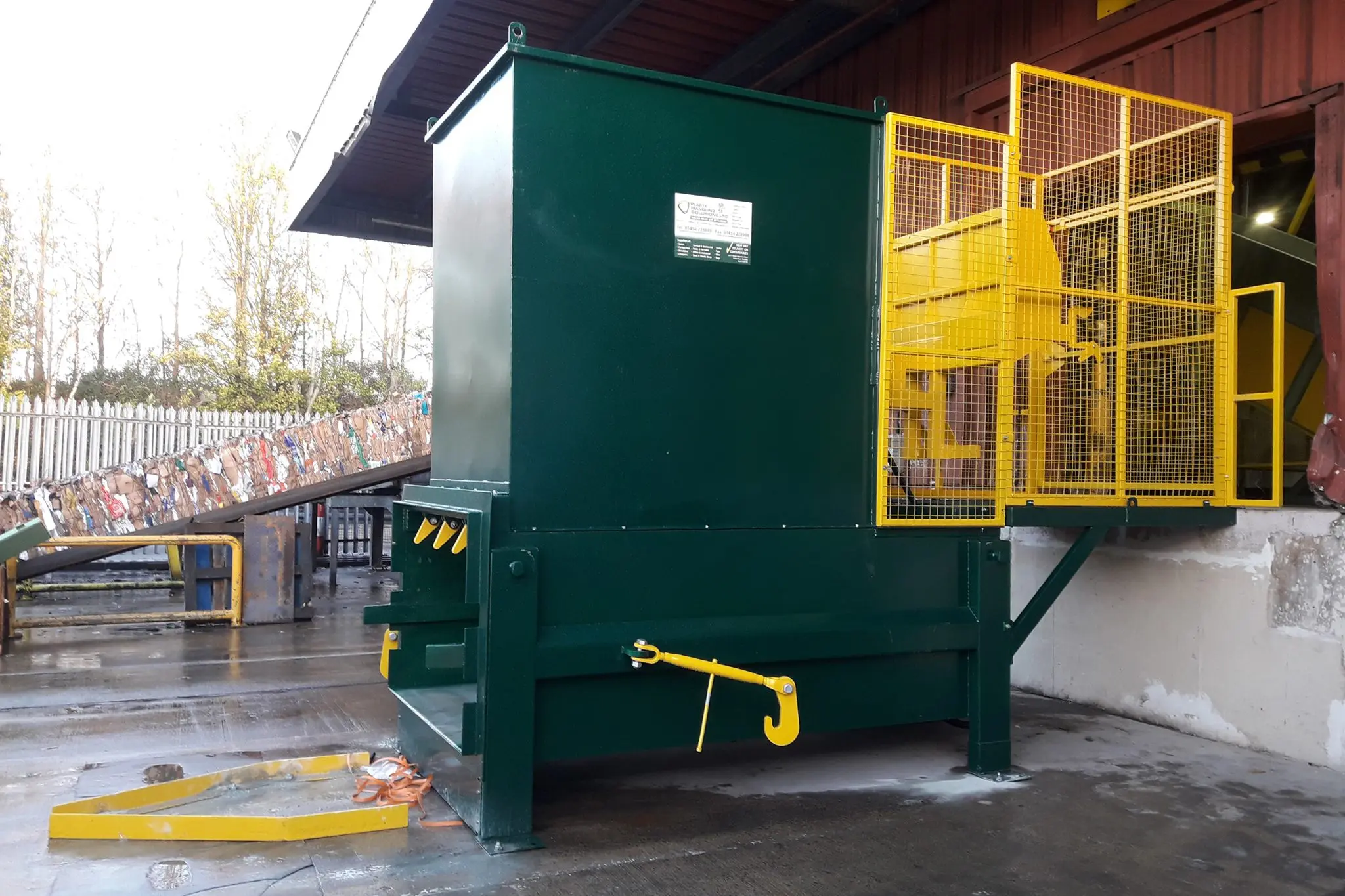

2.0 Cubic Metre Compactor Unit
2.5 Cubic Metre Compactor Unit
3.0 Cubic Metre Compactor Unit
WHS Cubic Metre Compactor Units
Specification 2.0 2.5 3.0
Load aperture (mm) 1430 x 1200 1500 x 1270 1500 x 1800
Cycle time (seconds) 45 45 60 ~ 84
Charge box volume including hopper (m³) 2.0 2.5 3.0
Ram penetration (mm) 300 400 400
Compaction force (tonnes) 28 32 38
CHEM1 volume per stroke (m³) 1.37 1.90 2.70
CHEM1 volume per hour (m³) 110 152 121 – 162
Motor rating (KW) 7.5 7.5 7.5 / 11
Power requirements (phase / Amp) 3 / 32 3 / 32 3 / 32
Weight (tonnes) 4.2 4.5 5.2
Chem – “Container handling equipment manufacturers” standard.
BS EN12574-2 – Standard for stationary waste containers performance requirements and test methods.
