The Mainsboost MB 200SH features a nominal vessel size of 200 litres and a pressurised water holding capacity of approximately 110 litres.
Designed to be installed horizontally in installation situations where vertical space may be restricted, the Mainsboost MB 200SH is supplied with a compatible mounting cradle.

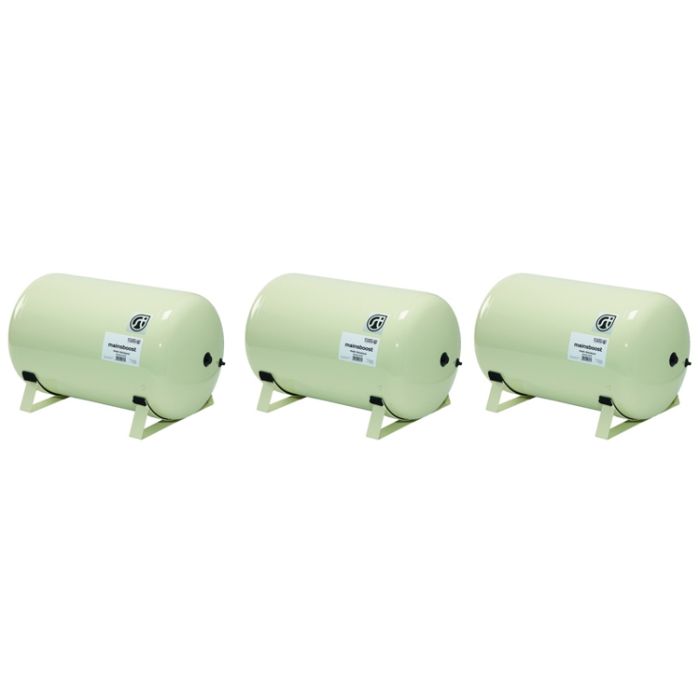

Available in single, twin and triple vessel options, each unit is supplied with a comprehensive Upstream Line-In Kit (ULK) featuring 22 mm pipe diameter fittings.
Constructed from an epoxy coated steel body and a highly durable virgin butyl diaphragm, all Mainsboost vessels are WRAS Approved and come with a 5 year guarantee.
Features
Flow rate up to 80 litres/minute per vessel
100 – 1000 litre capacity vessel options
Silent operation
Maintenance free
Consumes no electricity
Robust construction
Long life butyl diaphragm
WRAS Approved product
5 year guarantee
Includes comprehensive Upstream Line-in Kit (ULK) as standard
Suitable for boosting the cold water mains supply to residential and commercial properties
More Information
SKU 44749
Manufacturer Stuart Turner
Manufacturers Warranty 5 Years
GTIN 5050400447498
Weight 115.0 Kg
Dimensions 558 x 540 x 1026 mm Each Vessel
Connection Type 22mm
Max Flow 80 l/min
Max Pressure 1000 kPa (10 bar)
Material Mild Steel
