Mainsboost systems are designed to stabilise water pressure and increase flow to combination boilers and unvented systems allowing multiple taps and showers to be used at the same time.

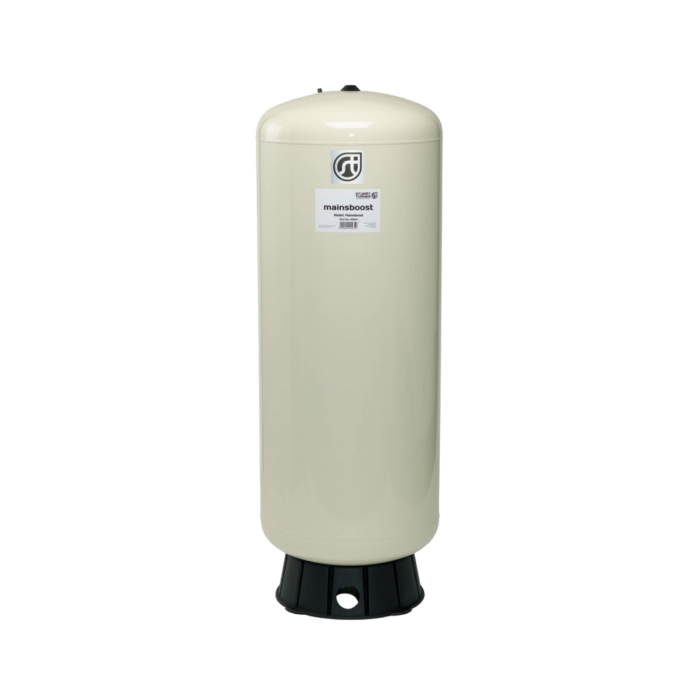

The Mainsboost MB 100SV features a nominal vessel size of 100 litres and a pressurised water holding capacity of approximately 55 litres.
Available in single, twin and triple vessel options, each unit is supplied with a comprehensive Upstream Line-In Kit (ULK) featuring 22 mm pipe diameter fittings.
Constructed from an epoxy coated steel body and a highly durable virgin butyl diaphragm, all Mainsboost vessels are WRAS Approved and come with a 5 year guarantee.
Designed for unvented systems where the mains is greater than 2.0 bar but water flow is inadequate.
Features
Flow rate up to 80 litres/minute per vessel
100 – 1000 litre capacity vessel options
Silent operation
Maintenance free
Consumes no electricity
Robust construction
Long life butyl diaphragm
WRAS Approved product
5 year guarantee
Includes comprehensive Upstream Line-in Kit (ULK) as standard
Suitable for boosting the cold water mains supply to residential and commercial properties
More Information
SKU 44452
Manufacturer Stuart Turner
Manufacturers Warranty 5 Years
GTIN 5050400444527
Weight 17.5 Kg
Dimensions 890 x 410 x 410 mm
Connection Type 22mm
Max Flow 80 l/min
Max Pressure 1000 kPa (10 bar)
Material Mild Steel
