Description

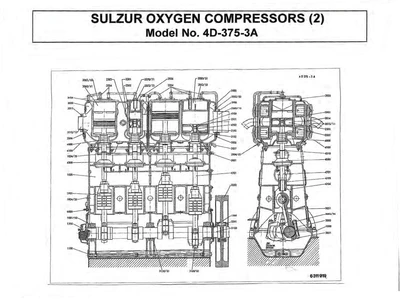

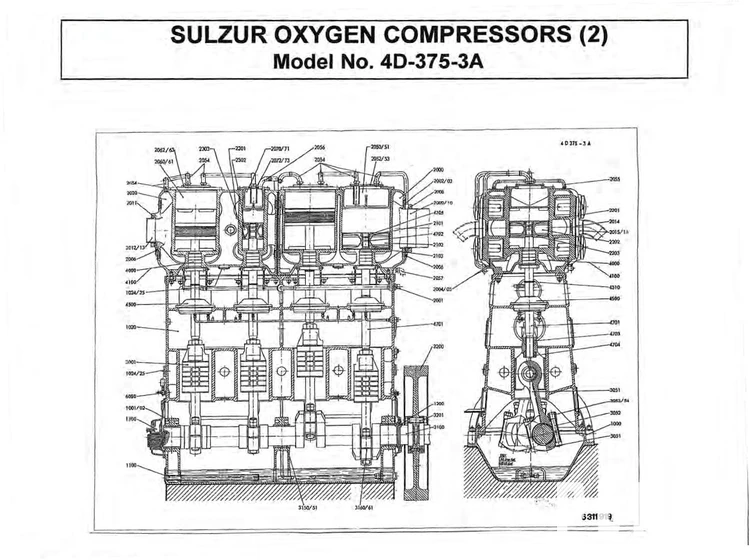

(2) Rebuilt SULZUR oxygen compressors model 4D-375-3A. The flow rate for each compressor is about 743 TPD.
Suction pressure:
Stage1 = 1.21 bar, Stage2 = 3.4 bar, Stage3 = 11.52 bar.
Discharge pressure:
Stage1 = 3.55 bar, Stage2 = 11.93 bar, Stage3 = 40.76 bar
EQUIPMENT SUMMARY
– Compressors Dismantled, Inspected, and Refurbished by Burckhardt Compression
– All Refurbishment and New Part Replacement are detailed
– Interconnecting Piping, Volume Bottles and Coolers are included
– All Compressor Valves Refurbished
– Machine Parts packaged for Long Term Storage and Shipment
– Original Drive Motors refurbished by TECO-Westinghouse are included
– Foundation Design for Compressor and Drive Motor Included.
– Significant Spare Parts Inventory
More information available on request.
