FEATURES OF THE TIGERLOOP BIO DEAERATOR:
Can be installed internally or externally
Maximum operating temperature of 60ºc
Designed for gases to be vented safely outside
Comes complete with a wall mounting bracket
Compatible with Bio Oil and Mineral Oil

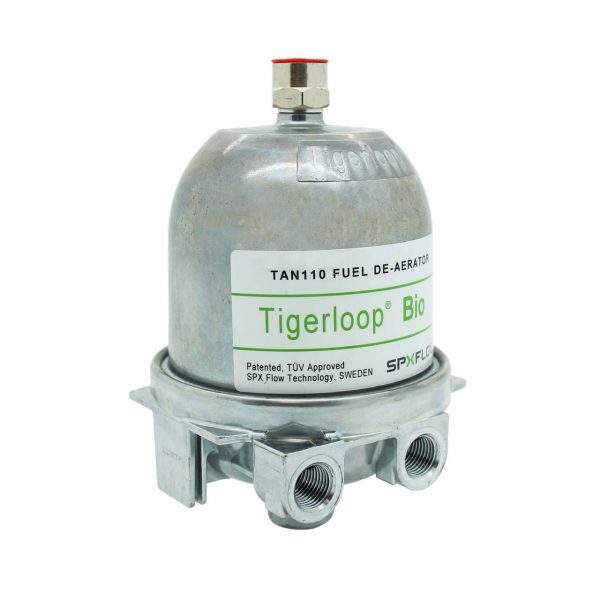

TIGERLOOP BIO DEAERATOR

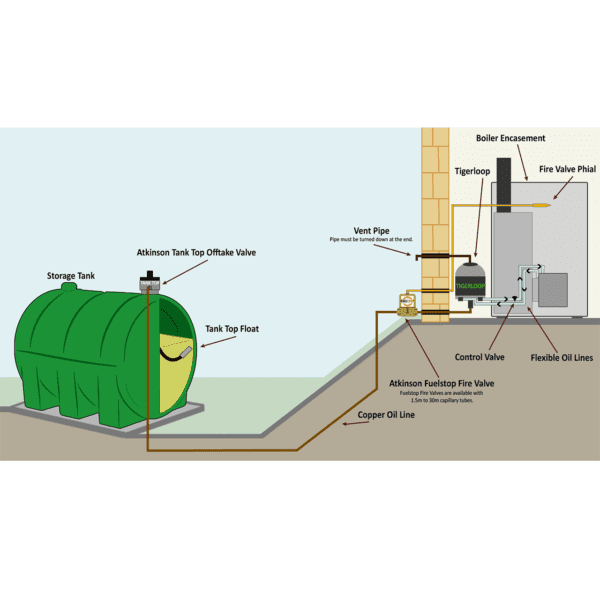

A de-aerator with all the benefits of a Tigerloop Original that can be fitted internally. With the addition of a simple to fit 10mm vent pipe the removed air can be vented safely to the outside, ensuring only pure oil is passed through to the burner. Compatible with Bio Oil and Mineral Oil (made to standard). Optional fitting kit available.
The Tigerloop Bio model is constructed externally of metal materials making it suitable for both indoor and outdoor installation in the UK & IE. The Tigerloop automatically and continuously de-aerates the fuel by venting to the atmosphere. This is the only way to prevent air or gas bubbles, which form during suction of oil from the tank, from entering the burner. This proven method of de-aeration ensures the best possible efficiency for the heating system.
A Tigerloop makes a one-pipe system possible for all types of oil heating installations helping to ensure environmental safety, cost effectiveness and reliability.
EFFECTIVE DEAERATION:
In an oil heating system using a Tigerloop, all oil passes through the automatic oil de-aerator, which effectively removes all gas/air bubbles from the system. This eliminates oil pump and nozzle problems associated with gas/air in the oil.
OWN TWO-PIPE CIRCULATION:
An oil pump delivers the same amount of oil irrespective of what is actually needed for combustion. In the case of a normal domestic burner, only 5 % of the delivered oil is actually burned in combustion. The remaining 95% is transported by a two-pipe system back to the oil tank. With a Tigerloop automatic oil de-aerator no oil needs to be transported back to the tank. The oil that is not burned in combustion is lead back to the Tigerloop where it is de-aerated again and again automatically. For this reason only the amount of oil to be burned in combustion is sucked from the oil tank.
PRE-HEATED OIL:
A one-pipe system with Tigerloop increases the oil pump capacity. Moreover, the oil is actually preheated to at least room temperature as friction in the oil pump generates heat. This eliminates problems with cold oil giving cleaner combustion and reduced oil consumption.
MINIMUM DIRT/SLUDGE:
The oil flow in a one-pipe system is minimal due to the fact that only the amount of oil burned needs to be drawn up from the tank. For this reason very little dirt/sludge is transported from the oil tank. This reduces the risk for clogged oil filters and burner nozzles. Filtration is more effective, soot build up is reduced and filter life is extended.
The Tigerloop Bio Deaerator is only one in the range of Tigerloop Deaerators please see the rest of the range here – Tigerloop DeaeratorsWeight 1 kg
Nozzle Capacity
110lph
Return Flow Rate
120lph
Max Flow Rate
230lph
Max Deaerating Capacity
8lph
Max Operating Temp
60°C
Max Pressure
-0.5 to +0.6 Bar
Connection sizes
All fittings 1/4″ BSP
