Stock #ZS20933-13

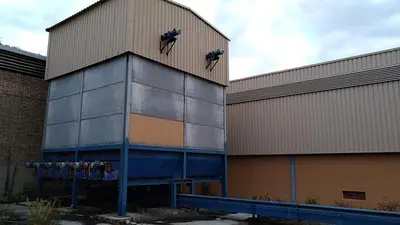

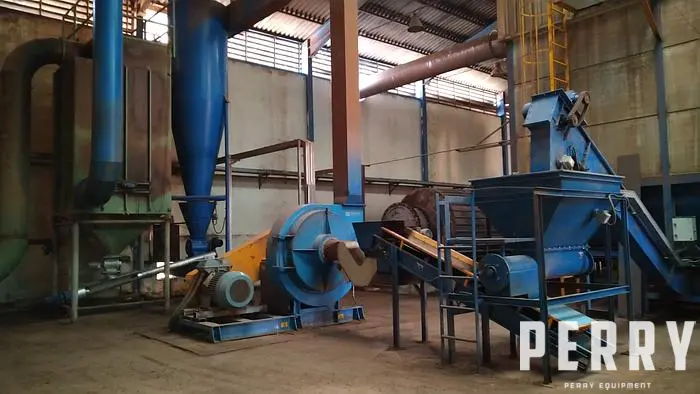

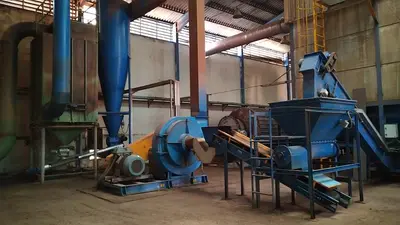

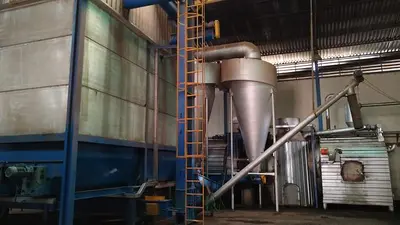

Used biomass plant used to process and transform biomass (fuel) into energy that is used in the processes of dryers and greenhouses. Model: CT-400
System composed of: Storage and preparation of Biomass, Hopper, Transport line in metallic structure, Sieve cylinder, Biomass inlet hopper for Drying Tromel, Smoke air extraction hopper, Micronized Biomass reception hopper, Entry of Biomass from the feed to the Plant by Venturi.
Installation of biomass combustion in a dryer, consisting of a 2.9 MWt metal furnace lined internally with refractory bricks with two medium pressure centrifugal fans for cooling driven by 7.5 hp and 4 hp engines, a biomass storage hopper of 5 Tm of capacity, a collector joint between the biomass furnace and the 1 meter diameter bricks in carbon steel sheet insulated with fiberglass with decanter chimney, a cyclone separator of particles of refractory steel sheet covered with fiberglass resistant with honeycomb shut-off valve driven by a 2 hp direct reducer, stainless steel piping diameter of 1200 mm, including connection and insulation elements, electrical installation and control box. Installation of biomass combustion in furnaces,
Furnace biomass combustion systems consisting of conical rotary fuel dispensers with burner outlets with neoprene manifold for a working temperature of 260ºC and a thermal power of 30 kWt, electrical installation and control panel.
Location: EUROPE
