Description

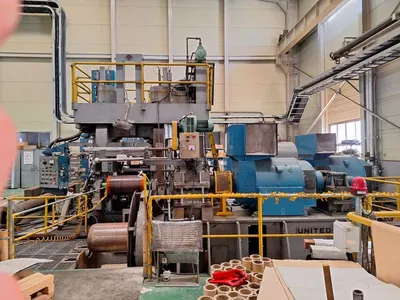

Used 660mm 20-Hi Sendzimir Rolling Mill Line for metal processing. Manufacturer Waterbury, USA.
Material: stainless steel 300, 400
Thickness: maximum 4.0 mm, minimum 0.076 mm
Mill speed: maximum 460 m/min
Strip width: minimum 330mm – maximum 660mm
Coil Size: internal diameter Ø500/558.8mm , outer diameter Ø1,448/1,512mm
Coil weight: 7,500 kg
Tension: 9 ton
Thickness control: Gauge control; AM241 Gamma Ray
Work roll: 2 5/8” Diameter, 29 1/2”TL
1-st intermediate roll: 4.125” Dia , 39 3/16” TL
2-nd intermediate roll: 6 13/16” Dia , 27 1/2” BL , 36 1/8” TL
Back up roll: BRG’O.D. 11.811”, OUT RACE 6.797” , BRG SHAFT O.D.5.116”, BRG’
Shaft race 35 1/8” TL
Mill DC motor : 1,750 hp 450/850 rpm 600 VDC/2300A EXC 250 VDC/15.2 amp
Tension reel DC motors
Right reel: 600 hp 400/1200 rpm 400 VDC/1245A EXC 250 VDC/11 amp, 300 hp 400/1200 rpm 200 VDC/1285A EXC 250 VDC/9.2 amp
Left reel: 600 hp 400/1200 rpm 400 VDC/1245A EXC 250 VDC/11 amp, 300 hp 400/1200 rpm 200 VDC/1285A EXC 250 VDC/9.2 amp
Pay off reel DC motor: 40 hp 1725 rpm 230 VDC/147 amp
Transformer 2.4 kV/535 V 1,000 KVA X 3 set VCB panel X 6set
Mill motor DC reactor X 2set
Thyristor panel
Mill DC motor : Eurotherm 590P/1700/690 X 2
Right reel DC motor : Eurotherm 590P/1200/690 X 1 unit
Left reel DC motor : Eurotherm 590P/1200/690 X 1 UNIT
Operation panel : Ii SIEMENS PLC & I2 GAMMA RAY COMPUTER
Motor control center panel

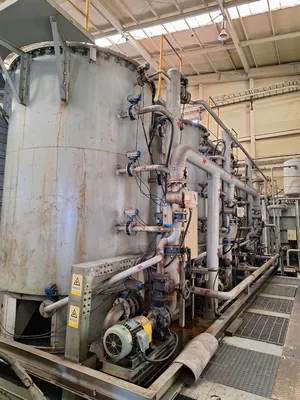

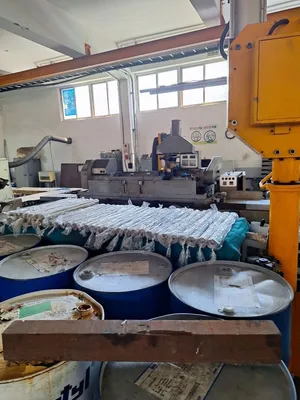

Includes Bright annearing line with mufel furnace and cooling, tension leveller line, roll grinder etc. Many spares.
More information upon request
