140 / 140 AWD -TIER 4 / STAGE 5

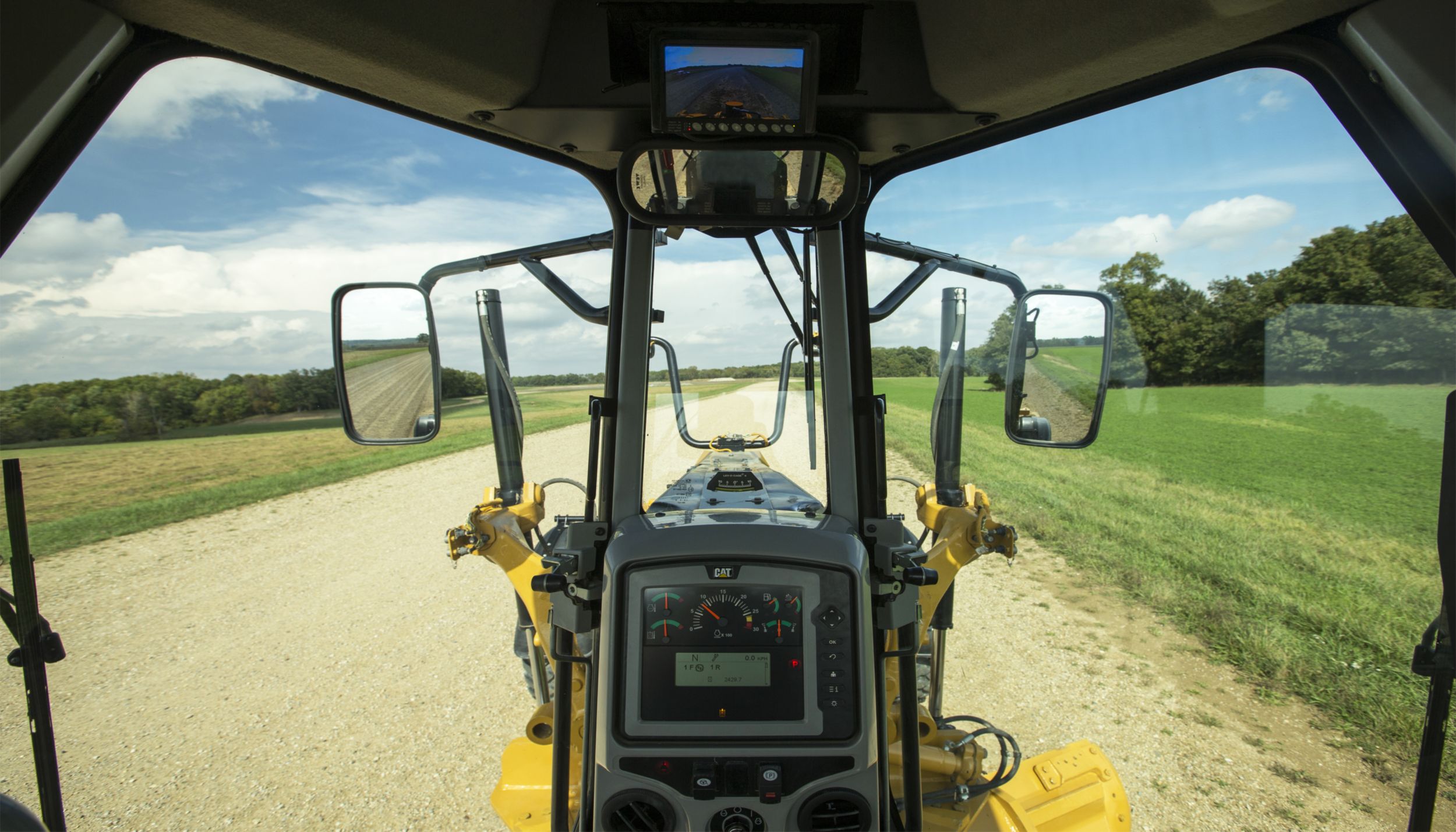

The Cat® 140 Motor Grader gives you more precise grading in a comfortable cab. With a range of technology options, you can improve grading accuracy and save on materials. With extended maintenance intervals, the 140 Motor Grader sets the pace for low operating costs, while maintaining productivity and efficiency. Net Power Range (Tier 4) 133 kW Engine Model Cat® C9.3 Bore 115 mm Product specifications for 140 / 140 AWD -Tier 4 / Stage 5 Motor Graders Engine expand / collapse icon Net Power Range (Tier 4) 133 kW Engine Model Cat® C9.3 Bore 115 mm Stroke 149 mm Speed at Rated Power 2,000 rpm Standard Capability 43 °C Maximum Torque – VHP Plus 1138 N·m VHP Plus – Gear – Net Power – Reverse 3rd-6th 149 kW VHP Plus – Gear – Net Power – Forward 2nd 141 kW VHP Plus – Gear – Net Power – Forward 5th 160 kW VHP Plus – Gear – Net Power – Forward 3rd 149 kW VHP Plus – Gear – Net Power – Forward 8th 172 kW Torque Rise 38% VHP Plus – Gear – Net Power – Reverse 2nd 141 kW VHP Plus – Gear – Net Power – Forward 1st 133 kW VHP Plus – Gear – Net Power – Forward 6th 164 kW VHP Plus – Gear – Net Power – Reverse 1st 133 kW VHP Plus Range – Net 133-172 kW (179-231 hp) Emissions U.S. EPA Tier 4 Final/EU Stage V VHP Plus – Gear – Net Power – Forward 7th 168 kW VHP Plus Range – Net – Metric 133-172 kW (181-234 hp) VHP Plus – Gear – Net Power – Forward 4th 156 kW Base Power (1st Gear) – Net – Metric 133 kW High Ambient – Fan Speed – Standard 1,400 rpm Displacement 9.3 l Number of Cylinders 6 Derating Altitude 3050 m High Ambient – Fan Speed – Maximum 1,550 rpm High Ambient – Fan Speed – Minimum 500 rpm High – Ambient Capability 50 °C Weights expand / collapse icon Operating Weight – Typically Equipped 19344 kg Gross Vehicle Weight – Maximum – Front Axle 7745 kg Gross Vehicle Weight – Maximum – Rear Axle 17268 kg Operating Weight – Typically Equipped – Front Axle 5468 kg Operating Weight – Typically Equipped – Rear Axle 13876 kg Gross Vehicle Weight – Base – Front Axle 4238 kg Gross Vehicle Weight – Base – Rear Axle 12736 kg Gross Vehicle Weight – Maximum – Total 25013 kg Gross Vehicle Weight – Base – Total 16974 kg Operating Weight – Typically Equipped – Total 19344 kg Power Train expand / collapse icon Forward/Reverse Gears 8 Forward/6 Reverse Transmission APECS, Direct Drive, Powershift Brakes – Service Multiple Oil Disc Brakes – Service – Surface Area 23000 cm² Brakes – Parking Multiple Oil Disc Brakes – Secondary Dual Circuit Moldboard expand / collapse icon Blade Width 3.7 m Moldboard – Height 610 mm Moldboard – Thickness 22 mm Arc Radius 413 mm Throat Clearance 166 mm Cutting Edge Width 152 mm Cutting Edge Thickness 16 mm End Bit – Width 152 mm End Bit – Thickness 16 mm Blade Pull – Base GVW 11462 kg Blade Pull – Maximum GVW 15541 kg Blade Down Pressure – Base GVW 7275 kg Blade Down Pressure – Maximum GVW 13294 kg Moldboard – Blade Width 3.7 m Hydraulic System expand / collapse icon Circuit Type Parallel Pump Type Variable Piston Pump Output 210 l/min Maximum System Pressure 24150 kPa Reservoir Tank Capacity 64 l Standby Pressure 6100 kPa Operating Specifications expand / collapse icon Top Speed – Forward 46.6 km/h Top Speed – Reverse 36.8 km/h Turning Radius – Outside Front Tires 7.8 m Steering Range – Left/Right 50° Articulation Angle – Left/Right 20° Forward – 1st 4.1 km/h Forward – 2nd 5.5 km/h Forward – 3rd 8 km/h Forward – 4th 11 km/h Forward – 5th 17.1 km/h Forward – 6th 23.3 km/h Forward – 7th 32 km/h Forward – 8th 46.6 km/h Reverse – 1st 3.2 km/h Reverse – 2nd 6 km/h Reverse – 3rd 8.7 km/h Reverse – 4th 13.5 km/h Reverse – 5th 25.3 km/h Reverse – 6th 36.8 km/h Service Refill expand / collapse icon Fuel Capacity 394 l Cooling System 57 l Hydraulic System – Total 100 l Hydraulic System – Tank 64 l Diesel Exhaust Fluid 22 l Transmission – Differential – Final Drives 70 l Engine Oil 30 l Tandem Housing – Each 76 l Front Wheel Spindle Bearing Housing 0.5 l Circle Drive Housing 7 l Frame expand / collapse icon Drawbar – Width 76.2 mm Circle – Diameter 1530 mm Circle – Blade Beam Thickness 40 mm Drawbar – Height 152 mm Front Frame Structure – Height 321 mm Circle – Height 138 mm Front Frame Structure – Width 305 mm Drawbar – Thickness 12.7 mm Front-Top/Bottom Plate – Width 305 mm Front-Top/Bottom Plate – Thickness 22 mm Front Axle – Height to Center 596 mm Front Axle – Wheel Lean – Left/Right 18° Front Axle – Total Oscillation per Side 32° Tandems expand / collapse icon Height 506 mm Width 201 mm Sidewall Thickness – Inner 16 mm Sidewall Thickness – Outer 18 mm Drive Chain Pitch 50.8 mm Wheel Axle Spacing 1523 mm Tandem Oscillation – Front Up 15° Tandem Oscillation – Front Down 25° Blade Range expand / collapse icon Circle Centershift – Right 728 mm Circle Centershift – Left 695 mm Moldboard Sideshift – Right 660 mm Moldboard Sideshift – Left 510 mm Maximum Blade Position Angle 90° Blade Tip Range – Forward 40° Blade Tip Range – Backward 5° Maximum Shoulder Reach Outside of Tires – Right 1978 mm Maximum Shoulder Reach Outside of Tires – Left 1790 mm Maximum Lift Above Ground 480 mm Maximum Depth of Cut 715 mm Ripper expand / collapse icon Ripping Depth – Maximum 426 mm Ripper Shank Holder Spacing 533 mm Ripper Shank Holders 5 Penetration Force 9440 kg Pry-Out Force 12607 kg Machine Length Increase, Beam Raised 1031 mm Scarifier expand / collapse icon Front, V-Type, 5 or 11 Tooth – Scarifier Shank Holder Spacing 116 mm Front, V-Type, 5 or 11 Tooth – Scarifying Depth, Maximum 467 mm Mid, V-Type – Scarifier Shank Holders 11 Rear – Scarifying Depth, Maximum 426 mm Front, V-Type, 5 or 11 Tooth – Working Width 1031 mm Front, V-Type – Working Width 1205 mm Mid, V-Type – Working Width 1184 mm Mid, V-Type – Scarifying Depth, Maximum 292 mm Mid, V-Type – Scarifier Shank Holder Spacing 116 mm Front, V-Type, 5 or 11 Tooth – Scarifier Shank Holders 11-May Rear – Working Width 2133 mm Rear – Scarifier Shank Holders 9 Rear – Scarifier Shank Holder Spacing 267 mm Dimensions expand / collapse icon Height – Top of Cab 3308 mm Length – Counterweight to Ripper 10136 mm Width – Outside Front Tires 2511 mm Length – Front Axle to Mid Tandem 6123 mm Length – Front Tire to Rear of Machine 8912 mm Length – Front Axle to Moldboard 2552 mm Length – Between Tandem Axles 1523 mm Width – Outside Rear Tires 2511 mm Width – Tire Center Lines 2140 mm Height – Front Axle Center 596 mm Height – Exhaust Stack 3256 mm Height – Top of Cylinders 3040 mm Ground Clearance – Rear Axle 339 mm Standards expand / collapse icon Brakes ISO 3450 Sound ISO 6394; ISO 6395 Steering ISO 5010 ROPS/FOPS ISO 3471/ISO 3449 BETTER COMFORT AND CONTROL Visibility is key to your safety, efficiency and quality of work. The motor grader delivers with angled cab doors, tapered engine enclosure and a sloped rear window make it easy to see the moldboard and tires, as well as behind the machine. Optional rear camera further enhances lines of sight. The most comfortable cab in the industry. Joystick controls reduce hand and arm movement by 78%, which helps to lower operator fatigue. Easy-reach rocker and control switches Standard Cat Comfort Series suspension seat. Control pods adjust electronically – easy to set ideal operating position. Isolation mounts reduce sound and vibration for more relaxed environment. High capacity Heating, Ventilation and Air Conditioning (HVAC) system dehumidifies and pressurizes the cab, circulates fresh air, seals out dust and keeps windows clear. Optional deluxe radio with CD features MP3 and Bluetooth technology. In-dash instrument cluster houses easily read, high-visibility gauges and warning lamps keep you aware of critical system information. Two electro-hydraulic joysticks make operation easy and comfortable. Adjustable control pods ensure they are positioned for optimal comfort, visibility and operation. Joystick Functions – Left joystick controls steering, articulation, return-to-center, wheel lean, gear selection, left moldboard lift cylinder and float. Right joystick controls drawbar, circle and moldboard functions as well as electronic throttle control and manual differential lock/unlock. Joystick lean angle mirrors the steer tires’ turning angle. Brake tensioning system holds the joystick in position until the operator moves it. Steering control automatically reduces steering sensitivity at higher ground speeds for predictable control. Infinitely variable roller switches control the rear ripper and/or front lift group (when equipped). Proven load-sensing and advanced electro-hydraulics give you superior implement control and responsive hydraulic performance that makes operators’ jobs easier. Continuously matching hydraulic flow/pressure to power demands reduces heat and optimizes power. Proportional Priority Pressure-Compensating (PPP-C) valves have different flow rates for the head and rod ends of the cylinder, so you can count on consistent, predictable implement response. Hydraulic flow is proportioned to give you confidence that all implements operate simultaneously without slowing engine or implement speed. Blade Float allows the blade to move freely under its own weight. Float both cylinders, to allow blade can follow the contours of the ground. Float one cylinder to permit the toe of the blade to follow a hard surface while the operator controls slope with the other cylinder. Large, independent hydraulic oil supplies prevent cross-contamination and provide proper cooling, reducing heat build-up and extending component life. Cat XT™ hose allows high pressures for maximum power and reduced downtime. Articulation Return-to-Center automatically returns the machine to a straight frame position from any angle with the touch of a button. Choose the blade lift modulation mode that best fits your application or operating style: fine, normal, or coarse. PERFORMANCE AND PRODUCTIVITY Cat C9.3 engine delivers the performance you need to maintain consistent grading speeds for maximum productivity. Engine technology reduces emissions, lowers combustion chamber temperatures and optimizes combustion to generate more work output from every unit of fuel. Hydraulic demand fan automatically adjusts according to engine cooling requirements. When cooling demand is reduced, you benefit from more power to the ground and improved fuel efficiency. Electronic Throttle Control improves productivity providing the best match of power and torque for the demands of each application.* Engine Idle Shutdown feature can be software-enabled by your Cat dealer to shut down the engine after a set period of time to save you fuel and help reduce emissions. Optional Reversing Fan helps clear debris from cooling system without need to stop the machine from work. Standard Automatic Differential Lock/Unlock unlocks the differential during a turn and re-locks when straight for easier operation and to help protect the power train. Full Electronic Clutch Pressure Control system optimizes inching modulation for smooth shifts and directional changes, reducing stress on gears. Programmable AutoShift option simplifies operation by allowing the operator to program the transmission to shift at optimal points to match each application. New standard Eco Mode can saves fuel by reducing engine speed so the machine works in a more efficient range. Fuel savings is up to 10 percent, depending on the application. Power Shift Countershaft Transmission is matched to the Cat engine to maximize power to the ground. Engine Over-Speed Protection prevents downshifting until an acceptable safe travel speed has been established. All Wheel Drive (AWD) transfers power to the ground as needed, allowing you to work more efficiently with mud, gravel, sand and snow. Increased traction reduces slippage across the cross slope. Sealed spindle keeps front axle bearings lubricated and protected from contaminants. Cat “Live Spindle” design places the larger tapered roller bearing on the outside, where the load is greater, extending life. Bolt-on modular rear axle improves serviceability and contamination control with easy access to differential components. Oil-bath, multi-disc service brakes are hydraulically actuated for smooth, predictable braking and lower operating costs. Brakes are located at each tandem wheel and have a large total brake surface area to provide dependable stopping power and longer life. HEAVY DUTY CONSTRUCTION One-piece forged steel circle stands up to high stress loads, and a sacrificial wear system helps keep your service time and costs down. Articulation hitch features a large tapered roller bearing to carry loads evenly. The bearing is sealed preventing contamination and a locking pin prevents articulation during service or transport. Drawbar, circle and moldboard are designed to make it easy for you to keep the components tight. Shims and patented top-adjust wear strips are easy to add or replace, dramatically reducing downtime. Nylon composite wear inserts maximize circle torque and component life. Sacrificial brass wear strips between the blade mounting group and moldboard can be easily adjusted and replaced. Shim less Moldboard Retention System uses vertical and horizontal adjusting screws to keep moldboard wear strips aligned for reduced blade chatter and precise control. With an aggressive blade angle, optimized moldboard curvature and large throat clearance, you work more efficiently by allowing material to roll more freely along the blade. Heat-treated rails, hardened cutting edges and end bits, and heavy duty bolts provide greater moldboard reliability and long service life. Link bar allows extreme moldboard positioning for easier bank sloping and ditch cutting/cleaning. TECHNOLOGY THAT GETS WORK DONE Grade technologies combine digital design data, in-cab guidance, and automatic blade controls to enhance grading accuracy, reduce rework, and lower costs related to production earthmoving and rough, fine and finish grade applications. Cat Grade with Cross Slope is an optional, fully integrated, factory installed system that helps operators maintain desired cross slope by automatically controlling one side of the blade. System is job-ready from day one, and scalable for the future with upgrade kits that provide additional 2D and/or 3D control. Attachment Ready Option can be ordered as a factory- or dealer-installed option. Includes built-in mounting points and internal wiring, to facilitate installation of grade control system. Cat Grade uses positioning and guidance technologies, machine sensors, and automatic blade control to help operators get to grade faster, easier and more efficiently. In-cab guidance gives operators detailed information to work confidently and achieve greater accuracy, in fewer passes, using less material. Operators can stay on grade and improve productivity and accuracy by nearly 50 percent over conventional methods. Grade stakes and checkers are minimized, helping to make the work site safer and more cost effective. Grade technologies include Cross Slope, Sonic, Laser, GPS, and/or Universal Total Station (UTS). Cat Product Link™ takes guesswork out of equipment management with remote monitoring capabilities for one machine or an entire fleet. Manage your fleet of machines while reducing fuel burn with Cat Production Measurement System option. The Efficiency Coach and Application Segmentation work together to monitor operators and machines simultaneously. Measure your jobsite’s efficiency and productivity from anywhere on the website. Tracks asset location, hours, fuel usage, diagnostic codes, idle time and more through the secure VisionLink™ user interface. Smart Machine Systems enhance productivity – Cat Messenger, combined with full systems integration, enhances diagnostic capability for quick analysis of critical data. Electronic Technician (Cat ET) lets service technicians access stored diagnostic data and configure machine parameters through the Cat Data Link. Low Battery Elevated Idle raises idle speed when low system voltage is detected, ensuring adequate system voltage and improving battery reliability. Automatic Engine Deration protects the engine by automatically lowering engine torque output and alerting the operator if critical conditions are detected. BUILT-IN SAFETY FEATURES Operator Presence Monitoring System keeps the parking brake engaged and hydraulic implements disabled until the operator is seated and the machine is ready for operation. Speed Sensitive Steering makes steering less sensitive as ground speed increases for enhanced control. Secondary electric hydraulic steering pump automatically engages in case of a drop in steering pressure allowing operator to steer the machine to a stop. Hydraulic lockout disables all implement functions while still providing machine steering control. This is especially useful while roading. Brakes are located at each tandem wheel to eliminate braking loads on the power train. Redundant brake systems utilize accumulators to enable stopping in case of machine failure. Perforated steel tandem walkways and convenient grab rails provide a sturdy platform when moving on, off and around the machine. Circle Drive Slip Clutch protects the drawbar, circle and moldboard from shock loads if the blade encounters an immovable object and reduces the possibility of abrupt directional changes in poor traction conditions. Blade Lift Accumulators absorb impact loads by allowing vertical blade travel. This optional feature reduces wear and impact loading for enhanced operator safety. Safety Features – Optional rearview camera with in-cab monitor Grouped, ground level service points Laminated front window glass Optional LED Lighting Ground-level electrical disconnect switch Ground-level engine shutoff switch Anti-glare paint eases night operation Front and rear fenders TOP-TIER SERVICE AND SUPPORT Cat motor graders are designed to help you increase uptime and reduce costs: Grouped service points and extended service intervals save maintenance time. New optional LED lights in the left hand compartment facilitates machine servicing in low light. Your Cat dealer provides support that is second to none. From machine selection and purchase to training, maintenance support and rebuilds, Cat dealers have the experience and capabilities to help keep you up and running. SUSTAINABILITY The Cat® C9.3 engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards. Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period. Cat® Grade helps reduce fuel burn and greenhouse gas emissions by enabling you to achieve grade faster and more accurately by automating blade actions. Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine. VisionLink® displays the CO2 emissions for monitored assets, calculated by fuel type for the Runtime Fuel Burned each day in a selected date range. Don’t waste fuel idling. Cat VisionLink® online fleet monitoring helps you manage idle time and reduce fuel burn and greenhouse gas emissions. Cat® Reman parts are a sustainable choice. New Cat parts are designed with the potential to have more than one life, so Cat Reman parts are truly remanufactured — not just repaired, rebuilt or reconditioned. Because the process ensures the latest design changes are incorporated into Cat Reman parts, you get like new quality and outstanding performance at lower cost. *Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). 140 / 140 AWD -Tier 4 / Stage 5 Standard Equipment Expand all NOTE expand / collapse icon Standard and optional equipment may vary. Consult your Cat dealer for details. POWER TRAIN expand / collapse icon Air cleaner, dual stage, dry type, diesel, with automatic engine derate and automatic dust ejector, service indicator through Cat Messenger Air-to-air after cooler (ATAAC) Belt, serpentine, automatic tensioner Brakes, oil disc, four-wheel, hydraulic Demand fan, hydraulic, swing-out Diesel exhaust fluid tank, 22.0 L (5.8 gal) ground level access, and sediment drain Differential Lock/Unlock, Automatic Drain, engine oil, ecology Economy mode Electronic over speed protection Engine C9.3 U.S. EPA Tier 4 Final/EU Stage V emission standards Fuel tank, 394 L (104 gal), ground level access and sediment drain Parking brake – multi-disc, sealed, oil-cooled Priming pump, fuel Rear axle, modular Sediment drain, fuel tank Tandem drive Transmission, 8F/6R, powershift, direct drive, Advanced Productivity Electronic Control Strategy (APECS) ELECTRICAL expand / collapse icon Alarm, back up Alternator, 150 ampere, sealed Batteries, maintenance free, heavy duty, 1125 CCA Breaker panel, ground accessible Cab harness and electrical hydraulic valves Electrical system, 24V Grade Control Ready – Cab harness, software, electrical hydraulic valves, bosses and brackets Lights, roof-mounted roading, reversing, LED stop and tail Product Link Starter, electric OPERATOR ENVIRONMENT expand / collapse icon Accelerator Air conditioning with heater Arm and wrist rest, electronically adjustable Articulation, automatic Return-to-Center Cat Messenger operator information system Centershift pin indicator Coat hook Cup holder Display, digital speed and gear Doors, left and right side with wiper Gauge, machine level Gauge cluster (analog) – fuel, articulation, engine coolant temp, engine RPM, hydraulic oil temp, regen, DEF Hour meter, digital Joystick hydraulic controls right/left blade lift with float position, circle drive, blade sideshift and tip, centershift, front wheel lean, articulation and power steering Joystick, adjustable armrests Joystick gear selection Joystick hydraulic power steering Ladders, cab, left and right side Lights, night time cab Mirror, inside rearview, wide angle Power port, 12V Radio Ready, Entertainment ROPS cab, sound suppressed 70 dB(A) Seat, cloth-covered, comfort suspension Seat belt, retractable 76 mm (3 in) Storage area for cooler/lunchbox Throttle control, electronic Windows, laminated glass: – fixed front with intermittent wiper – door with intermittent wipers (3) Windows: tempered: – left and right side wipers – rear and intermittent wiper FLUIDS expand / collapse icon Antifreeze Extended Life Coolant to -35° C (-30° F) TIRES, RIMS AND WHEELS expand / collapse icon Partial allowance for tires on 254 — 607 mm (10 — 24 in) multi-piece rims is included in the base machine price and weight OTHER STANDARD EQUIPMENT expand / collapse icon Accumulators, brake, dual certified Anti-glare paint Bumper, rear, integrated with hitch CD ROM Parts Book Clutch, circle drive slip Cutting edges: – 152 — 16 mm (6 — 5/8 in) – curved DH-2 steel – 19 mm (3/4 in) mounting bolts Doors (3), engine compartment, locking Drawbar – 6 shoes, replaceable wear strips Electrical hydraulic valves, hydraulic lines for base 8 functions Endbits: – 16 mm (5/8 in) DH-2 steel – 19 mm (3/4 in) mounting bolts Fluid check, ground level Frame, articulated, with safety lock Ground level engine shutdown Hammer (emergency exit) Horn, electric Hydraulic lines for base functions Lockout, hydraulic implement (for roading and servicing) Moldboard Mounting, cab roof accessories Pump, hydraulic, high capacity, 98 cm³ (6 in³) Radiator, cleanout access (both sides with swing doors) Secondary steering Serviceability, LH side S·O·S ports: engine, hydraulic, transmission, coolant, fuel Tandem walkway/guards Tool box 140 / 140 AWD -Tier 4 / Stage 5 Optional Equipment Expand all NOTE expand / collapse icon Standard and optional equipment may vary. Consult your Cat dealer for details. ELECTRICAL expand / collapse icon Alternator, 280 ampere Batteries: extreme duty, 1,400 CCA Lights: Headlights, high Lights: Headlights, low Lights: Working lights, basic Lights: Working lights, plus, LED Lights: Warning: beacon or strobe Lights: Mounting for warning light GUARDS expand / collapse icon Articulation guard Fenders, front Fenders, rear Front axle guard Sound suppression (bottom) Sound suppression (enclosure) Transmission OPERATOR ENVIRONMENT expand / collapse icon Mirrors, outside: heated 24V Mirrors, outside: mounted Comfort Plus Arrangement Comfort Premium Arrangement POWER TRAIN expand / collapse icon All Wheel Drive Precleaner, snow Starter, extreme duty, 1,000 Amps Transmission, autoshift OTHER ATTACHMENTS expand / collapse icon Attachment Ready Option (ARO) Integrated cross slope Accumulators, blade lift Camera, rearview Cat Product Link 321SR Cat Product Link 522 Drain, ecology, engine Wiggins Heater, engine coolant: 120V Heater, engine coolant: 240V Hydraulic arrangements with one or more additional hydraulic valves are available for rear ripper, dozer, snow plow and snow wing. Snow wing mounting, frame ready Starting aid, ether Reversing fan, automatic or manual Cat Grade with 3D WORK TOOLS/G.E.T. expand / collapse icon Blade extension, left hand, 610 mm (2 ft) Blade extension, right hand, 610 mm (2 ft) Counterweight Cutting edges, curved Endbits, overlay Front lift group, mounting Front lift group, mechanical Grader bit, narrow and super penetration Mid-Mount Scarifier, Package Moldboard: 4267 mm — 610 mm — 22 mm (14 ft — 24 in — 7/8 in) Moldboard: 4267 mm — 686 mm — 25 mm (14 ft — 27 in — 1 in) Push plate Ripper, rear Ripper tooth Scarifier, front Snow Arrangement Snow Wing Ready Package Tow hitch MACHINE ARRANGEMENTS expand / collapse icon Canadian Arrangement European Arrangement TUV Roading Arrangement OPTIONAL TIRE ARRANGEMENTS expand / collapse icon Rim Size – 9 × 24; Wheel Group – Single-Piece; Tires – 14.0R24 Rim Size – 13 × 25; Wheel Group – Single-Piece; Tires – 17.5R25 Rim Size – 10 × 24; Wheel Group – Multi-Piece; Tires – 14.0R24 Rim Size – 10 × 24; Wheel Group – Multi-Piece; Tires – 14.0-24 Rim Size – 14 × 25; Wheel Group – Multi-Piece; Tires – 17.5R25 Rim Size – 14 × 25; Wheel Group – Multi-Piece; Tires – 17.5-25 Note: Consult your dealer for individual tire width, size and brand.
