The Cat® 140 GC Motor Grader is easy to own and operate. A demand fan and standard Eco mode reduces fuel consumption while open access to maintenance points makes service quick and simple. Control the blade with consistent movement using lever controls from the comfort of the all new cab. Not all features available in all regions. Consult your Cat dealer for specific configurations available in your region.
Engine Power (ISO 14396)
147 kW
Bore
105 mm
Derating Altitude
3000 m
Product specifications for 140 GC / 140 GC AWD – Tier 4 / Stage 5 Motor Graders
Engine
expand / collapse icon
Engine Power (ISO 14396)
147 kW
Bore
105 mm
Derating Altitude
3000 m
Displacement
7.01 l
Emissions
U.S. EPA Tier 4 Final/EU Stage V
Engine Model
Cat 7.1
Engine RPM
2,200
Standard Capability
43 °C
High – Ambient Capability
50 °C
Maximum Torque – ISO 9249
835 N·m
Stroke
135 mm
Torque Rise – ISO 9294
40%
Number of Cylinders
6
Note (1)
Net power is tested per ISO 9249, SAE J1349, and EEC 80/1269 standards in effect at the time of manufacture.
Note (2)
Net power advertised is the power available at rated speed of 2,200 rpm, measured at the flywheel when engine is equipped with fan, air cleaner, muffler and alternator.
Note (3)
Power as declared per ISO 14396
Engine Power AWD (ISO 14396)
147 kW
Weights
expand / collapse icon
Operating Weight – Typically Equipped
17650 kg
Note
* Typically equipped operating weight is calculated with full fuel tank, coolant, lubricants, operator, push block, rear ripper, tires on multi-piece rims (*17.5-25 Bias/**17.5R-25), and other equipment.
Air Conditioning System
expand / collapse icon
Note
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430).The system contains 2.0 kg of refrigerant which has a CO2 equivalent of 2.86 metric tonnes.
Weight
expand / collapse icon
Weight (Stage V)*
17650 kg
Weight (Tier 4 Final)**
18365 kg
All-wheel Drive Weight (AWD) (Tier 4 Final)**
19105 kg
All-Wheel Drive Weight (AWD) (Stage V)*
18390 kg
Moldboard
expand / collapse icon
Blade Width
3.7 m
Arc Radius
413 mm
Blade Height
610 mm
Cutting Edge Width
152 mm
End Bit
152 mm
Throat Clearance
112 mm
Dimensions
expand / collapse icon
Width All Wheel Drive (AWD)
2523 mm
Length of Machine*
10322 mm
Maximum Height
3363 mm
Width
2428 mm
Note
*Typically equipped with push block and ripper.
Blade Range
expand / collapse icon
Circle Center Shift Left
752 mm
Circle Center Shift Right
728 mm
Maximum Depth of Cut
715 mm
Maximum Lift Above Ground
475 mm
Maximum Shoulder Reach Left
1886 mm
Maximum Shoulder Reach Right
1812 mm
Moldboard Side Shift Left
649 mm
Moldboard Side Shift Right
526 mm
Blade Tip Range Backward
5
Blade Tip Range Forward
40
Service Refill Capacities
expand / collapse icon
Fuel Tank
295 l
Circle Drive with Slip Clutch
7.5 l
Circle Drive without Slip Clutch
2 l
Cooling System
10.6 gal (US)
Engine Crankcase
21 l
Diesel Exhaust Fluid Tank (Tier 4 Only)
16 l
Hydraulic System
45 l
Transmission
18 l
BUILT TO PERFORM
Increase your fuel economy up to 5% with the standard ECO mode.
The on-demand fan reduces fuel consumption and under-hood heat for longer component life.
Improve productivity with the Electronic Throttle Control which matches engine power and torque to application requirements.
The powershift transmission with torque converter and machine balanced design ensures that you get full drawbar power to the ground with the Cat C7.1 engine.
The all-wheel drive (AWD) option assists with traction and maneuvering in loose material. The increased power with all wheel drive handles rough terrain with extra traction for better productivity.
The hydraulic system offers a multifunction capability for precise and predictable performance resulting in a more consistent grade.
Increase your maneuverability with the articulation hitch to give you a shorter turning radius.
The Digital Blade Slope Meter option shows you the grade without relying on manual grade checkers to keep your work site more productive and safer.
Product Link™ provides location, machine hours, fuel usage, productivity, idle time, diagnostic codes, and other machine data on demand through the VisionLink® online interface, which helps you improve jobsite efficiency with lower operating costs.

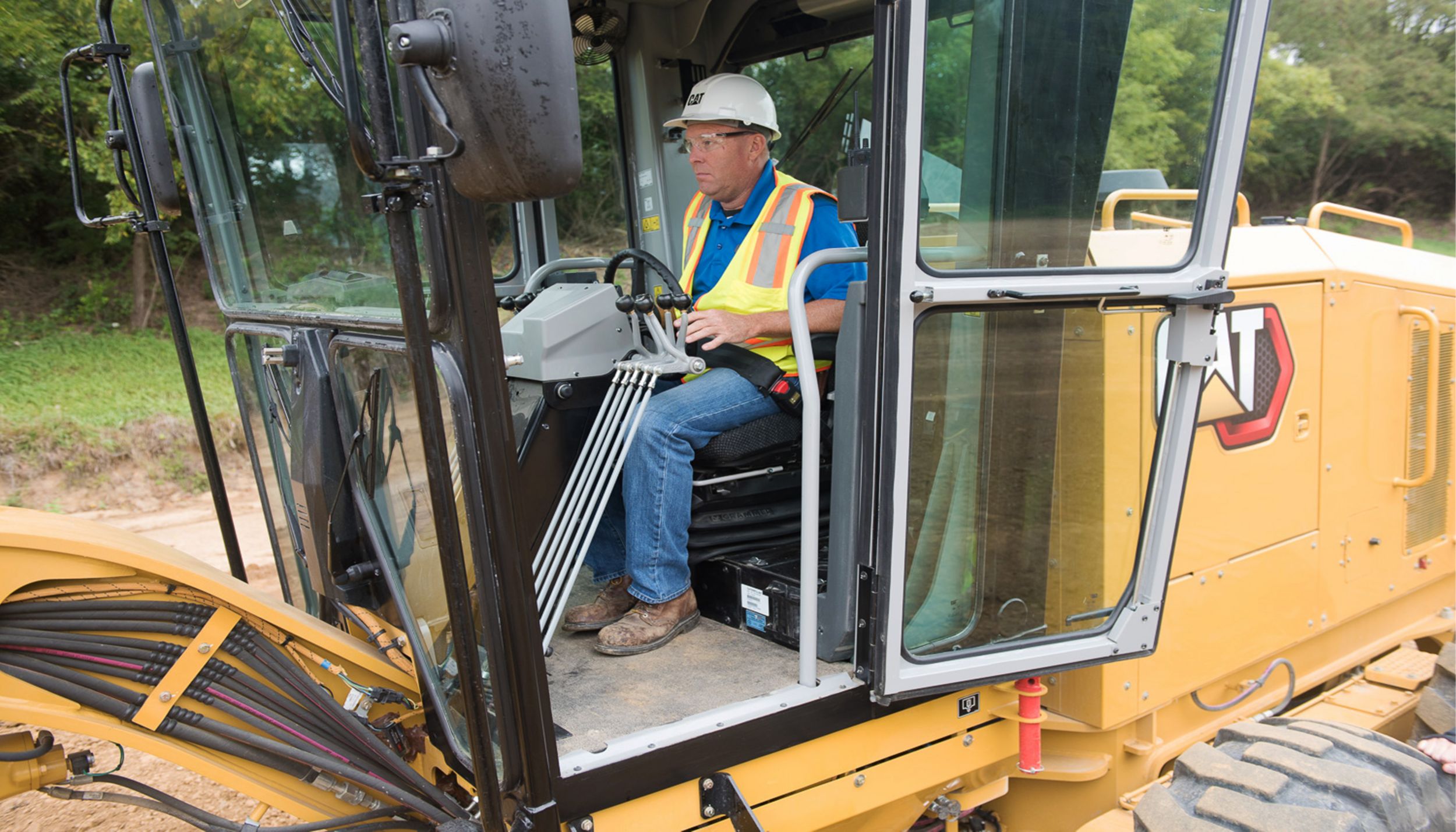

WORK IN COMFORT
Choose your comfort level in the cab with standard, mechanical suspension or air suspension seat.
Easily adjust the control console and steering wheel.
The high capacity Heating, Ventilation and Air Conditioning (HVAC) system option circulates fresh air, prevents dust entry and keeps windows from fogging.
Easily add a radio to the cab using the built-in mounting location option.
RELIABLE, WHATEVER THE ENVIRONMENT
The drawbar circle moldboard stays factory tight providing precision grading pass after pass.
The machine structure is built for a long life. It’s designed to use several types of work tools, such as a front blade.
A slip clutch option protects the circle drive if the machine strikes an immovable object.
The front axle maximizes bearing life while also minimizing maintenance.
Reduce daily greasing requirements and costly repairs to your circle and pinion with the Circle Saver option.
SAFELY HOME EVERY DAY
See what’s behind you with the rear camera option. The dedicated display can always be on to ensure a safe work environment.
Optional dual front cameras offer more visibility to you while roading and working with the blade.
In the event of an engine stall, count on the secondary steering system option to help stop the machine safely.

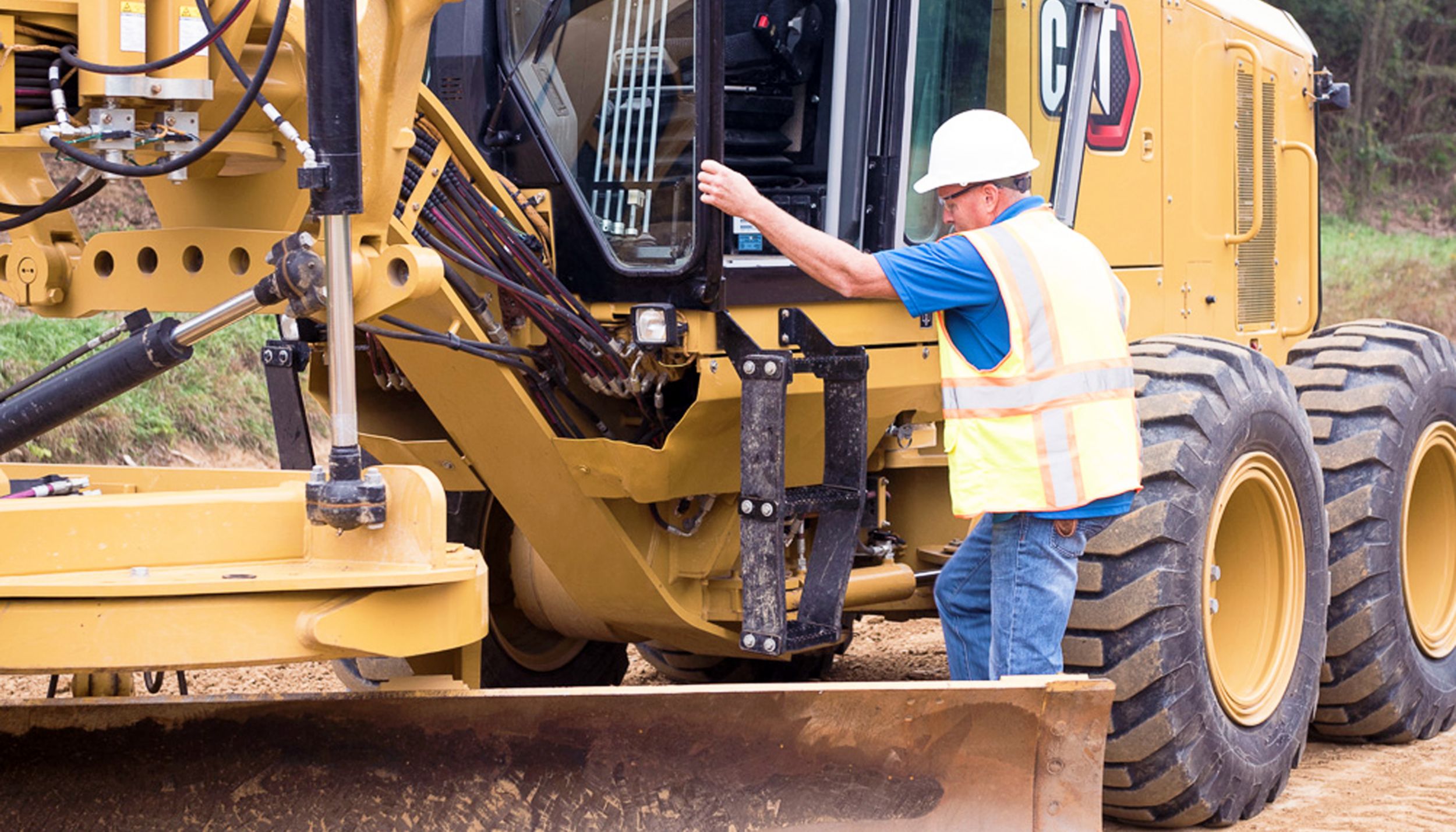

Use three points of contact when entering and exiting the machine with strategically placed walk ways and grab rails.
Ground level engine shut-off switch stops all fuel to the engine when activated and shuts down the machine.
See the rear of your machine with side and rearview mirrors.
Work past sundown using the strategically placed lights for night time visibility.
SIMPLIFIED MAINTENANCE

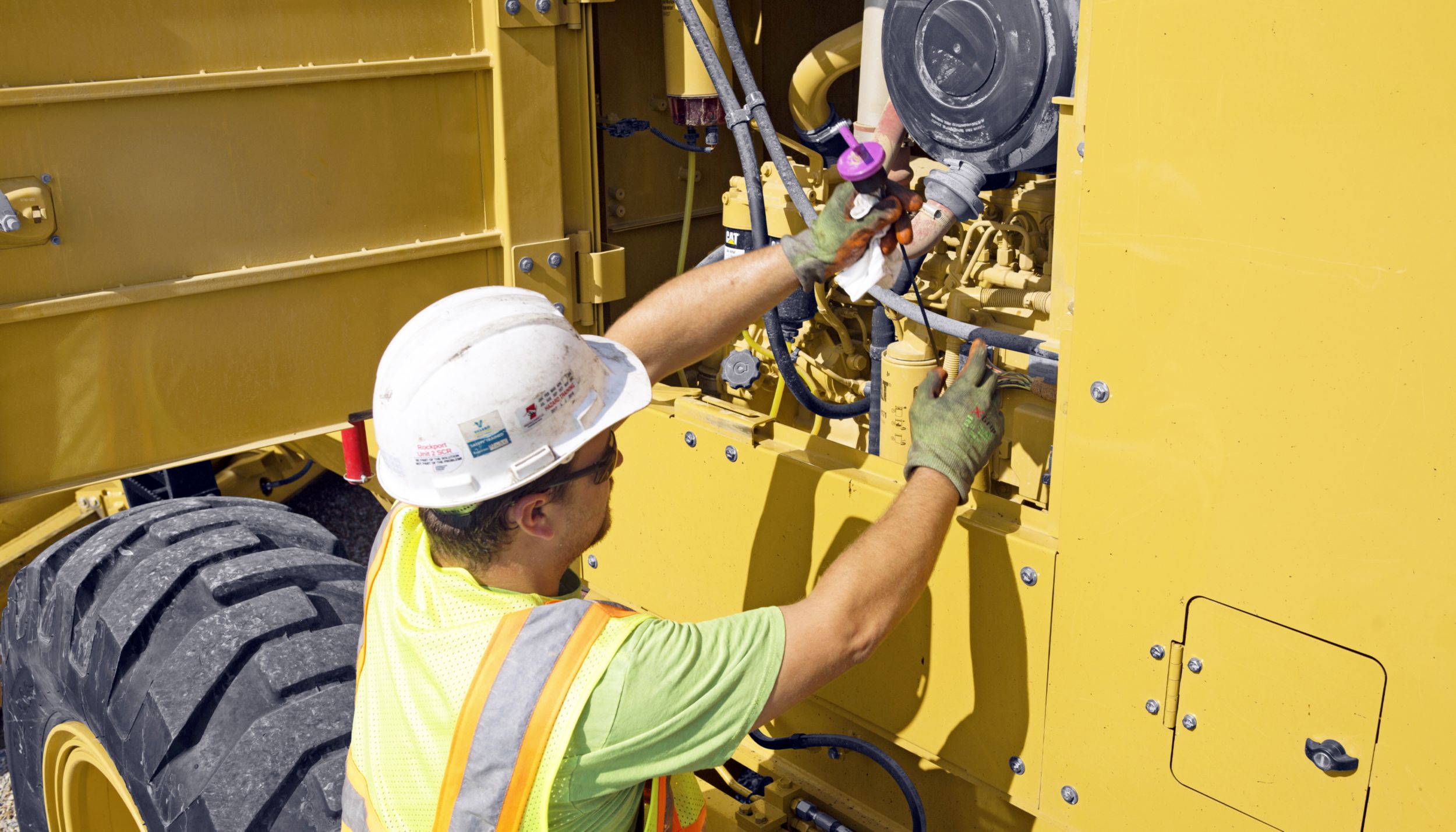

Filters, such as fuel, engine air, and oil filters, are grouped together for easy access and preventative maintenance.
The standard drawbar circle moldboard increases durability using hardened circle teeth and replaceable wear inserts to help sustain factory tightness.
Hydraulic brakes are well oiled to keep them maintenance free.
The standard bottom guard shields the transmission and filter. Optional guarding underneath the cab protects your machine from damage in demanding applications.
Spend less time cleaning the cooling system with the reversing fan option, which reduces costs when cleaned once per week for more uptime.
Remote Troubleshoot connects you to a dealer service pro to help solve your problem and quickly get you to work.
Remote Flash works around your schedule to ensure your machine’s software is up to date for optimal performance.
S·O·Sports are available for simplifying maintenance and allowing for quick, easy extraction of fluid samples for analysis.
EXPAND YOUR CAPABILITIES
Improve the performance and efficiency of your machine with the standard or heavy-duty push block and counterweight options.
Ripper and scarifier options are available to assist with grading hard ground.
The front lift group option is ready for attachments like the straight front blade.
Expand your machine’s capabilities with the tow hitch.
For more road coverage, add a moldboard extension to add 605 mm (24 in).
140 GC / 140 GC AWD – Tier 4 / Stage 5 Standard Equipment
Expand all
NOTE
expand / collapse icon
Standard and optional equipment may vary. Consult your Cat dealer for details.
Cab
expand / collapse icon
Standard Seat
Steering Wheel/Lever Controls
Base Cab
Information Display Screen
Halogen Lighting
Entertainment Radio Ready
Product Link
Power Train
expand / collapse icon
Cat C7.1
ECO Mode
On-Demand Fan
No-Spin Differential
Safety
expand / collapse icon
Parking brake
Signaling/warning horn
Rearview mirror
Hydraulic brakes
Sideview mirrors
Walkways and Grab Rails
140 GC / 140 GC AWD – Tier 4 / Stage 5 Optional Equipment
Expand all
NOTE
expand / collapse icon
Standard and optional equipment may vary. Consult your Cat dealer for details.
Cab
expand / collapse icon
Mechanical Suspension Seat
Air Suspension Seat
ROPS/FOPS
Heating/Cooling Cab System
Rear Wiper
Canopy
Cab Plus
Rear Window Screen
Front Wipers
Digital Blade Slope Meter
Drawbar Circle Moldboard
expand / collapse icon
Circle Drive Slip Clutch
Circle Saver
Power Train
expand / collapse icon
Reversing Fan
All-Wheel Drive (AWD)
Safety
expand / collapse icon
Rearview camera
Secondary steering system
Front View Camera
Versatility
expand / collapse icon
Scarifier
Counterweight
Push Block
Front Lift Group
Snow Wing
Front Blade
