Product specifications for 16 Motor Graders
Specially configured for mine operation and haul road development and maintenance, the Cat® 16 maximizes availability and controls operating costs. Fuel efficient technologies and legendary Cat robust design and construction ensure these machines help your operation optimize profits.
Engine
expand / collapse icon
Base Power (1st Gear) – Net
216 kW
Engine Model
Cat® C13
Bore
130 mm
Stroke
157 mm
Speed at Rated Power
2,000 rpm
Derating Altitude – Tier 2/Stage II/Japan 2001 (Tier 2) Equivalent
3711 m
Maximum Torque – ISO 9249 – Tier 3/Stage IIIA/Japan 2006 (Tier 3) Equivalent
1721 N·m
Maximum Torque – ISO 9249 – Tier 4/Stage IV/Japan 2014 (Tier 4)
1771 N·m
Maximum Torque – ISO 9249 – Tier 2/Stage II/Japan 2001 (Tier 2) Equivalent
1721 N·m
Emissions (2)
Tier 3/Stage IIIA/Japan 2006 (Tier 3) Equivalent Emission Standards – depending on emission standards of specific country
Torque Rise – Tier 4/Stage IV/Japan 2014 (Tier 4)
43%
Torque Rise – Tier 2/Stage II/Japan 2001 (Tier 2) Equivalent
39%
Standard – Ambient Capability
50 °C
Derating Altitude – Tier 3/Stage IIIA/Japan 2006 (Tier 3) Equivalent
3954 m
VHP Range – Net – Metric
216-259 kW (294-353 hp)
Base Power (1st Gear) – Net – Metric
216 kW
Standard – Fan Speed – Minimum
550 rpm
Standard – Fan Speed – Maximum
1,450 rpm
Emissions (3)
Tier 2/Stage II/Japan 2001 (Tier 2) Equivalent Emission Standards – depending on emission standards of specific country
Torque Rise – Tier 3/Stage IIIA/Japan 2006 (Tier 3) Equivalent
39%
Emissions (1)
U.S. EPA Tier 4 Final/EU Stage V/Japan 2014 (Tier 4 Final)
VHP Range – Net
216-259 kW (290-348 hp)
Derating Altitude – Tier 4/Stage IV/Japan 2014 (Tier 4)
3810 m
Displacement
12.5 l
Number of Cylinders
6
Optimized VHP Range – Net
216-259 kW (290-348 hp)
Weights
expand / collapse icon
Operating Weight – Typically Equipped
32411 kg
Power Train
expand / collapse icon
Forward/Reverse Gears
8 Forward/6 Reverse
Transmission
Direct drive, power shift, countershaft
Brakes – Dynamic Brake Torque per Wheel
36701 N·m
Brakes – Secondary
Oil-actuated, oil-disc
Brakes – Service
Oil-actuated, oil disc
Brakes – Parking
Spring applied, hydraulically released
Moldboard
expand / collapse icon
Blade Width
4.9 m
Arc Radius
413 mm
Throat Clearance
126 mm
Thickness
25 mm
End Bit – Width
152 mm
Blade Pull* – Base GVW
18615 kg
Cutting Edge Width
203 mm
Cutting Edge Thickness
25 mm
Down Force – Maximum GVW
19895 kg
Height
787 mm
Width
4.9 m
Down Force – Base GVW
13945 kg
Blade Pull* – Maximum GVW
23985 kg
End Bit – Thickness
19 mm
Note
*Blade pull calculated at 0.9 traction coefficient, which is equal to ideal no-slip conditions, and Gross Machine Weight.
Hydraulic System
expand / collapse icon
Circuit Type
Electro-hydraulic load sensing, closed center
Pump Type
Variable piston
Maximum System Pressure
24750 kPa
Standby Pressure
5900 kPa
Pump Output*
280 l/min
Note
*Pump output measured at 2,150 rpm.
Operating Specifications
expand / collapse icon
Steering Range – Left/Right
47.5°
Forward – 6th
25.8 km/h
Forward – 4th
12.3 km/h
Forward – 5th
19 km/h
Turning Radius – Outside Front Tires
9.3 m
Forward – 7th
35.5 km/h
Top Speed – Forward
51.7 km/h
Forward – 3rd
8.9 km/h
Reverse – 6th
40.8 km/h
Reverse – 5th
28 km/h
Reverse – 2nd
6.6 km/h
Reverse – 3rd
9.7 km/h
Forward – 8th
51.7 km/h
Reverse – 1st
3.6 km/h
Forward – 1st
4.5 km/h
Top Speed – Reverse
40.8 km/h
Forward – 2nd
6.1 km/h
Reverse – 4th
15 km/h
Articulation Angle – Left/Right
20°
Note
Calculated with no slip and 23.5 R25 L-3 tires.
Service Refill
expand / collapse icon
Fuel Capacity
496 l
Cooling System
70 l
DEF Tank
16 l
Hydraulic System – Total
146 l
Hydraulic System – Tank
70 l
Engine Oil
36 l
Transmission – Differential – Final Drives
98.5 l
Tandem Housing – Each
129 l
Front Wheel Spindle Bearing Housing
0.9 l
Circle Drive Housing
10 l
Frame
expand / collapse icon
Front Frame Structure – Height
460 mm
Front Frame Structure – Width
356 mm
Drawbar – Width
76 mm
Drawbar – Height
203 mm
Front Axle – Total Oscillation per Side
35°
Circle – Diameter
1822 mm
Circle – Blade Beam Thickness
50 mm
Front Frame Structure – Thickness
14 mm
Front Axle – Wheel Lean
18° Left/17° Right
Front Axle – Height to Center
670 mm
Tandems
expand / collapse icon
Tandem Oscillation – Front Up
15°
Sidewall Thickness – Outer
22 mm
Sidewall Thickness – Inner
22 mm
Tandem Oscillation – Front Down
25°
Height
648 mm
Width
236 mm
Drive Chain Pitch
63.5 mm
Wheel Axle Spacing
1841 mm
Blade Range
expand / collapse icon
Maximum Blade Position Angle
65°
Maximum Lift Above Ground
400 mm
Maximum Depth of Cut
470 mm
Maximum Shoulder Reach Outside of Tires – Right
2311 mm
Moldboard Sideshift – Left
740 mm
Circle Centershift – Right
560 mm
Circle Centershift – Left
690 mm
Moldboard Sideshift – Right
790 mm
Maximum Shoulder Reach Outside of Tires – Left
2311 mm
Blade Tip Range – Forward
40°
Blade Tip Range – Backward
5°
Ripper
expand / collapse icon
Ripping Depth – Maximum
452 mm
Shank Holder Spacing – Minimum
445 mm
Ripper Shank Holders
7
Penetration Force
13749 kg
Pry-Out Force
19822 kg
Machine Length Increase, Beam Raised
1610 mm
Shank Holder Spacing – Maximum
500 mm
Weights Tier 4/Stage IV/Japan 2014 (Tier 4 Final)*
expand / collapse icon
Gross Vehicle Weight – Maximum Tested – Total
38500 kg
Gross Vehicle Weight – Base** – Total
28816 kg
Gross Vehicle Weight – Typically Equipped – Rear Axle
23678 kg
Gross Vehicle Weight – Typically Equipped – Total
32411 kg
Gross Vehicle Weight – Maximum Tested – Front Axle
11850 kg
Gross Vehicle Weight – Typically Equipped – Front Axle
8733 kg
Gross Vehicle Weight – Maximum Tested – Rear Axle
26650 kg
Gross Vehicle Weight – Base** – Front Axle
8134 kg
Gross Vehicle Weight – Base** – Rear Axle
20682 kg
Note (1)
*For machines not equipped with Tier 4 Final emission engine, subtract 150 kg (331 lb) from rear axle weight and total weight.
Note (2)
**Base operating weight calculated on standard machine configuration with 23.5 R25 tires, full fuel tank operator and ROPS cab.
Dimensions (Approximate)
expand / collapse icon
Ground Clearance – Rear Axle
396 mm
Length – Counterweight to Ripper
12051 mm
Length – Front Axle to Moldboard
3066 mm
Length – Front Axle to Mid Tandem
7365 mm
Height – Top of Cylinders
3088 mm
Width – Tire Center Lines
2703 mm
Width – Outside Rear Tires
3411 mm
Length – Between Tandem Axles
1841 mm
Height – Top of Cab
3719 mm
Width – Outside Front Tires
3411 mm
Height – Front Axle Center
733 mm
Length – Front Tire to Rear of Machine – Including Tow Hitch
10593 mm
Height – Exhaust Stack
3557 mm
Standards
expand / collapse icon
Steering
ISO 5010:2007
Brakes
ISO 3450:2011
Sound
ISO 6394:2008/ISO 6395:2008/ISO 6396:2008
ROPS/FOPS
ISO 3471:2008/ISO 3449:2005
Note (1)
The dynamic spectator sound power level is 109 dB(A) for Stage IV certified configurations and 109 dB(A) for Tier 2/Stage II/Japan 2001 (Tier 2) and Tier 3/Stage IIIA/Japan 2006 (Tier 3) equivalent emission standard machines when measured according to the dynamic test procedures that are specified in ISO 6395:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed. The machine was equipped with a sound suppression system.
Note (2)
The dynamic operator sound pressure level is 71 dB(A) for Stage IV certified configurations and 72 dB(A) for Tier 2/Stage II/Japan 2001 (Tier 2) and Tier 3/Stage IIIA/Japan 2006 (Tier 3) equivalent emission standard machines when measured according to the dynamic test procedures that are specified in ISO 6396:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed, with the cab doors and the cab windows closed. The cab was properly installed and maintained. The machine was equipped with a sound suppression system.
Variable Power Tier 4 Final/Stage IV/Japan 2014 (Tier 4 Final), Tier 3/Stage IIIA/Japan 2006 (Tier 3) or Tier 2/Stage II/Japan 2001 (Tier 2) – Net
expand / collapse icon
Gear – Reverse 3rd-6th
222 kW
Gear – Forward 8th
259 kW
Gear – Forward 3rd
222 kW
Gear – Forward 6th
239 kW
Gear – Forward 5th
232 kW
Gear – Reverse 1st
216 kW
Gear – Reverse 2nd
216 kW
Gear – Forward 4th
227 kW
Gear – Forward 7th
244 kW
Gear – Forward 1st
216 kW
Gear – Forward 2nd
216 kW
Variable Power Tier 4 Final/Stage IV/Japan 2014 (Tier 4 Final), Tier 3/Stage IIIA/Japan 2006 (Tier 3) or Tier 2/Stage II/Japan 2001 (Tier 2) – Metric
expand / collapse icon
Gear – Forward 4th
227 kW
Gear – Reverse 1st
216 kW
Gear – Forward 3rd
222 kW
Gear – Reverse 3rd-6th
222 kW
Gear – Reverse 2nd
216 kW
Gear – Forward 7th
244 kW
Gear – Forward 6th
239 kW
Gear – Forward 8th
259 kW
Gear – Forward 1st
216 kW
Gear – Forward 5th
232 kW
Gear – Forward 2nd
216 kW
Optional Tire Arrangements
expand / collapse icon
Wheel Group – 19.5×25 MP (1)
Tires: 23.5R25 Bridgestone VKT 2 Star
Wheel Group – 19.5×25 MP (2)
Tires: 23.5R25 Bridgestone VKT 1 Star
Wheel Group – 19.5×25 MP (3)
Tires: 23.5R25 Bridgestone VJT 1 Star
Wheel Group – 19.5×25 MP (4)
Tires: 23.5R25 Michelin XHA 2 Star
Wheel Group – 19.5×25 MP (5)
Tires: 23.5R25 Michelin XLDD 2 Star L5
RELIABILITY YOU CAN COUNT ON
Reduce downtime and operating cost through improved serviceability, fuel economy and reduced maintenance, maximizing availability.
Major components are modular, so most can be removed and reinstalled without disturbing other components for peak repair efficiency.
C13 engine has been optimized to be as efficient without compromising performance. Eco Mode can be activated to control high engine idle speed and ensure the engine is performing as efficiently as possible, offering additional fuel savings.
Center shift section of the front frame is a heavy-duty steel casting improving stress distribution for enhanced durability.
Rear frame structure is lengthened providing easy access to components in the engine enclosure as well as improved machine balance.
Front axle steering cylinder enhances durability and hydraulic lines are routed to improve reliability.
Modular cooling package provides simple removal and installation of components on the cooling system reducing service time.

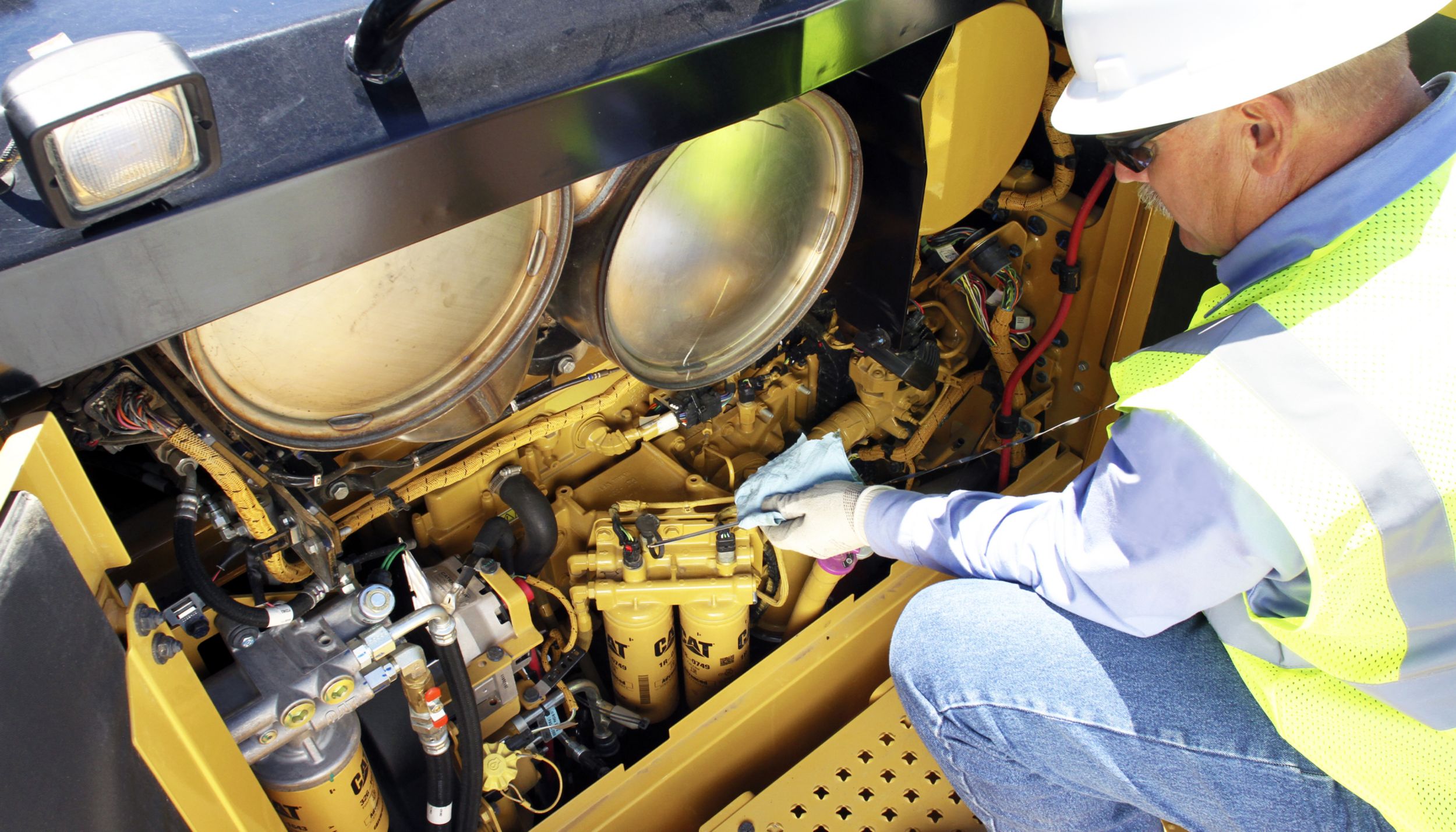

Engine enclosure doors provide complete access to the engine without any enclosure post.
Extended maintenance intervals reduce the number of touches and downtime.
Fluid monitoring systems help prevent critical components from damage when levels are low.
Information Display in cab shows service/maintenance concerns and diagnostic codes are logged.
PERFORMANCE AND PRODUCTIVITY
Motor graders have a direct impact on how productively all other mining machines operate – in particular in their role in haul road maintenance. The 16is optimized exactly to this goal:
Additional weight along with adjusted weight balance offers enhanced performance improving traction and the ability to keep ground speed, especially when carrying a large load.
Available with three variations of the C13 engine depending upon sales region.
Emissions reduction technology is transparent, with no action required from the operator.
Multi-color / touch screen information display is the operator’s gateway to monitoring machine performance and provides convenient way of modifying machine parameters to tailor performance to the current task. Assist in providing service information for troubleshooting.
Cat Product Link™ Elite integrates into the machine, taking guesswork out of equipment management. Provides easy access to machine location, hours, fuel usage, idle time and event codes via the online VisionLink® user interface helping you manage your fleet and operating costs.
Manage your fleet of machines while reducing fuel burn with Cat Production Measurement System option. The Efficiency Coach and Application Segmentation work together to monitor operators and machines simultaneously. Measure your jobsite’s efficiency and productivity from anywhere on the website.
ENSURING A SAFE JOB SITE
Caterpillar considers the safety of everyone in, on or around Cat equipment when developing products or enhancing safety features.
The 16has safety features including –
Access to Tandem
Rear View Camera
Seat Belt Indicator
Access Platform – optional
Service Access Platform – optional
Fire Suppression Ready System – optional
TOP-TIER SERVICE AND SUPPORT
Cat dealers are committed to helping you succeed, ensuring you have the right machine for the job, making parts available, operator training and providing a wide range of versatile work tools.
16 Standard Equipment
Expand all
NOTE
expand / collapse icon
Standard and optional equipment may vary. Consult your Cat dealer for details.
OPERATOR ENVIRONMENT
expand / collapse icon
Adjustable Electric Arm rest
Adjustable wrist rest
Air conditioner with heater
Articulation, automatic Return-to-Center
Centershift pin indicator
Coat hook
Cup holder
Display, digital speed and gear
Doors, left and right side with wiper
Gauges (analog) inside the cab (includes fuel, articulation, engine coolant temp, engine rpm, and hydraulic oil temp)
Gauges, machine level
Information display touch screen
Joystick gear selection
Joystick hydraulic controls for implements, steering, transmission
Ladders, cab, left and right side
Lights, left and right side lights
Lights, night time cab
Meter, hour, digital
Mirror, inside rearview, wide angle
Power port, 12V
Radio ready, entertainment
ROPS cab, sound suppressed, less than 73 dB(A) ISO 6394 (70% fan speed)
Seat, cloth-covered, comfort air suspension
Storage compartments
Throttle control, electronic
POWER TRAIN
expand / collapse icon
Air cleaner, dual stage dry type radial seal with service indicator through messenger and automatic dust ejector
Air-to-air after cooler (ATAAC)
Auto Diff Lock
Belt, serpentine, automatic tensioner
Brake wear indication
Brakes, oil disc, four-wheel, hydraulic
Consistent Power to ground
Critically Low Fluid Level Monitoring System
Differential, lock/unlock
Drain, engine oil, high speed
Electronic over speed protection
Engine ECO Mode: Tier 4 Final/Stage IV/Japan 2014 (Tier 4 Final) and Tier 2/Stage II/Japan 2001 (Tier 2) equivalent emission standards
Engine, compression brake
Ether starting aid
Fuel tank, fast fill, ground level
Fuel-water separator
Hydraulic Demand Fan
Muffler, under hood (Tier 2/Stage II/Japan 2001 (Tier 2) and Tier 3/Stage IIIA/Japan 2006 (Tier 3)
OK-to-Start
Optimized VHP
Parking brake – multi disc, sealed, oil-cooled
Priming pump, fuel
Rear axle, modular
Sediment drain, fuel tank
Three variations of the C13 engine. One meets U.S. EPA Tier 4 Final/EU Stage V/Japan 2014 (Tier 4 Final) emission standards and is required for sale in higher regulated countries. The other options are capable of meeting Tier 2/Stage II/Japan 2001 (Tier 2) or Tier 3/Stage IIIA/Japan 2006 (Tier 3) equivalent emission standards and are available for lesser or non-regulated countries, depending on the emission standards of the specific country.
Transmission, 8F/6R, power shift
VIMS no telematics
ELECTRICAL
expand / collapse icon
Alternator, 150 ampere, sealed
Batteries, maintenance free, heavy duty, 1,400 CCA
Breaker panel
Electrical system, 24V
Lights: brake, reversing, roof-mounted roading, stop and tail (LED), work front
Product Link
Starter, electric, heavy duty
SAFETY
expand / collapse icon
Alarm, back up
Ground level engine shutdown
Hammer (emergency exit)
Horn, electric
Lockout, hydraulic implement for roading
Operator not present monitoring System
Paint, glare reducing – top of front frame, rear enclosure an ripper cylinders
Rearview camera
Seat belt indicator
Seat belt, retractable 76 mm (3 in)
Secondary steering
Windows, laminated glass: – Fixed front with intermittent wiper – Door with intermittent wipers (2)
Windows, tempered: – Left and right side wipers – Rear with intermittent wiper
OTHER STANDARD EQUIPMENT
expand / collapse icon
3-Bolt blade Bracket
AccuGrade ARO
Accumulators, blade lift
Brake accumulators, dual certified
Cat Grade Control Cross Slope
CD ROM Parts Book
Clutch, circle drive slip
Cutting edges, curved DH-2 steel: – 203 mm × 25 mm (8 in × 1 in) – 19 mm (3∕4 in) mounting bolts
Doors (four), engine compartment, (two left, two right hand) locking
Doors, two service, left and right side
Drawbar – six shoe with replaceable wear strips
End bits, 16 mm (5∕8 in) DH-2 steel, 19 mm (3∕4 in) mounting bolts
Fast fill fuel, 567.8 L/min (150 gpm)
Fluid check
Frame, articulated, with safety lock
Hydraulics, load-sensing
Metallic Fuel tank, 496 L (131 gal)
Metallic DCM wear strips
Modular cooling package
Moldboard: – 4880 mm × 787 mm × 25 mm (16 ft × 31 in × 1 in) – Hydraulic side shift and tip
Radiator, two cleanout access doors
Rear bumper
Rear tandem access steps and hand bars
S∙O∙S ports: engine, hydraulic, transmission, coolant
Tandem walkway
Top adjust circle wear strips
Tow hitch (not available with ripper)
TIRES, RIMS, AND WHEELS
expand / collapse icon
A partial allowance for tires on 597 mm × 609.6 mm (23.5 in × 24 in) multi-piece rims is included in the base machine price and weight
FLUIDS
expand / collapse icon
Extended Life Coolant to –35° C (–31° F)
WORK TOOLS/G.E.T.
expand / collapse icon
4.9 m (16 ft) blade with curved cutting edge 203 mm × 25 mm (8 in × 1 in)
16 Optional Equipment
Expand all
NOTE
expand / collapse icon
Standard and optional equipment may vary. Consult your Cat dealer for details.
OPERATOR ENVIRONMENT
expand / collapse icon
Air horn
Comfort package
Heated door
Mirrors high visibility
Mirrors, outside heated 24V
Mirrors, outside mounted
Seat heated
Seat heated/ventilated
Windows cleaning platform and ladders left-right hand side
POWER TRAIN
expand / collapse icon
Transmission, autoshift
GUARDS
expand / collapse icon
Debris guard
Front axle cylinder guard
Rear fenders
Sound suppression, engine enclosure and transmission
Transmission guard
ELECTRICAL
expand / collapse icon
Light, LED, warning strobe
Lights front LED
Lights, front headlights high
Lights, front headlights low
Mounting, for warning light
Service lights
Working lights halogen
Working lights LED
SAFETY
expand / collapse icon
Additional monitor for rearview camera
Enhanced access platform
Fire suppression ready
Machine Security System Key
Service access platform
OTHER ATTACHMENTS
expand / collapse icon
Auto-lube, Centro-matic
Auto-lube, ripper enhancement
Control, blade, variable float
Heater, engine coolant, 120V
Heater, engine coolant, 240V
Hydraulic arrangements with additional hydraulic valves Base+1
Hydraulic arrangements with additional hydraulic valves Base+5
Product Link Elite dual
Rim, 495.3 mm × 635 mm (19.5 in × 25 in) MP (spare)
Weather, Cold Plus package
WORK TOOLS/G.E.T.
expand / collapse icon
4.9 m (16 ft) blade with flat cutting edge 254 mm × 35 mm (10 in × 1 3∕8 in)
Push block, counterweight
Ripper, rear
Tooth, ripper
FLUIDS
expand / collapse icon
Coolant, –51° C (–60° F)
