The Cat® 6015 Hydraulic Shovel lets you move more material at a lower cost, so you can achieve production targets, deliver on your commitments, meet deadlines and maximize your profitability. With class-leading tool carrying capacity, increased durability and the most powerful engine in its class, the Cat 6015 generates higher productivity and fuel efficiency than other shovels. And it’s offered with more and better options that let you match your machine to your operation — from access and cold weather packages to multiple stick and track pad options. In addition, a large range of buckets is available, giving you optimum payload and machine efficiency for your operation. And the 6015’s high tool carrying capacity gives you the ability to employ large buckets and move more in fewer cycles.
Engine Output – SAE J1995
615 kW
Bucket Payload
14.6 t
Operating Weight
140 t
Product specifications for 6015 Hydraulic Mining Shovels
General
expand / collapse icon
Engine Output – SAE J1995
615 kW
Bucket Payload
14.6 t
Operating Weight
140 t
Note
Specifications shown above apply to highly regulated, backhoe configuration. Lesser regulated and frontless configurations are also available.
Engine – U.S. EPA Tier 4 Final
expand / collapse icon
Engine Model
Cat® C27
Gross Power – SAE J1995
615 kW
Net Power – SAE J1349
556 kW
Engine – Cat C27 with Tier 4 Final Emission Standards
expand / collapse icon
Number of Cylinders
12
Bore
137.2 mm
Stroke
152.4 mm
Displacement
27 l
Engine – Equivalent to U.S. EPA Tier 2
expand / collapse icon
Engine Model
Cat® C27
Gross Power – SAE J1995
626 kW
Net Power – SAE J1349
556 kW
Engine – Cat C27 with Tier 1 or Tier 2 Equivalent Emission Standards
expand / collapse icon
Number of Cylinders
12
Bore
137.2 mm
Stroke
152.4 mm
Displacement
27 l
Aspiration
Turbocharged and air-to-air aftercooled
Engine
expand / collapse icon
Emissions
U.S. EPA Tier 4 Final and EU Stage V; China Nonroad Stage III, equivalent to U.S. EPA Tier 2; Equivalent to U.S. EPA Tier 1
Operating Weights – Backhoe
expand / collapse icon
Operating Weight
140 t
Weights
expand / collapse icon
Ground Pressure
16.3 N/cm²
Note
Operating weight includes: 700 mm (28 in) track shoes, 7.6 m (24 ft 11 in) boom, 3.4 m (11 ft 2 in) stick, standard rock bucket, 100% fuel and lubricants
Operating Weight
140000 kg
Track
expand / collapse icon
Standard
700 mm
Wide
900 mm
Extra Wide
1000 mm
Number of Shoes – Each Side
46
Number of Track Rollers – Each Side
9
Number of Carrier Rollers – Each Side
3
Track Pads
Double grouser
Drive
expand / collapse icon
Travel Speed – Two Stages – 1st Stage – Maximum
2.3 km/h
Travel Speed – Two Stages – 2nd Stage – Maximum
3.3 km/h
Maximum Drawbar Pull – Forward
858 kN
Maximum Drawbar Pull – Reverse
983 kN
Gradeability – Travel Drives
Approximately 42%
Hydraulic Track Tensioning
With accumulator
Maximum Drawbar Pull
800 kN
Service Refill Capacities
expand / collapse icon
Fuel Tank
1700 l
Cooling System
165 l
Engine Oil
87 l
Swing Drive
9 l
Hydraulic System – Including Tank
1752 l
Hydraulic Tank
956 l
Grease Tank
68 l
Electrical System
expand / collapse icon
System Voltage
24 V
Batteries
4 × 200 Ah (12 V each)
Alternator Rating
150 A (24 V) in total
Components (1)
Emergency stop in cabin, engine module, pump room and on service station accessible from ground level
Components (2)
Four maintenance free batteries
Components (3)
Lockable battery isolation switch
Components (5)
14 LED high-brightness working lights
Components (4)
5 LED service lights
Components (6)
2 electric horns
Components (7)
Two (2) lights for rear end
Components (9)
One (1) beacon light on cabin roof
Components (8)
One (1) light for machine deck/service
Hydraulic System
expand / collapse icon
Main Pumps
3 × variable swash plate pumps
Main Pumps – Maximum Total Oil Flow
1544 l/min
Main Pumps – Maximum Pressure – Attachment
320 bar
Pilot Pump
1 × gear pump
Pilot Pump – Maximum Flow, Pilot
153 l/min
Pilot Pump – Maximum Pressure, Pilot
95 bar
Main Pumps – Maximum Pressure – Travel
320 bar
Swing Pump
1 × variable swash plate pump
Engine Fan Pump – Maximum Flow, Engine Fan
201 l/min
Engine Fan Pump – Maximum Pressure, Engine Fan
220 bar
Engine Fan Pump
1 × variable swash plate pump
Hydraulic Fan Pump – Maximum Flow, Hydraulic Fan
86 l/min
Swing Pump – Maximum Flow – Swing
479 l/min
Hydraulic Fan Pump
1 × variable swash plate pump
Hydraulic Fan Pump – Maximum Pressure, Hydraulic Fan
135 bar
Swing Pump – Maximum Pressure – Swing
365 bar
Hydraulic Oil Cooling – Maximum Flow
1075 l/min
Hydraulic Oil Cooling – Diameter of Fan
1016 mm
Filters (1)
Full-flow high-pressure filters (200 μm) for main pumps
Filters (2)
Full-flow filters (20 μm) for complete return circuit
Filters (3)
Pressure filters (16 μm) for servo circuit
Filters (4)
Full-flow filters (6 μm) for engine cooling return circuit
Filters (5)
Swing charge filter (15 μm)
Filters (6)
Pump case return screens (125 μm)
Swing System
expand / collapse icon
Swing Drive
Two (2) compact planetary transmissions with axial piston motors
Parking Brake
Wet multiple disc brake, spring-loaded/hydraulically released
Maximum Swing Speed
4.9 r/min
Swing Ring
Cross roller bearing with sealed internal gearing
Features (1)
Closed-loop swing circuit with speed control
Features (2)
Hydraulic braking of swing motion when control is returned to neutral position or by counteracting control for stronger braking
Features (3)
All raceways and the internal gearing of swing ring supplied by automatic central lubrication system
Centralized Service Area
expand / collapse icon
Feature
Accessible from ground level
Equipped With (1)
Emergency stop
Equipped With (2)
Quick couplings for: Diesel fuel and Grease
Undercarriage
expand / collapse icon
Travel Speed – Two Stages – 1st Stage – Maximum
2.6 km/h
Travel Speed – Two Stages – 2nd Stage – Maximum
3.7 km/h
Maximum Drawbar Pull – Forward
858 kN
Maximum Tractive Force
877 kN
Maximum Drawbar Pull – Reverse
983 kN
Gradeability – Travel Drives
38°/78% (SAE J1309)
Hydraulic Track Tensioning
With accumulator
Number of Shoes – Each Side
46
Number of Track Rollers – Each Side
9
Number of Carrier Rollers – Each Side
3
Components (1)
Forged double-grouser track pads
Components (2)
Chain links connected by hardened pins and bushings
Components (3)
Postive Pin Retention (PPR2) sealed and greased track design
Components (4)
All running surfaces of sprockets, idlers, rollers and track chain links hardened
Components (5)
Fully hydraulic self-adjusting track tensioning system with accumulator
Components (6)
Automatic hydraulic retarder valve to prevent overspeed on downhill travel
Components (7)
Audible travel alarm
Operator’s Cab
expand / collapse icon
Components (1)
Pressurized operator station with positive filtration
Components (2)
Heated cab mirror
Components (3)
Sliding upper door window (left-hand cab door)
Components (4)
Glass-breaking safety hammer
Components (5)
Removable lower windshield with in cab storage bracket
Components (6)
Joystick Controls Alternate Patterns including ISO/JIS, BHL, MHI, KOBE, or SCM
Components (7)
Beverage holder
Components (8)
Literature holder
Components (9)
AM/FM radio
Components (10)
Radio with MP3 auxiliary audio port
Components (11)
Two stereo speakers
Components (12)
Storage shelf suitable for lunch or toolbox
Components (13)
Color LCD display with warning, filter/fluid change, and working hour information
Components (14)
Adjustable armrest
Components (15)
Height-adjustable joystick consoles
Components (16)
Neutral lever (lock out) for all controls
Components (17)
Travel control pedals with removable hand levers
Components (18)
Two power outlets, 10 amp (total)
Components (19)
Laminated glass front upper window and tempered other windows
Automatic Lubrication System
expand / collapse icon
Capacity – Grease Barrel
68 l
Type (1)
Central bank lubrication system
Type (2)
Grease is automatically applied to all attachment pivot points (except bucket linkage) and slew bearing
Type (3)
Standard grease reel on machine for bucket linkage
Type (4)
Grease refill service point accessible from ground
Attachments
expand / collapse icon
Type (1)
Boom and stick torsion-resistant with welded box design
Type (2)
High-tensile steel with solid steel castings at pivot areas
Type (3)
Boom and stick stress-relieved after welding
Type (4)
Float valve for boom down function
Buckets Equipped With
– Special liner material covering main wear areas inside and outside – Lip shrouds – Wing shrouds – Heel shrouds
Backhoe Attachment (BH) – Working Range
expand / collapse icon
Maximum Digging Depth
8 m
Maximum Digging Reach
13.9 m
Maximum Digging Height
12.8 m
Maximum Dump Height
8.5 m
Backhoe Attachment (BH) – Digging Forces
expand / collapse icon
Bucket Digging Force – ISO
538 kN
Bucket Digging Force – SAE
501 kN
Stick Digging Force – ISO
466 kN
Stick Digging Force – SAE
439 kN

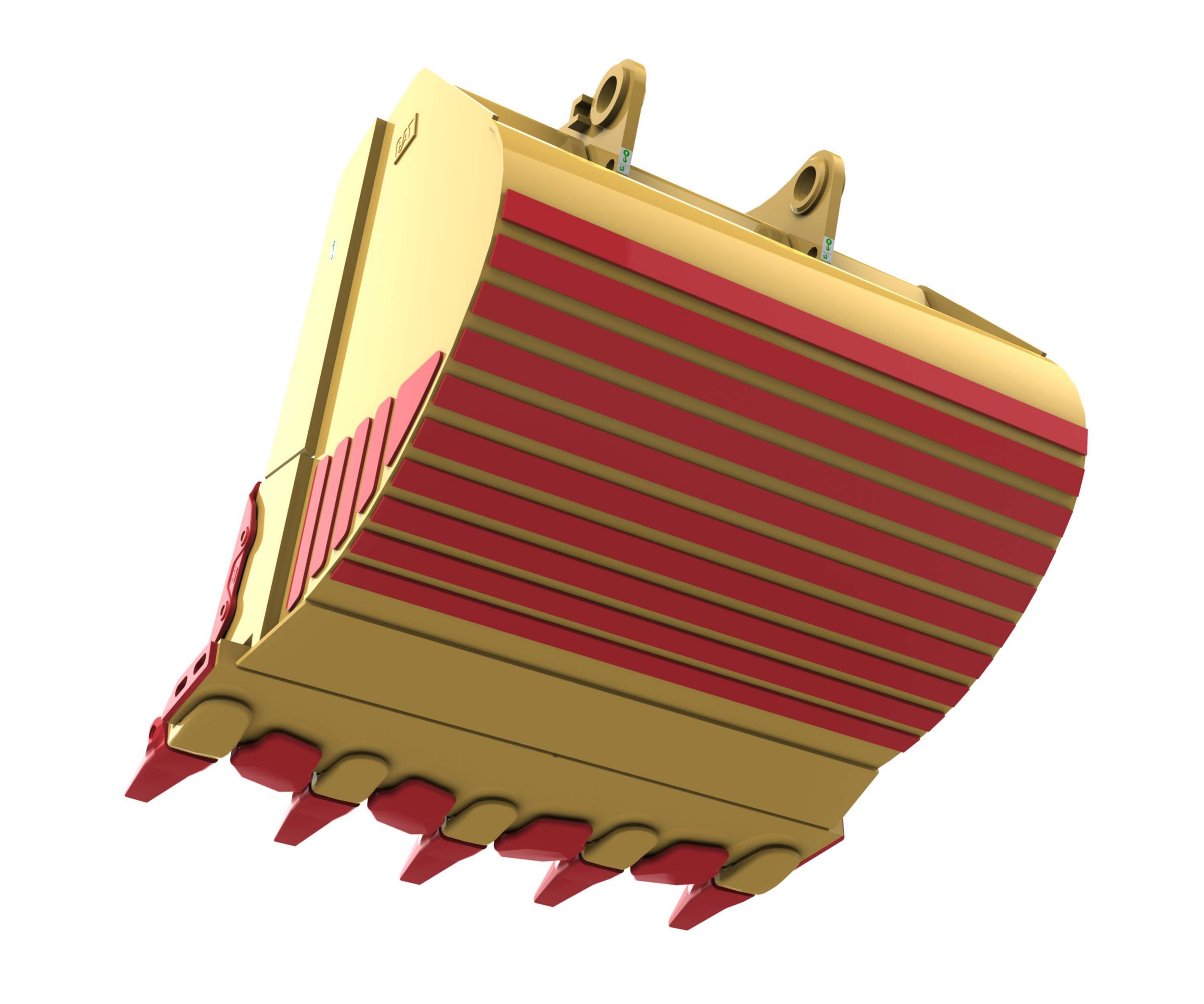

Backhoe Attachment (BH) – Backhoe
expand / collapse icon
Capacity 1:1
8.1 m³
Total Width
2682 mm
Number of Teeth
5
Tooth System
Cat C70 or M75
Weight – Including Standard Wear Package
8401 kg
Maximum Material Density – Loose
1.8 t/m³
SAFETY
Operator Protective Guard (Top Guard) certified cab plus optional front guard.
Excellent visibility with unobstructed view of digging environment and upward view through skylight, plus optional two-camera system to reduce blind spots and enhance situational awareness.
Safer access and egress with anti-slip walkways and optional powered 45-degree access stairway.
Five emergency shut-off switches, with one easily accessible in the cab to shut down the electrical system in case of emergency.
Safer service with lockable starter and battery isolation switch cabinet.
OPERATOR CAB
Heated, pneumatically-cushioned and fully adjustable suspension seat that provides height and weight adjustments, lumbar support, wide arm/wrist rests and a wide retractable seat belt for full operator comfort and support.
Maintained internal ambient temperature with air conditioning, heat and defroster, and improved filtration with fresh air filter that removes dust and particles, plus a second internal filter that cleans recirculated air inside the cab.
Easily accessible ergonomic joysticks with Electronic-Hydraulic Servo Control, which delivers dynamic and precise response and ensures no hydraulic lines are present in the cab.
Large, 7 in (178 mm) color touchscreen for convenient troubleshooting and service assistance.
Independently adjustable joystick consoles, plus joystick controls that allow pattern to be changed for enhanced safety and improved operator experience.
RELIABILITY & DURABILITY
Rugged Cat heavy duty undercarriage designed to increase uptime, deliver longer service life and withstand increased tramming over rough mine site terrain, with features such as grease lubrication, GLT4 sealing technology and oil-filled rolling components that help it last at least 2,000 hours longer than dry track designs.
Cat exclusive Positive Pin Retention 2 (PPR2) track design, which mechanically locks the link to the pin to resist pin walking and link cracking to deliver reliable sealing and maximum track life.
Heavy duty fixed-axle rollers and idlers for improved performance, increased wear life, reduced internal friction and overheating, and elimination of grease consumption and lines.
Heavy duty track group, which handles high field loads, and reduced pitch extension wear, which increases track chain life by 20% to 40%.
Structures designed and fabricated to withstand the toughest digging conditions, with high-strength steel; full penetration, profiled and ground welds at critical junctures; and booms and sticks that are stress-relieved after welding.
Efficient Independent Oil Cooling system, which protects and extends the life of hydraulic components.
PRODUCTIVITY & PERFORMANCE
Faster cycle times and increased productivity thanks to Cat C27 engine, which is the most powerful in its class and provides top performance over an exceptional service life.
Fast cycle times and improved energy efficiency delivered by closed-loop swing system, which also generates less heat.
Proportional Priority Pressure Compensating (PPPC) hydraulic system, which varies hydraulic oil flow for smooth, predictable operation and greater operator efficiency.
Load Enhanced Anticipatory Control (LEAC), which ensures faster and more consistent engine regulation by preventing lug, which, in turn, reduces fuel consumption.
Engine Torque Load Control (ETLC), which reduces hydraulic pump output based on available engine torque, desired engine speed, actual engine speed and estimated hydraulic load — providing power to the functions that need it to move material quickly and efficiently.
BUCKETS & GET
Buckets and ground engaging tools (GET) designed to maximize durability and productivity, ideally matched to your shovel and application, and rebuildable, with wear components available as service parts.
Integrated to work as part of a machine system — helping you achieve high productivity and the lowest cost per ton.
Hammerless GET designed specifically for the 6015, with no special tools required for removal and installation.
New standard rock bucket equipped with the new M75 GET, which is 20% stronger than the previous C70 GET and moves 8.1 m3 (10.6 yd3) of material, carrying up to 14.6 tonnes (16.1 tons).
Wear packages that protect your investment, including special liner material and lip shrouds, wing shrouds and heel shrouds.
CONNECTIVITY & TECHNOLOGY
Greater connectivity with improved Product Link™ Elite system, which increases the availability of data provided by the 6015 and allows it to collect and transmit information into locally hosted or cloud-hosted applications.
Factory-ready for Cat MineStar™ Solutions, with a range of capabilities that meet the needs of your fleet.
MineStar Health, which lets you collect and monitor machine data so you can be proactive and maximize uptime.
MineStar Edge™, which makes it possible to measure, manage, analyze and optimize your entire operation.
Designed for the future, with expandable electronic systems that allow smooth integration of MineStar or other electronic capabilities.
SERVICEABILITY
Access to Cat Electronic Technician, which helps dealer service personnel more easily diagnose and prevent issues.
Enhanced warning levels for hydraulic oil temperature and improved data link diagnostics for reduced downtime.
Visual inspection ports for slew drive pinions and ring gear, commonization of charging ports and charging tool and new electronic pilot pressure monitoring via ET.
Ground-level service station that provides easy access to fast-fill diesel fuel and grease connections.
Maintenance-free Positive Pin Retention tracks that are specially machined to extend internal pin/bushing wear life and fatigue resistance.
SUSTAINABILITY
Highly regulated C27 engine certified to meet U.S. EPA Tier 4 Final/EU Stage V emissions standards without the need for DEF — saving time and cost during maintenance.
Reduce fuel consumption with Load Enhanced Anticipatory Control (LEAC) system.
Sound-suppressed power module to keep spectator sound levels low.
Preservation of raw materials, energy conservation and reduced emissions through the Cat Reman and Cat Rebuild programs, which return end-of-life components to like-new condition.
6015 Standard Equipment
Expand all
Cat Powertrain
expand / collapse icon
2 x Cat 3512E engines
Aftertreatment System (used in highly regulated countries only): – Diesel Oxidation Catalysts (DOCs) – Non-DEF solution
Air-to-Air After Cooling (ATAAC)
Turbocharger
Hydraulically driven radiator fan
Electronically controlled fan speed
Micro processed engine management
Heavy-duty air filters
Two-stage fuel filter with series filtration
High-capacity water seperator
Starting aid — automatic ether
Exhaust manifold and turbo heat shields
Dual 24 V electric starters per engine
Automatic engine idle shut down
Automatic fuel priming
Hydraulics
expand / collapse icon
Hydraulic Optimization
Operator Assist: Enhanced Motion Control
Cat Hydraulic Hose assemblies
Pump managing system with: – Electronic load limit control – Flow on demand – Automatic zero flow regulation – Automatic engine rpm reduction – Reduced oil flow at high hydraulic oil or engine temperature
Pressure cut-off for main pumps
Cooling of pump transmission gear oil
Closed loop swing circuit
Pressure testing points
Full-flow high-pressure filters (100 μm), main pumps
High pressure filters (100 μm), closed swing circuit
Full-flow filters (10 μm), return circuit
Pressure filters swing charge circuit (40 μm)
Pressure filters pilot circuit (6 μm)
Transmission oil filters (40 μm)
Boom float valve (FS and BH)
Stick float valve (FS)
Electrical System
expand / collapse icon
6 Maintenance-free batteries
Lockable battery isolator switch
Lockable starter isolator switch
13 LED high-brightness working flood lights
17 LED service lights
2 acoustic travel alarms – forward and reverse (power module, oil cooler module)
2 electric horns (1 cab module, 1 oil cooler module)
Undercarriage
expand / collapse icon
HD tracks with cast double-grouser track pads
1400 mm (4’7″) wide track pads
HD fixed axle carrier and load rollers
HD fixed axle idlers
Automatic hydraulic retarder valve
Hinged travel motor covers
Hardened running surfaces of sprockets, idlers, rollers, pad links, teeth contact areas
Fully hydraulic self-adjusting track tensioning system with piston accumulators
Automatic Lubrication System
expand / collapse icon
Rectangular grease container (fill via service station)
Lubricated pinion in swing ring
Grease filters (200 μm)
Operator Environment
expand / collapse icon
Single hydraulically driven HVAC system
In-floor window with removable grate
Pneumatically cushioned and multiadjustable comfort seat with: – Heating and cooling – Lumbar support – 2-point safety belt – Head and arm rests – Safety switch for automatic motion shutdown
Independently adjustable seat consoles with integrated joysticks
Electronic-Hydraulic Servo Control
Elevated full-size trainer seat with 2-point safety belt and laptop desk
Additional fold-away auxiliary seat with 2-point safety belt
Three cup holders
FM/AM radio with USB and AUX input
Parallel intermittent wiper/washer
Roller blinds
Monitoring system with 254 mm (10 in) color touchscreen
45° stairway from engine bay to operator cab
Powered 45° access stairway
Heated mirror on LH side
Camera monitoring system (Right and rear cameras, 2 lights, and additional display)
Level indicators for length and crosswise inclination
Document Storage
Front Attachment
expand / collapse icon
Service access holes from both sides in boom and stick (FS and BH)
Boom and stick thermally stress relieved after welding
Catwalks with rails at boom (FS and BH)
Wear Package (as per bucket selection)
Cat Technology
expand / collapse icon
Cat Product Link™ Elite (Cellular)
Cat MineStar™ Solutions Ready
Service and Maintenance
expand / collapse icon
Engine oil exchange interval — 500 hours
Hydraulic oil change interval – 10,000 hours
Scheduled Oil Sampling (S·O·SSM) ports
Retractable ground level service station with quick couplings for: – Diesel fuel – Engine coolant – left/right engines – Pump transmission gear oil – left/right engines – Engine oil – left/right engines – Engine oil extension tanks – Hydraulic oil – Grease – Swing transmission gear oil
Cat battery charging connector
Indicator lights
Cat Electronic Technician service port
Dirt wiper at swivel
Safety and Security
expand / collapse icon
Emergency stop switches: 2 in cab, 5 in engine module, 1 at ground level service station, 1 pull rope accessible from ground level
Operator Protective Guard (Top Guard)
All-round safety glass
Emergency egress ladder
Miscellaneous
expand / collapse icon
ISO or ANSI decals
6015 Optional Equipment
Expand all
UNDERCARRIAGE
expand / collapse icon
Track guards – full length
Track guards – center
Track width: – Standard – 700 mm (28 in) – Wide – 900 mm (36 in) – Extra Wide – 1000 mm (39 in)
COLD WEATHER OPTIONS
expand / collapse icon
Starting aid – cold weather
120 V or 240 V cold weather package
Fuel heater
Heated cab mirror
Lubricant options include: low temperature, high temperature, and Cat Bio HYDO Advanced
SUPERSTRUCTURE
expand / collapse icon
Copper Mesabi or aluminum bar plate engine cooling packages
LED working lights
Powered 45° access stairway
Camera Monitoring System (2 cameras and additional color display)
CAB
expand / collapse icon
Operator Protective Guard (Front Guard)
Product Link Elite radio options (Cellular, Satellite, No Radio)
ATTACHMENT
expand / collapse icon
3.4 m (11 ft 2 in) or 4.1 (13 ft 5 in) stick
BUCKETS
expand / collapse icon
Additional buckets available, based on application, through your local Cat dealer
