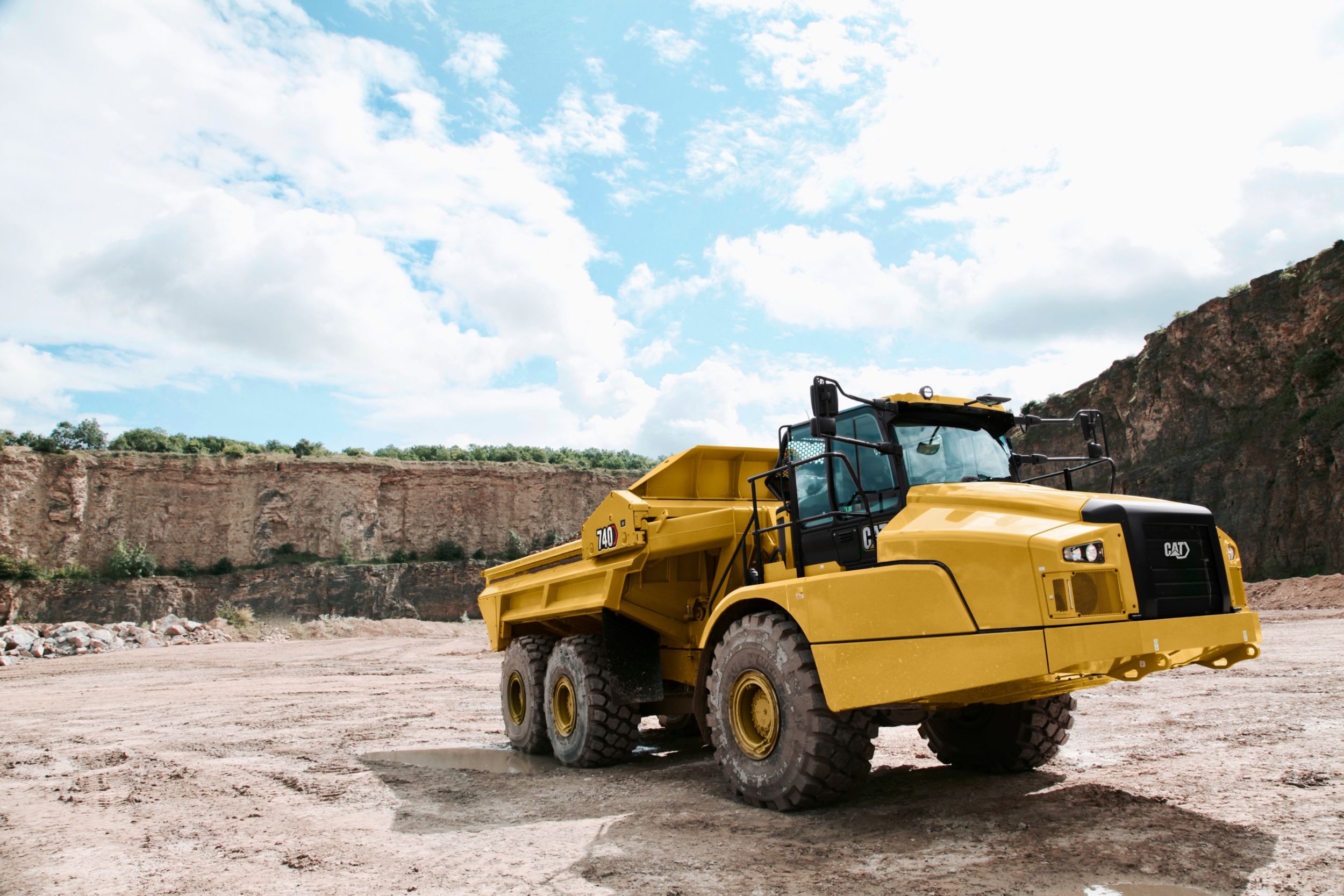

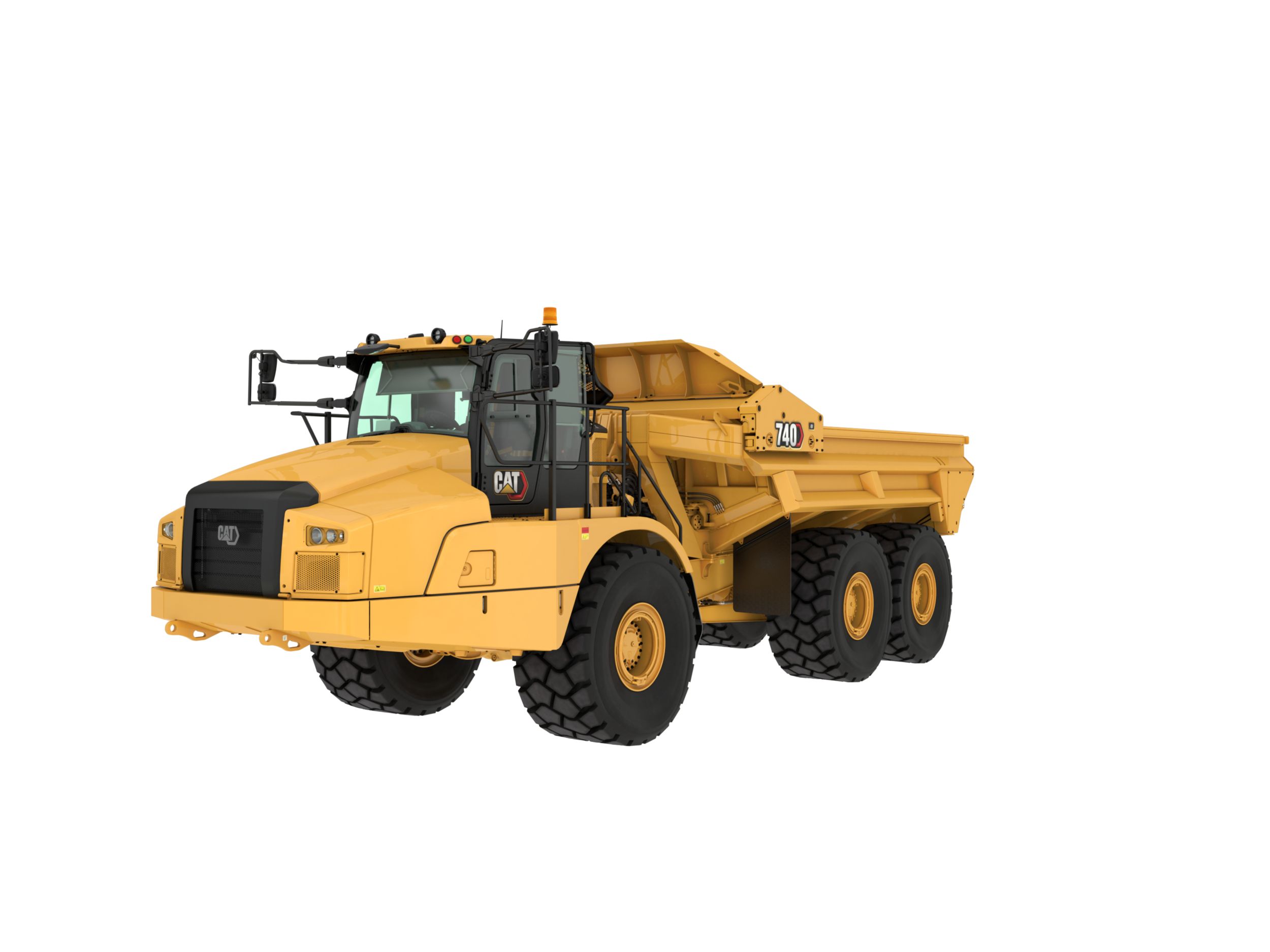

The Cat 740 EJ with a 23 m³ (30.1 yd³) 38 tonnes (42 tons) capacity brings a new level of operator comfort and features to the market in addition to the durability, high productivity and lower operating costs Cat Articulated Trucks are known for. The all-new operator cabin is a leap into the next generation for Articulated Trucks, providing our operators the best place to help build the future.
Engine Model
Cat® C18
Bore
145 mm
Stroke
183 mm
Product specifications for 740 EJ Three Axle Articulated Trucks
The Cat® 740 EJ features a world-class cab design, re-engineered using global operator feedback to advance comfort and ease of operation. Enhancements include new controls, transmission-protection features, hoist-assist system, advanced automatic traction control system, stability-assist machine rollover warning system, and a fuel saving ECO mode.
Engine
expand / collapse icon
Engine Model
Cat® C18
Bore
145 mm
Stroke
183 mm
Displacement
18.1 l
Net Power – SAE J1349
370 kW
Engine Model – U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 (Tier 4 Final), Korea Tier 4 Final
Cat C18
Net Power – ISO 14396
376 kW
Gross Power – SAE J1995
381 kW
Peak Engine Torque Net (SAE J1349)
2558 N·m
No Engine De-rating Required Below
3050 m
Note (4)
DEF used in Cat SCR systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241-1. ISO 22241-1 requirements are met by many brands of DEF, including those that carry the AdBlue or API certifications.
Peak Engine Torque Gross (SAE J1995)
2618 N·m
Note (1)
The power ratings apply at rated speed of 1,700 rpm when tested under the conditions for the specified standard.
Peak Engine Torque Speed
1200 r/min
Note (2)
The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler and fan at minimum speed.
Note (3)
Net power when the fan is at maximum speed is 348 kW (467 hp) per the SAE reference conditions.
Emissions
The 740 EJ meets Tier 4 Final and Stage V emission standards.
Weights
expand / collapse icon
Rated Payload
38 t
Body Capacities
expand / collapse icon
Heaped (SAE 2:1)
23 m³
Struck
18 m³
Transmission
expand / collapse icon
Forward – 1
6.1 km/h
Forward – 2
8.1 km/h
Forward – 3
11.2 km/h
Forward – 4
14.1 km/h
Forward – 5
18.7 km/h
Forward – 6
22.9 km/h
Forward – 7
31.5 km/h
Reverse – 1
6.4 km/h
Reverse – 2
14.6 km/h
Forward – 8
37.9 km/h
Forward – 9
54.8 km/h
Sound Levels
expand / collapse icon
Interior Cab
72 dB(A)
Note (1)
The operator sound exposure Leq (equivalent sound pressure level) measured according to the work cycle procedures specified in ANSI/SAE J1166 OCT98 is 76 dB(A), for the cab offered by Caterpillar, when properly installed and maintained and tested with the doors and windows closed.
Note (2)
Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in noisy environments.
Operating Weights
expand / collapse icon
Front Axle – Empty
20343 kg
Front Axle – Loaded
22021 kg
Center Axle – Loaded
25952 kg
Center Axle – Empty
7754 kg
Total – Empty
35663 kg
Rear Axle – Rated Load
18198 kg
Rear Axle – Empty
7491 kg
Front Axle – Rated Load
1603 kg
Center Axle – Rated Load
18198 kg
Total – Loaded
73663 kg
Total – Rated Load
38000 kg
Rear Axle – Loaded
25690 kg
Body Plate
expand / collapse icon
Type
High Strength Brinell HB450 Wear Resistant Steel
Chute
14 mm
Front
7 mm
Side
11 mm
Base
14 mm
Service Refill Capacities
expand / collapse icon
Fuel Tank
550 l
Cooling System
90 l
Engine Crankcase
52 l
Steering/Hoist Hydraulic System
140 l
Transmission – OTG
75 l
DEF Tank
25 l
Brake Cooling Tank
67 l
Axles – Each
60 l
Final Drive – Each
5 l
Steering
expand / collapse icon
Lock to Lock
4.8 seconds @ 60 rpm
Standards
expand / collapse icon
Brakes
ISO 3450 – 2011
Cab – FOPS
ISO 3449 Level II – 2005
Cab – ROPS
ISO 3471 – 2008
Steering
ISO 5010 – 2007
Turning Circle
expand / collapse icon
Note
Dimensions are for machines equipped with 29.5R25 tires.
Turning Dimensions – Aisle Width
5925 mm
Turning Dimensions – Inside Radius
4413 mm
Turning Dimensions – Clearance Radius
9045 mm
Turning Dimensions – SAE Turning Radius
8624 mm
Turning Dimensions – Steer Angle – Left/Right
45 deg
Blade Eject/Retract
expand / collapse icon
Retract (manual)
21 s
Eject (manual)
17 s
Eject (automatic)
16 s
Retract (automatic)
21 s
Optimal Loader/Truck Pass Matching
expand / collapse icon
Note
An optimum system match gives you a major productivity advantage. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved.
Wheel Loader: 972 – Passes
4–5
Wheel Loader: 982 – Passes
4
Hydraulic Excavator: 374 – Passes
5
Hydraulic Excavator: 390 – Passes
4
Wheel Loader: 980 – Passes
4–5
MAXIMIZE PERFORMANCE
See more
Every Tier 4 Final/Stage IV and EU Stage V Cat engine is equipped with a combination of proven electronic, fuel, air and aftertreatment components.
Maximized uptime and reduced cost with world-class support from the Cat dealer network.
Minimized impact of emission systems: designed to be transparent to the operator without requiring interaction.
Delivering better fuel economy with minimized maintenance costs while providing the same great power and response.
Advanced MEUI-C injector platforms deliver increased injection pressures and more precise fuel rates. These durable injectors enhance responsiveness while controlling soot.
All Cat engines feature innovative air-management systems that optimize airflow and enhance power, efficiency and reliability.
The Cat NOx Reduction System (NRS) captures and cools a small quantity of exhaust gas, then routes it back into the combustion chamber where it drives down combustion temperatures and reduces NOx emissions.
Cat engines equipped with a Selective Catalytic Reduction (SCR) system inject Diesel Exhaust Fluid (DEF) into the exhaust to reduce NOx emissions. DEF is a precisely mixed solution of 32.5 percent high purity chemical grade urea and 67.5 percent de-ionized water.
AUTOMATIC CONTROLS
See more
Advanced Automatic Traction Control (AATC) proactively applies inter- and cross-axle differential locks ‘on-the-go.’ Operators are freed from this function to concentrate on driving/loading/dumping. Sensors monitor the machine and wheel speeds, enabling instant response in high rolling resistance conditions. Operation is seamless and smooth, eliminating wheel slip for maximum traction and productivity.
Clutches are automatically disengaged when ground conditions allow, maximizing efficiency when steering or when on uneven ground.
AATC reduces tire and driveline abuse, eliminating lost machine efficiencies caused by improper manual operation of the differential clutches and reducing the tire wear.
Automatic Retarder Control (ARC) automates the retarder for the operator. Like AATC, a number of machine operating aspects are monitored. If required, the engine compression brake is engaged automatically to control machine speed when descending a grade. The system can help towards eliminating engine overspeed, improving safe machine operation and reducing cycle times, yet still having the flexibility of manual control if needed.
Ejecting material from the dump body can be automated with the new Assisted Ejecting Control. Flick the new load eject switch and the machine will apply the service brakes, switch the transmission to neutral and push the material out at the required engine RPM. Retracting the blade is done the same way, flick the switch and the machine will fully retract the blade.
HEAVY DUTY CONSTRUCTION
See more
All three axles promote stability using oscillating a-frames with lateral tie rods. Operate at productive speeds with confidence while virtually eliminating impact loads on truck components.
The front suspension oscillates controlled by large-bore, low-pressure cylinders to assist in a smooth ride. An A-frame with lateral tie rod controls sideways movement and aids stability.
The rear suspension features a walking beam and long-life suspension mounts optimizing ride and load retention.
New fully enclosed wet disc brake systems inside of axles keeps contaminants out extending machine life and ensuring uptime.
Hill assist reduces potential ‘roll-back’ on grades. If an operator stops the machine on a grade, when taking his foot off the service brake pedal the machine will automatically hold the service brakes on for a number of seconds to prevent the machine from rolling backwards.
Waiting brake applies the service brakes when neutral gear is selected, allowing quick and easy control of the machine at the load or dump area.
OPERATOR COMFORT AND CONTROL
See more
Spacious cab delivers comfort all shift long and is 7dB quieter than prior model.
Unique combination eject/transmission lever is intuitive and enhances cycle times with fewer control movements
Trainer/passenger seat is fully padded with wide, retractable seat belt for security and comfort.
New large side storage box is heated/cooled by the HVAC system.
Air-suspension seat offers greater comfort, with a greater range of adjustments. Fore/aft isolation dramatically reduces vibrations and jolts. Every operator will find a adjustments to ensure comfort and control all shift long.
Standard cooling/heating system ensures comfort in all conditions.
Optional four-point seat belt is available to help operator stay in position and comfortable in rugged terrain.
Integrated, wrap-around dash means all gauges and controls are easy to monitor and access. Automotive feel with Caterpillar’s renowned industrial strength.
The updated touch screen dash mounted display allows the operator to monitor and adjust various levels of machine performance and condition, as well as machine warning categories. These include configuration settings, operator and machine totals, service information, various machine status parameters, machine payload information (when fitted), stability assist, and the video feed from the rearview camera.
Optional Bluetooth™ entertainment system allows operator to stay in hands-free phone contact.
BUILT TO PERFORM
See more
The 740 EJ can eject and spread the material while moving, reducing additional spreading and dozing equipment. “On-the-go” ejecting results in faster cycle times and reduced power train loads.
Ejecting the load without raising the body increases stability, allowing unloading on inclines, side slopes and in very soft underfoot conditions especially on landfill sites.
The truck can eject in areas with reduced overhead clearance, such as around overhead lines or in tunneling and underground operations.
The body design eliminates material sticking to the body, which increases productivity, improves fuel efficiency and lowers cost per ton.
Reinforced body is made from thick high-yield, heat-treated Brinell hardened steel (Brinell 400 on the base and sides) that provides exceptional durability. Ejector top rails are made from high-strength alloy steel. For optimum durability and wear life, the ejector body is designed to work in applications where the material consists of rocks smaller than 152 mm (6 in) in diameter.
The ejector blade is made from high-strength steel and uses technology similar to that proven in Cat wheel tractor-scrapers.
A four-stage, high-speed, double-acting ejector cylinder is specifically designed for horizontal mounting and smooth load ejection.
Box section front frame absorb is stiff to handle torque loads. Frame design decreases stress at the hitch and optimizes suspension geometry.
Rear frame features twin-box construction minimizing stress points and enhancing service life.
The articulating hitch provides the truck with steering articulation, and the oscillation ensures all-wheel ground contact in rough terrain.
Field proven two-piece hitch construction features a durable cast steel head bolted to a hard wearing forged steel tube.
The 740 EJ body has a large target area to provide consistently high load-carrying capacity. Eject blade and body design aid in clean material discharge, maximizing production and avoiding carry-back.
The output transfer gear distributes drive to the tractor and trailer and includes a wet clutch differential lock for optimum traction in poor underfoot conditions.
The full power hydraulic brake system actuates enclosed, oil-immersed, multi-disc, multi-plate brakes with independent front and rear circuits and accumulators. This dual-circuit, all wheel braking system provides the braking performance required to support maximum productivity.
The parking brake is located on the center axle in an elevated position, it is spring applied and hydraulically released.
TECHNOLOGY THAT GETS WORK DONE
See more
Cat Product Link wirelessly connect you to your equipment, giving you valuable insight into how your machine or fleet is performing. The system tracks location, hours, fuel usage, productivity, idle time, and diagnostic codes through the online VisionLink user interface so you can make timely, fact-based decisions to maximize efficiency, improve productivity, and lower costs.
Cat Production Measurement brings payload weighing to the cab to help optimize job site efficiency and productivity. Operators can view real-time load weights on the integrated display and know precisely when target is achieved, while cab-mounted external payload lights on all four corners signal the loader operator when to stop, reducing the risk of machine overloading. Operators can track daily productivity from the cab, with quick access to truck payload weights, loads and cycle counts, and daily totals; or remotely via LINK technologies.
Cat Detect with Stability Assist warns the operator if machine is approaching a pre-set angle during operation; when driving and tipping. If using the assisted hoist, the machine will stop hoisting the body and give an audible and visual warning. The system monitors angles of tractor, trailer and grade independently. This increases operator awareness of machine stability during operation. All tractor and/or trailer rollover events are logged and reported via VisionLink.
BECAUSE UPTIME COUNTS
See more
Caterpillar design, manufacturing and customer service help ensure peak performance and uptime.
Long service intervals keep your machine operating.
Lubrication points are grouped near the hitch for fast, easy routine maintenance.
Universal joints are sealed and lubed for long life.
Optional autolube system saves time and includes alerts via Product Link for low levels and fault codes.
Radiator package is located behind the cab for protection and uses extended-life coolant to stretch change intervals.
Electrical service center is located inside the cab and provides a power port, diagnostic connector and Cat Data Link connector for use with Electronic Technician (ET) software-equipped laptop computer.
Easy access to transmission, drive shafts, hydraulic pumps and electrical and hydraulic interfaces provided with tilt-to-side cab and access panel.
Service points are conveniently located on the left side of the engine, under the electrically raised hood.
Complete customer support is the goal of your Cat dealership. From counsel of product selection, operating costs, operation, maintenance all the way to help with decisions on when and whether to replace or rebuild, your dealer is with you all the way.
MORE SUSTAINABLE FUTURE
See more
Caterpillar designs and functions with great concern for the environment.
Cat C18 engine incorporates the Cat Clean Emission Module (CEM) to meet Tier 4 Final/Stage IV emission standards. The system uses both Ultra-low-sulfur diesel (ULSD) fuel or up to B20 bio-diesel blended with ULSD.
All Cat C Series Articulated Trucks are designed for long lifecycles with machines using reman components and machine rebuilds to maximize use of every part, minimizing waste.
Volume of both hydraulic and engine oil systems has be reduced meaning less waste when oils are replaced.
BUILT-IN SAFETY FEATURES
See more
Seat belt in use indicator (four-point seat belt available as an option)
Operator presence detection (prevents gear engagement when operator is not seated)
Additional mirror for front of machine visibility
Cab mounted, wide angled, folding mirrors
Heated mirrors (optional)
Body raised visual indicator
Cab integral Roll Over Protection System (ROPS) and Falling Object Protection System (FOPS)
Electro-hydraulic secondary steering system automatically activates in forward/reverse or when stationary if low pressure is sensed and can be manually selected for machine recovery purposes
Extensive handrails
External electrical system disconnect switch for easy access from outside of the machine
Fire extinguisher in-cab mounting point
Fully raised body locking pin
Ground level external engine fuel cut-off switch provides easy access outside of the machine
In-cab emergency brake switch (tertiary)
Internal and external grab handles
LED-flashing beacon (optional)
Maximum speed limiter
Multiple camera compatible
New access lights
Rearview camera system is fitted as standard
Reversing indicator
Slip resistant walkways – punched steel plate
The parking brake functions are spring applied and hydraulic released
Cat Detect with Stability Assist
740 EJ Standard Equipment
Expand all
NOTE
expand / collapse icon
Standard and optional equipment may vary. Consult your Cat dealer for details.
OPERATOR ENVIRONMENT
expand / collapse icon
Air conditioning with R134A refrigerant
Windshield wiper and washer, two speed, intermittent (front)
Windows opening side, tinted
Adjustable air vents
Two seat belts, operator’s retractable
Windshield wiper and washer, two speed (rear)
Storage:
– Cup holder
– Flask receptacle
– Under seat storage
– Door pocket
– Behind seat storage
– Coat hook
Mirrors: Extensive arrangement for improved visibility
Tilt and telescopic steering wheel
Sun visor
Heater and defroster with variable speed fan
Secondary steering – electro hydraulic
Combined gear selection and eject control lever
Machine operation monitoring system includes:
– Action lamp
– Engine oil pressure
– Primary steering system
– Left and right turn signal
– High beam
– Coolant temperature
– Tachometer
– Parking brake
– Fuel level
– Transmission oil temperature
– Brake system
– Transmission hold
– Hoist control
– Hydraulic system
– Charging system
– Retarder
– Transmission fault
– Traction control system
– Check engine lamp
Liquid Crystal Display (LCD):
– Alert indicator
– Selected gear and direction
– Speed or auto shift
– Review Operation and Maintenance Manual (OMM)
– Primary steering failure
– Seat belt warning
– Secondary steering failure
– DPF regeneration filter
– Machine Security System (MSS)
– Secondary steering energy source engaged
– Hour meter
– Retarder active
Window blinds
Glass windows: laminated and tinted-front toughened and tinted-sides and rear
Touch screen display incorporating the rearview camera video feed
Seats:
– Fully adjustable, air suspension, heated/cooled
– Padded trainer with lap belt
CAT TECHNOLOGIES
expand / collapse icon
Product Link: PL631 (satellite) or PL641 (cellular) dependent on location and licensing agreement
Cat Detect with Stability Assist
ELECTRICAL AND LIGHTING
expand / collapse icon
Batteries (two) maintenance free
Electrical system: 24 volt, 5A 24- to 12-volt converter
Horn
Lighting Systems:
– Cab interior
– Two head lamps
– Two width marker
– Two reversing
– Work light
– Two stop/tail lights
– Front and rear direction indicators
Main disconnect switch
Remote starting receptacle (cables not included)
POWER TRAIN
expand / collapse icon
Auto shift nine-speed forward and two reverse transmission
Cat C18 engine
Differentials: standard with automatic clutched inter and cross-axle differential locks
Dual circuit oil immersed, enclosed brakes – all wheels
Retarder: engine compression brake
Three axle, six-wheel drive
SAFETY
expand / collapse icon
Reverse alarm
Rearview camera
ROPS/FOPS cab
GUARDS
expand / collapse icon
Rear window
Radiator
Crankcase
Axle
Front dump body spill guard, integral part of fabricated body
OTHER STANDARD EQUIPMENT
expand / collapse icon
Mud flaps: wheel arch and body mounted with transportation tiebacks
S·O·S sampling valves
Tires, six 29.5R25, radial
Vandalism protection: lockable caps for fuel tank and hydraulic oil tank
740 EJ Optional Equipment
Expand all
NOTE
expand / collapse icon
Standard and optional equipment may vary. Consult your Cat dealer for details.
OPTIONAL EQUIPMENT
expand / collapse icon
Auto lube installation for automatic greasing of bearings
Body liners
Bluetooth radio stereo system
Cat Production Measurement payload monitoring system
Cold weather coolant –51° C (–60° F)
Cold weather start attachment
Engine block heater
Ether start
Exhaust heated body
Fast fuel fill
Fender extension
Flashing LED beacon
Four point seat belt
Fuel additive – anti-waxing
Heated rearview motorized mirrors
Machine Security System (MSS)
Product Link Elite: PLE631 (satellite), PLE641 (cellular)
Roof mounted High Intensity Discharge (HID) work lights
Sound suppression
875/65 R29 wide tires
