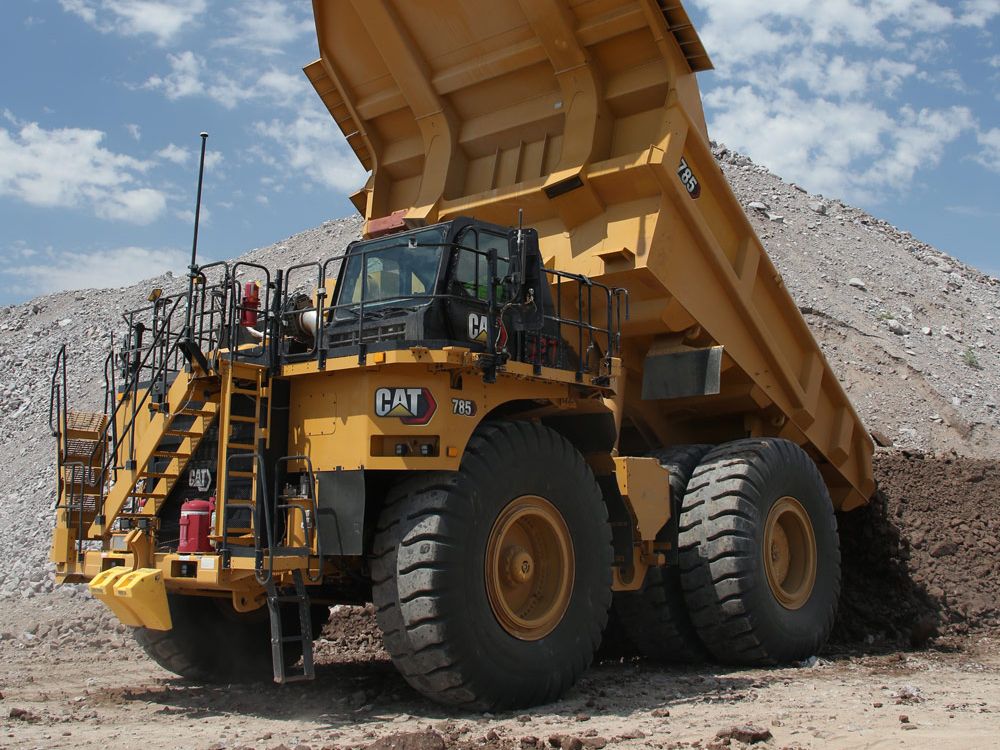

The 785 Large Mining Truck was Caterpillar’s first entry into the mining industry more than three decades ago and has been a proven performer on sites around the world ever since. And now it’s the first to combine a game-changing level of efficiency with industry-leading physical availability to deliver the next generation of productive hauling. It all starts with the operator, who sits in a state-of-the-art environment designed for efficiency and equipped with features that increase comfort, automate functions, provide real-time information and boost confidence. The 785 also delivers significant improvements in serviceability and reliability, enhanced connectivity and easier technology integration. These improvements — and more — take an already proven truck to the next level of productivity.
Gross Power – SAE J1995
1193 kW
Net Power – SAE J1349
1125 kW
Engine Model
Cat� 3512E
Product specifications for 785 Mining Trucks
Engine
expand / collapse icon
Gross Power – SAE J1995
1193 kW
Net Power – SAE J1349
1125 kW
Engine Model
Cat� 3512E
Emissions Rating
Fuel Optimized
Bore
170 mm
Stroke
215 mm
Displacement
58.56 l
Note (1)
Net Power advertised is the power available at the flywheel when the engine is equipped with air intake system, exhaust system, and alternator.
Note (2)
U.S. EPA Tier 4 Final / EU Stage V available for applicable markets.
Note (3)
Additional fuel optimized selectable power ratings: 1,450 hp
Weights – Approximate
expand / collapse icon
Nominal Rated Payload (33.00R51 Tires)
139 t
Rated Gross Machine Weight (33.00R51 tires)
249476 kg
Nominal Rated Payload (36.00R51 Tires)
142 t
Rated Gross Machine Weight (36.00R51 tires)
255826 kg
Chassis Weight (33.00R51 Tires)
84731 kg
Chassis Weight (36.00R51 Tires)
87631 kg
Body Weight
26208 kg
Note (1)
Consult your tire manufacturer for maximum tire load
Note (2)
Chassis weight with full fuel and fluids, standard & mandatory attachments, hoist, body mounting group, rims, and tires.
Note (3)
Body weight varies depending on body selection and configuration.
Weight Distributions – Approximate
expand / collapse icon
Front Axle – Empty
48%
Rear Axle – Empty
52%
Front Axle – Loaded
33%
Rear Axle – Loaded
67%
Note
Weight distributions optimized with Cat body.
Final Drives
expand / collapse icon
Type
Double reduction, planetary with full floating axles.
Differential Ratio
2:10:01
Planetary Ratio
10.83:1
Total Reduction Ratio
22.75:1
Transmission
expand / collapse icon
Forward – 1
12.1 km/h
Forward – 2
16.3 km/h
Forward – 3
22.2 km/h
Forward – 4
29.9 km/h
Forward – 5
40.6 km/h
Forward – 6
54.8 km/h
Reverse
11 km/h
Top Speed – Loaded
54.8 km/h
Note
Maximum travel speeds with standard 33.00-R51 tires.
Tires
expand / collapse icon
Standard Tire
33.00R51
Optional Tire
36.00R51
Rims
610 mm (24″) Rims (standard). 660 mm (26″) Rims (optional).
Note (1)
Quick Change Rims optional.
Note (2)
Caterpillar recommends the customer evaluate all job conditions and consult tire manufacturer for proper tire selection and TKPH (TMPH) capabilities.
Braking System
expand / collapse icon
Service Brakes
Four-Corner, Wet Disc, Oil Cooled, Hydraulically Actuated
Front Wet Disc Brake Surface Area
61270 cm²
Rear – Wet Disc Brake Surface Area
89728 cm²
Standards
Service and Secondary: ISO 3450:2011
Parking Brake
Four corner, multi disc, spring applied, hydraulically released
Capacity – MSD II – 100% Fill Factor
expand / collapse icon
Struck
72 m^3 / 94 yd^3
Heaped (SAE 2:1)
99 m^3 / 129 yd^3
Note
Consult your local Cat dealer for body recommendations.
Body Hoists
expand / collapse icon
Type
Twin, two-stage hydraulic cylinders with snubbing valve.
Pump Flow – High Idle
729.6 l/min
Relief Valve Setting – Raise
17238 kPa
Body Raise Time – High Idle
15.2 s
Body Lower Time – Float High Idle
15.9 s
Body Lower Time – Float Low Idle
16.2 s
Body Power Down- High Idle
15.9 s
Suspension
expand / collapse icon
Type
Self-contained nitrogen/oil cylinders, pin-to-pin mounting, top & bottom double shear clevis attachments
Effective Cylinder Stroke – Front
320 mm
Effective Cylinder Stroke – Rear
165 mm
Rear axle – Oscillation
+/- 5 degrees
Service Refill Capacities
expand / collapse icon
Fuel Tank
1552 l
Diesel Exhaust Fluid Tank
136 l
Cooling System
379 l
Crankcase
204 l
Front Wheels – Each
30 l
Differential – Final Drives
527 l
Steering Tank
110 l
Steering System – Includes Tank
170 l
Brake/Hoist Tank
511 l
Brake Hoist System – Includes Tank
606 l
Torque Converter – Transmission System – Including Sump
175 l
Cab
expand / collapse icon
Air Conditioning
HFC – 134A refrigerant: 24,500 Btu/h
Heater / Defroster
33300 Btu/h
Note
The operator sound pressure level, 77 dB(A) with direct drive and 75 dB9A) with optional clutch, tested to ISO 6396:2008.
ROPS Standards (1)
ROPS (Rollover Protective Structure) meets ISO 3471:2008 for Operator and ISO 13459:2012 for Trainer.
FOPS Standards
FOPS (Falling Objects Protective Structure) meets ISO 3449:2005 Level II for Operator and ISO 13459:2012 Level II for Trainer.
Steering
expand / collapse icon
Steer Angle
36 °
Turning Diameter – ISO 7457:1997 (33.00R51 tires)
29.8 m
Steering Standards
ISO 5010:2007
Dimensions (All dimensions are approximate. MSD II Body, 33R51 tires, unloaded machine.)
expand / collapse icon
Height – Top of ROPS
5208 mm
Overall Body Length
11985 mm
Inside Body Length
8318 mm
Overall Length
11957 mm
Wheel Base
5180 mm
Rear Axle – Tail
3829 mm
Ground Clearance
1004 mm
Dump Clearance
1128 mm
Loading Height – Empty
5299 mm
Inside Body Depth – Maximum
2790 mm
Overall Height – Body Raised
12032 mm
Operating Width
7535 mm
Centerline Front Tire Width
4850 mm
Engine Guard Clearance
1038 mm
Overall Canopy Width
7562 mm
Outside Body Width
6714 mm
Inside Body Width
6010 mm
Front Canopy Height
6035 mm
Rear Axle – Clearance
990 mm
Centerline of Rear Dual Tire Width
4285 mm
Overall Tire Width
6277 mm
PRODUCTIVITY
The Advanced Power Electronic Control Strategy (APECS) enables faster cycle times thanks to more continuous torque and rimpull.
Forward momentum and torque are maintained through each shift, with optimum gear selection resulting in faster acceleration.
The 785 delivers a 6% higher TKPH /TMPH (tonne-kilometer-per-hour / ton-mile-per-hour) thanks to larger tire options that allow allow mines to take advantage of higher speeds, particularly in flat, long-haul, high-speed applications.
Productivity-enhancing features such as Hill Start Assist with Anti-Rollback, Enhanced Traction Control, Dynamic Stability Control (DSC), Anti-lock Brake System (ABS), Machine Speed Limiting and Cruise Control improve machine responsiveness and controllability while improving cycle times and reducing operator fatigue.
SAFETY

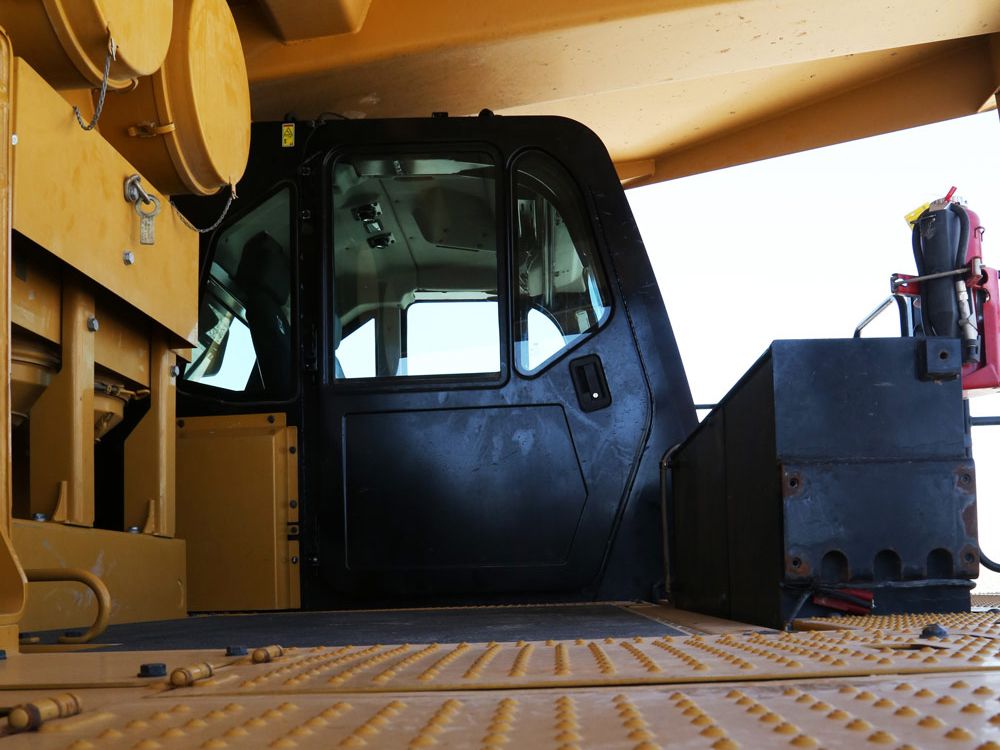

Wide, slip-resistant surfaces and hand rails, plus an optional powered access ladder, improve access and egress.
Superior control is delivered by a patented braking system that provides immediate, fade-resistant braking and retarding.
Visibility is enhanced by an optional 360-degree Surround View camera, which offers a bird�s-eye view.
The Cat MineStar� Object Detection system combines radar and camera systems to warn operators about light vehicles or stationary hazards within the immediate vicinity of their machines.
The optional Driver Safety System alerts the operator if fatigue or distraction are detected.
OPERATOR COMFORT
The cab provides 34% more operator space than D-Series models. It�s 17% wider and offers 11% more legroom and 19% more shoulder room. Controls, levers and switches are positioned for ease of use.
With 40% less Sound Pressure Level (SPL), automated temperature control and cab filtration, operators enjoy a safer and more comfortable environment.
A walkthrough cab with fully adjustable center console, easy-to-adjust seat and increased leg room makes the cab ideal for operators of all sizes.
The next generation seat is four-point-restraint ready and incorporates features like thigh tilt and extensions, air adjustable side and lumbar bolsters, and heated and cooled cushions.
Operators enjoy a more comfortable ride thanks to smoother transitional shifting and reduced shift jerk levels provided by APECS controls.
OPERATOR EFFICIENCY & PRODUCTIVITY

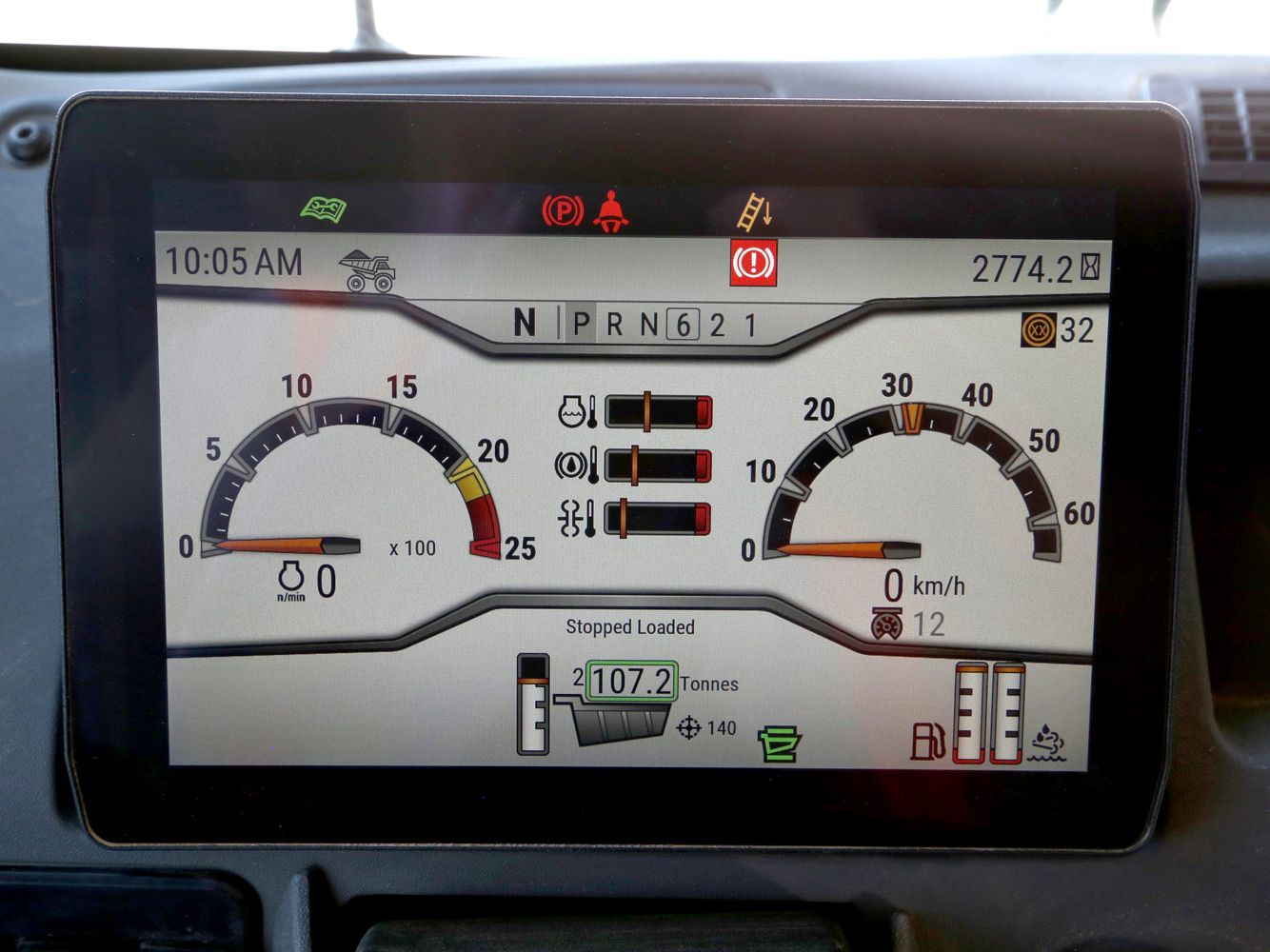

Higher resolution displays improve access to information. Machine data, controls and guidance information are consolidated onto two ideally located 10-inch screens.
The optional Auto Hoist feature automatically raises the body and controls engine speed, simplifying operation and minimizing cycle times.
Speed coaching gives operators real-time feedback on how to operate the truck to maximize its productivity.
The payload monitoring system comes with more accurate measurements, providing immediate feedback to the operator.
SERVICEABILITY

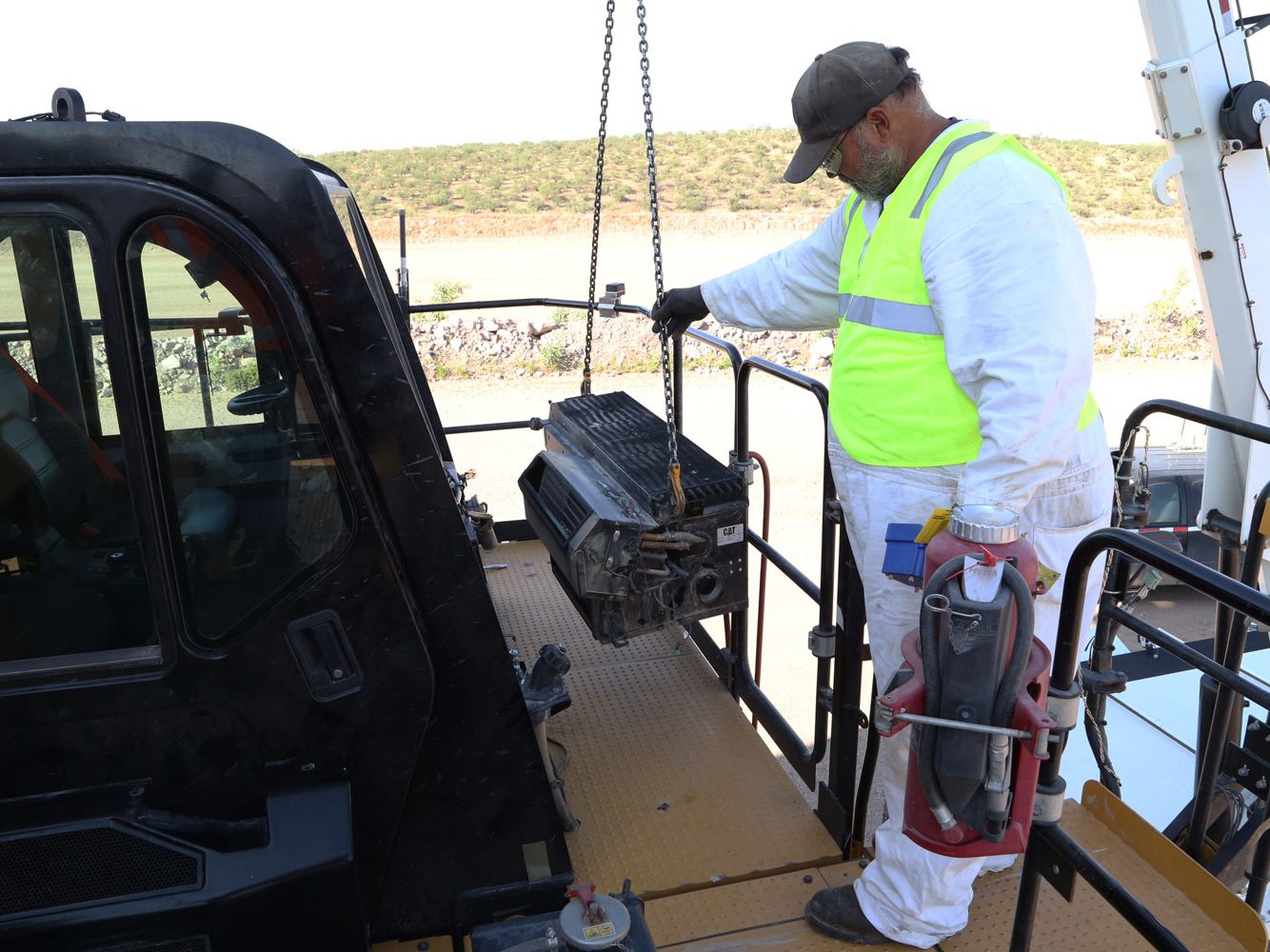

The new modular HVAC (heating, ventilation and air conditioning) system improves reliability and consolidates components so the entire system can be removed and replaced quickly.
A modular radiator reduces engine removal and installation time and enables rebuilds to be completed off the truck.
New remote flash and remote troubleshooting capabilities provide immediate access to the latest software updates and make it possible to troubleshoot the machine remotely.
Time spent on regular maintenance procedures is reduced thanks to features such as extended-interval filters with ground-level access; grouped service points and optional centralized service center; cleaner hydraulic and electrical routings; SOS and pressure ports for faster, safer oil sampling and troubleshooting; and fluid-level sight glasses.
A 100% airless electric start option eliminates air system maintenance from the machine and improves uptime.
DURABILITY AND LONG LIFE
Longer-life components, extended service intervals and easier maintenance deliver consistently high mechanical availability.
A reduction in torque spikes and fewer variations in engine speed, made possible by APECS controls, deliver longer engine and powertrain component life.
The 785 frame uses a box-section design, incorporating two forgings and 21 castings in high-stress areas with deep penetrating and continuous wrap-around welds to resist damage from twisting loads without adding extra weight. The mild steel frame provides flexibility, durability and resistance to impact loads.
Component life is enhanced thanks to the standard rear-axle continuous filtration feature. Cleaner oil helps promote lubrication that leads to longer life
The frame, powertrain, engine and components are built to be rebuilt � delivering multiple lives of like-new performance at a fraction-of-new price.
CAT BODIES
Caterpillar designed and manufactured bodies are integrated with the chassis as a unit to optimize performance and incorporate optional Tier 4 components, including body exhaust heat.
The lightweight Mine Specific Design (MSD) body is designed with built-in carryback reduction features (front wall curved transition and corner pop-out plates) and is available with optional application-specific body liners.
Intended for tough applications, the heavy-duty Dual Slope body provides excellent load retention, maintains a low center of gravity with optimum load distribution and reduces shock loading.
SUSTAINABILITY
The 785 is designed to use less fuel, which reduces engine emissions, and there is zero fuel burn during retarding. The Tier 4 Final engine reduces NOx and particulate matter.
The Cat 3512E engine�s 12-cylinder four-stroke design uses long, effective power strokes for more complete fuel combustion and optimum fuel efficiency.
The 785 engine is compatible with diesel fuel blended with lower-carbon intensity fuels such as biofuels and renewable fuels.
Features like oil renewal systems, continuous rear axle filtration, extended life filters and longer maintenance intervals decrease the amount of waste contributed to the environment.
By rebuilding machines and components, the Cat Rebuild and Cat Reman programs preserve raw materials, conserve energy and reduce emissions.
VERSATILITY
The 785 is available in a cold-weather configuration that makes it ideal for mines operating in frigid environments. It features automatic engine thermal management, a variable fan speed for low temperature operation, and an electric- or air-start option.
The 3512E engine gives you the ability to select the power rating to match your current fleet performance or to achieve faster cycle times.
The 23% net torque rise provides unequaled lugging force during acceleration, on steep grades and in rough underfoot conditions.
Tire options allow you to select the tire that best matches your application, with a larger tire for flat, long, high-speed applications. The frame is designed to maintain the same turning diameter while accommodating larger tires.
The 785 is available in two options to meet emissions standards. The optional Tier 4 Final engine meets the strictest standards while the LRC engine is available in those countries that are less regulated.
TECHNOLOGY SOLUTIONS
MineStar Fleet is a fleet monitoring system that can be used to measure, manage and maximize the overall hauling operation.
Additional MineStar Detect offerings include Awareness, which can provide warnings, and the in-cab Driver Safety System, which intervenes when it detects fatigue or distraction.
Machine health and condition monitoring solutions enable a proactive approach to maintenance.
BETTER ACCESS TO DATA
Next generation connectivity delivers faster data transfers, better access to data, consistent data communication, more actionable data, improved data analytics and new diagnostic capabilities.
The backbone of the next generation machine is 100 Mbps two-wire ethernet communication across the machine controllers, sensors that are optimized for data analytics, and robust controls.
Advanced connectivity on the 785 truck is enabled by standard cellular 4G/LTE, optional dual mode 4G/LTE and Satellite Product Link�, or locally installed Wi-Fi.
Every machine from the factory comes with Product Link Elite as a standard offering. This solution enables the truck to collect and transmit information into locally-hosted or cloud-hosted applications.
785 Standard Equipment
Expand all
ELECTRICAL
expand / collapse icon
24V electrical system, low maintenance batteries (2) 93 amp-hour
Alarm, backup
Brushless alternator, 225 amp
Ground accessible power control box: Ethernet VIMS� port and VIMS lamp; Engine starter; transmission and battery lockouts
Jump start/battery charge receptacle
LED payload indicator lamps
LED Lighting system: Back-up and hazard lights, Curb lights, (one) RH side, (one) LH side, Turn signals (front and rear), Engine compartment lights, Headlights with low-high beam selector, Ladder light and service deck lights, Stop/tail lights
FLUIDS
expand / collapse icon
Extended Life Coolant to � 35� C (� 30� F)
OPERATOR ENVIRONMENT
expand / collapse icon
5V USB charging port
12V auxiliary power connection
Cup holders
Diagnostic connection port COM3 and Ethernet
Delayed Engine Shutdown
Dome courtesy light and map lights
Entertainment radio ready: Speakers, Optional Antenna (AM/FM/WB/satellite radio), Radio mounting provisions and 12V power supply
Fire suppression ready
Floor mat, multi-piece & replaceable
Gauges and indicators panel: Critical oil and coolant temperatures; Fuel and DEF level (if applicable); Engine system, brake and transmission fault indicators; Operator selectable max. machine speed by rotary dial; Speedometer, Tachometer
Heated mirrors, right and left
Hoist, body control
Interactive touchscreen vehicle information display: Day/night mode; Action alarm; Quad gauge display
Operator and trainer air suspension seats
Operator Door Power Window
Provision for customer accessory mounting
Push button secure start
Retractable front visor
ROPS cab, insulated/sound suppressed
Stairway and walkway access, 600 mm (24 in)
Steering wheel, tiltable, telescopic
Self-filling to windshield washer fluid from AC condensate
Storage locations for operator gear
Three point seat belt for operator seat
Windshield wiper, intermittent control / washer
Unitized hydraulic powered HVAC with automatic temperature control
Ventilated operator seat
POWER TRAIN
expand / collapse icon
33R51 power train with standard rims
Cat 3512E engine: Automatic engine and DEF thermal management (if applicable); Automatic low voltage idle management; Air cleaner with precleaner (two); Turbocharging (four) with air-to-air aftercooler; Mechanical Electronic Unit Injector (MEUI�-A) fuel system; Automatic starter protection; Automatic ether starting aid
Hydraulic braking system: Automatic retarder control (ARC), adjustable and automatic; Brake release motor (towing); Engine over speed protection; Extended life brake disc material; Hill start assist/Anti roll back strategy; Oil-cooled, multi-disc (front and rear) � Service, retarding, parking, secondary; Park brake integrated with gear selector
Transmission :Six-speed, automatic power shift with Electronic Clutch Pressure Control (ECPC); Advanced Productivity Electronic Control Strategy (APECS); Body-up reverse neutralizer; Body-up shift inhibitor; Downshift/reverse shift inhibitor; Directional shift management; Enhanced Traction Control System; Programmable top gear; Oil level sensor; Neutral coast inhibitor; Neutral start switch; Lock-up torque converter; Rear axle continuous lubrication/filtration
Turbine air starter with air tank, air horn and automatic lubrication system
OTHER EQUIPMENT
expand / collapse icon
Auxiliary “buddy” dumping quick connect
Auxiliary connection ‘user defined shutdown’
Auxiliary steering quick connect (towing)
eOMM
Fast fill fuel and DEF remote fill system
Guards for rotating components
Hill Start Assist
Hydraulic Filters, 1,000 hours
Remote flash software and troubleshooting
Secondary steering (automatic)
Tie off points
Tow hooks (front) and tow pin (rear)
Sight glasses for hydraulic oils
S�O�S? ports
Vital Information Management System (VIMS)
Cat Technology Products
expand / collapse icon
Cyber security
Integrated object detection system with touchscreen display
Tire Payload Monitoring System 2 (TPMS 2)
Product Link� Elite
785 Optional Equipment
Expand all
ELECTRICAL
expand / collapse icon
Auxiliary rear work lights, (one) LH side
Digital Payload Display
LED Lighting system: Additional lighting package, Auxiliary VIMS, Body rear, Seat & park brake
Workshop horn
Truck bodies
expand / collapse icon
MSD II body: 100 m3 (131 yd3)
Dual slope body: 78 m3 (102 yd3)
Body specific side wall and tail extensions
Customizable body liner packages
Body heat exhaust
Rock ejectors
Rear body lighting group: Directional signals, Stop/tail lights
FLUIDS
expand / collapse icon
Extended Life Coolant to � 50� C (� 58� F)
OPERATOR ENVIRONMENT
expand / collapse icon
Emergency stop
Deluxe Cab: Advanced cabin filtration system; Catwalk and handrails for rear cab access; Heated, cooled and ventilated front seat; Power right side window; Suspended companion seat; Storage tray
POWER TRAIN
expand / collapse icon
No air � electric starter with 93-amp hour batteries (four), electric horn and automatic lubrication system
Hydraulic braking system: Advanced ground control with Anti-lock Braking System (ABS) and Dynamic Stability Control (DSC)
Variable speed fan drive
Transmission: Engine pre-lubrication system; Rear axle continuous lubrication/filtration with cooler
OTHER EQUIPMENT
expand / collapse icon
2560 L (676 gal) fuel tank (non-Tier 4)
Body heat exhaust
Bumper towing � center pin kit
Cold weather start (block heater)
Communication Ar � Minestar� radio
Fire extinguisher, portable
Five piece crankcase guards
Fuel heater, fuel water separator
Fuel tank mud guard
Gauge, brake wear indicator
Ground accessible fluid service center, hydraulic and coolant
Hub odometer, kilometers
Powered access stairway
Rim Diffuser
Wheel chocks
Wireless Electronic Technician (ET)
Working at heights protection
Cat Technology Products
expand / collapse icon
Cruise control
360 degree surround view camera
4G cellular/satellite dual mode
Connectivity bundle (includes: wireless operator ID, bluetooth key FOB to start)
Driver Safety System (DSS) 4.0 Ready
Minestar GPS
Minestar communication group (enables: Minestar Fleet, Aux, and Truck Spotting)
Oil Renewal System (ORS) (non-Tier 4)
Road Analysis Control (RAC)
