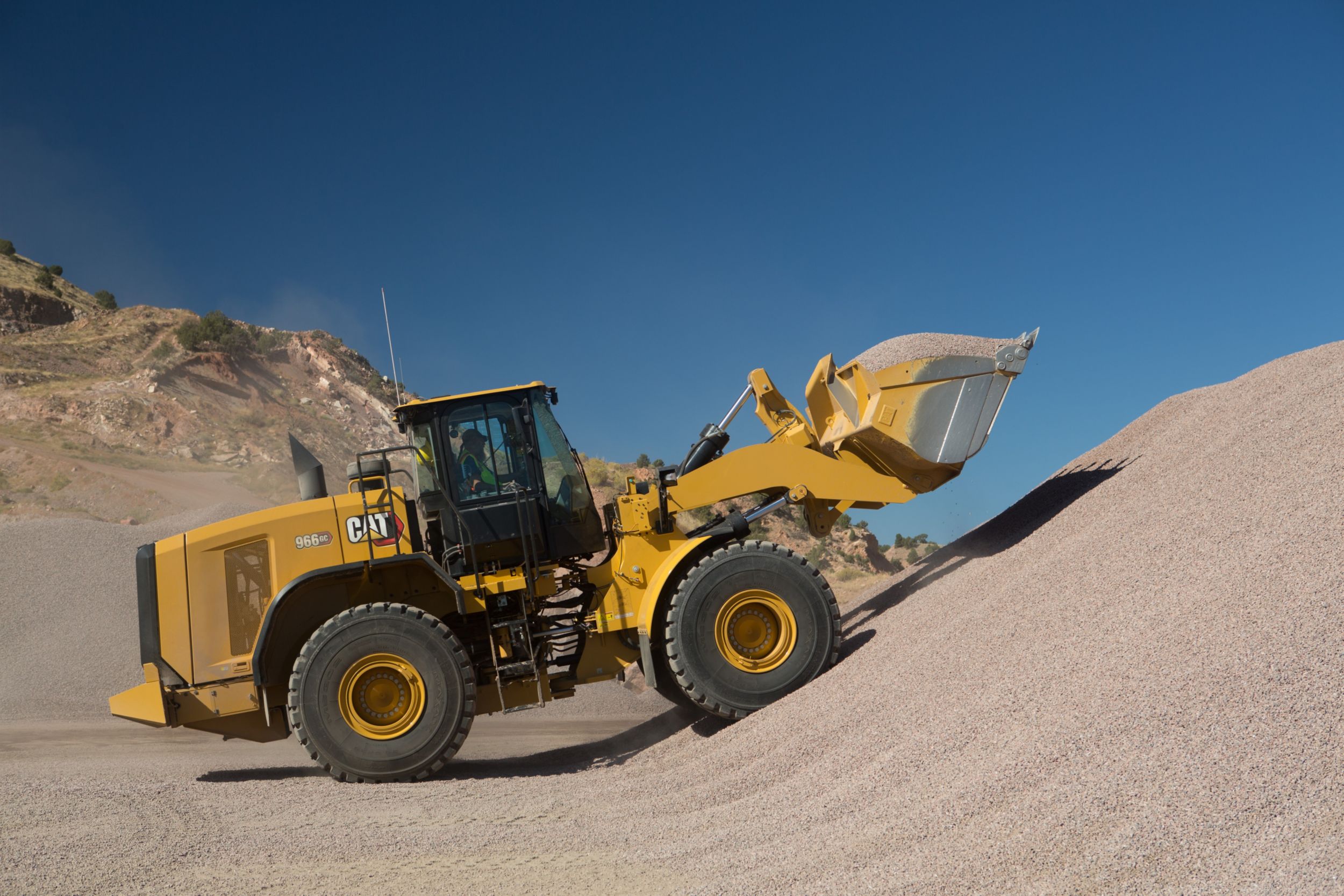

The new Cat® 966 GC Wheel Loader is easy to own and operate. It offers low fuel consumption with an on-demand fan, load sensing hydraulics, intuitive controls, and performance series buckets. This machine is built to be just the right machine for a broad range of applications. Great machine performance combined with the low owning and operating costs makes the 966 GC the right choice for your business.
Engine Power @ 1,600 rpm – ISO 14396:2002
239 kW
Engine Model
Cat C9.3B
Gross Power @ 1,600 rpm – SAE J1995:2014
242 kW
Product specifications for 966 GC Medium Wheel Loaders
Engine
expand / collapse icon
Engine Power @ 1,600 rpm – ISO 14396:2002
239 kW
Engine Model
Cat C9.3B
Gross Power @ 1,600 rpm – SAE J1995:2014
242 kW
Net Power @ 1,600 rpm – ISO 9249:2007, SAE J1349:2011
218 kW
Net Power – ISO 9249
218 kW
Engine Torque @ 1,200 rpm – ISO 14396:2002
1781 N·m
Gross Torque @ 1,200 rpm – SAE J1995:2014
1799 N·m
Net Torque @ 1,200 rpm – ISO 9249:2007, SAE J1349:2011
1673 N·m
Bore – ISO 9249
115 mm
Stroke
149 mm
Displacement
9.3 l
Note (1)
Cat engine meets U.S. EPA Tier 4 Final, EU Stage V, Korea Tier 5, China Nonroad Stage IV, and Japan 2014 (Tier 4 Final) emission standards.
Note (2)
The net power advertised is the power available at the flywheel when the engine is equipped with fan, alternator, air cleaner, and aftertreatment.
Note (3)
Cat engines are compatible with the following renewable, alternative, and biodiesel* fuels that reduce greenhouse gases on a lifecycle basis: • Up to B20 biodiesel (FAME) ** • Up to 100% HVO and GTL renewable fuels
Weights
expand / collapse icon
Operating Weight*
21781 kg
Note (1)
* For 4.0 m3 (5.2 yd3) general purpose bucket with BOCE.
Note (2)
* Full compliance to ISO 14397-1:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing.
Operating Specifications
expand / collapse icon
Static Tipping Load – Full 37° Turn – With Tire Deflection
13640 kg
Static Tipping Load – Full 37° Turn – No Tire Deflection
14642 kg
Breakout Force
164 kN
Note (1)
* For 4.0 m3 (5.2 yd3) general purpose bucket with BOCE.
Note (2)
* Full compliance to ISO 14397-1:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing.
Buckets
expand / collapse icon
Bucket Capacities
3.2 – 7.1 m³ (4.25 – 9.25 yd³)
Sound
expand / collapse icon
With Cooling Fan Speed at Maximum Value – Operator Sound Pressure Level (ISO 6396:2008)
75 dB(A)
With Cooling Fan Speed at Maximum Value – Exterior Sound Power Level (ISO 6395:2008)
110 dB(A)
With Cooling Fan Speed at Maximum Value – Exterior Sound Pressure Level (SAE J88:2013)
78 dB(A)*
Note (1)
*Distance of 15 m (49.2 ft), moving forward in second gear ratio.
With Cooling Fan Speed at 70% of Maximum Value – Operator Sound Pressure Level (ISO 6396:2008)**
73 dB(A)
With Cooling Fan Speed at 70% of Maximum Value – Exterior Sound Power Level (ISO 6395:2008)**
108 dB(A)***
Note (2)
** For machines in European Union countries and in countries that adopt the “EU Directives”.
Note (3)
*** European Union Directive “2000/14/EC” as amended by “2005/88/EC”.
Transmission
expand / collapse icon
Forward – 1
6.4 km/h
Reverse – 1
7 km/h
Forward – 2
12.1 km/h
Reverse – 2
13.2 km/h
Forward – 3
21 km/h
Reverse – 3
23 km/h
Forward – 4
34.8 km/h
Reverse – 4
36.9 km/h
Note
Maximum travel speed in standard vehicle with empty bucket and standard L3 tires with 826 mm (32 in) roll radius.
Service Refill Capacities
expand / collapse icon
Fuel Tank
320 l
DEF Tank
26 l
Cooling System
53 l
Crankcase
23 l
Transmission
55 l
Differential – Final Drives – Front
57 l
Differential – Final Drives – Rear
57 l
Hydraulic Tank
101 l
Hydraulic System
expand / collapse icon
Implement Pump Type
Variable Displacement Piston, Load Sensing
Implement System – Maximum Flow @ 2,275 rpm
327 l/min
Implement System – Maximum Operating Pressure
27900 kPa
Implement System – Maximum Flow 3rd Function
240 l/min
Implement System – Maximum Operating Pressure 3rd Function
22780 kPa
Hydraulic Cycle Time – Raise from Carry Position
5.7 s
Hydraulic Cycle Time – Dump, at Maximum Raise
1.8 s
Hydraulic Cycle Time – Lower, Empty, Float Down
2.6 s
Hydraulic Cycle Time – Total Cycle Time
10.1 s
Cab
expand / collapse icon
ROPS/FOPS
ROPS/FOPS meet ISO 3471:2008 and ISO 3449:2005 Level II standards
Brakes
expand / collapse icon
Brakes
Brakes meet ISO 3450:2011 standards
Dimensions
expand / collapse icon
B-Pin Height
4256 mm
Centerline of Rear Axle to Edge of Counterweight
2453 mm
Wheel Base
3550 mm
Centerline of Rear Axle to Hitch
1775 mm
Rack Back – Maximum Lift
62 °
Rack Back – Carry
50 °
Rack Back – Ground
42 °
Lift Arm Clearance
3705 mm
Height – Top of Hood
2804 mm
Height – Top of Exhaust Pipe
3539 mm
Height – Top of ROPS
3582 mm
Ground Clearance
455 mm
Sustainability
expand / collapse icon
Recyclability
97%
Proven Reliability
Cat C9.3B engine offers high power density with a combination of proven and improved electronic, fuel, and air systems.
Equipped with automatic Cat regeneration system, Cat Clean Emissions Module (CEM) with Diesel Particulate Filter (DPF), and Diesel Exhaust Fluid (DEF) tank and pump.
Engine meets U.S. EPA Tier 4 Final, EU Stage V, Korea Tier 4 Final, China Nonroad Stage IV, and Japan 2014 emission standards.
Thorough component choice, design, and in-machine validation processes result in excellent reliability and uptime.
Advansys™ ground engaging tools (GET) system features stronger adapters; tips with a new shape to better protect the adapter and an integrated retainer.
Achieve Greater Productivity
The proven Cat Z-bar linkage geometry with Performance Series Buckets offer excellent penetration into the pile and high breakout forces. This results in low fuel consumption and exceptional production capabilities.
Caterpillar designed, electronically controlled automatic powershift heavy-duty planetary transmission features shift protection and single clutch gear shifting for efficiency, durability, and smooth gear changes.
The optional ride control system improves smoothness over rough terrain, increasing confidence and efficiency, ensuring excellent material retention.
Optional Fusion™ quick-coupler and third hydraulic function can make the machine a versatile tool carrier for buckets, grapples or forks.
Increased traction in poor underfoot conditions with the optional limited slip differential (LSD). This traction aid is activated automatically, with no operator intervention required.
An optional Axle Oil Cooler (AOC) is available for high energy applications.
Superior Fuel Efficiency
Engine Idle Management System (EIMS) reduces idle RPM and fuel consumption. Engine Idle Shutdown will shut down engine after a preset time.
Variable speed fan adjusts to meet the varying cooling requirements of the machine resulting in a reduced average fan speed and lowered fuel consumption, noise levels, and radiator plugging.
Load sensing hydraulics produce flow and pressure for the implement system upon demand and only in amounts necessary to perform the needed work functions.
Easy, Comfortable Operator Environment
The spacious cab features easy, intuitive controls and excellent visibility which provides a comfortable working environment for efficient operation.
A comfortable cloth covered suspension (mechanical) seat is standard, an optional air suspended seat is available.
Pilot-operated hydraulic implement controls deliver comfortable, low-effort operation. Two single-axis levers or one joystick are available. Both arrangements are equipped with kick-down switches.
Unmatched viewing area with a wide, flat, and distortion-free front windshield.
The glass stretches to the floor of the cab for excellent visibility to the bucket and front tires.
Sliding side windows on both sides allow natural ventilation and easy communication to ground staff.
The cab roof has channels which direct rain off the corners of the cab, keeping windows clear.
Air conditioning and heating systems are standard. Ten louvered vents allow the operator to direct the air flow to remain productive and efficient all shift long.
Optional windshield guard to protect glass from impacts.
Safety Features
Ladders are standard on both sides of the machine; the main cab access features a 15-degree angle to easily access the operator environment.
Steps are equipped with hand and/or guardrails to safely access the cab and maintenance points of the machine.
The main cab door opens to the front and provides wide access to the operator environment.
A front window cleaning platform kit is available for enhanced access to the windshield. Front and back wipers ensure that a clear view is maintained.
External rearview mirrors with integrated spot mirrors are standard.
A rear vision camera is standard to enhance visibility behind the machine. Reversing strobe light kits are an available option for enhanced jobsite visibility.*
*Not compatible with roading arrangements
Reduced Maintenance Time and Costs
Grouped service points and sight gauges allow for easy daily maintenance.
Convenient access to left, right, and rear of engine compartment provides excellent serviceability.
Electrical service center, along with additional key serviceability features, helps make servicing and in-field component exchange quick, easy, and efficient.
A rear swing-up grill gives easy cleaning access to the cooling cores.
Hinged wheel guards are easy to remove/re-install providing wide access to all maintenance points and to the engine compartment.
Optional power train bottom guard protects the machine against damage to reduce downtime.
Optional Cat Autolube system provides an integrated lube system with monitoring function. One-button control, including fault flash function.
Caterpillar design and manufacturing techniques assure outstanding service life.
Cat Payload Kit – Optional*
On-the-go weighing** for precise load targets with proven accuracy, flexible installation, and easy calibration and setup.
Brings payload weighing to the cab so operators can work more productively and deliver consistently accurate loads.
Increases productivity, weighing while lifting with no interruptions in loading cycle.
High efficiency: load to exact specification, load more trucks faster, and move more material for more revenue.
Improve efficiency with less rework; save time, labor, fuel, and costs.
Simple installation.
*Not available in all markets
**Not legal for trade
Sustainability
The Cat® C9.3B engine meets U.S. EPA Tier 4 Final, EU Stage V, Korea Tier 5, China Nonroad Stage IV and Japan 2014 emission standards.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrogenated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
The Cat® clean emissions module includes Diesel Particulate Filter (DPF), Diesel Oxidation Catalyst (DOC), and Selective Catalytic Reduction (SCR) technologies to reduce the engine’s emissions.
Engine Idle Management System (EIMS) helps maximize fuel efficiency and reduce greenhouse gas emissions while maintaining machine performance. EIMS provides three standard idle control settings for the machine – hibernate mode, work mode, and transmission engaged work mode.
Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
Cat® Payload technology maximizes loading efficiency, helping operators of every skill level work more accurately to reduce load time, fuel costs and greenhouse gas emissions. Upgrade to Advanced Payload for expanded features and capabilities that can further increase operator efficiency and accuracy.
Cat® Reman parts are a sustainable choice. New Cat parts are designed with the potential to have more than one life, so Cat Reman parts are truly remanufactured — not just repaired, rebuilt or reconditioned. Because the process ensures the latest design changes are incorporated into Cat Reman parts, you get like new quality and outstanding performance at lower cost.
*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel.
966 GC Standard Equipment
Expand all
NOTE
expand / collapse icon
Standard and optional equipment may vary. Consult your Cat dealer for details.
OPERATOR ENVIRONMENT
expand / collapse icon
Air conditioning (HVAC) with 10 vents and filter unit located outside of cab
Bucket/work tool function lockout
Switch, transmission neutralizer lockout
Cab, pressurized and sound suppressed
Camera, rearview
Coat hook
Computerized monitoring system
Cup holders and personal tray on right console and behind seat
Horn
Mirrors, rearview external with integrated spot mirror
Pilot hydraulic controls, lift and tilt function; two (2) single axis levers or joystick
12V power port (10A)
Radio ready
ROPS/FOPS structure
Seat, Cat Comfort (cloth), mechanical suspension
Steering column, adjustable angle
Window, sliding (left and right sides)
Wipers/washers (front and rear)
POWER TRAIN
expand / collapse icon
Axels, Open/Open differentials
Brakes, full hydraulic enclosed wet-disc
Cat C9.3B engine
EIMS (Engine Idle Management System)
AIS (Auto Idle Shutdown)
Fan, radiator, electronically controlled, hydraulically driven, temperature sensing, on demand
Fan, reversing automatic and manual control
Filter, fuel primary/secondary/tertiary
Filters, engine air, primary/secondary
Fuel priming pump (electric)
Fuel/water separator
Radiator, unit core (9.5 fpi) with ATAAC
Torque converter
Transmission, powershift (4F/4R), automatic (2-4) with kick-down function, overspeed protection
LINKAGE
expand / collapse icon
Lift and bucket return-to-dig kickouts (electro-magnetic), mechanical adjustment
Z-bar, cast tilt lever
HYDRAULICS
expand / collapse icon
Dedicated brake and fan pump
Dedicated load sensing steering pump
Load sensing implement system pilot operated
S O S ℠ oil sampling valves
ELECTRICAL
expand / collapse icon
Alarm, back-up variable/main disconnect switch
Alternator (145-amp, brush type)
Batteries, maintenance free (2 x 1,125 CCA)
Ignition key; start/stop
Lighting system: 4 halogen work lights, cab mounted
Roading lights with high/low beam and F and R turn signals
Starter, electric (heavy duty)
Starting and charging system, 24V
ADDITIONAL EQUIPMENT
expand / collapse icon
Cold weather starting basic (ether starting aid)
Counterweight, 605 kg (1,334 lb)
Fenders (front) steel
Grill, airborne debris
Hitch, drawbar with pin
Hood, metallic on steel structure
Doors, service access (locking)
L3 radial or bias ply tires
Precleaner, strata tubes
Product Link™ ready
966 GC Optional Equipment
Expand all
NOTE
expand / collapse icon
Standard and optional equipment may vary. Consult your Cat dealer for details.
OPERATOR ENVIRONMENT
expand / collapse icon
Cat® Payload (kit)
Radio
Seat, air suspended
POWER TRAIN
expand / collapse icon
Axles, limited slip differential(s)
Axles, oil cooler
Fan, reversing automatic and manual control
LINKAGE
expand / collapse icon
Fusion™ quick coupler control with dual kick outs
HYDRAULICS
expand / collapse icon
Quick coupler control
Ride control
3rd function with additional dedicated single axis lever
ELECTRICAL
expand / collapse icon
Lighting system: 8 halogen work lights, cab mounted
Lighting system: 4 LED work lights, cab mounted
Lighting system: 8 LED work lights, cab mounted
Lights: warning beacon
ADDITIONAL EQUIPMENT
expand / collapse icon
Autolube system
Camera, front view (kit)**
Cold weather starting full (HD batteries 2 x 1,400 CCA, ether system, jacket water heater, cold weather fluids)
Fender rear extensions or roading
L5 traction tires
Power train guard
Precleaner, strata tubes with screen
Precleaner, strata tubes with screen
Reverse Stobe (kit)***
Roading Certification****
Secondary steering system, electrical*
Toolbox
Window cleaning (kit)
Windshield guard
OPTIONAL EQUIPMENT – NOTE
expand / collapse icon
* Standard where mandated
** Refer to M0106413 publication for usage reqiurements.
*** Not compatible with roading arrangements.
**** Offering depends on region.
