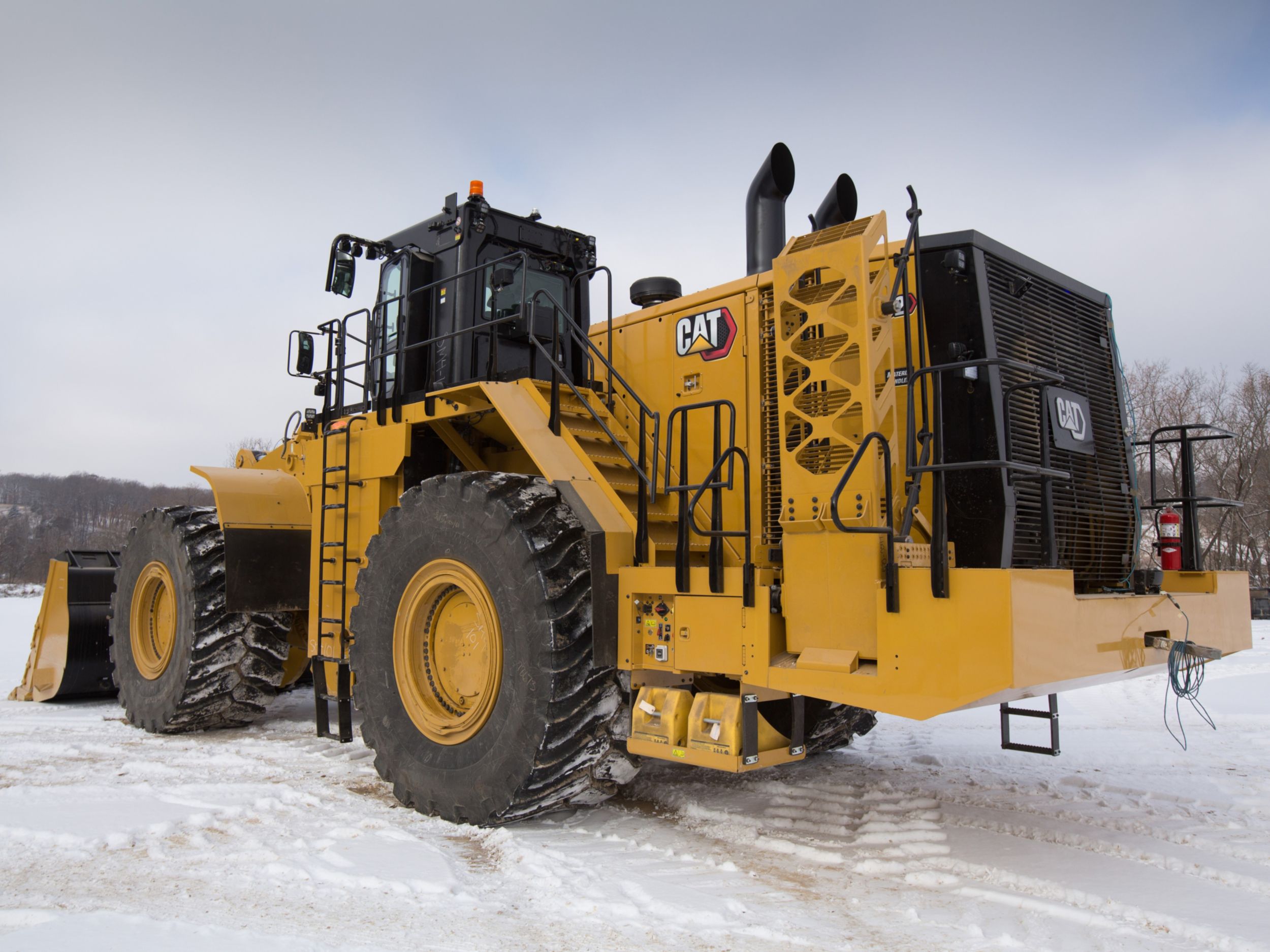

The Cat® 992 Large Wheel Loader has set the standard in its size class for more than 50 years, delivering industry-leading productivity, unparalleled reliability and long life. Today’s 992 raises the bar. Compared to the 992K, the new 992 is up to 48% more efficient and 32% more productive, thanks to higher payload for improved pass match, increases in rimpull and breakout force, and an optimized linkage design. Extended component replacement intervals plus increased filter and turbo life help reduce maintenance costs. These improvements — and many more — combine to provide significant savings over the life of the machine for the lowest owning and operating costs in the industry. With both standard and high-lift configurations, the 992 offers the ideal pass match for fleets of Cat 775, 777 and 785 trucks.
Net Power
607 kW
Engine Model
Cat® C32B
Emissions
U.S. EPA Tier 4 Final, U.S. EPA Tier 2 Equivalent
Product specifications for 992 Large Wheel Loaders
Engine
expand / collapse icon
Net Power
607 kW
Engine Model
Cat® C32B
Emissions
U.S. EPA Tier 4 Final, U.S. EPA Tier 2 Equivalent
Rated Speed
1750 rpm
Gross Power – SAE J1995 at 1,750 rpm – Tier 4/HRC (Highly Regulated Country) – Standard
671 kW
Gross Power – SAE J1995 at 1,750 rpm – Tier 4/HRC – High Ambient
699 kW
Gross Power – SAE J1995 at 1,750 rpm – Tier 2/LRC (Less Regulated Country) – Standard
676 kW
Gross Power – SAE J1995 at 1,750 rpm – Tier 2/LRC – High Ambient
704 kW
Gross Power – ISO 14396 at 1,750 rpm – Tier 4/HRC – Standard
659 kW
Gross Power – ISO 14396 at 1,750 rpm – Tier 4/HRC – High Ambient
687 kW
Gross Power – ISO 14396 at 1,750 rpm – Tier 2/LRC – Standard
666 kW
Gross Power – ISO 14396 at 1,750 rpm – Tier 2/LRC – High Ambient
694 kW
Net Power – SAE J1349 at 1,750 rpm – Tier 4/HRC – Standard
607 kW
Net Power – SAE J1349 at 1,750 rpm – Tier 4/HRC – High Ambient
607 kW
Net Power – SAE J1349 at 1,750 rpm – Tier 2/LRC – Standard
614 kW
Net Power – SAE J1349 at 1,750 rpm – Tier 2/LRC – High Ambient
614 kW
Bore
145 mm
Stroke
162 mm
Displacement
32.1 l
Peak Torque – SAE J1995 – Tier 4/HRC – Standard @ 1,200 rpm
4765 N·m
Peak Torque – SAE J1995 – Tier 4/HRC – High Ambient @ 1,300 rpm
4820 N·m
Peak Torque – SAE J1995 – Tier 2/LRC – Standard @ 1,200 rpm
4796 N·m
Peak Torque – SAE J1995 – Tier 2/LRC – High Ambient @ 1,350 rpm
4841 N·m
Operating Specifications
expand / collapse icon
Operating Weight
105882 kg
Rated Payload – Standard
23.1 t
Rated Payload – Standard (Material Handler)
27.2 t
Rated Payload – High Lift
20.4 t
Rated Payload – High Lift (Material Handler)
24.5 t
Bucket Capacity Range
11.5-24.5 m³ (15-32 yd³)
Cat Truck Match – Standard
775/777
Cat Truck Match – High Lift
785
Buckets
expand / collapse icon
Bucket Capacities
11.5-24.5 m³ (15-32 yd³)
Transmission
expand / collapse icon
Transmission Type
Cat Planetary Powershift
Forward – 1
7 km/h
Forward – 2
11.9 km/h
Forward – 3
20.5 km/h
Direct Drive – Forward 1
Disabled
Direct Drive – Forward 2
12.9 km/h
Direct Drive – Forward 3
22.6 km/h
Reverse – 1
7.5 km/h
Reverse – 2
13 km/h
Reverse – 3
22.4 km/h
Direct Drive – Reverse 1
8 km/h
Direct Drive – Reverse 2
14.2 km/h
Direct Drive – Reverse 3
24.7 km/h
Hydraulic System – Lift/Tilt
expand / collapse icon
Lift/Tilt System – Circuit
Positive Flow Control
Lift/Tilt System – Pump
Variable Displacement Piston
Maximum Flow at 2,165 rpm
950 l/min
Relief Valve Setting – Lift/Tilt
34500 kPa
Lift Cylinder – Bore
235 mm
Lift Cylinder – Stroke
1613 mm
Tilt Cylinder – Bore
292 mm
Tilt Cylinder – Stroke
1055 mm
Hydraulic Cycle Times
expand / collapse icon
Rack Back
2.3 s
Rack Back – High Lift
2.3 s
Raise
9 s
Raise – High Lift
9 s
Dump
2.6 s
Dump – High Lift
2.6 s
Float Down
3.2 s
Float Down – High Lift
3.2 s
Total Hydraulic Cycle Time
17.1 s
Service Refill Capacities
expand / collapse icon
Fuel Tank
1460 l
Cooling Systems
225 l
Crankcase
120 l
Transmission
195 l
Differential – Final Drives – Front
365 l
Differential – Final Drives – Rear
365 l
Hydraulic System Factory Fill (Implement)
394 l
Hydraulic Tank – Implement
228 l
Hydraulic Factory Fill (Steering)
123 l
Hydraulic Tank (Steering Tank Only)
99.5 l
Axles
expand / collapse icon
Front
Fixed
Rear
Trunnion
Oscillation Angle
±9°
Brakes
expand / collapse icon
Brakes
ISO 3450:2011
Hydraulic System – Steering
expand / collapse icon
Steering System – Circuit
Pilot, Load Sensing
Steering System – Pump
Piston, Variable Displacement
Maximum Flow at 1,400-1,850 rpm
265 l/min
Steering Cut Off Pressure
31000 kPa
Total Steering Angle
80°
Steering Cycle Times – Low Idle
4.9 s
Steering Cycle Times – High Idle
3.1 s
Cooling System
expand / collapse icon
Ambient Capability Hydraulically Driven Demand Fan – Standard
43 °C
Ambient Capability, Hydraulically Driven Demand Fan – High
55 °C
Sound Performance – Standard
expand / collapse icon
Note
Machine Sound Level (ISO 6396:2008) – 116 dB(A)
Sound Performance – Suppression
expand / collapse icon
Note
Machine Sound Level (ISO 6396:2008) – 113 dB(A)
Dimensions – Standard Lift – Approximate
expand / collapse icon
Ground to Top of Exhaust Stacks
5169 mm
Ground to Top of ROPS
5571 mm
Ground to Top of Hood
3983 mm
Ground to Center of Front Axle
1308 mm
Ground to Bumper Clearance
1145 mm
Ground to Lower Hitch Clearance
666 mm
Reach – Maximum Lift
2503 mm
Clearance at Maximum Lift
4630 mm
B-Pin Height – Maximum Lift
6948 mm
Maximum Overall Height – Bucket Raised
9390 mm
Rear Axle – Centerline to Bumper
4119 mm
Tread Width
3302 mm
Rack Back Angle – Maximum Lift
56.9 degrees
Dump Angle at Maximum Lift
-49.5 degrees
Rack Back Angle – Ground Level
40.2 degrees
Width – Over Tires – With Bulge
4493 mm
Wheel Base
5890 mm
Rack Back Angle – Carry
48.9 degrees
Maximum Overall Length
15489 mm
Front Axle Centerline to Bucket Tip
5480 mm
Dimensions – High Lift – Approximate
expand / collapse icon
Tread Width
3302 mm
Rack Back Angle – Ground Level
42.5 degrees
Dump Angle at Maximum Lift
-48.1 degrees
Rack Back Angle – Maximum Lift
56.2 degrees
Width – Over Tires – With Bulge
4495 mm
Rack Back Angle – Carry
51.6 degrees
Ground to Top of Exhaust Stacks
5169 mm
Ground to Top of ROPS
5571 mm
Ground to Top of Hood
3983 mm
Ground to Center of Front Axle
1308 mm
Ground to Bumper Clearance
1145 mm
Ground to Lower Hitch Clearance
666 mm
Reach – Maximum Lift
2319 mm
Clearance at Maximum Lift
5256 mm
B-Pin Height – Maximum Lift
7465 mm
Maximum Overall Height – Bucket Raised
9759 mm
Rear Axle – Centerline to Bumper
4119 mm
Wheel Base
5890 mm
Maximum Overall Length
15733 mm
Front Axle Centerline to Bucket Tip
5724 mm
SAFETY
Designed for visibility, with a taller windshield that provides a 25% increase in glass surface area for a better view to the bucket, standard rear-view camera, optional Detect 270-degree cameras, standard LED lighting and mining mirrors.
Improved access and egress, with integrated powered access system, adjustable hanging steps, 45-degree-angle wide stairs, emergency egress ladder, and full handrails on each side.
Wide walkways with non-skid surfaces and integrated lockout/tagout points designed into the service areas.
Speed limiter, which sets the maximum speeds in both forward and reverse.
OPERATOR COMFORT
50% increase in leg room and increased width by the operator’s knees compared to previous model.
Reduced vibration, low sound levels and automatic temperature controls.
Electro-hydraulic speed-sensing steering with force feedback for shift-long comfort.
Pressurized cab featuring Next Gen Seat with 9-inch travel, active cooling and heating, adjustable lumbar support, seat cushion tilt adjustment, and air-adjustable bolsters on the seat and backrest.
CONFIDENT & EMPOWERED OPERATORS
Low-effort integrated controls that make cycles smoother and faster while reducing fatigue.
Large, easy-to-read, color LED displays that provide access to the Electronic Operation & Maintenance Manual.
Operator coaching, which helps empower operators to exceed targets by measuring and providing feedback to reinforce proper operating techniques.
New Autodig Components that boost efficiency and reduce tire wear by automating critical parts of the digging cycle.
Payload Overload Prevention, which inhibits severe payloads from being raised to full truck height.
PRODUCTIVITY
Increased rated payload, which allows for a a 4-pass match to a 90.7-tonne (100-ton) truck in all applications.
Better digging thanks to 20% more breakout force compared to previous models, with no increase in cycle time; 9.5% boost in rimpull; and increased traction.
Superior loading with Cat Performance Series Buckets, which deliver easier, faster loading; increased fill factors and material retention; larger bucket volume; and better bucket and machine stability due to the payload being lower and closer to the machine.
Greater stability, thanks to an increase in static tipping load and greater tipping-to-weight ratio, which helps operators be more confident and productive.
EFFICIENCY-BOOSTING FEATURES
Tire Slip Prevention, which reduces rimpull when there is less downforce on the tire and increases rimpull when there is more downforce on the tire — providing maximum rimpull when you can use it.
Tire Set, which automatically applies a lift command at the optimal time to increase traction on the tire, allowing for an increase in usable rimpull.
Lift Stall Prevention, which automatically applies the impeller clutch when necessary to prevent hydraulic stall when lifting up through the face — keeping the lift motion continuous, without excessive use of the impeller clutch.
Positive Flow Control Hydraulic System, which boosts efficiency with concurrent pump and valve control and increases bucket feel and control to deliver consistent performance.
On-demand throttle feature that allows operators to maintain normal operation with the left pedal and implements while the 992 manages the engine speed.
SERVICEABILITY
Reduced time spent on regular maintenance procedures thanks to features such as ground-level or platform access to filters; grouped service points; swing-out doors on both sides of the engine compartment; improved access for engine and pump drive service as well as to cooling package; and automatic lubrication system that greases the linkage, hitch, steering and axle trunnion bearings.
Relocated service station that provides easy access to functions such as coolant and oil as well as level indicators; Cat battery charging connector; and indicator lights for full fuel tanks.
Standard VIMS™ monitoring system that delivers critical health and payload information, keeping performance at optimum levels and allowing advanced troubleshooting and planning to lower maintenance costs.
Improved hydraulic system filtration as well as prognostics for the implement pump and remaining useful life of the engine air filter.
Remote Flash capabilities that reduce downtime by providing immediate access to the latest software updates.
VERSATILITY
Ideal for all temperatures, with high ambient package for operation in temperatures as high as 55 degrees C / 131 degrees F; and cold-weather features such as cooling fan bypass; 120V or 240V coolant heating elements and fuel heater; 240V engine oil; and heated mirrors.
Approved for higher payloads in low to moderate digging resistance applications; increased payload intended for rehandled material in the ROM pad area or stockpile material, such as coal.
Variety of bucket options, including limestone bucket; granite buckets for use in high-abrasion production applications; heavy-duty rock buckets for applications like face loading tightly compacted pit materials or handling materials of moderate abrasion and high impact; coal buckets for light density non-abrasive materials; and iron ore buckets for extremely aggressive applications.
New Performance Series Buckets that feature extended floor, dual radius and angled side bars for fast loading; larger bottom box section for increased strength, high fill factors and good material retention; and taller side plate with a level top surface improves operator visibility to the bucket from the cab.
Cat Ground Engaging Tools (GET) that feature CapSure™ Retention Technology, which simplifies component replacement with hammerless retention for fast, easy and safe installation.
DURABILITY
New C32B engine improved for increased durability.
Use of structural castings at the high-stress locations where the lift arm and front axle mount; and improvements to the axle cutout, upper hitch design and rear trunnion mounting.
Loads efficiently transmitted by the field-proven solid steel lift arms and reinforced pin joint bores.
Powertrain improvements including 20% increase in Planned Component Replacement interval of drivetrain components; increase in axle housing size, which enabled the elimination of the brake anchor and integration of brakes into the housing; 23% increase in oscillation joint diameter, which greatly increases surface area and reduces bearing wear; and increased hardness on Output Transfer Gears (OTG).
Frame, powertrain, engine and components that all built to be rebuilt — using new, remanufactured or rebuilt parts and components — to deliver multiple lives of like-new performance at a fraction-of-new price.
TECHNOLOGY
Cat MineStar™ Terrain for loading, which provides real-time feedback on payloads and design plan progress to increases productivity and accuracy, reduce rework, enhance ore control and improve shift-to-shift operator performance.
MineStar Object Detection, which combines radar and camera systems to warn operators about light vehicles or stationary hazards within the immediate vicinity of their machines.
MineStar Health, which delivers critical event-based machine condition and operating data and includes comprehensive equipment health and asset monitoring capabilities, with a wide range of diagnostic, analytic and reporting tools.
Upgraded touchscreen information display that provides intuitive operation and easy navigation and keeps operators informed about machine systems to decrease service time.
Cat ProductLink™, which provides remote access to information on machine systems and diagnostic codes; allows you to track utilization, fuel usage and payload summaries; and gives access to machine location, service meter hours and reporting status.
SUSTAINABILITY
Designed to be more efficient and use less fuel, which reduces engine emissions and carbon footprint; Tier 4 Final engine reduces NOx and particulate matter.
Engine Idle Shutdown, which saves fuel by making it possible to avoid unnecessary idling.
Better control of fluids through use of Cat anti-drain filter housings and component ecology drains.
Retrofits and upgrades for older machines — to incorporate efficiency improvements and emission reductions, and to keep them in production longer to conserve energy and minimize the need for raw materials
Cat Rebuild and Cat Reman programs, which preserve raw materials, conserve energy and reduce emissions.
992 Standard Equipment
Expand all
POWER TRAIN
expand / collapse icon
Engine, C32B
Fuel priming pump (electric)
Ground-level engine shutdown
Engine air intake (above hood) precleaner
Aluminum Modular Radiator (AMR)
Automatic, ether starting aid
Electronic throttle lock
Impeller Clutch Torque Converter (ICTC) with lock-up clutch
Rimpull control system
Planetary powershift, 3F/3R electronic control transmission
Delayed engine shutdown
Oil-cooled, multi-disc, service brakes
Electro-hydraulic parking brake
Auto retarding controls
Brake temp estimator
Autoshift
LINKAGE
expand / collapse icon
Standard lift (23 tonnes/25.5 tons face, 27.2 tonnes/30 tons loose)
EFFICIENCY
expand / collapse icon
Variable displacement implement pumps
Variable displacement load-sensing steering
Variable displacement cooling fan pump
Torque converter lock-up clutch
Bucket float
Automatic bucket controls:
– Lift kickout
– Return-to-dig kickout
Default on-demand throttle (economy mode) with HP+ mode button
Engine idle shutdown
ELECTRICAL AND LIGHTING
expand / collapse icon
150-amp alternator
Four 1400 CCA batteries
10/15 amp, 24V to 12V converter
Battery – single pole (master disconnect) isolator
Emergency jump-start receptacle
Starter and transmission lockout in bumper
24V starting and charging system
Electric starters
Live line indicators in service center
LED warning lights (pattern selectable)
LED lighting system:
– Two front- and rear-mounted LED turn signals
– Four forward-facing running lights
– Three forward-facing flood lights
– Four platform-mounted flood lights
– Two forward-facing high beams
– Four rear-facing floods
– Four stairway lights
– Two engine bay service lights
OPERATOR ENVIRONMENT
expand / collapse icon
Premium seat with heated and actively cooled leather, adjustable lumbar support, air adjustable bolsters on the seat and backrest, seat cushion tilt adjustment and two-way thigh support adjustment
Bonded glass, tinted
Trainer seat
Dual-lever lift and tilt function controls
Implement kickouts
Air conditioner
Cab pressure indicator
Graphical touchscreen information display conveys real-time operating information and payload measurement
Heater, defroster, auto temperature controls
Gauge instrumentation with configurable widgets:
– Status indicators
– Wheel rev counter
– Simplified payload
– TPMS (optional)
– Bucket angle
– Coolant temperature
– Hydraulic oil temperature
– Fuel level
– Power train oil temperature
– Engine speed (tachometer)
– Transmission gear
– Ground speed
– Engine hour meter
Powered cab precleaner
Operator presence status
Starting/charging system malfunction
Electronic OMM
Operator controls help
Two USB charging ports
CB mounting, 12V/24V power and antenna
14-pin service port
12V power
Selectable application profiles
Entertainment radio mute
Push-To-Start (PTS)
Warning/indicator instrumentation
Keypad control with indicator lights
Dome light in cab
Lunchbox and beverage holders
Electro-hydraulic force feedback steering
Vital Information Management System (VIMS™) with information display: external data port, cycle timer
Coat hook
SAFETY
expand / collapse icon
Ground-access ladders
Rear-vision camera
Front walkway around cab
Tie-offs on ROPS
Steering frame lock
Stairways on both sides of the machine
Platform toe kicks
Retractable seatbelt, operator and trainer seat
Back-up alarm
Electric disc horns
Implement lock switch
Seatbelt warning
Entertainment radio mute
MACHINE CONTROL AND GUIDANCE
expand / collapse icon
MineStar Health ready
MineStar GUIDE ready
MineStar Edge ready
COOLING
expand / collapse icon
Standard ambient package (recommended for site conditions that do not exceed 43° C [110° F])
SERVICE
expand / collapse icon
Ground-level service center including:
– Implement and cooling fan oil level indicator
– Steering and brake oil level indicator
– Window washer fluid level indicator
– Transmission oil level indicator
– Fuel level indicator
– Engine oil level indicator
– Engine coolant level indicator
– Automatic lubrication system grease tank level indicator
– Starter lockout and LED
– Heavy-duty battery disconnect switch
– Stairway light switch
– Service lighting switch (if equipped)
– Fuel shutoff engine shutdown switch
– Engine oil fast-fill port
– Transmission oil fast-fill port
– Steering and brake hydraulic oil fast-fill port
– Steering and brake hydraulic oil drain port
– Engine coolant fast-fill port
– Implement and cooling fan hydraulic oil fast-fill port
– Implement and cooling fan hydraulic oil drain port
– Automatic lubrication system grease tank fill port
– 24V jump-start receptacle
– 12V power port
– 120V jacket water plug (if equipped)
– 240V jacket water plug (if equipped)
– VIMS key switch
– 14-pin service port
– Transmission lockout and LED
In-tank mounted cartridge-type case drain filters with in-line magnetic plugs on implement, cooling fan, brake and steering pumps
High-pressure screens on the output side of implement, cooling fan, brake and steering pumps
Implement pump efficiency monitoring
Rock guards on linkage grease lines
Cat O-ring face seal couplings
Lockable service access doors
Ecology drains for engine, radiator, hydraulic tank, steering and brake tank, brake cooling tank and axles
Electronic pressure control of the automatic lubrication system eliminates pressure adjustment and monitors grease thickness for temperature compatibility
Ground-level fast-fill fuel system
Drawbar hitch with pin
Cat XT™ hoses
Left-side service center
Oil sampling valves
Premixed 50% concentration of extended-life coolant with freeze protection to –34° C (–29° F)
Rear access to cab and service platform
Load-sensing steering
Vandalism protection caplocks
Cooling cleanout service access
Telematics and Cat Electronic Technician service port in bumper
Automatic Autolube filling shutoff valve
992 Optional Equipment
Expand all
POWER TRAIN
expand / collapse icon
Advanced auto retarding controls with engine brake
LINKAGE
expand / collapse icon
High lift (20.5 tonnes/22.5 tons face, 24.5 tonnes/27 tons loose)
ELECTRICAL AND LIGHTING
expand / collapse icon
Dual pole battery isolator
Six service lights
Two hitch-mounted lights
OPERATOR ENVIRONMENT
expand / collapse icon
Rubber-mounted, high-impact resistant solar control glass
Trainer seat with suspension
Joystick lift and tilt function controls
Bluetooth®-enabled machine security
Sun screen, pull down (front and rear)
AM/FM/AUX radio
AM/FM/AUX/USB/BT/CD/SAT radio
SAFETY
expand / collapse icon
Powered ground-access stairs
Side-vision cameras (270 degree)
Cat Detect (rear object detection)
Wheel chocks
Secondary steering
Electric trumpet field horn plus electric shop horn
Fire suppression ready (tank mounting provision and provision for integration with machine electronics for monitoring faults or activation)
Emergency stop system
COLD WEATHER
expand / collapse icon
Cold-weather cooling fan bypass (recommended for temperatures below –29° C [–20° F])
120V or 240V coolant heating elements (recommended in conditions from –18° C to –30° C [0° F to –22° F])
Fuel heater (heated by recirculation using engine heat and a heat exchanger) (recommended in conditions from –18° C to –30° C [0° F to –22° F])
Heated mirrors
MACHINE CONTROL AND GUIDANCE
expand / collapse icon
Cat Payload with Overload Prevention
New Autodig Components:
– Tire slip prevention
– Lift stall prevention
– Tire set
Operator coaching
COOLING
expand / collapse icon
High ambient package (recommended for site conditions that do not exceed 55° C [131° F])
RIMS AND TIRES
expand / collapse icon
Rims – 914.4 mm (36″) (36 × 45)
113.3 mm (4.5″) flange
For use with 45/65R45 and 45/65-45 tires
Tires – 45/65R45
Tires – 45/65-45
SPARE RIMS
expand / collapse icon
914.4 mm (36″) (36 × 45) (4.5″) flange
SERVICE
expand / collapse icon
Transmission and engine guards
Diagnostic lines for easy troubleshooting access
Product Link™ cellular
Product Link (dual mode – satellite/cellular)
SOUND
expand / collapse icon
Sound-suppression package
LOAD AND CARRY OR EXTENSIVE TRAMMING
expand / collapse icon
Ride control
