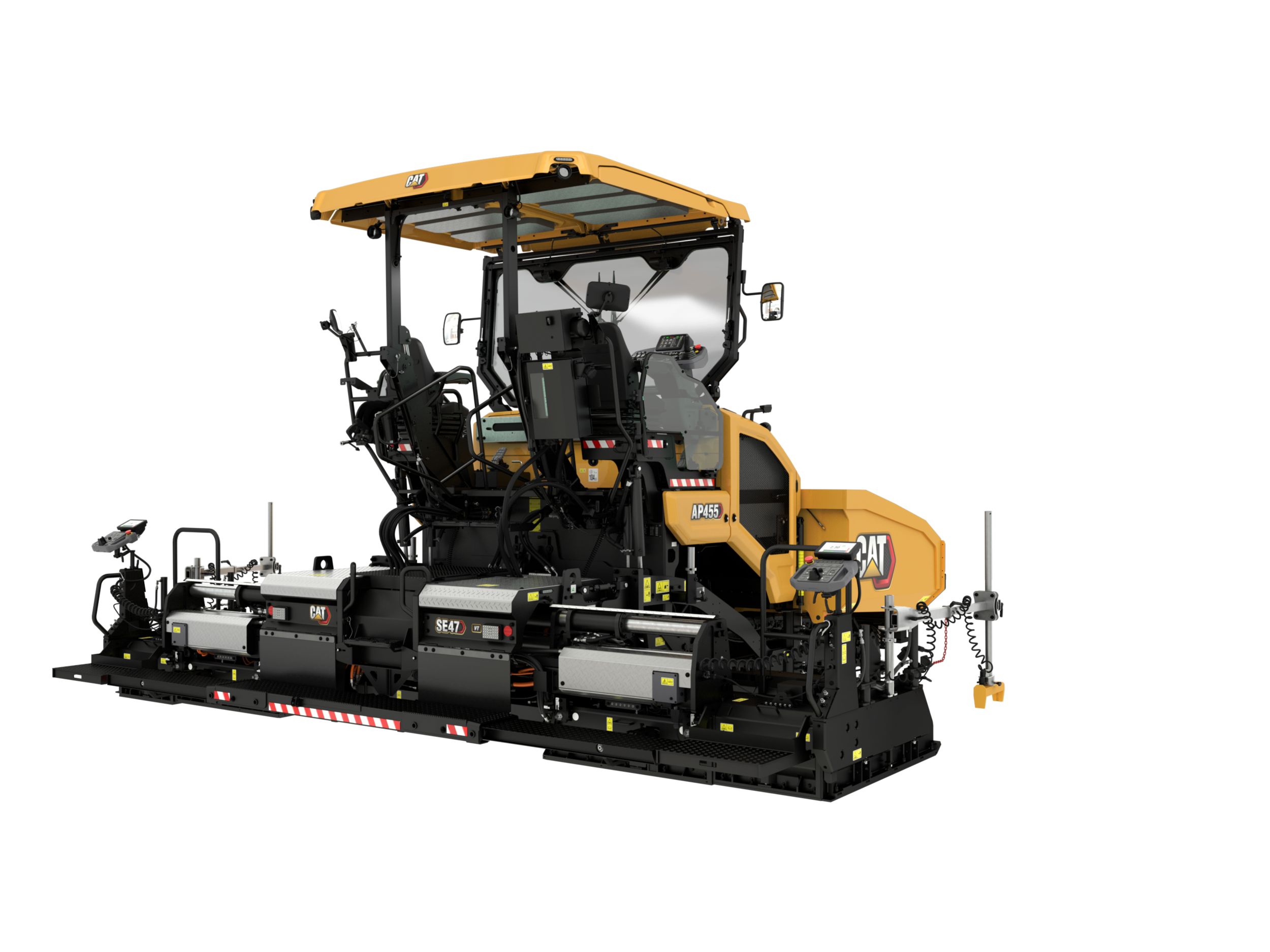

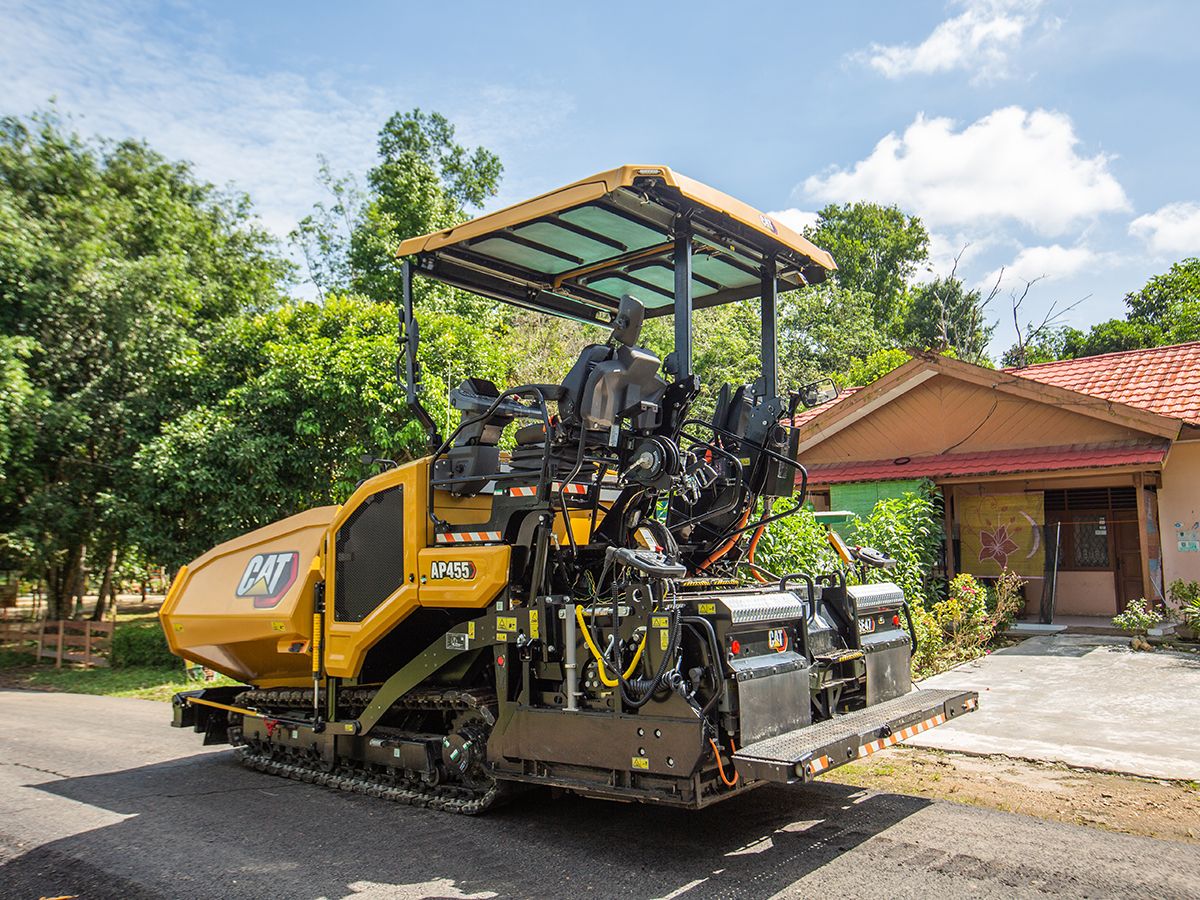

The Cat® AP455 Steel Track Asphalt Paver delivers excellent traction and mobility as-well-as, easy set-up, and a wide paving range, making it the perfect fit for urban streets, parking lots, rural roads and many other small to intermediate-type applications.
Paving Range with SE47 VT
2.4 m – 6. m (7′ 10″ – 19′ 8″)
Engine Model (1)
Cat® C3.6 (U.S. Tier 4 Final, EU Stage V)
Engine Power (1)
90 kW
Product specifications for AP455 Steel Track Track Asphalt Pavers
The Cat® AP455 Steel Track Asphalt Paver delivers excellent traction and mobility as-well-as, easy set-up, and a wide paving range, making it the perfect fit for urban streets, parking lots, rural roads and many other small to intermediate-type applications.
Dimensions
expand / collapse icon
Paving Range with SE47 VT
2.4 m – 6. m (7′ 10″ – 19′ 8″)
Truck Entry Height
567 mm
Operating Length
5.8 m
Operating Width
3.3 m
Overall Height
3.8 m
Transport Length
5.6 m
Transport Width
2.55 m
Transport Height
2.9 m
Engine
expand / collapse icon
Engine Model (1)
Cat® C3.6 (U.S. Tier 4 Final, EU Stage V)
Engine Power (1)
90 kW
Engine Model (2)
Cat C3.6 (Brazil MAR-1, UN ECE R96 Stage IIIA, equivalent to U.S. EPA Tier 3 and EU Stage IIIA)
Engine Power (2)
90 kW
Operating Specifications
expand / collapse icon
Maximum Paving Speed – With Tamper Bar Screed
82 ft/min
Maximum Travel Speed
6 km/h
Maximum Throughput Capacity
774 tonnes/hr
Weights
expand / collapse icon
Operating weight with SE47 VT
15577 kg
Shipping Weight – Paver Only
12252 kg
Service Refill Capacities
expand / collapse icon
Fuel Tank
200 l
DEF Tank
19 l
Cooling System – Total
24 l
Hydraulic Oil Tank
121 l
Washdown Spray Tank
32 l
Compact Size, Big Opportunities
The compact size and small footprint simplify maneuverability in tight spaces for efficient work in urban-type applications
Tight 90º turning capability enables the paver to rotate and cover tracks on a return paving pass
Standard paving range utilizing the SE47 VT screed is 2.4 m – 4.7 m (7′ 10″ – 15′ 4″) with a maximum width of 6.0 m (19′ 8″)
Paving depths up to 300 mm (12″) supports aggregate paving applications
Transport Made Easy
Machine weight of 15.6 mt (34,341 lb) paver and screed combination enables easy transport on a variety of trailer types
Length of less than 5.6 m (18′ 4″) and width of 2.55 m (8′ 4″) accommodates machine transport without special permits in many regions
When equipped with 225 mm (9′) extensions, transport width is 3 m (10′) and paving width extends to 5.1 m (16′)
The front-loading angle of 17º and high front bumper clearance reduces the need for additional blocking when loading onto various trailer designs
Raising or retracting the canopy is fast and easy with both electric or manual options available
Front, middle, and rear tie-down locations make securing the paver efficient for quick travel to the next job site
Exceptional Mobility
Steel track undercarriage provides exceptional mobility, outstanding traction, and smooth travel for unmatched maneuverability around the job site
Counter-rotating tracks provide excellent maneuverability in tight quarters
Automatic track tensioning system, double carrier rollers and track guide plates help ensure the tracks are properly aligned and tensioned to provide smooth travel
Triple grouser track shoes with profiled polyurethane pads provide strength and durability while also delivering smooth travel and minimal base disturbance on uneven surfaces
Efficient track plow design pushes material away from the tracks and helps eliminate density variations caused by track compression
Smooth Material Flow

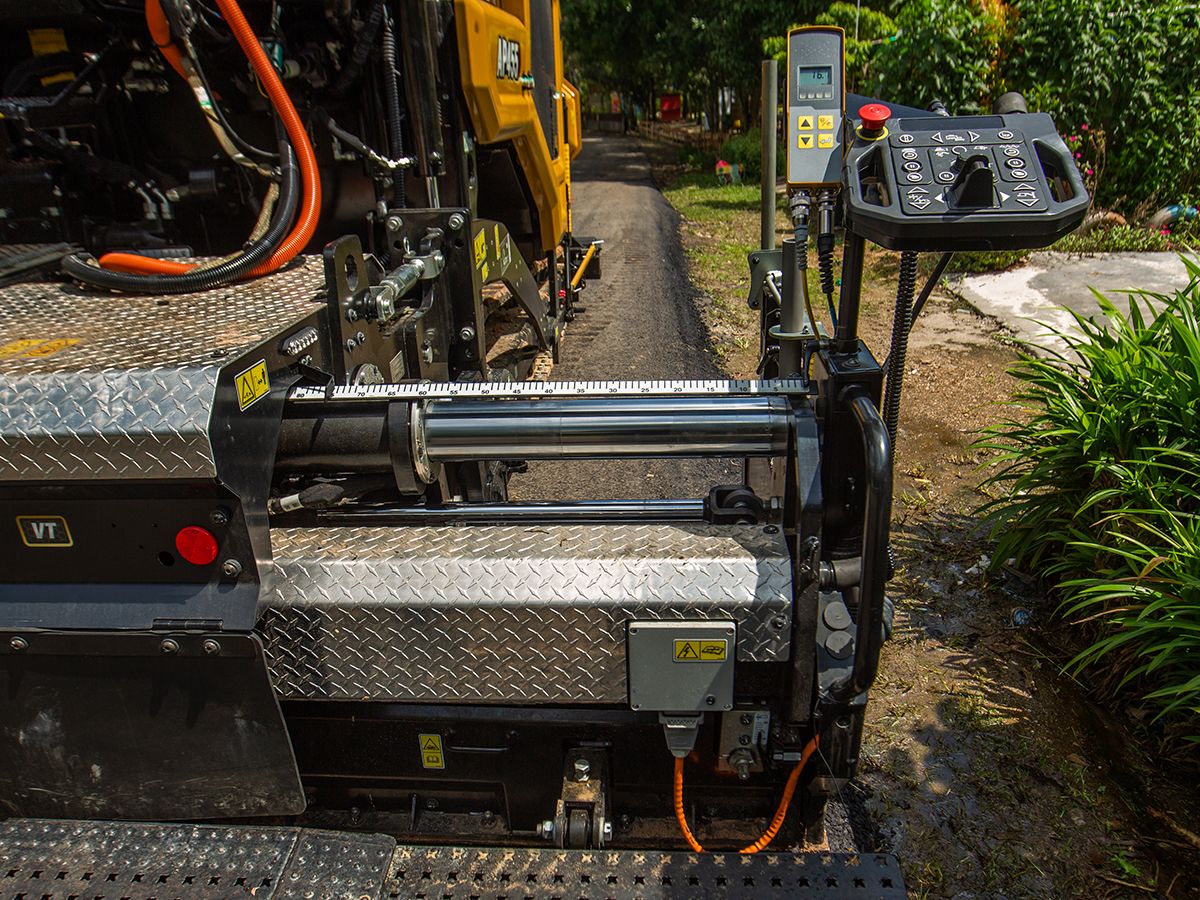

Variable speed, single amplitude tamper system with variable frequency screed plate vibration delivers material flow and tight mat textures
Low truck entry height and short front apron enhances material flow while simplifying clean out
Feeder system design with 355 mm (14″) diameter augers provides consistent material flow across the screed for efficient flow at both narrow and wide paving widths
Narrow auger chamber keeps material moving and helps eliminate stagnate patches
Independent control of each material feed sensor, simply turn off the sensor for manual proportional feed control
More Comfort
Optional ventilation system draws fumes from the auger chamber and redirects them away from the operator for a more comfortable working environment
Single sliding console enables operation from either side of the machine
Dual independent seats swing out 40º beyond the platform for good visibility to curbs and obstacles
Optimized height and integrated exhaust provide unobstructed visibility around the machine
Optional screed and paver mounted umbrellas offer protection from direct sunlight
Heated seat option delivers comfort in cool weather conditions
High visibility 76 mm (3″) seat belt helps with crew safety compliance
Easy Viewing Displays
High-definition, touchscreen displays with adjustable brightness control for all types of lighting conditions, including direct sunlight
New touch screen operating display with simplified menu structures, intuitive graphics, and short-cut keys help simplify machine adjustments
Single-touch functions from main screen include screed heat, wash-down system, vibratory activation, ventilation system, and the accessory panel
Cat® Grade Control or Basic Grade Control options available
Operating displays can be tailored to specific language requirements with multiple options available
Wash-down system includes level indication
Low Owning and Operating Costs
Durable Cat C3.6 engine provides 90 kW (120 hp) of power with variations that meet U.S. EPA Tier 4 Final and EU Stage V emission standards. The Cat 3.6 engine also meets Brazil MAR-1 and UN ECE R96 Stage IIIA emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA.
Single source supplier of Cat engines and machine parts helps maximize uptime
Exclusive Eco-mode and Automatic Engine Speed Control reduce fuel consumption and lower sound levels for better comfort and communication
Conveyor bed plates and chain guards designed to minimize labor requirements and provide lower cost replacement
Maintenance-free high torque motors reduce service requirements for the auger and conveyor drive systems
Product Link™ Elite
Make timely, fact-based decisions to maximize efficiency, improve productivity, and lower owning and operating costs
Easily track location, machine hours, fuel usage, and idle time in real time
Diagnostic codes are made available through online web applications
Remote flash for easy software updates
Scheduled maintenance and Scheduled Oil Sampling notification
Remote disable deactivates the engine for enhanced security
Service and Repair Kits
Paver and screed service and repair kits include all the parts necessary to complete specific repairs
Cat genuine parts are manufactured to precise specifications and designed for optimal performance and maximum uptime
Repair kits are identified by a single part number to make ordering easy
Select kits are available to be packaged as a kit by the dealer for over-the-counter purchases or through the dealer service shop
Sustainability
The Cat® C3.6 engine is available in configurations that meet EU Stage V emission standards.
Cat EU Stage V diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
The engine, fuel and hydraulic systems are equipped with ecology drains for easy servicing and to help prevent spillage.
Cat Scheduled Oil Sampling (S•O•S℠) Services helps reveal excessive wear, contaminated fluids or other “unseen” issues that can shorten component life. In many cases, you can extend oil and coolant change intervals by using fluid monitoring. Consult your Cat dealer or the machine’s operation and maintenance manual for more information.
Cat Grade with Grade and Slope for Asphalt Pavers allows for accurate material planning to help reduce overages during the paving process and increase final project quality for a longer lasting road surface.
Don’t waste fuel idling. Cat VisionLink® online fleet monitoring helps you manage idle time and reduce fuel burn and greenhouse gas emissions.
VisionLink displays the CO2 emissions for monitored assets, calculated by fuel type for the Runtime Fuel Burned each day in a selected date range.
AP455 Steel Track Standard Equipment
Expand all
Operating Environment
expand / collapse icon
Single sliding console
Steering guide
Technology
expand / collapse icon
Product Link Elite 643 (cellular)
Powertrain
expand / collapse icon
Cat C3.6, four-cylinder
Cooling fan, variable speed
Electrical System
expand / collapse icon
1400 CCA battery, maintenance free
150-amp alternator
12-volt charging system
Automotive-type fuse system
Auto-reset breaker for material sensors
Cat Electronic Technician (Cat ET)
Material Delivery
expand / collapse icon
Auger extensions, 0.15 m (6″)
Material feed sensors, contact
Push-roller, adjustable
Tamper bar system
Service and Maintenance
expand / collapse icon
Hydraulic oil, Cat HYDO™ Advanced
Remote access drains
Remote flash
Service repair kits
Sampling ports for Scheduled Oil Sampling
Sight Gauges, engine coolant, hydraulic oil
Safety
expand / collapse icon
Alarm, back-up
Horn, warning (front & rear)
Lights, LED Working
Mirror package
AP455 Steel Track Optional Equipment
Expand all
Operating Environment
expand / collapse icon
Canopy, hydraulic manual lift
Canopy, hydraulic power lift
Deceleration pedal
Heated seat
Umbrella
Ventilation system
Side shields
Windshield
Technology
expand / collapse icon
Cat® Grade Control
Basic Grade Control
Product Link™ Elite 683 Cellular/Satellite
Powertrain
expand / collapse icon
Ballast – front weights
Material Delivery
expand / collapse icon
Auger extensions, 0.46 m (1.5′)
Mainframe extensions, power
Mainframe extensions, manual
Material feed sensors, sonic
Wash-down pump and reel
Safety
expand / collapse icon
Lights, LED Roading
Warning beacon, LED
