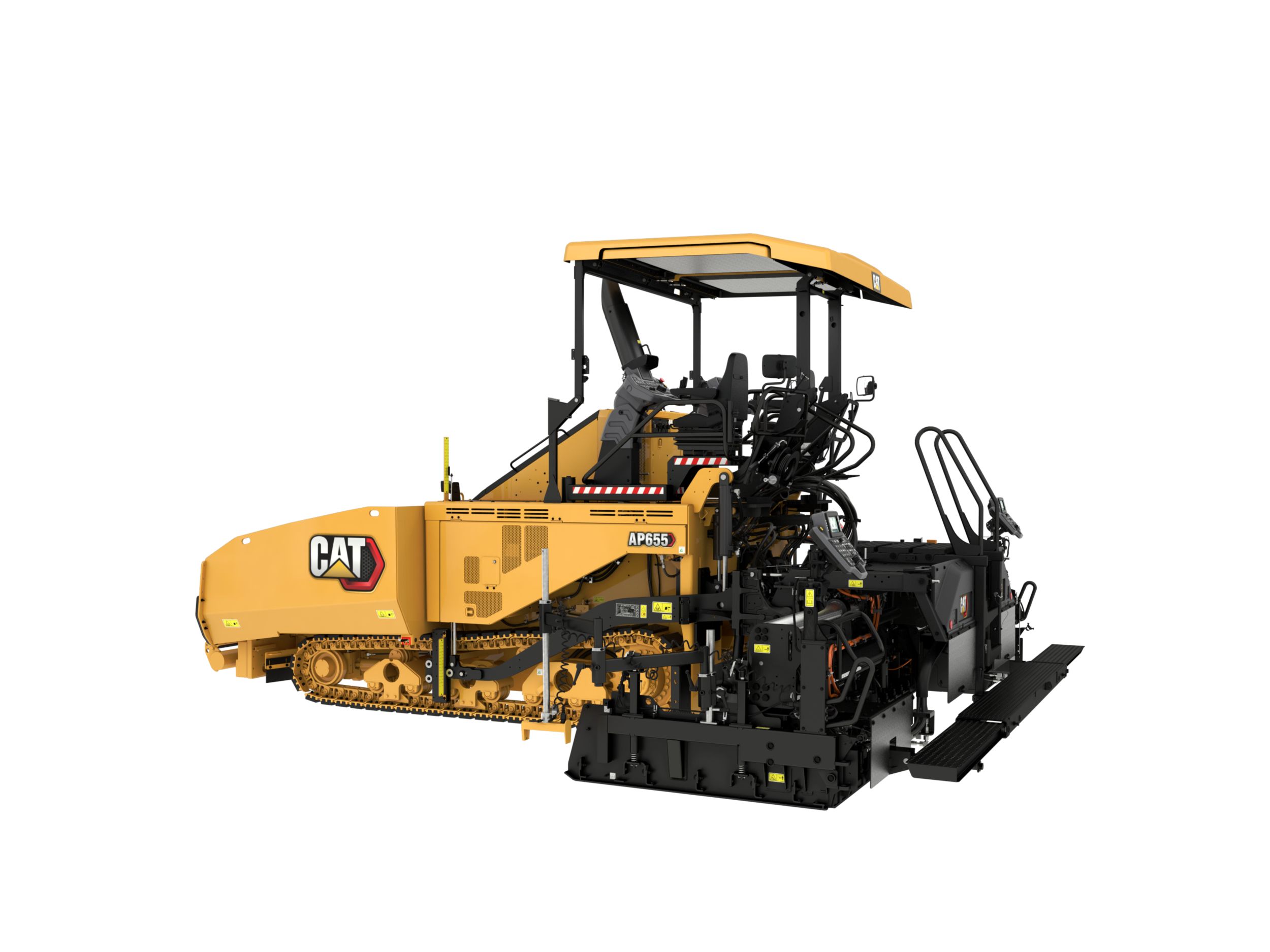

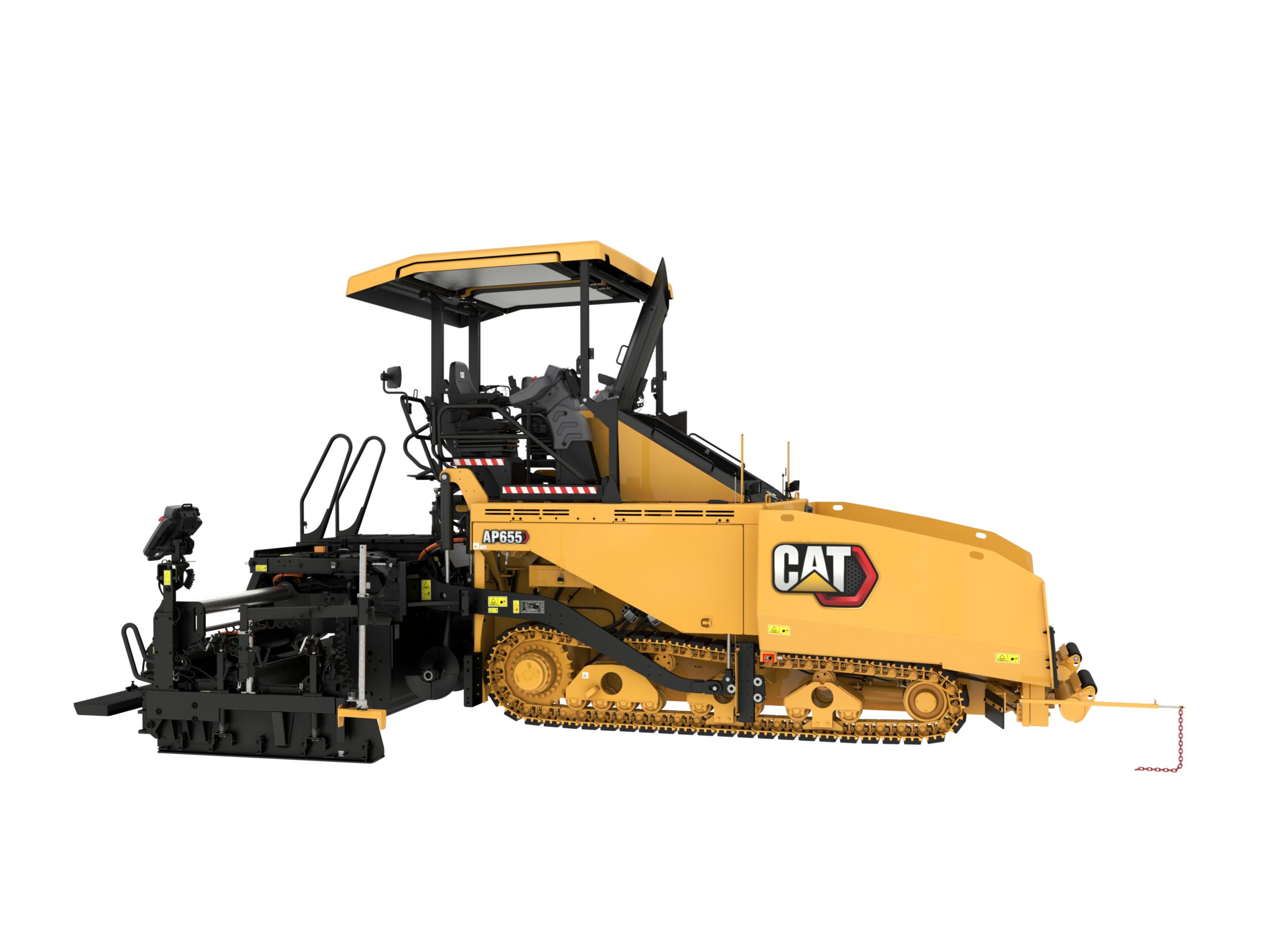

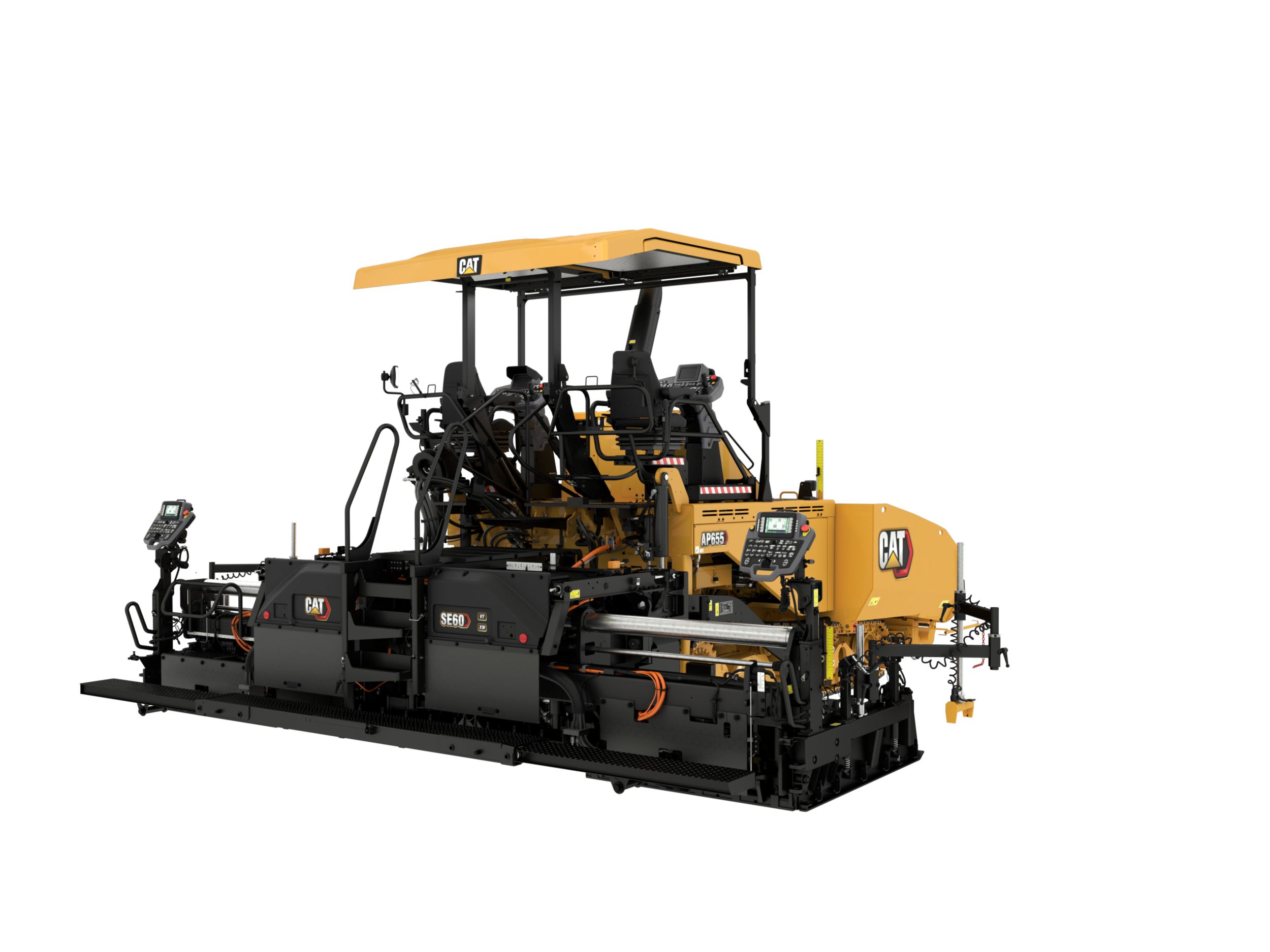

The AP655 steel track asphalt paver delivers a high-return on investment with its fast-heating screed system, durable components, and easy to use technology. A variety of screed choices provide versatility and high-quality results on interstates, highways, airports, and parking lots.
Paving Range with SE50 VT
2.55 m – 8.0 m (8′ 4″ – 26′ 4″)
Engine Power (1)
129 kW
Engine Model (1)
Cat C4.4
Product specifications for AP655 Steel Track Paver Track Asphalt Pavers
The AP655 steel track asphalt paver delivers a high-return on investment with its fast-heating screed system, durable components, and easy to use technology. A variety of screed choices provide versatility and high-quality results on interstates, highways, airports, and parking lots.
Expand all
Dimensions
expand / collapse icon
Paving Range with SE50 VT
2.55 m – 8.0 m (8′ 4″ – 26′ 4″)
Paving Range with SE60 VT XW
3.0 m – 10.0 m (10′ – 33′)
Operating Length
6.8 m
Operating Width
3.3 m
Overall Height
3.9 m
Transport Length
6.6 m
Transport Width
2.55 m
Transport Height
3 m
Engine
expand / collapse icon
Engine Power (1)
129 kW
Engine Model (1)
Cat C4.4
Operating Specifications
expand / collapse icon
Maximum Travel Speed
14.5 km/h
Maximum Paving Speed
25 m/min
Inside Turn Radius
0.5 m
Maximum Throughput Capacity
1300 tonnes/hr
Weights
expand / collapse icon
Operating weight with SE50 VT
19530 kg
Operating weight with SE60 VT XW
21052 kg
Shipping Weight – Paver Only
15754 kg
Service Refill Capacities
expand / collapse icon
Fuel Tank Capacity
278 l
DEF Tank
19.1 l
Cooling System
31 l
Hydraulic Oil Tank
219 l
Washdown Tank
30 l
High Return on Investment
Exclusive 70 kW integrated generator delivers fast, reliable screed heating and is designed for long life by the same team that developed the D7E electric drive dozer
Fast heating screed leads to more daily production, heating time in as little as 15 minutes
Steel trackundercarriage design delivers excellent traction, good flotation, and smooth travel that helps lead to increased production
Exclusive air flow design improves operating conditions for the crew and keeps components cooler for lasting durability
Technology That Works For You
Pave Start Assistant saves set-up profiles for repeatable use on future job sites including: tow-point height, screed heat temperature, paving speed, paving width, paving depth, crown, extender slope and height, screed assist, and screed locking features
A hopper level sensor (option) with temperature indication keeps the operator informed of material height and delivery temperatures, indicators are located in each tractor display
Exclusive screed heating system monitors elements for failure conditions and helps eliminate unnecessary replacement
Cat Grade Control option is integrated into the tractor and screed displays for optimized operator efficiency
Quality Results, Higher Earnings
Versatile tamper-bar screed designs deliver excellent ride, density, and mat texture while providing superior adjustment
Tow-point design utilizes exclusive linkage for optimal screed flotation
Exclusive 2-speed proportional control on the screed extenders
Cat Grade Control is a factory-integrated guidance system that helps remove irregularities from the surface and control mat thickness for increased production, lower operating costs, and higher profitability
Low Owning and Operating Costs
Exclusive Eco-mode and Automatic Engine Speed Control, reduce fuel consumption and lower sound levels for better comfort and communication
4-pump feeder system is designed for high production in Eco-mode, leads to lower fuel consumption
Million cycle switches provide reliability
Conveyor bed plates and chain guards designed to minimize labor requirements and provide lower cost replacement
Heating elements slide-out for easy replacement
Machined screed frames simplify screed plate replacement
Enhanced hopper flashing with increased memory and temperature resiliency offers better performance during truck exchanges
More Comfort
Ventilation system draws fumes from the auger chamber and redirects them away from the operator for a more comfortable working environment
Dual operating station provide back-up capability and complete control from either side of the machine, each station can swing-out beyond the frame for good all-around visibility
Heated seat option, pneumatic suspension, multiple adjustments, and tilting consoles provide day-long comfort
Eco-mode provides low sound levels that supports clear communication with the crew
High visibility 76 mm (3″) seat belt helps with crew safety compliance
USB port simplifies software updates
Cup holders offer convenience
Easy Viewing Displays
Touch-screen displays with adjustable brightness control enable operators to fine-tune performance in various lighting conditions
Touch-screen access simplifies activation of the generator and auxiliary power, while also providing easy adjustments to screed plate heating temperatures, tamper and vibratory speeds, Cat Grade Control (option), and stored operator preferences
Operating displays can be tailored to specific language requirements with multiple options available
Product Link™ Elite
Make timely, fact-based decisions to maximize efficiency, improveproductivity, and lower owning and operating costs
Easily track location, machine hours, fuel usage, and idle time
Diagnostic codes are made available through online web applications
Service and Repair Kits
Paver and screed service and repair kits include the parts necessary to complete specific repairs
Cat genuine parts are manufactured to precise specifications and designed for optimal performance and maximum uptime
Repair kits are identified by a single part number to make ordering easy
Select kits are available to be packaged as a kit by the dealer for over the counter purchases or through the dealer service shop
AP655 Steel Track Paver Standard Equipment
Expand all
Operating Environment
expand / collapse icon
Dual operating stations
Steering guide
Ventilation System
Technology
expand / collapse icon
Product Link™ Elite 641_cellular
Powertrain
expand / collapse icon
Automatic engine speed control
Cat C4.4 Engine
Variable speed cooling fan
Eco-mode
Extended life hydraulic oil
Electrical system
expand / collapse icon
70 kW generator
Cat Electronic Technician
Machine security system
Remote jump start receptacle
Automotive type fuse system
12-volt power receptacle
100 amp alternator
1000 CCA batteries
Material Delivery
expand / collapse icon
Contact-type material feed sensors
Adjustable push-roller
Service and Maintenance
expand / collapse icon
Extended-life coolant
Remote access drains
Scheduled Oil sampling ports
Sight gauges
Engine coolant heater
Safety
expand / collapse icon
Back-up alarm
Horn
Working lights
Mirror package
Vandal covers
AP655 Steel Track Paver Optional Equipment
Expand all
Technology
expand / collapse icon
Cat Grade Control
Hopper level and material height sensor
Pave start assistant
Product Link™ Elite 631_satellite
Operating Environment
expand / collapse icon
Air-ride seat
Hard top canopy
Deceleration pedal
Friction steering
Heated seats
Side shields
Towpoint indicator (2nd)
Umbrella
Screen visor
Windshield
Powertrain
expand / collapse icon
Ballast_front weights
Electrical System
expand / collapse icon
Auxiliary power panel_6.6 kW
Material Delivery
expand / collapse icon
Auger extension
Leveling devices
Mainframe extensions_manual
Mainframe extensions_power
Sonic feed sensors
Power folding front apron
Truck hitch
Washdown pump and reel
Washdown tank
Wide width paving packages
Service and Maintenance
expand / collapse icon
Service repair kits
Uptime kits
Grade References
expand / collapse icon
Rigid Ski, 9.15 m (30′) and 12.2 m (40′)
Sonic Averaging Beam
