Operating Weight
1605 kg
Standard Compaction Width
900 mm
Curb Clearance
403 mm
Product specifications for CB1.7 Tandem Vibratory Rollers

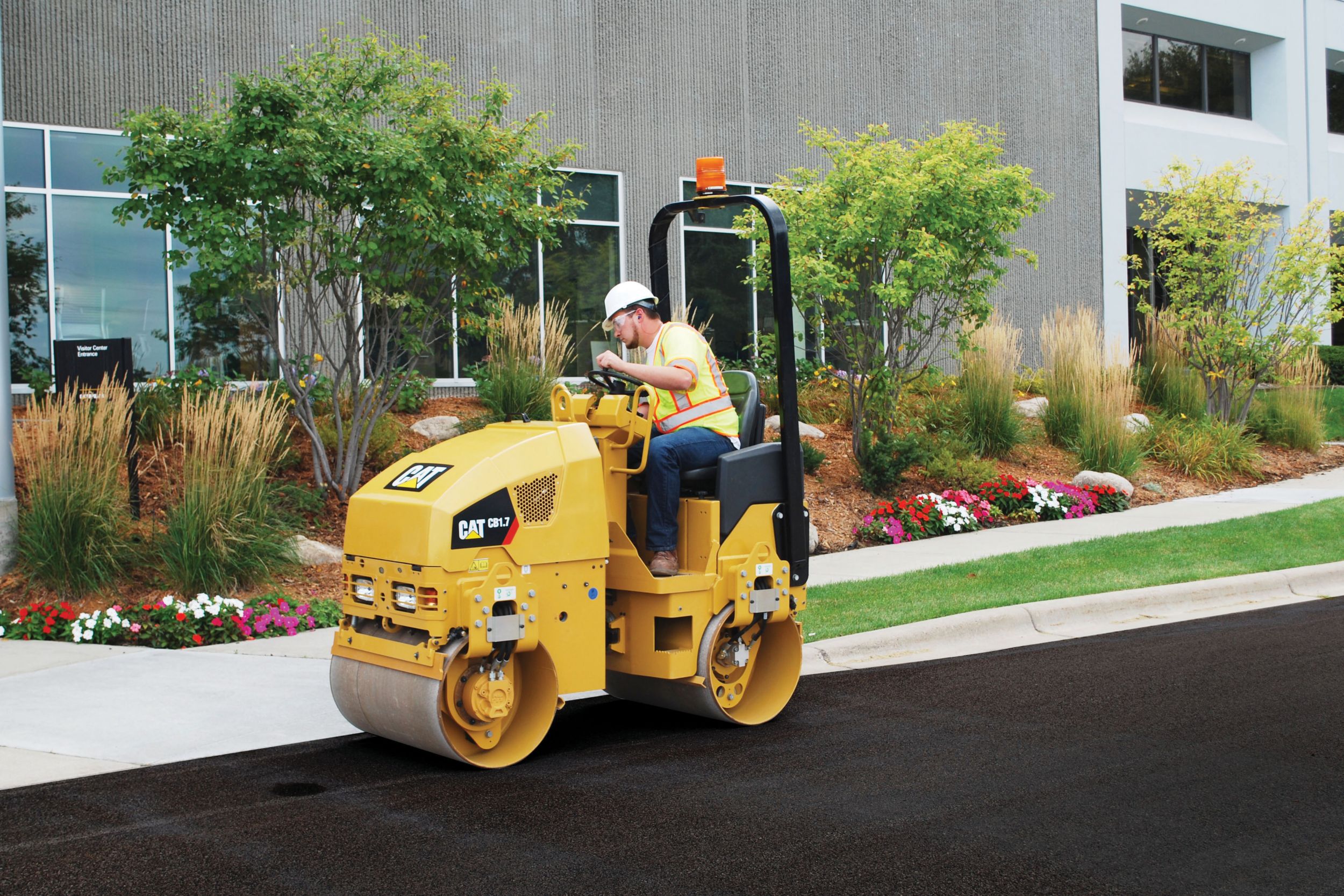

The CB1.7 is a 1.7 metric ton utility roller with 900 mm (35 in) tandem vibratory drums.
Weights
expand / collapse icon
Operating Weight
1605 kg
Operating Specifications
expand / collapse icon
Standard Compaction Width
900 mm
Curb Clearance
403 mm
Ground Clearance
251 mm
Travel Speed – Maximum
8.6 km/h
Static Linear Load
9.4 kg/cm
Engine
expand / collapse icon
Gross Power
18.4 kW
Engine Model
Cat C1.1
Dimensions
expand / collapse icon
Overall Length
2040 mm
Overall Width
1012 mm
Maximum Machine Height
2400 mm
Drum Width
900 mm
Drum Diameter
575 mm
Vibratory System
expand / collapse icon
Frequency
57 Hz
Nominal Amplitude – High
0.5 mm
Centrifugal Force per Drum – Maximum
13.6 kN
Service Refill Capacities
expand / collapse icon
Fuel Tank Capacity
30 l
Water Spray Tank Capacity
145 l
Simple Operation
Ergonomic operating environment with vandal protection
Spacious seating and easy access due to logically placed handles and lower platform height
Simple operation with mechanical propel and speed control levers
Efficient Performance
Compact size for excellent maneuverability in tight spaces
Excellent drum-edge visibility enhances control for better coverage and compaction results
Industry-leading compaction force delivers outstanding results
Industry-leading water tank capacity of 145 L (38 gal) sized for less fills throughout the day
Single-Point Lift for trench work and alternative transport options
Optimized Power
Powerful Cat® C1.1 engine; single source supplier for parts, service, and support
Cooling system capability of up to 49º C (120º F) for good performance in harsh environments
Quickly move around the job site with a fast travel speed of 8.6 kph (5.3 mph) for good mobility
Reliable and Easy to Maintain
3 year/3000 hour vibratory drum service interval
Reliable triple filtration design for the water spray system

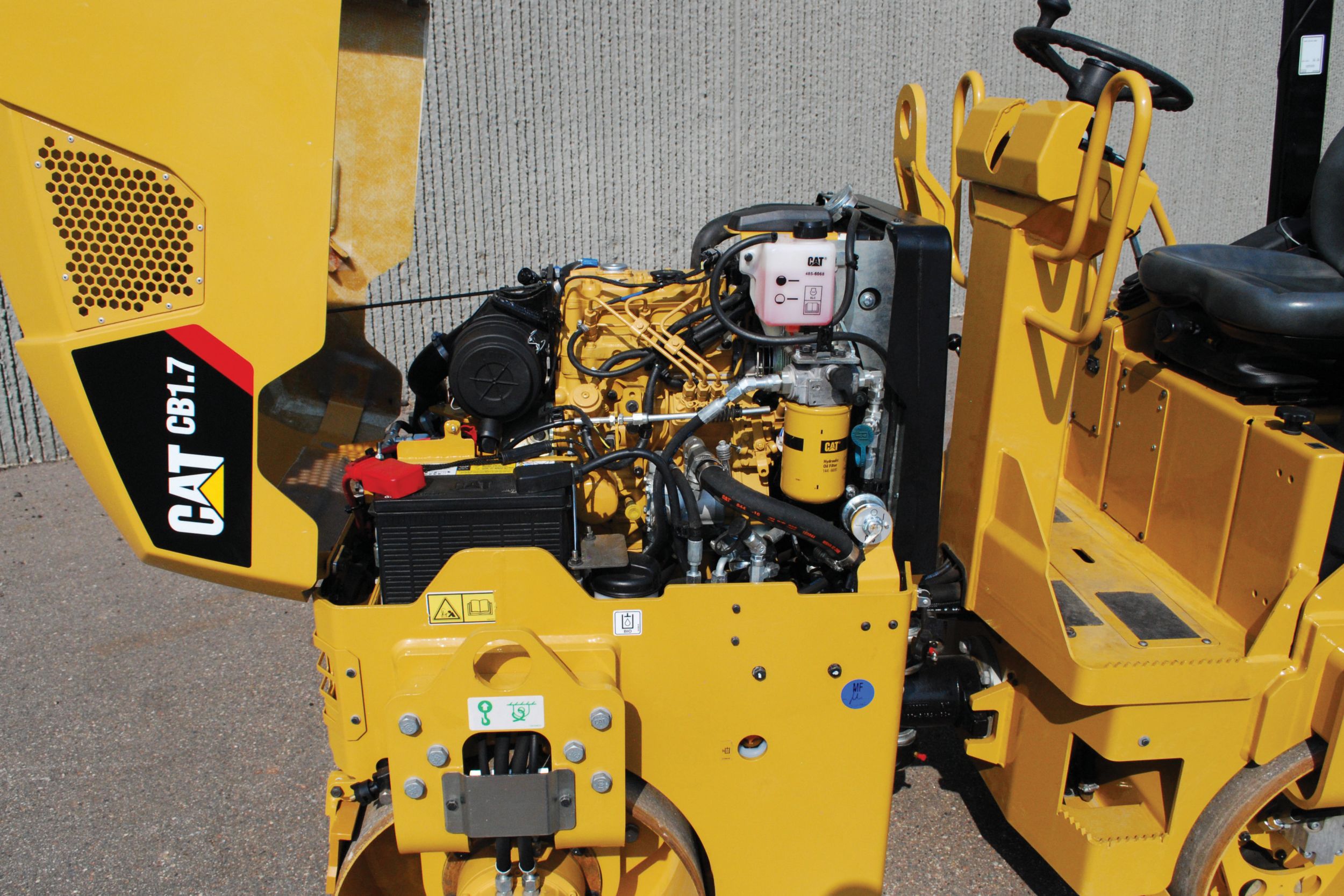

Easy access to engine service points
Robust hitch design easily supports single lift point option
Remote monitoring available with Product Link™ option
CB1.7 Standard Equipment
Expand all
Operator Environment
expand / collapse icon
ROPS Folding
Operator Console w/ Emergency Stop, Simple Rocker Switches, and Machine Warning Indicator Lights
Dual 12-volt Power Outlet
Horn, Backup Alarm
Compaction System
expand / collapse icon
Folding Scrapers
Vibe Selection – Front, Rear, or Both
Pressurized, Triple-Filtration Spray System
Powertrain
expand / collapse icon
Air Cleaner, Dual Element
Engine Belt Guard
Technology
expand / collapse icon
ProductLinkTM
Electrical
expand / collapse icon
Working Lights
Other
expand / collapse icon
Vandal Protection – Lockable Hood and Controls Cover
Machine Life and Tiedowns
CB1.7 Optional Equipment
Expand all
Operator Environment
expand / collapse icon
Adjustable Suspension Seat w/ Operator Presence Switch
ROPS Fixed
Electrical
expand / collapse icon
Battery Disconnect
Roading Lights
Rotating Amber Beacon
Light Guards
Other
expand / collapse icon
Single Point Lift
