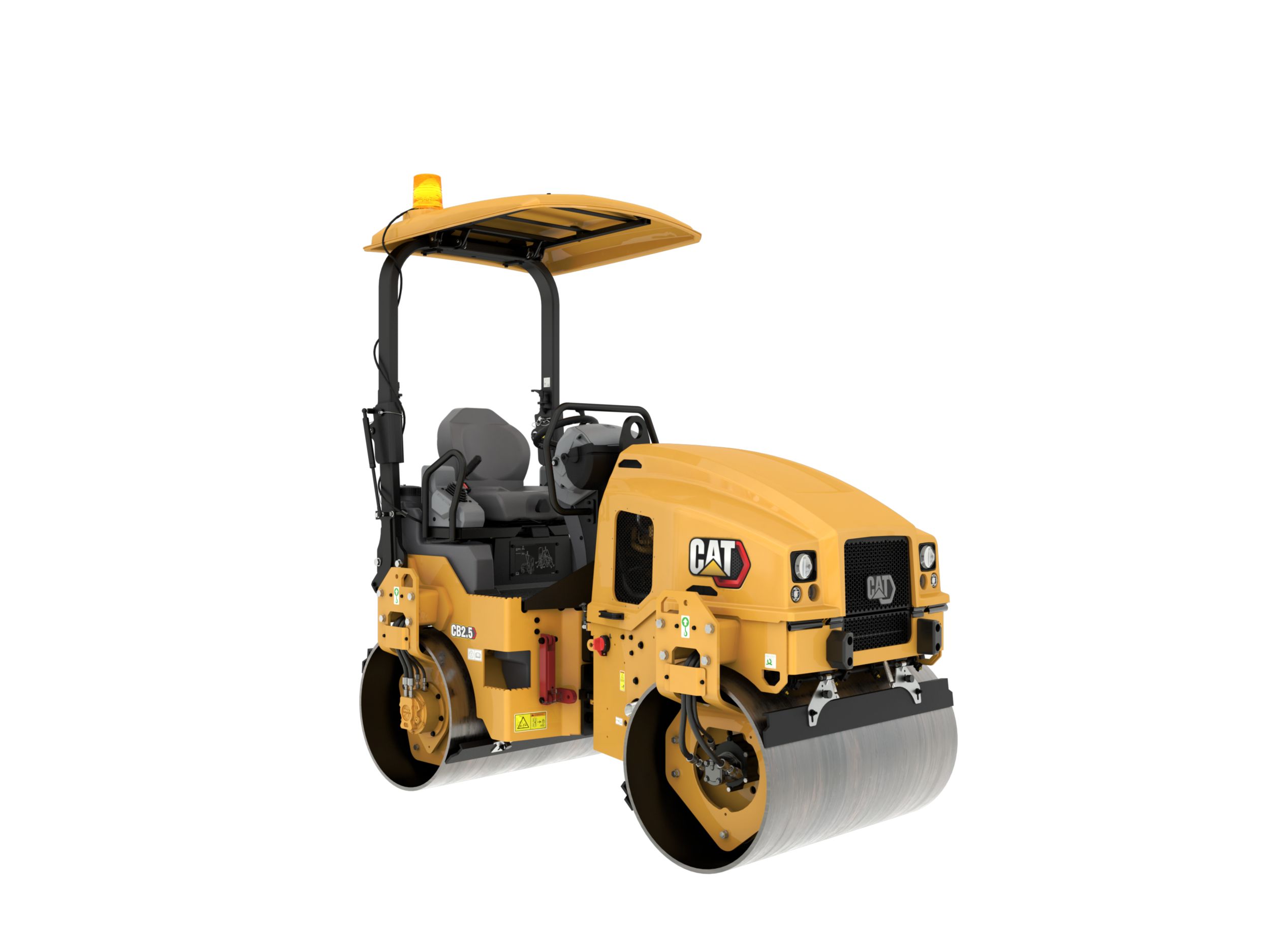

The CB2.5 is a 2.5 metric ton machine with 1000 mm (39 in) drums. It’s a versatile machine with a high amplitude and is an excellent match for car parks, shoulders, small parking lots, lane additions, and other similar sized jobs.
Standard Operating Weight with ROPS
2521 kg
Maximum Operating Weight with Cab
2521 kg
Static Linear Load
11.85 kg/cm
Product specifications for CB2.5 Tandem Vibratory Rollers
The CB2.5 is a 2.5 metric ton machine with 1000 mm (39 in) drums. It’s a versatile machine with a high amplitude and is an excellent match for car parks, shoulders, small parking lots, lane additions, and other similar sized jobs.
Weights
expand / collapse icon
Standard Operating Weight with ROPS
2521 kg
Maximum Operating Weight with Cab
2521 kg
Static Linear Load
11.85 kg/cm
Maximum Operating Weight with ROPS
3021 kg
Maximum Weight at Front Drum
1185 kg
Maximum Weight at Rear Drum
1336 kg
Dimensions
expand / collapse icon
Compaction Width
1000 mm
Overall Width
1112 mm
Drum Diameter
720 mm
Overall Length
2520 mm
Drum Width
1000 mm
Wheel Base
1800 mm
Height – ROPS
2700 mm
Operating Specifications
expand / collapse icon
Travel Speed – Maximum
12 km/h
Turning Radius – Inside Drum Edge
2640 mm
Ground Clearance
285 mm
Static Linear Load
11.85 kg/cm
Static Linear Load – With Cab
13.36 kg/cm
Turning Radius – Outside Drum Edge
3640 mm
Curb Clearance
453 mm
Drum Offset
50 mm
Engine
expand / collapse icon
Gross Power
36 kW
Engine Model
C1.7T
Net Power – ISO 9249
35.5 kW
Vibratory System
expand / collapse icon
Nominal Amplitude – High
0.51 mm
Centrifugal Force – Maximum
30 kN
Frequency
3840 V/mm
Service Refill Capacities
expand / collapse icon
Fuel Tank Capacity
55 l
Water Spray Tank Capacity
200 l
Simple to Operate
See more
Simple to Operate
• Rocker switches and Cat gauge cluster with water tank gauge to help make operation easy
• Variable water spray system to extend time between water fills
• Optional sliding operator seat and dual propel levers for reducing
Proven Productivity
See more
Proven Productivity
• Large 720 mm (28 in) drum diameters for smooth mat finish
• 14 mm (0.55 in) thick drum shells for longer durability
• Dual vibratory frequencies and ballast options to maximize compactive effort
• C1.7T engine with 18.4 kW (24.7 hp) (gross)
Technology Ready
See more
Technology Ready
• Product link for remote monitoring of machine location and status
• Optional Compaction Measurement Value (CMV) displayed to the operator for improved compaction performance and consistency
Superior Safety
See more
Superior Safety
• High visability 75 mm (3 in) orange seatbelt to make job site safety visible
• Seat with operator presence sensor to prevent unintended operation while out of the seat
• Slip resistant steps and platform for improved operator safety
• Optional rotating amber beacon
Easy to Service
See more
Easy to Service
• Cat controls with ET capability for easy troubleshooting
• Reduced maintenance tasks for quick servicing
• 500 hour oil change interval to reduce maintenance time and costs
• Uptime kits and customer value agreements available to ensure maximum uptime
• LED lighting for durable and reliable performance
• External fuel fill for easy access
CB2.5 Standard Equipment
Expand all
OPERATOR ENVIRONMENT
expand / collapse icon
Adjustable Suspension Seat with Operator Presense Switch
ROPS Folding
Seat Belt – 75 mm (3 in) high visibility orange
Operator Console w/ Water Tank Gauge, Emergency Stop, and Glove Box
12-volt Power Outlet
Horn, Backup Alarm
COMPACTON SYSTEM
expand / collapse icon
Folding Scrapers
Vibe Selection – front, rear, or both
Pressurized, Triple-Filtration Spray System with Test Mode
POWERTRAIN
expand / collapse icon
Auto Engine Off and Auto Warmup
Air Cleaner, Dual Element
Engine Belt Guard
TECHNOLOGY
expand / collapse icon
Telematics
ELECTRICAL
expand / collapse icon
LED Working Lights
OTHER
expand / collapse icon
Vandal Protection – lockable hood, fuel fill, and controls cover
Machine Life and Tiedowns
Offsets Hitch
CB2.5 Optional Equipment
Expand all
OPERATOR ENVIRONMENT
expand / collapse icon
ROPS Fixed
Sun Canopy
Seat – Side Shift
Dual Propel Levers
COMPACTON SYSTEM
expand / collapse icon
Fixed Scrapers
Cocoa Mats
Edge Cutter Ready
Water Sprayer Antifreeze Kit
Ballast Kit – 200 kg (440 lb)
Ballast Kit – 400 kg (880 lb)
POWERTRAIN
expand / collapse icon
Traction Control
TECHNOLOGY
expand / collapse icon
Remote Flash / Troubleshoot
CMV – Compaction Measurement Value
ELECTRICAL
expand / collapse icon
Battery Disconnect
LED Roading Lights
Rotating Amber Beacon
OTHER
expand / collapse icon
Biodegradeable Hydraulic Oil
Bumpers
Single Point Lift
Custom Paint
