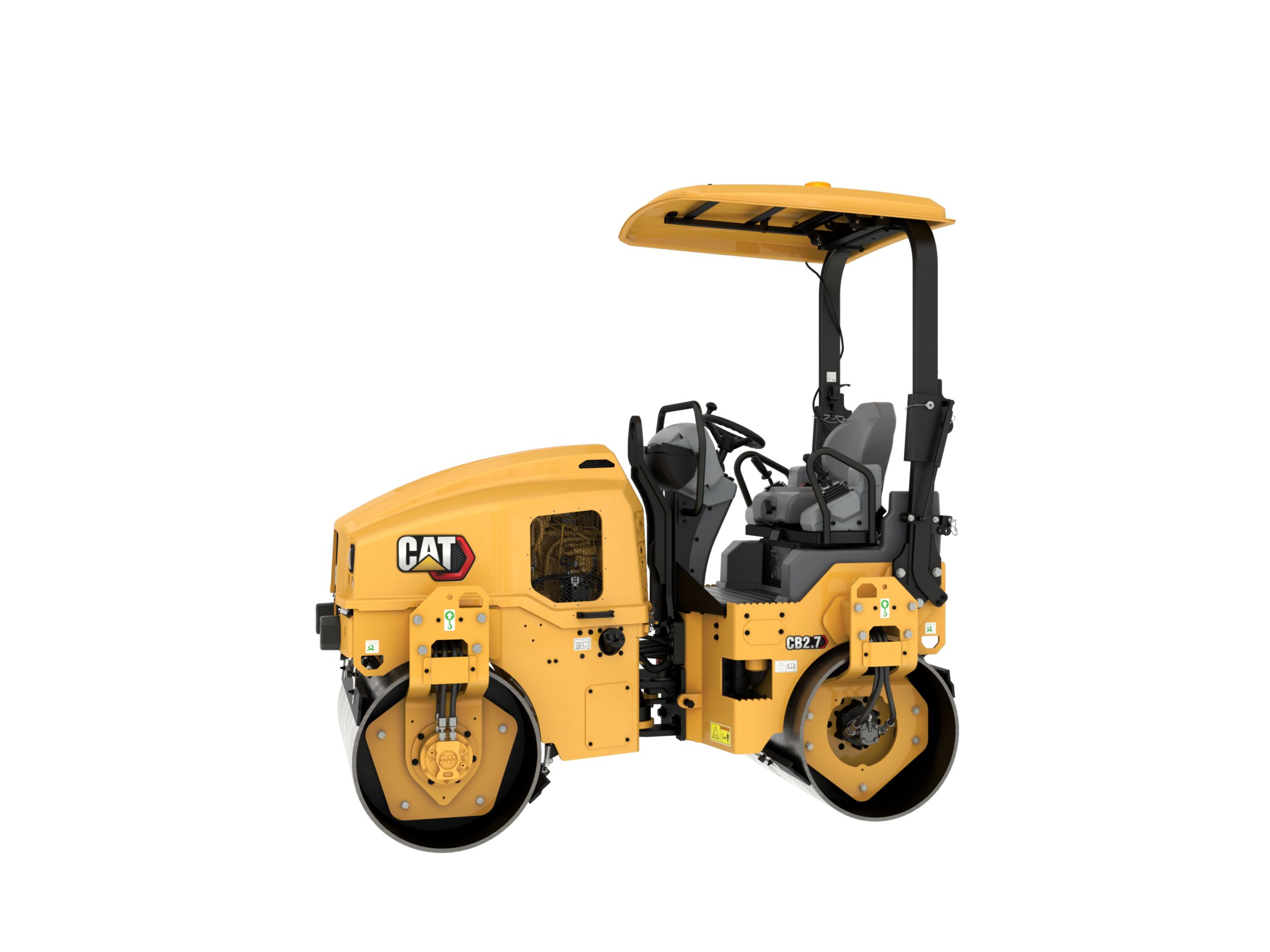

CB2.7 Tandem Vibratory Rollers

Standard Operating Weight with ROPS 2698 kg Maximum Weight at Front Drum 1301 kg Maximum Operating Weight with ROPS 2698 kg Product specifications for CB2.7 Tandem Vibratory Rollers The CB2.7 is a 2.7 to 3 metric ton compactor with 1200 mm (47 in) drums. It’s a versatile machine that can be used as the only vibratory roller on small sized jobs or on larger jobs as a support roller for high-production rollers. Its high amplitude and drum width give it the capacity to achieve a tons-per-day production rate that make it an excellent match for shoulders, small parking lots, lane additions, or other similar sized jobs. Weights expand / collapse icon Standard Operating Weight with ROPS 2698 kg Maximum Weight at Front Drum 1301 kg Maximum Operating Weight with ROPS 2698 kg Maximum Weight at Rear Drum 3075 kg Static Linear Load 13 kg/cm Dimensions expand / collapse icon Compaction Width 1200 mm Drum Diameter 720 mm Overall Width 1312 mm Height – ROPS 1799 mm Overall Length 2520 mm Drum Width 1200 mm Wheel Base 1800 mm Operating Specifications expand / collapse icon Turning Radius – Outside Drum Edge 147.2 in Drum Offset 50 mm Travel Speed – Maximum 12 km/h Static Linear Load 12.6 kg/cm Turning Radius – Inside Drum Edge 2540 mm Curb Clearance 453 mm Ground Clearance 285 mm Engine expand / collapse icon Gross Power 36 kW Net Power – ISO 9249 35.5 kW Engine Model C1.7T Vibratory System expand / collapse icon Frequency 64/53 Hz (3840/3180 vpm) Frequency 64 Hz Centrifugal Force – Maximum 35 kN Nominal Amplitude – High 0.52 mm Service Refill Capacities expand / collapse icon Fuel Tank Capacity 55 l Water Spray Tank Capacity 200 l Simple to Operate See more Simple to Operate • Rocker switches and Cat gauge cluster with water tank gauge to help make operation easy • Variable water spray system to extend time between water fills • Optional sliding operator seat and dual propel levers for reducing Proven Productivity See more Proven Productivity • Large 720 mm (28 in) drum diameters for smooth mat finish • 14 mm (0.55 in) thick drum shells for longer durability • Dual vibratory frequencies and ballast options to maximize compactive effort • C1.7T engine with 36 kW (48.2 hp) (gross) Technology Ready See more Technology Ready • Product link for remote monitoring of machine location and status • Optional Compaction Measurement Value (CMV) displayed to the operator for improved compaction performance and consistency Superior Safety See more Superior Safety • High visability 75 mm (3 in) orange seatbelt to make job site safety visible • Seat with operator presence sensor to prevent unintended operation while out of the seat • Slip resistant steps and platform for improved operator safety • Optional rotating amber beacon Easy to Service See more Easy to Service • Cat controls with ET capability for easy troubleshooting • Reduced maintenance tasks for quick servicing • 500 hour oil change interval to reduce maintenance time and costs • Uptime kits and customer value agreements available to ensure maximum uptime • LED lighting for durable and reliable performance • External fuel fill for easy access CB2.7 Standard Equipment Expand all OPERATOR ENVIRONMENT expand / collapse icon Adjustable Suspension Seat with Operator Presense Switch ROPS Folding Seat Belt – 75 mm (3 in) high visibility orange Operator Console w/ Water Tank Gauge, Emergency Stop, and Glove Box 12-volt Power Outlet Horn, Backup Alarm COMPACTON SYSTEM expand / collapse icon Folding Scrapers Vibe Selection – front, rear, or both Pressurized, Triple-Filtration Spray System with Test Mode POWERTRAIN expand / collapse icon Auto Engine Off and Auto Warmup Air Cleaner, Dual Element Engine Belt Guard TECHNOLOGY expand / collapse icon Telematics ELECTRICAL expand / collapse icon LED Working Lights OTHER expand / collapse icon Vandal Protection – lockable hood, fuel fill, and controls cover Machine Life and Tiedowns Offsets Hitch CB2.7 Optional Equipment Expand all OPERATOR ENVIRONMENT expand / collapse icon ROPS Fixed Sun Canopy Seat – Side Shift Dual Propel Levers COMPACTON SYSTEM expand / collapse icon Fixed Scrapers Cocoa Mats Edge Cutter Ready Water Sprayer Antifreeze Kit Ballast Kit – 200 kg (440 lb) Ballast Kit – 400 kg (880 lb) POWERTRAIN expand / collapse icon Traction Control TECHNOLOGY expand / collapse icon Remote Flash / Troubleshoot CMV – Compaction Measurement Value ELECTRICAL expand / collapse icon Battery Disconnect LED Roading Lights Rotating Amber Beacon OTHER expand / collapse icon Biodegradeable Hydraulic Oil Bumpers Single Point Lift Custom Paint
