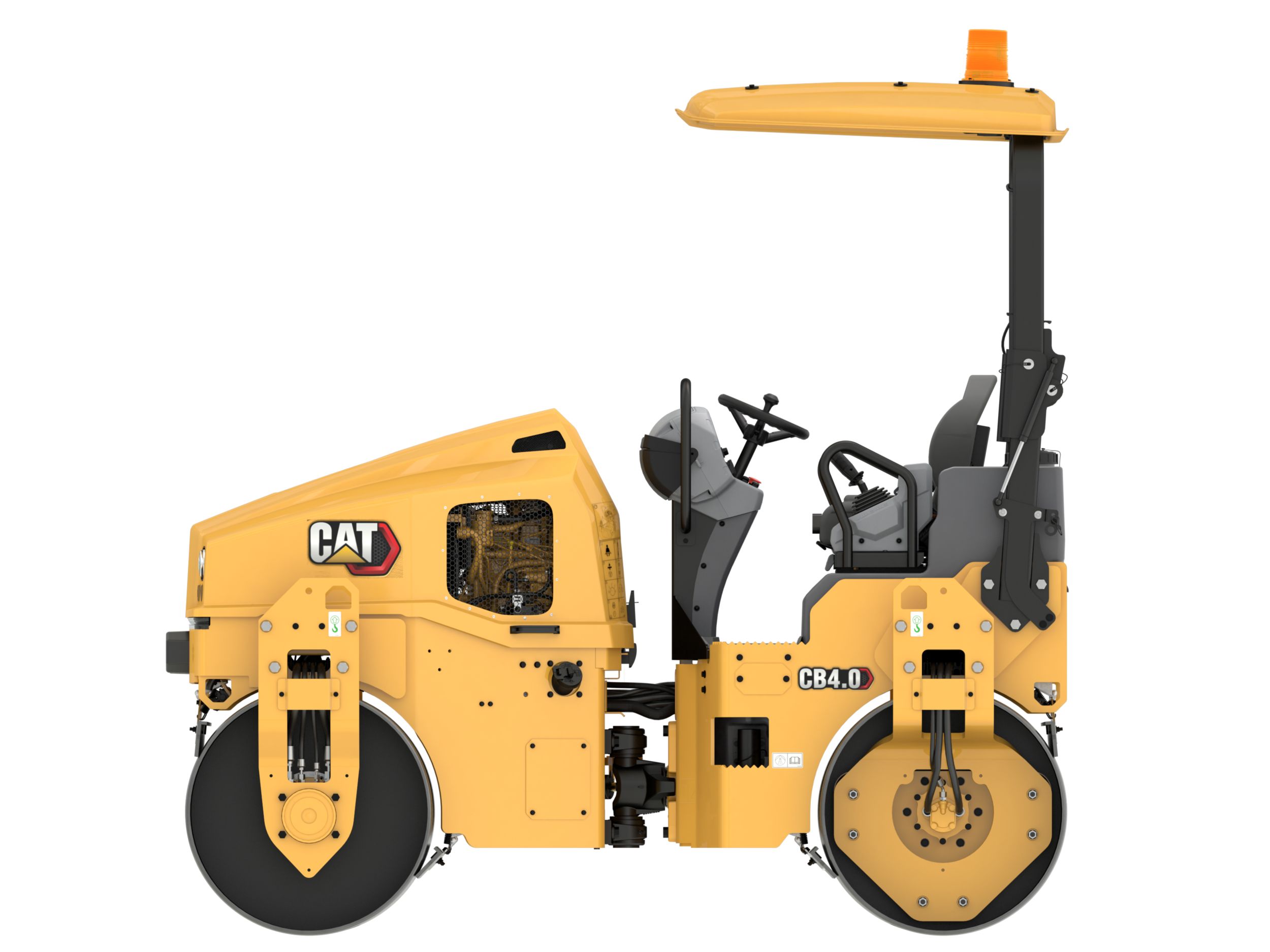

The CB4.0 is a 3-5 metric ton compactor with 800 mm (31.5 in) drums. It’s a versatile machine that can be used as the only vibratory roller on small sized jobs or on larger jobs as a support roller for high-production rollers. Its high amplitude and drum width give it the capacity to achieve a tons-per-day production rate that make it an excellent match for shoulders, small parking lots, lane additions, or other similar sized jobs.
Standard Operating Weight with ROPS
3623 kg
Maximum Operating Weight with ROPS
4315 kg
Static Linear Load
13.9 kg/cm
Product specifications for CB4.0 Tandem Vibratory Rollers
Weights
expand / collapse icon
Standard Operating Weight with ROPS
3623 kg
Maximum Operating Weight with ROPS
4315 kg
Static Linear Load
13.9 kg/cm
Operating Weight – At Front Drum with ROPS/FOPS
1744 kg
Operating Weight – At Rear Drum with ROPS/FOPS
1879 kg
Dimensions
expand / collapse icon
Compaction Width
1300 mm
Overall Length
2853 mm
Overall Width
1400 mm
Drum Width
1300 mm
Drum Diameter
800 mm
Wheel Base
2050 mm
Height – ROPS
2660 mm
Operating Specifications
expand / collapse icon
Drum Offset
50 mm
Curb Clearance
499 mm
Ground Clearance
284 mm
Travel Speed – Maximum
13 km/h
Turning Radius – Inside Drum Edge
2926 mm
Turning Radius – Outside Drum Edge
4226 mm
Engine
expand / collapse icon
Gross Power
36 kW
Engine Model
C1.7T
Net Power – ISO 9249
35.5 kW
Vibratory System
expand / collapse icon
Frequency
55/45 Hz (3300/2700 vpm)
Nominal Amplitude – High
0.5 mm
Centrifugal Force – Maximum
33.47 kN
Service Refill Capacities
expand / collapse icon
Fuel Tank Capacity
81 l
Water Spray Tank Capacity
300 l
Simple to Operate
See more
Simple to Operate
• Rocker switches and Cat gauge cluster with water tank gauge to help make operation easy
• Variable water spray system to extend time between water fills
• Optional sliding operator seat and dual propel levers for reducing operator fatigue and better job surface visibility
Proven Productivity
See more
Proven Productivity
• Large 800 mm (31.5 in) drum diameters for smooth mat finish
• 16 mm (0.6 in) thick drum shells for longer durability
• Dual vibratory frequencies and ballast options to maximize compactive effort
• C1.7T engine with 36 kW (48.2 hp) (gross)
Technology Ready
See more
Technology Ready
• Product link for remote monitoring of machine location and status
• Optional Compaction Measurement Value (CMV) displayed to the operator for improved compaction performance and consistency
Superior Safety
See more
Superior Safety
• High visability 75 mm (3 in) orange seatbelt to make job site safety visible
• Seat with operator presence sensor to prevent unintended operation while out of the seat
• Slip resistant steps and platform for improved operator safety
• Optional rotating amber beacon
Easy to Service
See more
Easy to Service
• Cat controls with ET capability for easy troubleshooting
• Reduced maintenance tasks for quick servicing
• 500 hour oil change interval to reduce maintenance time and costs
• Uptime kits and customer value agreements available to ensure maximum uptime
• LED lighting for durable and reliable performance
• External fuel fill for easy access
CB4.0 Standard Equipment
Expand all
OPERATOR ENVIRONMENT
expand / collapse icon
Adjustable Suspension Seat with Operator Presense Switch
ROPS Folding
Seat Belt – 75 mm (3 in) high visibility orange
Operator Console w/ Water Tank Gauge, Emergency Stop, and Glove Box
12-volt Power Outlet
Horn, Backup Alarm
COMPACTON SYSTEM
expand / collapse icon
Folding Scrapers
Vibe Selection – front, rear, or both
Pressurized, Triple-Filtration Spray System with Test Mode
POWERTRAIN
expand / collapse icon
Auto Engine Off and Auto Warmup
Air Cleaner, Dual Element
Engine Belt Guard
TECHNOLOGY
expand / collapse icon
Telematics
ELECTRICAL
expand / collapse icon
LED Working Lights
OTHER
expand / collapse icon
Vandal Protection – lockable hood, fuel fill, and controls cover
Machine Life and Tiedowns
Offsets Hitch
CB4.0 Optional Equipment
Expand all
OPERATOR ENVIRONMENT
expand / collapse icon
ROPS Fixed
Sun Canopy
Seat – Side Shift
Dual Propel Levers
COMPACTON SYSTEM
expand / collapse icon
Fixed Scrapers
Cocoa Mats
Edge Cutter Ready
Water Sprayer Antifreeze Kit
Ballast Kit – 400 kg (880 lb)
Ballast Kit – 542 kg (1194.91 lb)
POWERTRAIN
expand / collapse icon
Traction Control
TECHNOLOGY
expand / collapse icon
Remote Flash / Troubleshoot
CMV – Compaction Measurement Value
ELECTRICAL
expand / collapse icon
Battery Disconnect
LED Roading Lights
Rotating Amber Beacon
OTHER
expand / collapse icon
Biodegradeable Hydraulic Oil
Bumpers
Single Point Lift
Custom Paint
